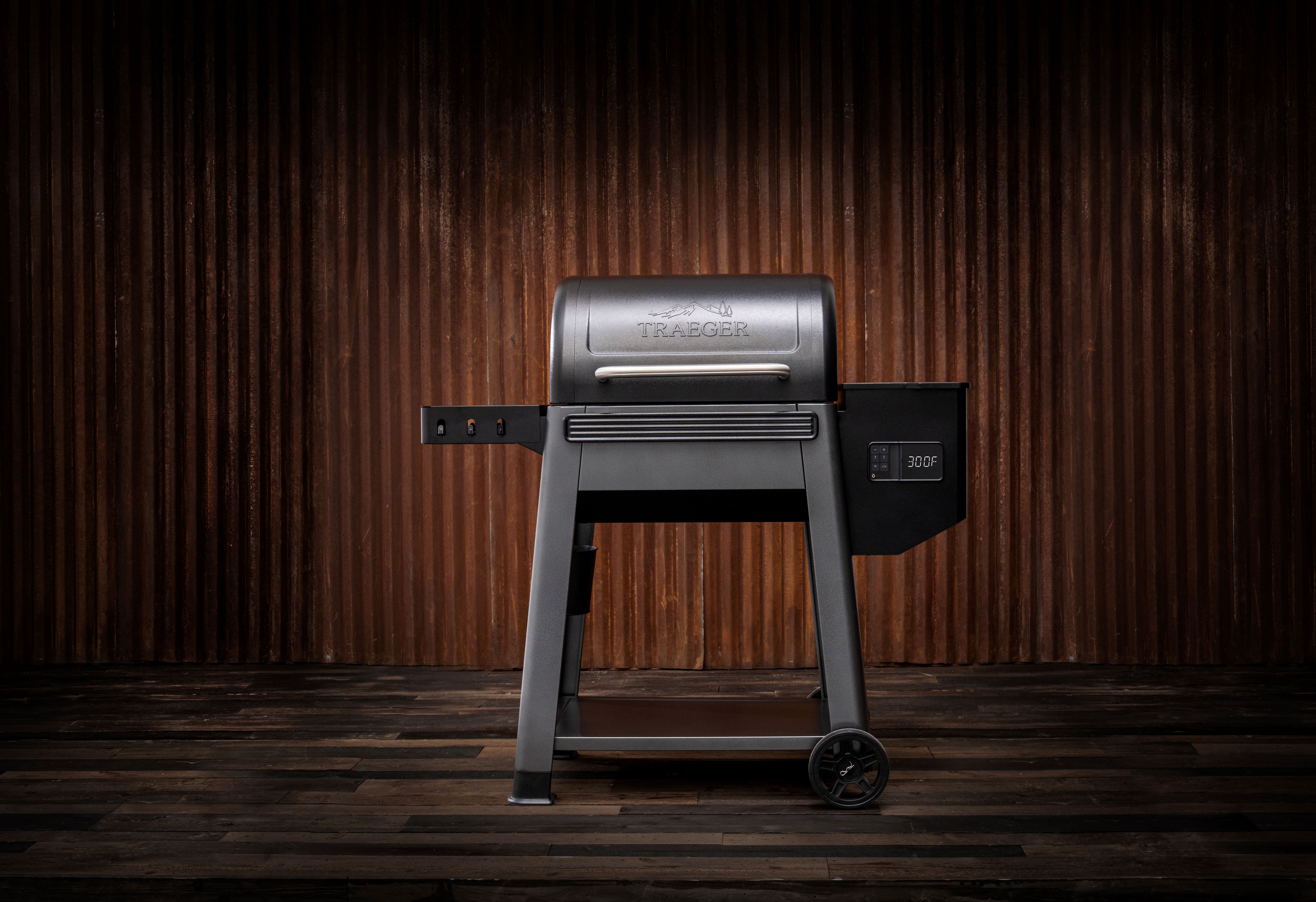

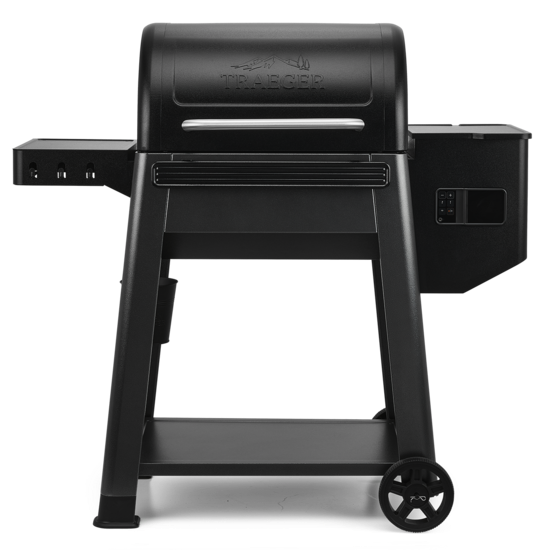

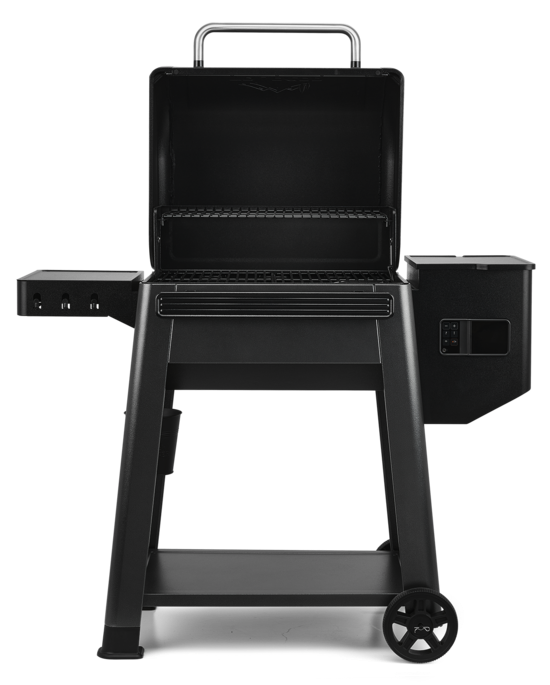

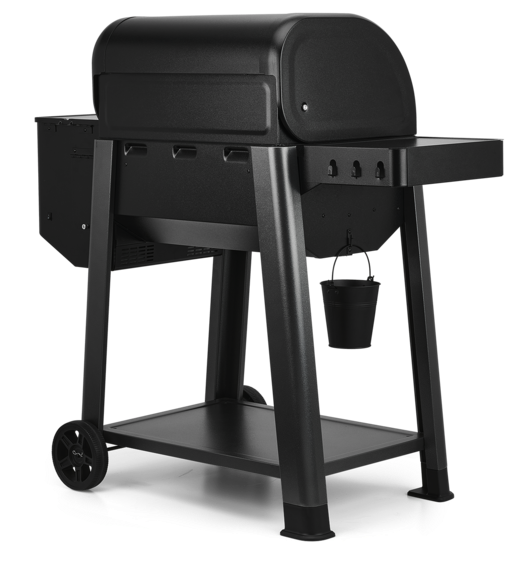

Find all your support needs for your Traeger Westwood pellet grill (TFB65YLJU), including troubleshooting guides, owner's manual, specs, and replacement parts.
Quick Reference
| Model # (US) | TFB65YLJU |
| Model # (CA) | TFB65YLJC |
| Warranty | 7-Year Limited Warranty |
| Total grilling area | 660 sq. in. |
| Hopper capacity | 18 lbs | 8.2 kg |
| Max temp | 450°F | 232°C |
| Pellet Sensor | No |
| Super Smoke | No |
| WiFIRE | Yes |
| Current firmware | 01.02.00b |
| Config version | 2401.007 |
Pro Tip: Firmware and config version can be verified in the Traeger app once your grill is connected.
- Current firmware for all models is listed at traeger.com/status.
- Not sure where to find your model number? See Find your grill's serial & model number.
Documentation
The Westwood Owner's Manual and Assembly Guide are combined in a single document.
- Owner's Manual/Assembly Guide: English | French (Canada)
Before you get started: Remove the protective film from the controller display before first use. Leaving it on can cause unresponsive buttons or phantom button presses.
Specs & Features

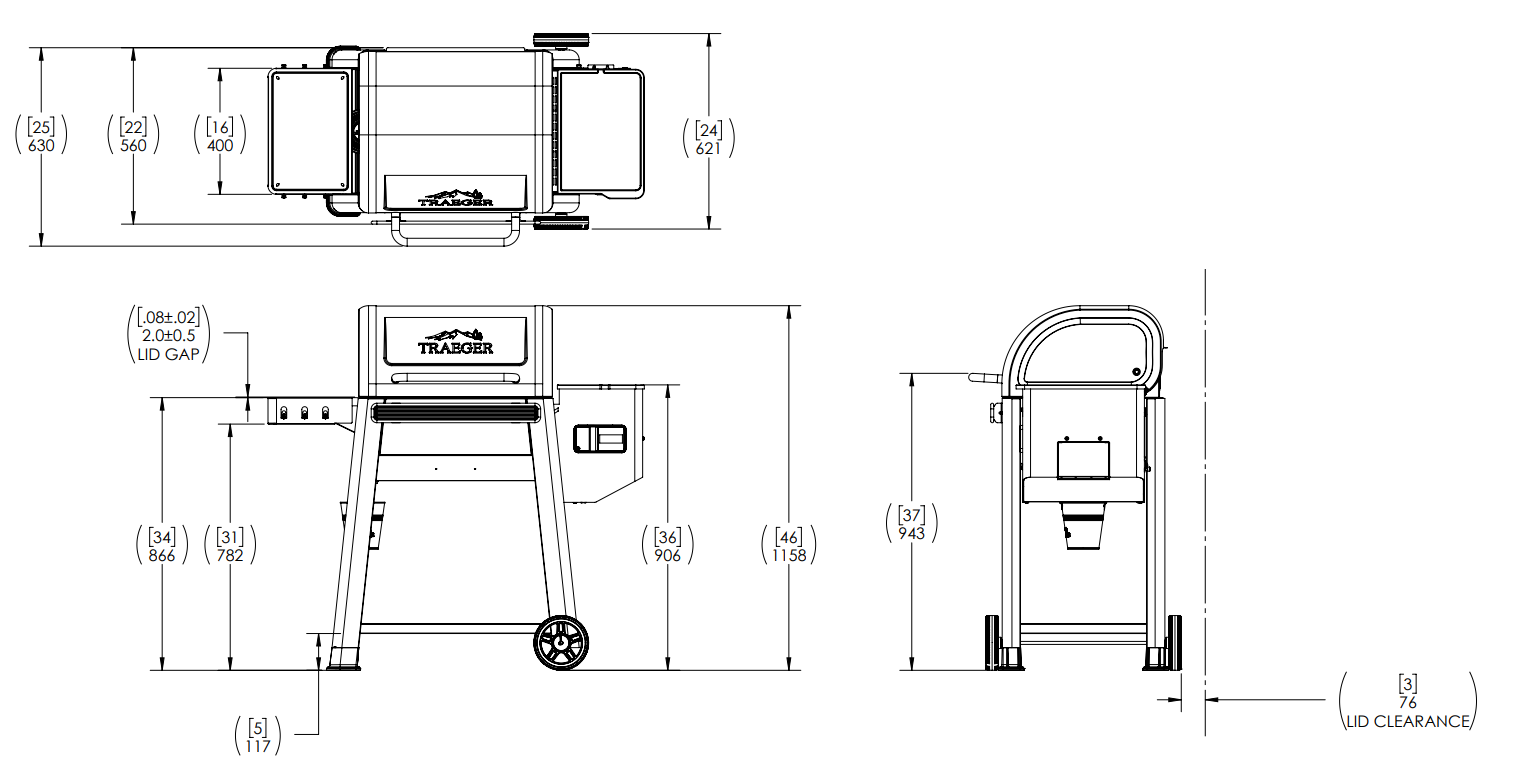

| Assembled Dimensions | 47" L × 24" W × 46" H |
| Assembled Weight | 105 lbs |
| Total Grilling Area | 660 sq. in. |
| Main Grate Dimensions | 23" L × 18.9" D (435 sq. in.) |
| Upper Grate Dimensions | 21.5" L × 10.2" D (219 sq. in.) |
| Hopper Capacity | 18 lbs | 8.2 kg |
| Temperature Range | 180–450°F | 82–232°C |
| Controller | Digital WiFIRE controller |
| Grate material | Porcelain-coated cold rolled steel |
| ModiFIRE | Compatible with ModiFIRE accessories |
| P.A.L. Rail | Included — Supports most P.A.L. Pop-And-Lock accessories |
| Pellet Evacuation | Trapdoor |
| Pellet Sensor | No |
| Super Smoke | No |
| WiFIRE | Yes — Connects to the Traeger app for remote monitoring and control |
| Wired Meat Probe | Included |
| Wireless Meat Probe | Compatible (sold separately) |
Setup & Onboarding
Getting Started
- How to start your Westwood
- How to shut down your Westwood
- How to season your Westwood
- How to prime the auger on your Westwood
- Using your Westwood controller
- Changing temperature between Celsius & Fahrenheit
- Best practices: Preheating - Treat your grill like an oven
- Best practices: Set it & forget it - Get better results by leaving your grill alone
Connecting Your Grill
- Connecting and pairing your Westwood
- Pre-pairing checklist
- Home WiFi setup for successful pairing
- Pairing a Traeger wireless thermometer to your Westwood
Cleaning & Maintenance
Troubleshooting Resources
Alerts & Error Messages
- Er01: High Temp Error
- Er02: Low Temp Error
- Er03: Low Ambient Temp
- Er04: Probe Fell Out
- Er05: Bad Probe
- Er06: Temp Sensor Disconnected
- Er07: Failed to Ignite
- Er40: No Bluetooth Probes Found
- Er41: Multiple Bluetooth Probes Found
- LO / bAS
App & WiFi Connectivity
How to connect:
- Connect & pair your Westwood
- Pre-pairing checklist
- Connecting after moving or changing your ISP/router
Troubleshooting connectivity:
- Pairing troubleshooting (1st time connecting)
- Westwood can't find home WiFi network
- WiFi Compatibility: 2.4GHz vs 5GHz & 5G
- Firmware not updating
Controller Display
- Controller screen blank / not turning on
- Controller buttons unresponsive
- Controller displays LO or bAS
Ignition & Power
Pellet Flow
Temperature Management
- Comparing your grill's temp to another thermometer
- Check if your RTD is working properly
- Temperature dropping mid-cook
- Weather effects on grilling
Smoke & Fire
Accessories & Probes
Pro Tip: Looking for compatible accessories? Visit traeger.com/accessories and use the model filter to find accessories designed for your Westwood.
Drip Tray Liners
Wired Meat Probes
- Broken meat probe or probe jack
- Inaccurate probe temperature
- Probe displaying temperature in wrong units (°C / °F)
- Wired probe not showing on controller
Wireless Meat Probes
Replacement Parts
Need a replacement part or warranty help?
Contact Traeger Support to confirm which part you need and to place any warranty orders. Don't see your part listed? We can help with that too.
Contact Traeger Support to confirm which part you need and to place any warranty orders. Don't see your part listed? We can help with that too.
| Part | SKU |
|---|---|
| Auger | |
| Auger Assembly | KIT1084 Instructions |
| Auger Motor | KIT1085 Instructions |
| Controller | |
| Digital WiFIRE Controller | KIT1082 Instructions |
| Drip Tray | |
| Drip Tray | KIT1072 |
| Fan | |
| Induction Fan | KIT1086 Instructions |
| Firepot & Igniter | |
| Firepot | KIT1051 Instructions |
| Firepot with Ignitor | KIT1095 Instructions |
| Ignitor | KIT1094 Instructions |
| Grates | |
| Upper grate | KIT1080 |
| Lower grate | KIT1078 |
| Grease Management System | |
| Grease Bucket | KIT1014 |
| Grease Bucket Hook | KIT1071 |
| Heat Baffle | KIT1074 |
| Hardware | |
| Assembly hardware (1/2) | KIT1090 |
| Assembly hardware (2/2) | KIT1093 |
| Lid hardware | KIT1091 |
| Lid bumpers | KIT1092 |
| Hopper | |
| Hopper-Burner Assembly (HBA) | KIT1057 Instructions |
| Hopper lid | KIT1088 Instructions |
| Hopper pellet guard | KIT1053 |
| Hopper service panel | KIT1052 Instructions |
| Hopper shroud | KIT1056 |
| Pellet cleanout door | KIT1054 Instructions |
| Legs & Wheels | |
| Front left leg | KIT1059 Instructions |
| Front right leg | KIT1060 Instructions |
| Rear left leg | KIT1062 Instructions |
| Rear right leg | KIT1061 Instructions |
| Leg caps | KIT1063 Instructions |
| Large wheel w/ cotter pin | KIT1070 Instructions |
| Axle w/ cotter pin | KIT1069 Instructions |
| Lid | |
| Lid assembly | KIT1075 Instructions |
| Lid handle | KIT1077 Instructions |
| Lid hardware | KIT1091 |
| Lid bumpers | KIT1092 |
| Meat Probes | |
| Wired Meat Probe | BAC289 |
| P.A.L. Rail | |
| Front rail & trim | KIT1067 |
| Power | |
| Power Cord | KIT1089 Instructions |
| Power Switch | KIT1055 Instructions |
| Shelves | |
| Side shelf | KIT1066 Instructions |
| Bottom shelf | KIT1064 |
| Temperature Sensor | |
| RTD | KIT1087 Instructions |
