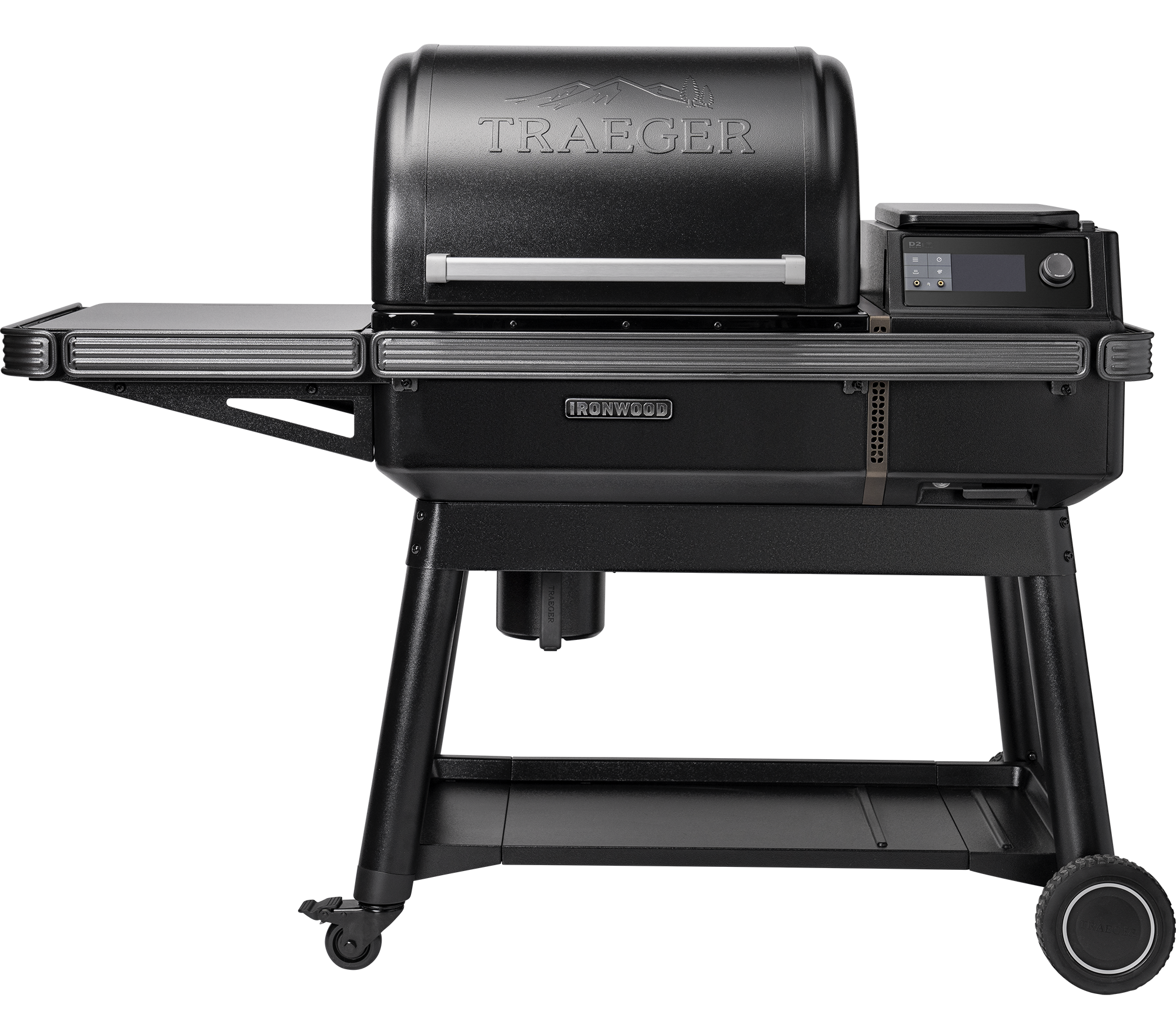

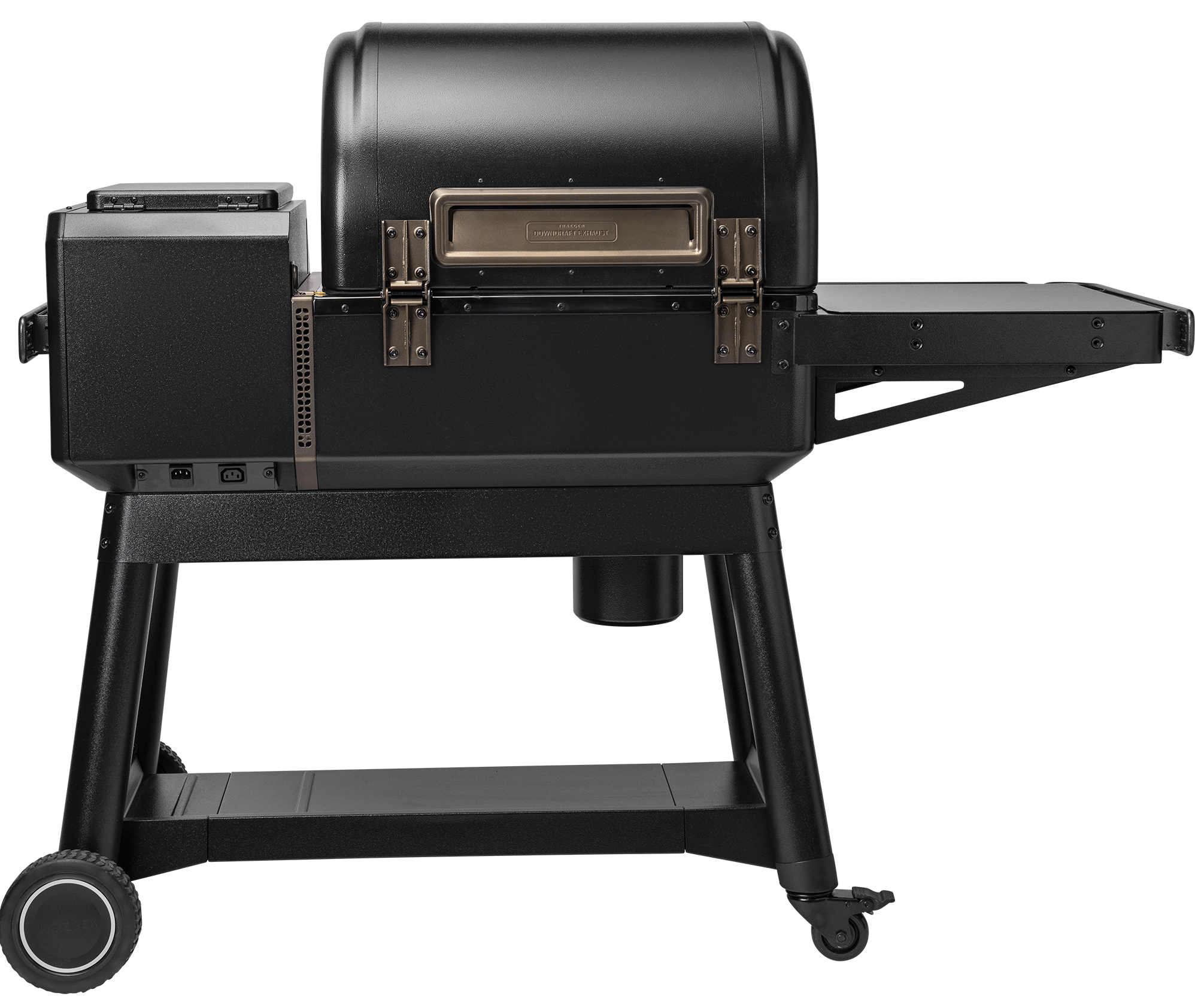

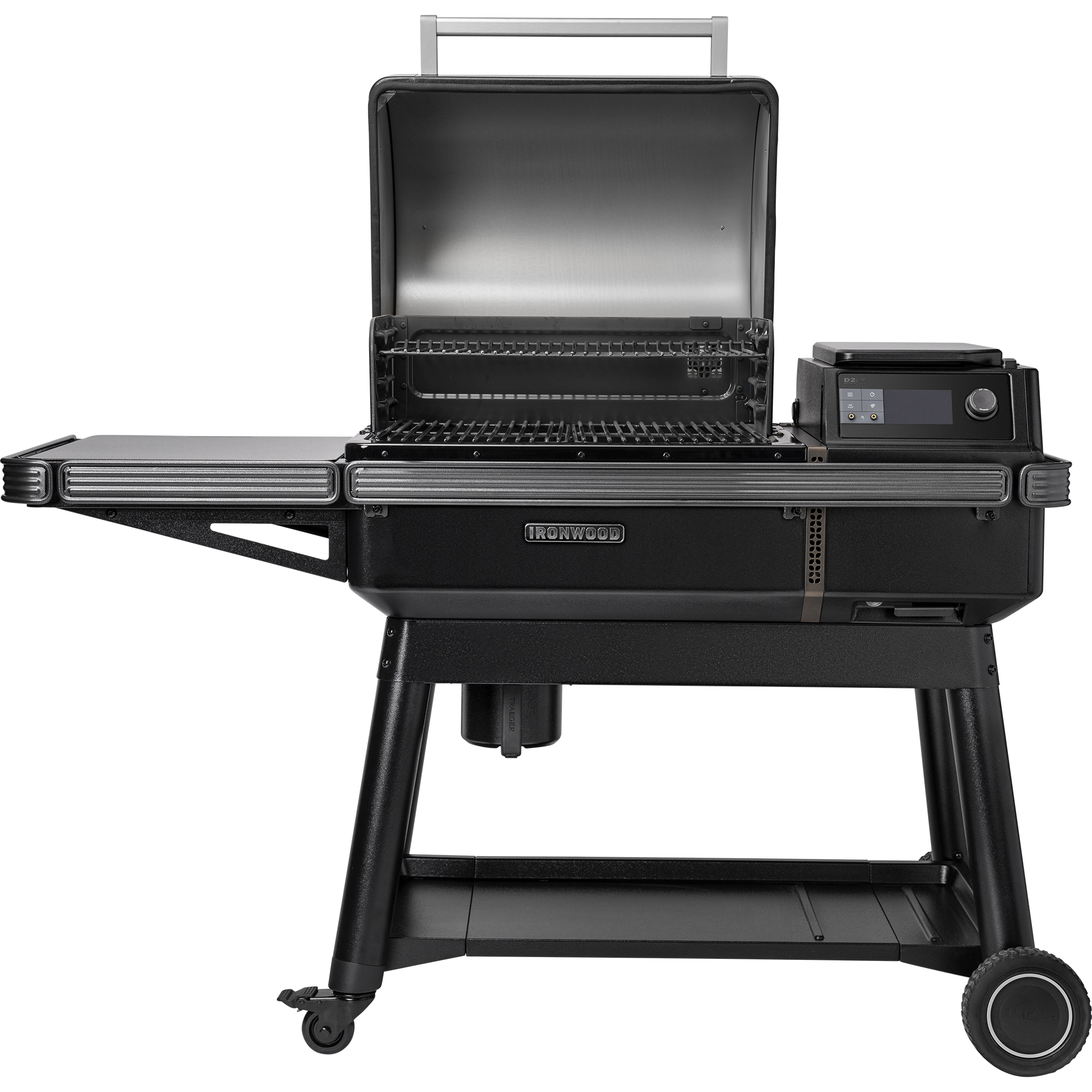

Ironwood Support Guide

What's in This Article?


Your support guide for your Ironwood Traeger grill.

Buy your Ironwood XL on Traeger.com here:

Model Numbers

Not sure what your grill's model number is? See, Find Your Grill's Serial & Model Number.

MODEL NUMBER COUNTRY STATUS
TFB61RLG USA Active
TFB61RLGC Canada Active



Documentation

DOCUMENT LANGUAGE AMENDMENTS
Owner's Manual English



Assembling an Ironwood



Troubleshooting Resources for Your Ironwood

Below are links help you get the most out of your Ironwood, whether it's learning best-use practices or how to resolve common issues.

Operating Your Ironwood How to start/ignite your Ironwood
How to shut down/turn off your Ironwood
How to season your Ironwood
Cleaning your Ironwood
Connecting to WiFi & App Pairing How to pair a Ironwood grill
How to update your grill's firmware
Grill won't connect to WiFi/Grill won't pair
Error Messages & Notifications Ironwood Errors & Notifications
Temperature Management Ironwood Won't Get to Temp
Temperature Swings
Accessories

Using Your Traeger X MEATER Wireless Probes

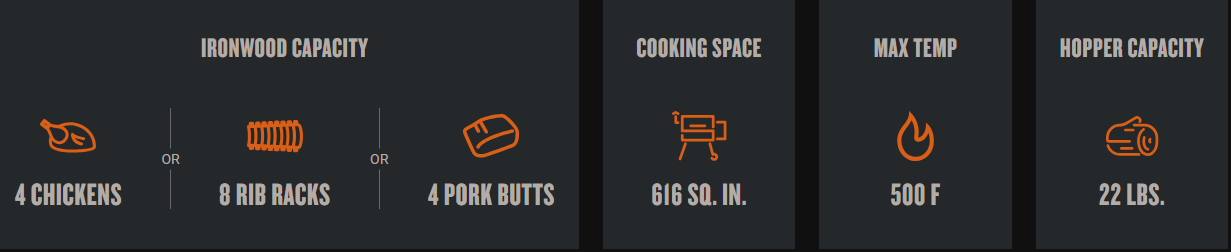

Specs

Controller WiFi Touchscreen Controller
Startup Procedure Closed-Lid
Assembled Dimensions

59" L x 25" W x 48" H

150 cm L x 64 cm W x 122 cm H

Assembled Weight

199.5 lbs

90,5 kg

Package Dimensions

43" L x 22.5" W x 32" H

109 cm L x 57 cm W x 81,5 cm H

Package Weight

211 lbs

96 kg

Main Grate Dimensions

22" L x 18" D

56 cm L x 46 cm D

Main Grilling Area

396 sq. in.

2555 sq. cm

2nd Grate Dimensions

22" L x 10" D

56 cm L x 25,5 cm D

2nd Grate Grilling Area

220 sq. in.

1419 sq. cm

Total Grilling Area

616 sq. in.

3976 sq. cm

Hopper Capacity

22 lbs

10 kg

Maximum Temperature 500°F  260°C
Meat Probe Count 2
Side Shelf Materials Powder-coated steel
Side Shelf Dimensions

17.5" W x 20.8" D

44,4 cm W x 53 cm D

Side Shelf Surface Area

364 sq. in.

2353 sq. cm.

Exhaust System Downdraft
Pellet Evacuation Slide
Pellet Sensor Yes; Included
Super Smoke Yes
WiFIRE Yes



Compatible Accessories

ACCESSORY

SKU

Buy on Traeger.com

Cover: Full-Length BAC646

https://www.traeger.com/grill-covers/ironwood

The cover doesn't allow most P.A.L accessories to remain installed. Customers can purchase a TL/TLXL cover to have an extending pocket. Cover will be loose on top due to difference in shape.

Grease Keg Liner BAC608 https://www.traeger.com/accessories/liners/keg
Meat Probes Wired Probe BAC431 https://www.traeger.com/parts/replacement-meat-probes
Traeger X MEATER Wireless Probes BAC645 https://www.traeger.com/accessories/meater-probes
P.A.L Rail Accessories P.A.L Accessory Hooks BAC643 https://www.traeger.com/accessories/pop-lock/hooks
P.A.L Cup Holder BAC707 https://www.traeger.com/accessories/pop-lock/cup-holder
P.A.L Folding Front Shelf BAC604 https://www.traeger.com/accessories/pop-lock/shelf
P.A.L Folding Front Shelf XL BAC605 https://www.traeger.com/accessories/pop-lock/shelf-xl
P.A.L Roll Rack BAC644 https://www.traeger.com/accessories/pop-lock/roll-rack
P.A.L Storage Bin BAC642 https://www.traeger.com/accessories/pop-lock/storage-bin
Pellet Storage Bin BAC637 https://www.traeger.com/accessories/stay-dry-pellet-bin



Replacement Parts

Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.

If you want to use your grill's warranty you will need to contact Customer Support to place your order.


PART

SKU

REPLACEMENT INSTRUCTIONS

Auger Auger Assembly KIT0596 Replacement Instructions - Auger & Auger Motor
Auger Motor KIT0689
Controller Display & Motherboard Display Knob KIT0642
Smart Combustion Motherboard KIT0827 Replacement Instructions - Motherboard & Cover
Power Supply Board KIT0722
Motherboard Cover KIT0726
Drip Tray KIT0623 Replacement Instructions - Grease Mgmt System
Emblem - Ironwood KIT0901

Fans

Auxiliary Fan KIT0621 Replacement Instructions - Aux Fan
Induction Fan KIT0674 Replacement Instructions - Induction Fan

Firepot

KIT0724 Replacement Instructions - Firepot
Grates Main Grate KIT0622
Upper Grate  KIT0655
Grease Management Grease & Ash Keg KIT0629 Replacement Instructions - Grease Mgmt System
Grease Drain Cap KIT0667
Grease Drain Extension KIT0688
Grease Keg Gasket KIT0720
Grease Keg Rail KIT0678
Hardware Assembly Hardware KIT0898
Heat Shield KIT0627 Replacement Instructions - Grease Mgmt System
Hopper  Hopper Assembly KIT0700 Replacement Instructions - Hopper Assembly
Hopper Lid KIT0672 Replacement Instructions - Hopper Lid & Pellet Grate
Hopper Pellet Guard KIT0652
Hopper Service Panel KIT0637 Replacement Instructions - Service Panel
Pellet Cleanout Slide KIT0704 Replacement Instructions - Pellet Slide
Ignitor & Flame Sensor Assembly KIT0639 Replacement Instructions - Ignitor Assembly
Legs Leg: Front Left KIT0708 Caster wheel leg
Leg: Front Right KIT0709 All-terrain wheel leg
Leg: Rear Left KIT0711 Caster wheel leg
Leg: Rear Right KIT0710 All-terrain wheel leg
Bottom Shelf: All sections KIT0676
Bottom Shelf: Left KIT0714
Bottom Shelf: Middle KIT0713
Bottom Shelf: Right KIT0712
Wheel: Caster Wheel KIT0715
Wheel: All-Terrain KIT0297
Lid Lid Assembly KIT0603 Replacement Instructions - Lid Parts
Lid Gasket KIT0668
Lid Handle KIT0645
Lid Hinge KIT0658
Lid Sensor & Light/Lid Magnet KIT0633 Replacement Instructions - Lid Sensor & Light
Lid Shoulder Bolt HDW047
Backpack Cover KIT0603 The downdraft exhaust is part of the lid. If the exhaust cover needs to be replaced, it requires that the whole lid be replaced.
Meat Probe BAC329 BAC329 is a white probe, while the original probe is black. The probes are the same with the exception of the color.
P.A.L. Rails Front Rail KIT0647 Replacement Instructions - P.A.L Rails
Hopper Side Rail KIT0679
Shelf Rail Front KIT0703
Shelf Rail Side KIT0680
Pellet Sensor KIT0632 Replacement Instructions - Pellet Sensor
Power Parts Power Button KIT0687 Replacement Instructions - Power Button
Power Cord KIT0673 Replacement Instructions - Power Cord
Power Strip KIT0690 Replacement Instructions - Power Strip
Shelves Side Shelf Insert KIT0705 Replacement Instructions - Side Shelf
Side Shelf no Insert KIT0650
Side Shelf w/Insert KIT0649
Thermocouple KIT0659 Replacement Instructions - Thermocouple
WiFi Antenna KIT0634 Replacement Instructions - WiFi Antenna
Wiring Harnesses AC Harness
Connections: Motherboard, Power Button, Power Strip, Power Supply Board
KIT0684
AC Ignitor Harness
Connections: Motherboard, Hot Rod
KIT0685
Pellet Sensor Harness
Connections: Motherboard, Pellet Sensor
KIT0686
 Smart Combustion Harness
Connections: Motherboard, Lid Sensor & Light, Flame Sensor
KIT0889
UI Smart Combustion Harness
Connections: Motherboard, Display, Lid Light, Auxiliary Fan
KIT0890
