Your support guide for your Pro 575 Traeger grill.
Buy your Pro 575 on Traeger.com here:
- US: https://www.traeger.com/pellet-grills/pro/575
- Canada: https://www.traeger.com/ca/en/pellet-grills/pro/575
Model Numbers
Not sure what your grill's model number is? See, Find Your Grill's Serial & Model Number.
| MODEL NUMBER | VARIATION | COUNTRY | STATUS |
| TFB57GLE | Black | USA | Active |
| TFB57GLEC | Black | Canada | Active |
| TFB57GLEO | Amazon Exclusive, Black | USA | Active |
| TFB57GZE | Bronze | USA | Active |
| TFB57GZEC | Bronze | Canada | Discontinued |
| TFB57GZEO | Amazon Exclusive, Bronze | USA | Active |
| TFB57GUF | Tito's-Edition | USA | Discontinued |
Documentation
| DOCUMENT | LANGUAGE | AMENDMENTS |
| Owner's Manual | ||
| Assembly Guide |
Useful Resources for your Pro 575
Below are links help you get the most out of your <model name>, whether it's learning best-use practices or how to resolve common issues.
| Operating Your Pro 575 | How to start/ignite your Pro 575 |
| How to shut down/turn off your Pro 575 | |
| How to season your Pro 575 | |
| Cleaning your Pro 575 | |
| Navigating your WiFIRE controller | |
| Connecting to WiFi & App Pairing | How to pair a WiFIRE grill: iPhone | Android |
| How to update your grill's firmware | |
| Grill won't connect to WiFi/Grill won't pair | |
| Error Messages & Notifications | WiFIRE Grill Notifications |
| Temperature Management | WiFIRE Grill Running too Hot |
| WiFIRE Grill Running too Cool | |
| Temperature Swings |

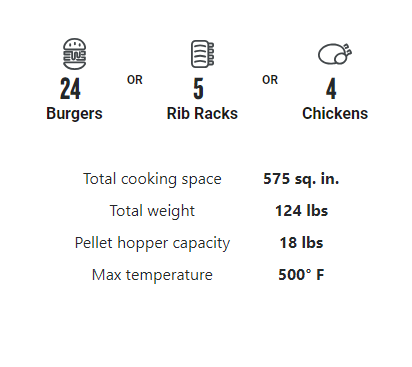

Specs
| Controller | WiFi Controller | |
| Startup Procedure | Closed-Lid Startup | |
| Assembled Dimensions |
41" L x 22" W x 53" H |
104 cm L x 67 cm W x 135 cm H |
| Assembled Weight |
124 lbs |
56.25 kg |
| Package Dimensions |
41" L x 22" W x 27" H |
104 cm L x 56 cm W x 69 cm H |
| Package Weight |
148 lbs |
67.25 kg |
| Main Grate Dimensions |
22" L x 19" D |
55.88 cm L x 48.26 cm D |
| Main Grilling Area |
418 sq. in. |
2696.77 sq. cm |
| 2nd Grate Dimensions |
22" L x 7" D |
55.88 cm L x 17.78 cm D |
| 2nd Grate Grilling Area |
154 sq. in. |
993.55 sq. cm |
| Total Grilling Area |
572 sq. in. |
3690.32 sq. cm |
| Barrel Size |
22" |
55.88 cm |
| Hopper Capacity |
18 lbs |
8.16 kg |
| Maximum Temperature | 500°F | 260°C |
| Meat Probe Count | 1 | |
| BTUs | 11,000 | |
| Exhaust System | Chimney | |
| Pellet Evacuation | Door | |
| Pellet Sensor | Not included; Compatible as an upgrade | |
| Super Smoke | No | |
| WiFIRE | Yes | |
| Upper Grate Storage Hooks | Yes | |
Compatible Accessories
| ACCESSORY | SKU | Buy on Traeger.com |
| Cast Iron Grill Grates | BAC366 | Item has been discontinued |
| Cover | BAC503 | https://www.traeger.com/grill-covers/pro-575-full-length-grill-cover |
| Cutting Board | BAC406 | https://www.traeger.com/accessories/bamboo-cutting-board |
| Drip Tray Liner | BAC507 | https://www.traeger.com/accessories/drip-tray-liner-5-pack-pro-575 |
| Folding Front Shelf |
BAC362 BAC563 |
https://www.traeger.com/accessories/front-folding-shelf-22-575-650-series Traeger - Front Folding Shelf for Pro 22, 575 & Ironwood 650 |
| Grease Bucket Liner | BAC407 | https://www.traeger.com/accessories/bucket-liner-5-pack |
| Insulation Blanket | BAC626 | https://www.traeger.com/accessories/insulation-blanket-22-575 |
| Meat Probe | BAC431 | https://www.traeger.com/parts/replacement-meat-probes |
| Pellet Sensor | BAC523 | https://www.traeger.com/accessories/traeger-pellet-sensor |
Replacement Parts
Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.
If you want to use your grill's warranty you will need to contact Customer Support to place your order.
|
PART |
SKU |
Buy on Traeger.com |
|
| Auger | Auger Assembly | KIT0426 | https://www.traeger.com/parts/auger-assembly-p575-iw650-tl850 |
| Auger Motor | KIT0577 | https://www.traeger.com/parts/auger-motor-kit | |
| Chimney | Chimney Cap | KIT0008 | |
| Chimney Pipe | KIT0005 | ||
| Chimney Gasket | KIT0795 | ||
| Controller | Controller | KIT0402 | |
| Controller Knob | KIT0580 | ||
| Drip Tray | KIT0440 | https://www.traeger.com/parts/drip-tray-pro-575 | |
| KIT0411 | https://www.traeger.com/parts/d2-fan-motor-kit | ||
| KIT0383 | https://www.traeger.com/parts/hot-rod-firepot-kit-pro-575-780 | ||
| Grates | Main Grate | KIT0444 | |
| Upper Grate | KIT0452 | ||
| Grease Bucket | HDW152 | https://www.traeger.com/parts/bucket | |
| Handles | Lid Handle | KIT0419 | |
| Lid Handle Extension | KIT0578 | ||
| Side Handle | KIT0423 | ||
| Hardware | Leg Hardware | HDW333 | |
| Lid Handle Hardware | KIT0244 | ||
| Heat Baffle | KIT0450 | https://www.traeger.com/parts/heat-baffle-pro-ironwood-timberline | |
| Hopper | Hopper Access Panel | KIT0414 | |
| Hopper-Barrel Gasket | INS144 | ||
| Hopper-Burner Assembly | KIT0412 | ||
| Hopper Lid | KIT0432 | ||
| Hopper Pellet Guard | KIT0413 | ||
| Hot Rod | Hot Rod | KIT0255 | https://www.traeger.com/parts/d2-hot-rod-kit |
| Firepot/Hot Rod Combo | KIT0383 | https://www.traeger.com/parts/hot-rod-firepot-kit-pro-575-780 | |
| Insulation | Lower Heat Shield | KIT0441 | |
| Legs | Front Left Leg | KIT0415 | |
| Front Right Leg | KIT0417 | ||
| Rear Left Leg | KIT0416 | ||
| Rear Right Leg | KIT0418 | ||
| Leg Brace | KIT0424 | ||
| Stationary Wheel | KIT0297 | ||
| Lid | Lid Assembly: Black | KIT0420 | |
| Lid Assembly: Bronze | KIT0421 | ||
| Lid Handle | KIT0419 | ||
| Lid Handle Extension | KIT0578 | ||
| Lid Hinge | KIT0001 | https://www.traeger.com/parts/door-hinge-kit | |
| Probe Grommet | BRN249 | ||
| Right Door Arc | KIT0789 | ||
| Meat Probe | BAC329 | ||
| Power Parts | On/Off Switch | KIT0358 | https://www.traeger.com/parts/on-off-switch-ironwood |
| Power Brick | KIT0480 | https://www.traeger.com/parts/power-brick-replacement-kit | |
| Power Cord | KIT0257 | https://www.traeger.com/parts/d2-nema-cord | |
| Thermocouple | KIT0422 | https://www.traeger.com/parts/d2-thermacouple | |
