Your support guide for your Ironwood XL Traeger grill.
Buy your Ironwood 885 on Traeger.com here!
- US: https://www.traeger.com/pellet-grills/ironwood/885
- Canada: https://www.traeger.com/ca/en/pellet-grills/ironwood/885
Model Numbers
Not sure what your grill's model number is? See, Find Your Grill's Serial & Model Number.
| MODEL NUMBER | COUNTRY | STATUS |
| TFB89BLF | USA | Active |
| TFB89BLFC | Canada | Active |
| TFB89BLE | USA | Discontinued |
| TFB89SLC | USA | Discontinued |
Documentation
| DOCUMENT | LANGUAGE | AMENDMENTS |
| Owner's Manual | English, Canadian French, Spanish | |
| Owner's Manual (TFB89SLC) | English |
Unboxing & Assembly
Troubleshooting Resources for Your Ironwood 885
Below are links help you get the most out of your Ironwood 885, whether it's learning best-use practices or how to resolve common issues.
| Operating Your Ironwood 885 | How to start/ignite your Ironwood 885 |
| How to shut down/turn off your Ironwood 885 | |
| How to season your Ironwood 885 | |
| Cleaning your Ironwood 885 | |

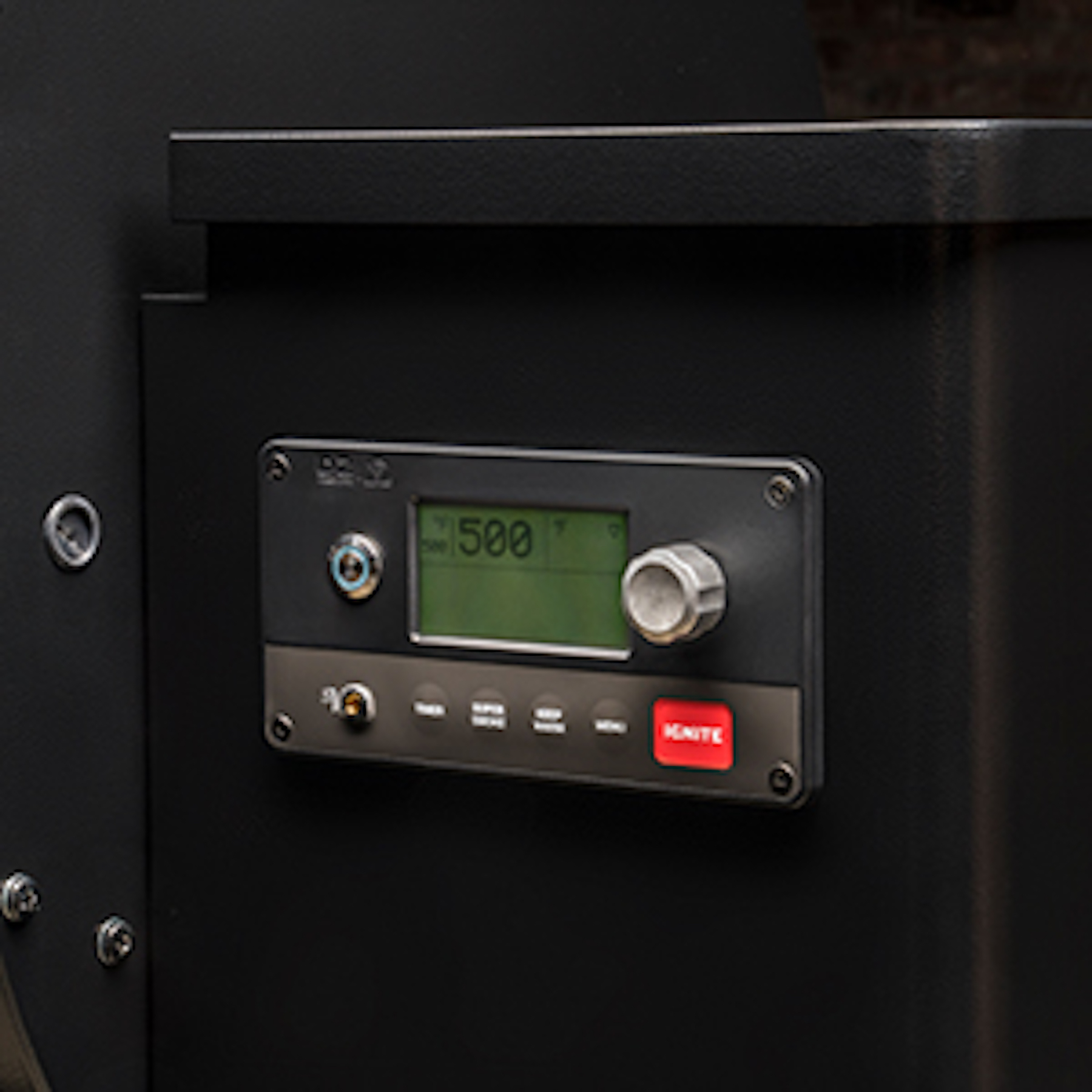

| Navigating your WiFIRE controller | |
| Connecting to WiFi & App Pairing | How to pair a WiFIRE grill: iPhone | Android |
| How to update your grill's firmware | |
| Grill won't connect to WiFi/Grill won't pair | |
| Error Messages & Notifications | WiFIRE Grill Notifications |
| Temperature Management | WiFIRE Grill Running too Hot |
| WiFIRE Grill Running too Cool | |
| Temperature Swings |
Specs
| Controller | WiFi Controller | |
| Startup Procedure | Closed-Lid Startup | |
| Assembled Dimensions |
53in L x 27in W x 47in H |
134cm L x 69cm W x 199cm H |
| Assembled Weight |
163 lbs |
73.94 kg |
| Package Dimensions |
49" L x 23" W x 28" H |
124.46 cm L x 58.42cm W x 71.12cm H |
| Package Weight |
197.1 lbs |
89.4 kg |
| Main Grate Dimensions |
30" L x 19" D |
76.2cm L x 48.26cm D |
| Main Grilling Area |
570 sq. in. |
3677 sq. cm |
| 2nd Grate Dimensions |
30" L x 10.5" D |
76.2cm L x 26.67cm D |
| 2nd Grate Grilling Area |
315 sq. in. |
2032 sq. cm |
| Total Grilling Area |
885 sq. in. |
5709 sq. cm |
| Barrel Size |
30" |
76 cm |
| Hopper Capacity |
20 lbs |
9 kg |
| Maximum Temperature | 500°F | 260°C |
| Meat Probe Count | 1 | |
| BTUs | 38,000 | |
| Side Shelf | Stainless with Hooks | |
| Exhaust System | Downdraft | |
| Pellet Evacuation | Door | |
| Pellet Sensor | Yes; Included | |
| Super Smoke | Yes | |
| WiFIRE | Yes | |
| Upper Grate Storage Hooks | Yes | |
Compatible Accessories
|
ACCESSORY |
SKU |
Buy on Traeger.com |

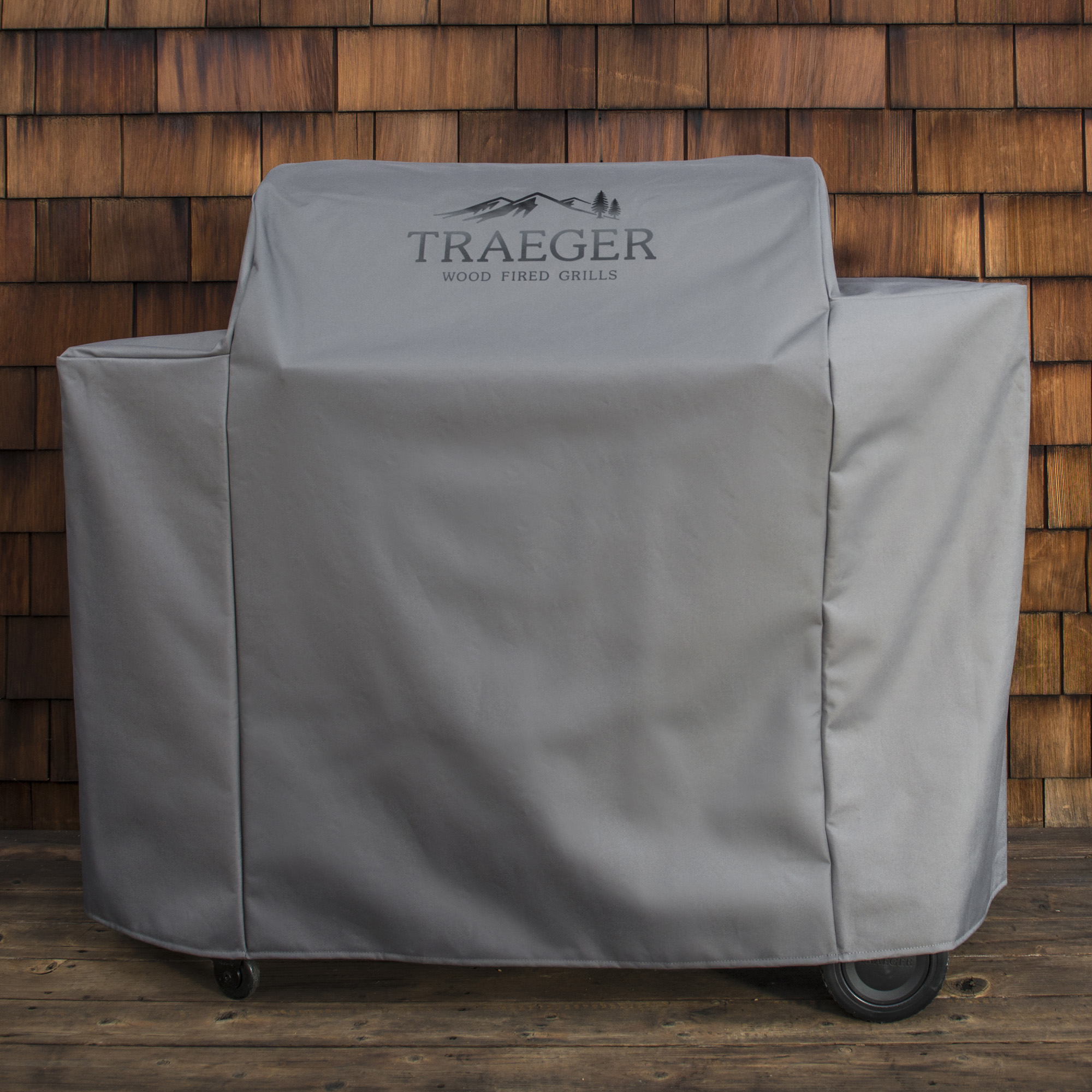

| Cover | BAC513 | Traeger Ironwood 885 Grill Cover: Full Length |
| Cutting Board | BAC406 | Magnetic Bamboo Cutting Board |
| Drip Tray Liner | BAC521 | Traeger Drip Tray Liners - 5 Pack - Ironwood 885 |
| Folding Front Shelf | BAC442 | Folding Front Shelf - Pro 780/Ironwood 885 |
| Grease Bucket Liner | BAC407 | Bucket Liner 5 Pack |
| Meat Probe | BAC431 | Traeger Replacement Meat Probe - 2 Pack |
| Pellet Bucket | BAC637 | Traeger StayDry Pellet Bin & Lid |
Replacement Parts
Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.
Hyperlinked SKUs are available to purchase on Traeger.com. SKUs without hyperlinks require contacting Customer Support to order.
|
PART |
REPLACEMENT SKU |
|
| Auger | Auger Assembly | KIT0431: Auger Assembly: Pro 780, Ironwood 885 |
| Auger Motor | KIT0577: DC Auger Motor Kit | |
| Backpack | Backpack Cover | KIT0393: Backpack cover: Ironwood 885 |
| Controller | Controller | KIT0400: WIFI Controller: Ironwood 885 |
| Controller Knob | KIT0580: WiFi Controller Knob | |
| Drip Tray | KIT0404: Drip Tray: Ironwood 885 | |
|
Fans |
Induction Fan | KIT0411: Traeger D2 Fan Motor Kit |
| KIT0382: Hot Rod/Firepot Combo Kit - IW & D2 TL | ||
| Grates | Main Grate | KIT0409: Grill Grate: Ironwood 885 |
| Upper Grate | KIT0446: Upper Grill Grate: Ironwood 885 | |
| Grease Bucket | HDW152: Grease Bucket | |
| Hardware Kit | HDW333: Hardware Kit Pro 22/34 | |
| Heat Baffle | KIT0450: Heat Baffle | |
| Hopper | Hopper Access Panel | KIT0394: Bottom Hopper Cover: Ironwood |
| Hopper-Burner Assembly | KIT0401: Hopper Burner Assembly: Ironwood 885 | |
| Hopper Lid | KIT0525: Hopper Lid: Ironwood | |
| Hopper Pellet Guard | KIT0392: Pellet Grate: Ironwood | |
| Legs | Front Left Leg | KIT0389: Front Caster Leg: D2 Pro, IW, TL |
| Front Right Leg | KIT0407: Right Front Wheel Leg: Ironwood | |
| Rear Left Leg | KIT0388: Rear Caster Leg: D2 Pro, IW, TL | |
| Rear Right Leg | KIT0408: Right Rear Wheel Leg: Ironwood | |
| Leg Brace | KIT0424: Leg Brace: D2 Sawhorse legs | |
| Caster Wheel |
N/A; Replace full leg |
|
| Stationary Wheel | KIT0297: Large Wheel | |
| Lid | Lid Assembly | KIT0398: Door Assembly: Ironwood 885 |
| Lid Gasket | KIT0454: Door Gasket: Ironwood 885 | |
| Lid Handle | KIT0397: Door Handle: IW 885, TL 1300 | |
| Lid Hinge | KIT0001: Door Hinge Kit | |
| Left Door Arc | KIT0807: Left Door Stop | |
| Right Door Arc | KIT0789: Right Door Stop | |
| Probe Grommet | BRN249: Silicone Probe Grommet | |
| Lower Heat Shield | KIT0406: Lower Heat Shield: Ironwood 885 | |
| Meat Probe | BAC329: Meat Probe (White) | |
| Pellet Sensor | BAC523: Traeger Pellet Sensor | |
| Power Parts | On/Off Switch | KIT0358: Traeger On/Off Switch: Ironwood |
| Power Brick | KIT0480: Traeger Power Brick Replacement Kit | |
| Power Cord | KIT0257: Traeger D2 Nema Power Cord | |
| Shelves | Side Shelf | KIT0403: Side Shelf Ironwood, DC Timberline |
| Side Shelf Hardware | KIT0243: Side Shelf Hardware Kit | |
| Thermocouple | KIT0422: D2 Thermocouple: Pro, Ironwood | |
