Redland Support Guide

What's in This Article?

Information on the Redland grill, sold exclusively at Costco.




Model Number

The Redland is an D2 WiFIRE grill.

Need help finding your grill's model number and serial number? Check out Serial & Model Numbers.

MODEL NUMBER COSTCO SKU COUNTRY STATUS
TFB65BVH 2327674 USA & Canada Active



Documentation

DOCUMENT LANGUAGE NOTES
Owner's Manual English

Troubleshooting Resources for Your Redland

Below are links help you get the most out of your Redland, whether it's learning best-use practices or how to resolve common issues.

Operating Your Redland How to start/ignite your Redland
How to shut down/turn off your Redland
How to season your Redland
Cleaning your Redland
Navigating your WiFIRE controller
Connecting to WiFi & App Pairing How to pair a WiFIRE grill: iPhone | Android
How to update your grill's firmware
Grill won't connect to WiFi/Grill won't pair
Error Messages & Notifications WiFIRE Grill Notifications
Temperature Management WiFIRE Grill Running too Hot
WiFIRE Grill Running too Cool
Temperature Swings



Specs

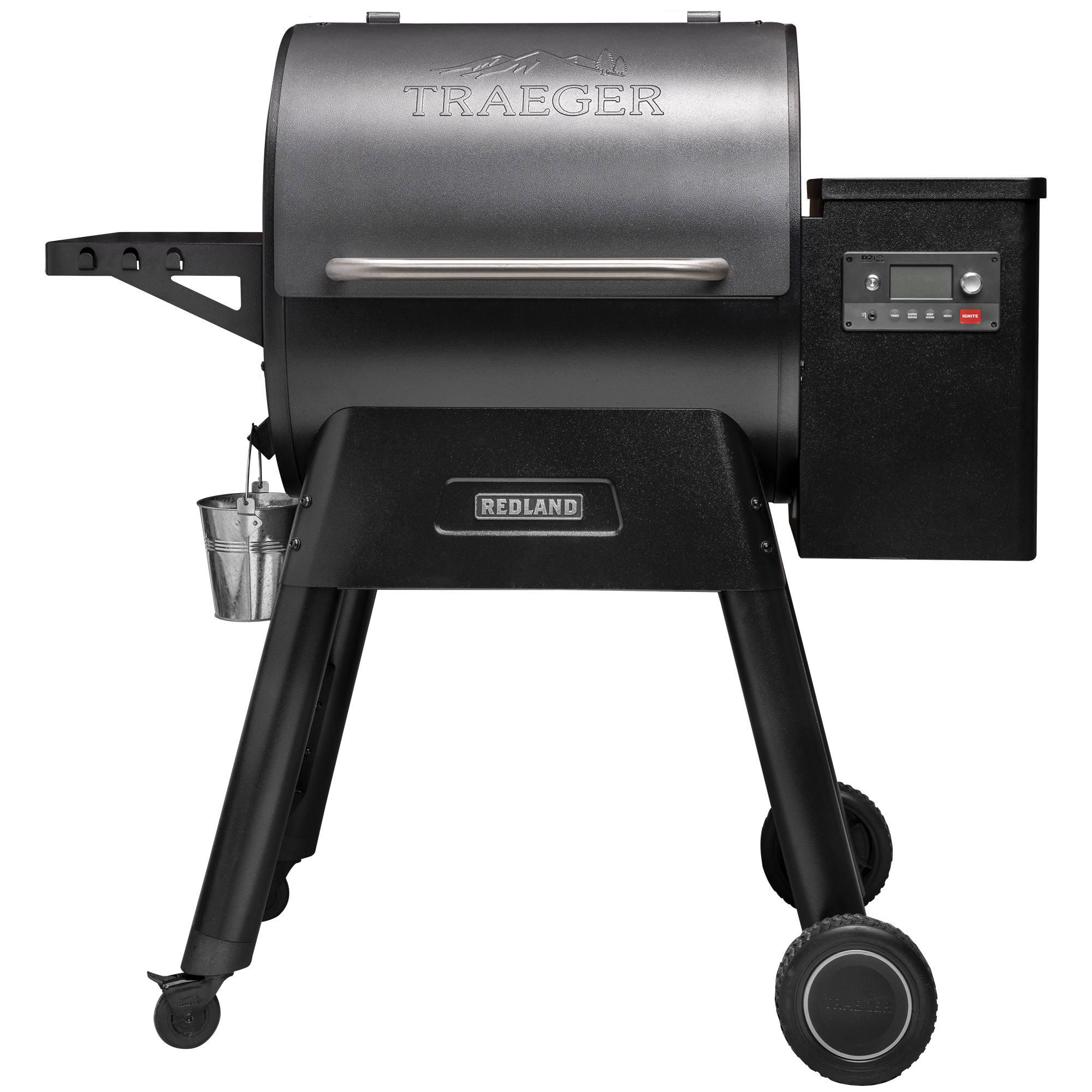

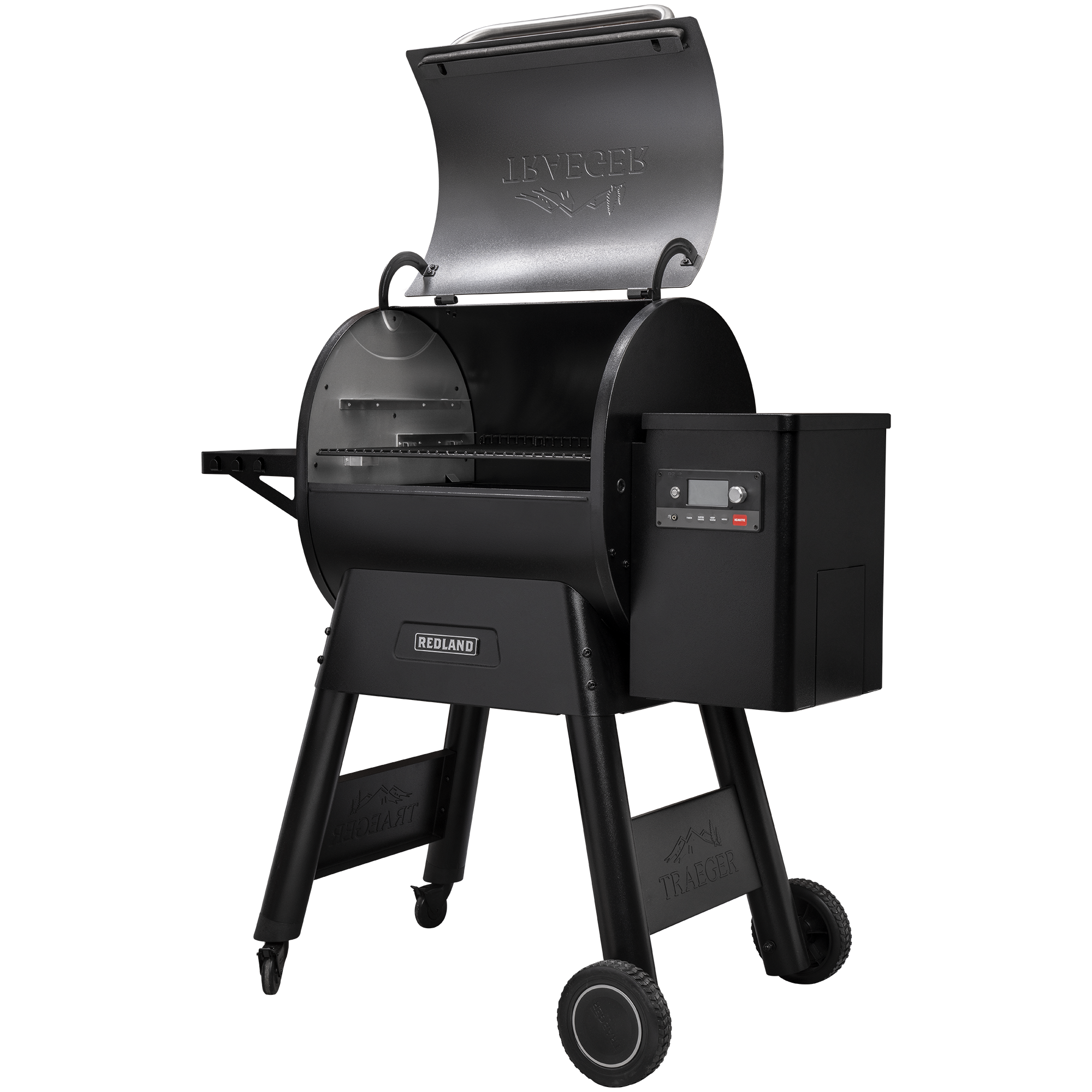

Redland_Studio_Front_lidRedland_Studio_angled_lidRedland_Controller

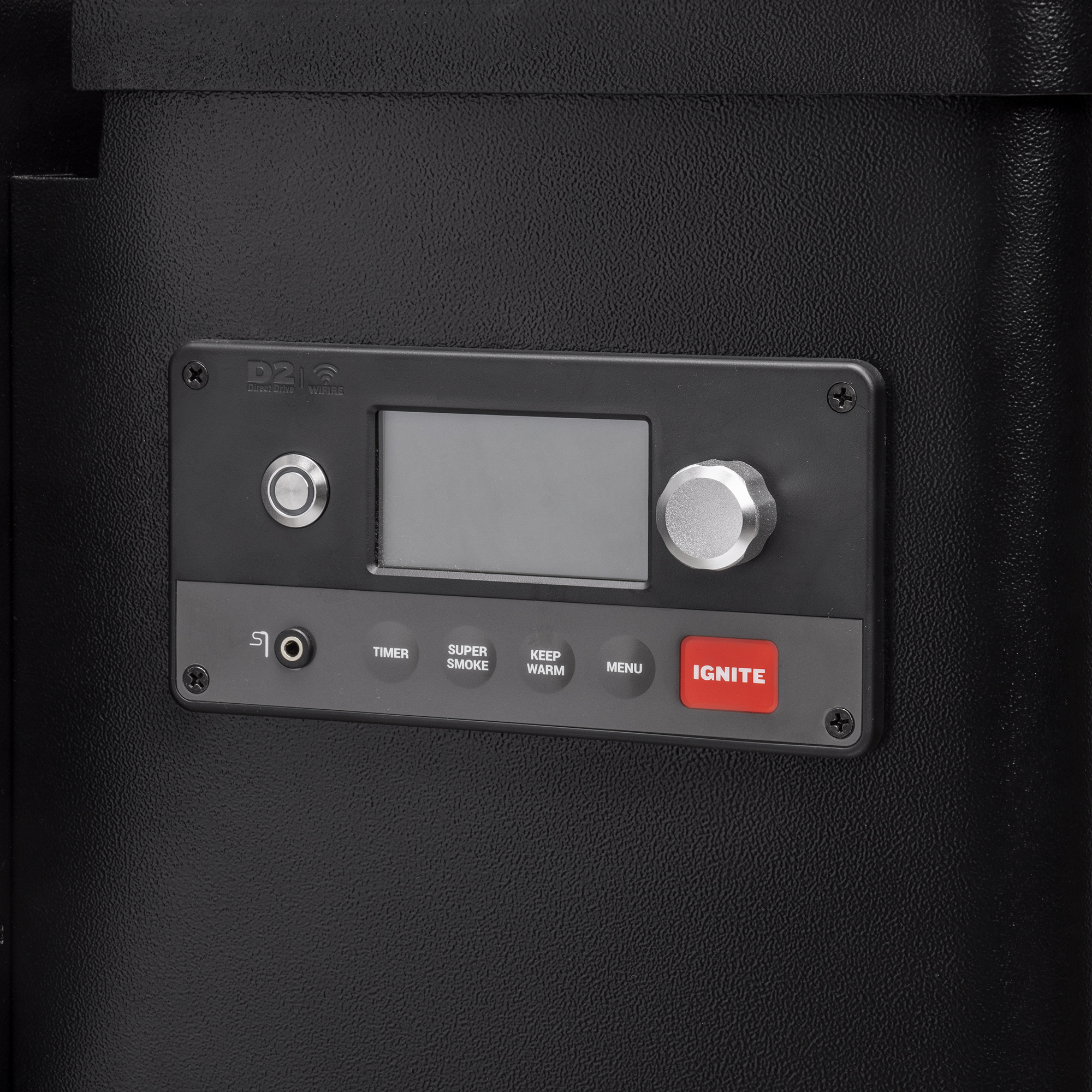

Controller WiFIRE D2 Controller
Startup Method Closed-Lid Startup
Assembled Dimensions

46" L x 27" W x 47" H

Assembled Weight

149 lbs

Package Dimensions

46" L x 22.5" W x 28" H

Package Weight

175.5 lbs

Main Grate Dimensions

22" L x 19" D

Main Grilling Area

418 sq. in.

2nd Grate Dimensions

22" L x 10.5" D

2nd Grate Grilling Area

231 sq. in.

Total Grilling Area

649 sq. in.

Barrel Size

22"

Hopper Capacity

20 lbs

Maximum Temperature 500°F
Meat Probe Count 1
BTUs 22,000
Exhaust System Downdraft
Pellet Evacuation Door
Pellet Sensor Yes; Included
Super Smoke Yes
WiFIRE Yes



Compatible Accessories

ACCESSORY PART NUMBER BUY ON TRAEGER.COM
Cover BAC505 Ironwood 650 Grill Cover - Full-length
Cutting Board BAC406 Magnetic Bamboo Cutting Board
Drip Tray Liner BAC506 Ironwood 650 Drip Tray Liners 5 Pack
Folding Front Shelf BAC563 Folding Front Shelf
Grease Bucket Liner BAC407 Bucket Liner 5 Pack
Meat Probe BAC329 Replacement Meat Probe - 2 Pack
Pellet Bucket BAC637 Traeger StayDry Pellet Bin & Lid



Replacement Parts

Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.

Hyperlinked SKUs are available to purchase on Traeger.com. SKUs without hyperlinks require contacting Customer Support to order.


PART

SKU

Auger Auger Assembly KIT0426
Auger Motor KIT0577
Controller Controller KIT0775
Controller Knob KIT0580
Emblem (Redland Name Badge) KIT0907
Exhaust Exhaust Cover KIT0434

Fans

Induction Fan KIT0411

Firepot and Hot Rod Assembly

KIT0382
Grates Main Grate KIT0447
Upper Grate  KIT0448
Grease Management Drip Tray KIT0438
Grease Bucket HDW152
Hardware Assembly Hardware HDW333
Side Shelf Hardware KIT0243
Heat Baffle KIT0450
Hopper  Hopper Access Panel KIT0394
Hopper-Burner Assembly KIT0437
Hopper Lid KIT0525
Hopper Pellet Guard KIT0392
Pellet Cleanout Door KIT0526
Insulation Center Heat Shield KIT0587
Lower Heat Shield KIT0439
Legs Front Caster Wheel Leg KIT0389
Front All-Terrain Wheel Leg KIT0407
Rear Caster Wheel Leg KIT0388
Rear All-Terrain Wheel Leg KIT0408
Leg Brace KIT0424
Wheel: All-Terrain KIT0297
Wheel: Caster KIT0792
Lid Lid Assembly KIT0764
Lid Gasket KIT0453
Lid Handle KIT0419
Lid Handle Extender KIT0578
Lid Hinge KIT0001
Left Door Arc KIT0807
Right Door Arc KIT0789
Probe Grommet BRN249
Pellet Sensor BAC523
Power Parts On/Off Switch KIT0358
Power Brick KIT0480
Power Cord KIT0257
Shelves Side Shelf KIT0765
Side Shelf Hardware  KIT0243
Thermocouple KIT0422
