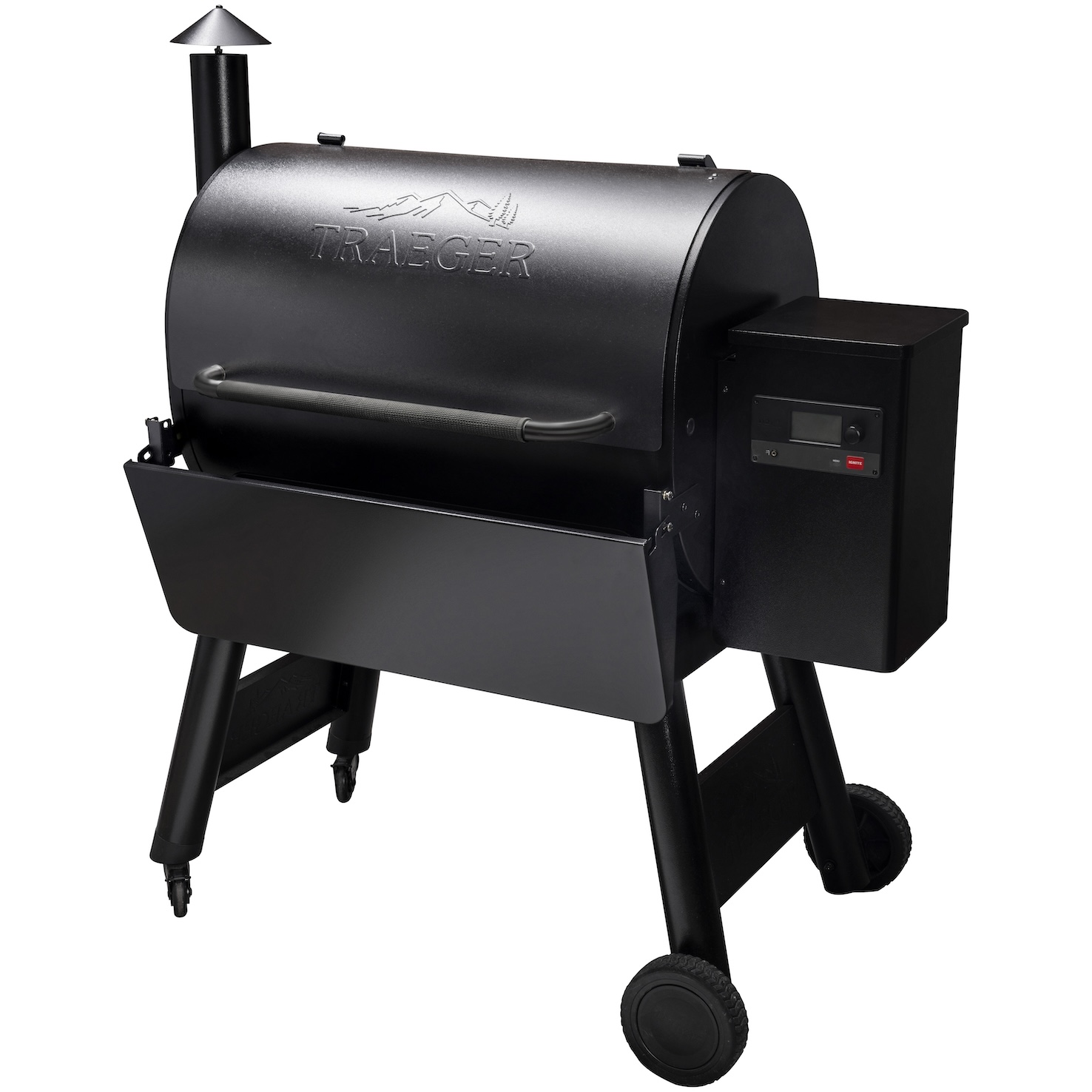

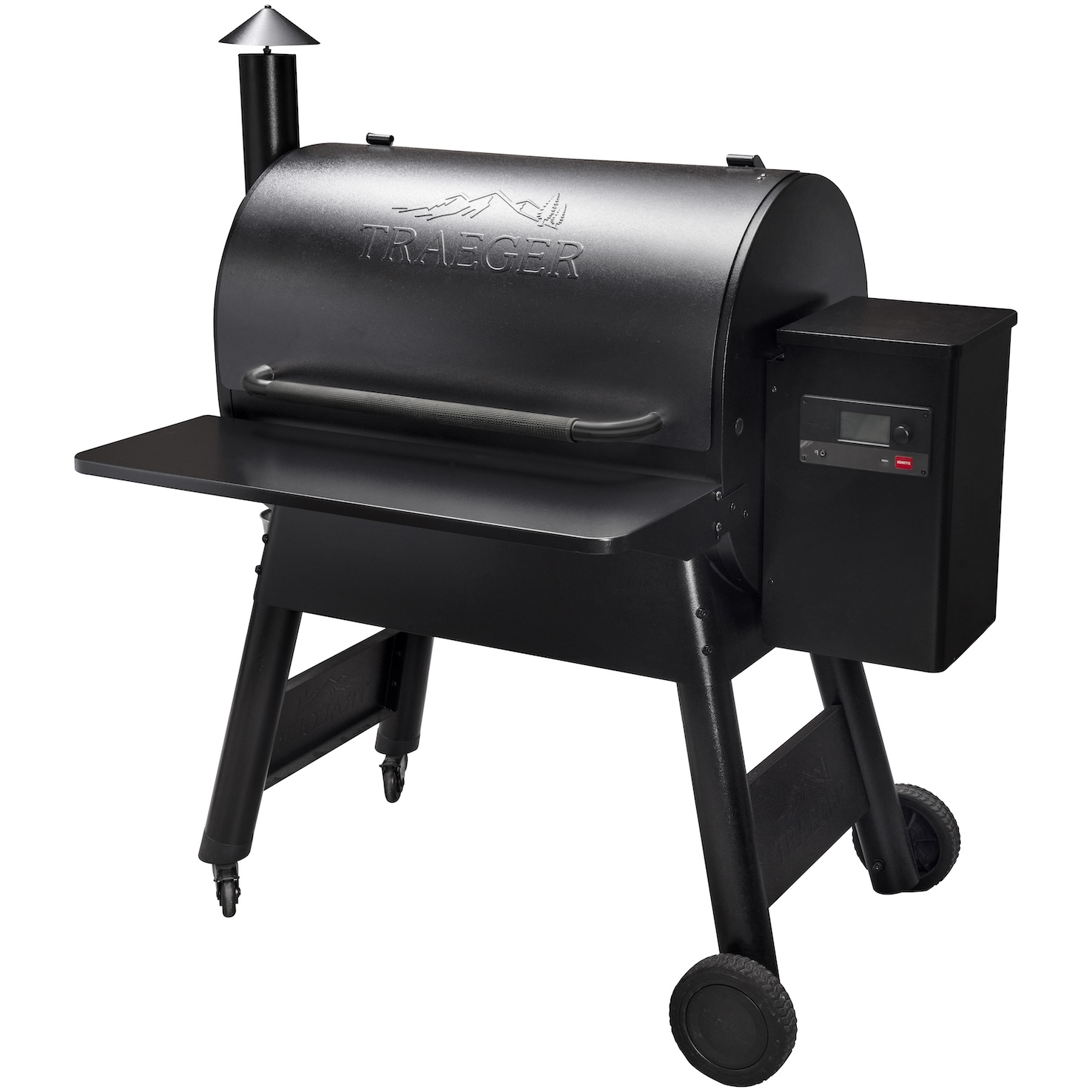

Information on the Ridgeline (TFB78GVJ) grill, sold exclusively at Costco.
| MODEL NUMBER | COUNTRY | STATUS | NOTES |
| TFB78GVJ | US & CA | Active | Black |
Documentation
-
Owner's Manual/Assembly Guide
- assembly instructions are included in the owner's manual
Specs
| Controller | WiFi Controller |
| Color | Silver Vein |
| Startup Procedure | Closed-Lid |
| Assembled Dimensions | 48.7" L x 26.7" W 54.4" H |
| Package Dimensions | 48.5" L x 27.75" W x 56"H |
| Assembled Weight | 170 lbs |
| Package Weight | 185 lbs |
| Main Grate Dimensions | 30" L x 19" D |
| Main Grilling Area | 570 sq. in. |
| 2nd Grate Dimensions | 30" L x 7" D |
| 2nd Grate Grilling Area | 210 sq. in. |
| Total Grilling Area | 780 sq. in. |
| Hopper Capacity | 18 lbs |
| Min. Temp | 180°F |
| Min. Temp | 180°F |
| Max. Temp | 500°F |
| Meat Probe Count | 1 (included) |
| BTUs | 17,500 |
| Exhaust System | Chimney |
| Pellet Evacuation | Door |
| Pellet Sensor | Not included, compatible as an upgrade |
| Super Smoke | No |
| Keep Warm | No |
| WiFIRE | Yes |
| Grate Storage Hooks | Yes (Hooks on back of grill skirt to hold upper grate when not in use) |
| Accessories Included with Purchase | |||
| The Ridgeline XL comes includes the following accessories with purchase. | |||
| ACCESSORY | SKU | QTY | NOTES |
| Cover | KIT1031 | 1 | |
| Drip Tray Liner | BAC597 | 1 | |
| Folding Front Shelf | BAC442 | 1 | Includes removable rubber trim piece (KIT1025) |
| Grease Bucket Liner | BAC407 | 1 | |
| Wired Meat Probe | BAC329 | 1 | |
Service Parts
| PART | SKU | NOTES |
| Auger | ||
| Auger Assembly | KIT0431 | Replacement Instructions |
| Auger Motor | KIT0577 | Replacement Instructions |
| Chimney | ||
| Chimney-Barrel Gasket | KIT0795 | Additional Info |
| Chimney Cap | KIT0008 | |
| Chimney Pipe | KIT0005 | |
| Controller | ||
| Controller | KIT1016 | Replacement Instructions |
| Controller Knob | KIT0580 | |
| Drip Tray | ||
| Drip Tray | KIT0443 | |
| Fans | ||
| Induction Fan | KIT0411 | Replacement Instructions |
| Firepot & Ignitor | ||
| Firepot & Hot Rod Assembly | KIT0383 | Replacement Instructions |
| Folding Front Shelf | ||
| Folding Front Shelf | KIT1025 | Additional Info |
| Grates | ||
| Main Grate | KIT0451 | |
| Upper Grate | KIT0445 | |
| Grease Management | ||
| Grease Bucket | KIT1014 | |
| Handles | ||
| Lid Handle | KIT1015 | |
| Lid Handle Extension | KIT0578 | |
| Side Handle | KIT1017 | |
| Hardware | ||
| Assembly Hardware Kit | HDW333 | |
| Heat Baffle | ||
| Heat Baffle | KIT0450 | |
| Hopper | ||
| Hopper Access Panel | KIT0414 | |
| HBA | KIT1019 | Replacement Instructions |
| Hopper-Barrel Gasket | KIT0802 | Replacement Instructions |
| Hopper Lid | KIT0432 | Replacement Instructions |
| Hopper Pellet Guard | KIT0413 | |
| Insulation | ||
| Lower Heat Shield | KIT0442 | |
| Legs & Wheels | ||
| Front Left Leg | KIT0389 | |
| Front Right Leg | KIT0417 | |
| Rear Left Leg | KIT0388 | |
| Rear Right Leg | KIT0418 | |
| Leg Brace | KIT0424 | |
| Caster Wheel | KIT0792 | |
| Stationary Wheel | KIT0297 | |
| Lid | ||
| Lid Assembly: Black | KIT1039 | |
| Lid | KIT1018 | Replacement Instructions |
| Lid Handle | KIT1015 | |
| Lid Handle Extension | KIT0578 | Replacement Instructions |
| Lid Hinge | KIT0001 | Replacement Instructions |
| Probe Grommet | KIT0785 | |
| Right/Left Door Arc | KIT0789 | Includes 2 screws and 2 lock washers |
| Power Source | ||
| Power Brick | KIT0480 | Replacement Instructions |
| Power Cord | KIT0257 | Replacement Instructions |
| Power Switch | KIT0358 | Replacement Instructions |
| Temperature Sensor | ||
| Thermocouple | KIT0422 | Replacement Instructions |
