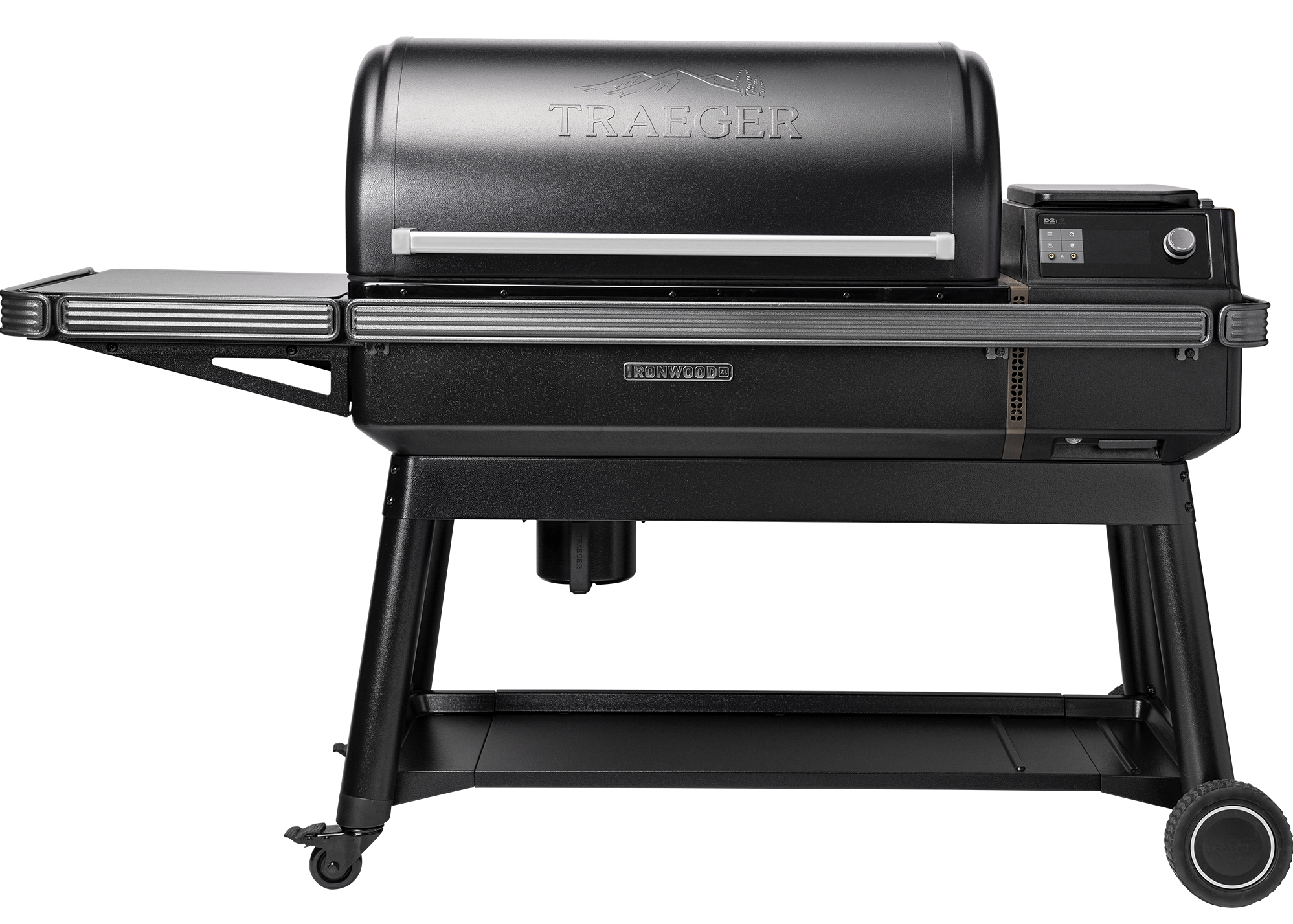

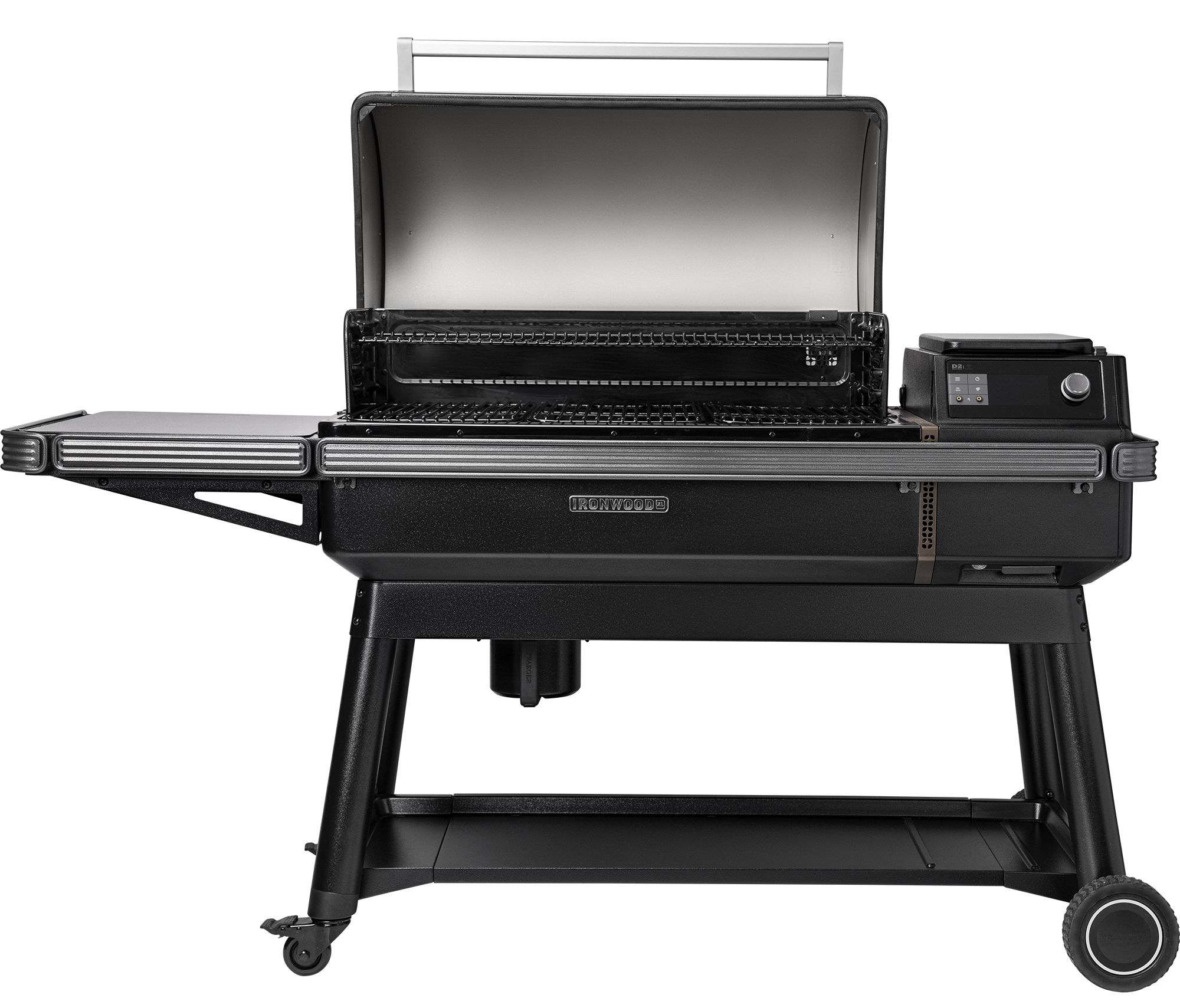

Information on Traeger's Ironwood grill.
Model Numbers
| MODEL NUMBER | COUNTRY | STATUS |
| TFB61RLG | USA | Active |
| TFB61RLGC | Canada | Active |
Documentation
| DOCUMENT | LANGUAGE | AMENDMENTS |
| Owner's Manual | English |
Troubleshooting Resources for Your Ironwood XL
Below are links help you get the most out of your Ironwood XL, whether it's learning best-use practices or how to resolve common issues.
| Operating Your Ironwood XL | How to start/ignite your Ironwood XL |
| How to shut down/turn off your Ironwood XL | |
| How to season your Ironwood XL | |
| Cleaning your Ironwood XL | |
| Connecting to WiFi & App Pairing | How to pair an Ironwood XL grill |
| How to update your grill's firmware | |
| Grill won't connect to WiFi/Grill won't pair | |
| Error Messages & Notifications | Ironwood XL Errors & Notifications |
| Temperature Management | Ironwood XL Won't Get to Temp |
| Temperature Swings | |
| Accessories | Using Your Traeger X MEATER Wireless Probes |
Specs
| Controller | WiFi Touchscreen Controller | |
| Startup Procedure | Closed-Lid | |
| Assembled Dimensions |
70" L x 25" W x 48" H |
150 cm L x 64 cm W x 122 cm H |
| Assembled Weight |
243 lbs |
90.5 kg |
| Package Dimensions |
55.08" L x 22.4" W x 32.1" H |
109 cm L x 57 cm W x 81.5 cm H |
| Package Weight |
255 lbs |
96 kg |
| Main Grate Dimensions |
33" L x 18" D |
56 cm L x 46 cm D |
| Main Grilling Area |
594 sq. in. |
2555 sq. cm |
| 2nd Grate Dimensions |
33" L x 10" D |
56 cm L x 25.5 cm D |
| 2nd Grate Grilling Area |
330 sq. in. |
2129 sq. cm |
| Total Grilling Area |
924 sq. in. |
5961 sq. cm |
| Hopper Capacity |
22 lbs |
10 kg |
| Maximum Temperature | 500°F | 260°C |
| Meat Probe Count | 2 | |
| Side Shelf | Powder-coated steel | |
| Exhaust System | Downdraft | |
| Pellet Evacuation | Slide | |
| Pellet Sensor | Yes; Included | |
| Super Smoke | Yes | |
| WiFIRE | Yes | |
Compatible Accessories
|
ACCESSORY |
SKU |
| Cover: Full-Length | BAC647 |
| Grease Keg Liner | BAC608 |
| Meat Probe - Wired | BAC431 |
| Meat Probe - Traeger X MEATER Bluetooth 2 Pack | BAC645 |
| Outdoor Kitchen Trim Kit | BAC681 |
| P.A.L Accessory Hooks | BAC643 |
| P.A.L Cup Holder | BAC707 |
| P.A.L Folding Front Shelf | BAC604 |
| P.A.L Folding Front Shelf XL | BAC605 |
| P.A.L Roll Rack | BAC644 |
| P.A.L Storage Bin | BAC642 |
| Pellet Storage Bin | BAC637 |
Replacement Parts
Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.
If you want to use your grill's warranty you will need to contact Customer Support to place your order.
|
PART |
SKU |
|
| Auger | Auger Assembly | KIT0599 |
| Auger Motor | KIT0689 | |
| Controller Display & Motherboard | Display Knob | KIT0642 |
| Smart Combustion Motherboard | KIT0828 | |
| Power Supply Board | KIT0722 | |
| Motherboard Cover | KIT0726 | |
| Drip Tray | KIT0624 | |
|
Fans |
Auxiliary Fan | KIT0621 |
| Induction Fan | KIT0674 | |
| KIT0660 | ||
| Grates | Main Grate | KIT0622 |
| Upper Grate | KIT0656 | |
| Grease Management | Grease & Ash Keg | KIT0629 |
| Grease Drain Cap | KIT0667 | |
| Grease Drain Extension | KIT0688 | |
| Grease Keg Gasket | KIT0720 | |
| Grease Keg Rail | KIT0678 | |
| Hardware | Assembly Hardware | KIT0681 |
| Heat Shield | KIT0628 | |
| Hopper | Hopper Assembly | KIT0757 |
| Hopper Lid | KIT0672 | |
| Hopper Pellet Guard | KIT0652 | |
| Hopper Service Panel | KIT0637 | |
| Pellet Cleanout Slide | KIT0704 | |
| Ignitor & Flame Sensor Assembly | KIT0639 | |
| Legs | Front Left Leg | KIT0708 |
| Front Right Leg | KIT0709 | |
| Rear Left Leg | KIT0711 | |
| Rear Right Leg | KIT0710 | |
| Bottom Shelf | KIT0677 | |
| Caster Wheel | KIT0715 | |
| Lid | Lid Assembly | KIT0604 |
| Lid Gasket | KIT0669 | |
| Lid Handle | KIT0646 | |
| Lid Hinge | KIT0658 | |
| Lid Sensor & Light | KIT0633 | |
| Lid Shoulder Bolt | HDW047 | |
| Meat Probe | BAC289 | |
| P.A.L. Rails | Front Rail | KIT0648 |
| Hopper Side Rail | KIT0679 | |
| Shelf Rail Front | KIT0703 | |
| Shelf Rail Side | KIT0680 | |
| Pellet Sensor | KIT0632 | |
| Power Parts | Power Button | KIT0687 |
| Power Cord | KIT0673 | |
| Power Strip | KIT0690 | |
| Shelves | Side Shelf Insert | KIT0705 |
| Side Shelf no Insert | KIT0650 | |
| Side Shelf w/Insert | KIT0649 | |
| Thermocouple | Thermocouple | KIT0659 |
| Access Panel | KIT0609 | |
| WiFi Antenna | KIT0634 | |
