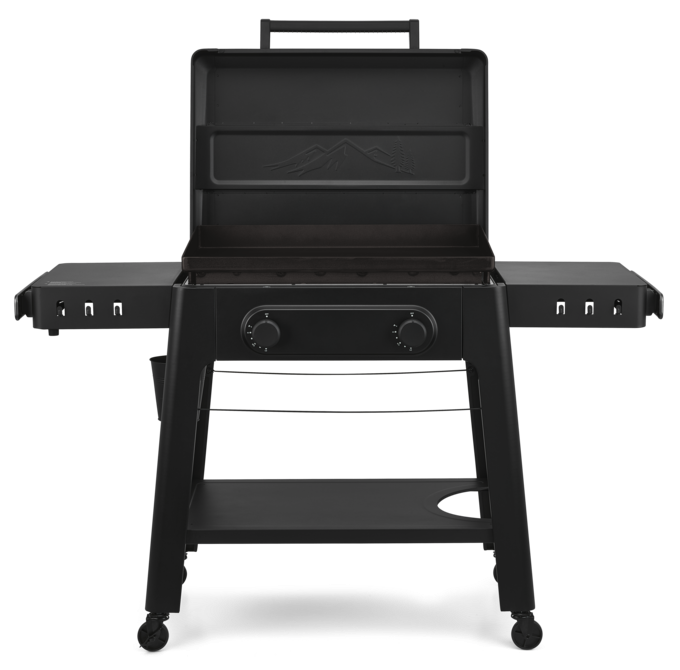

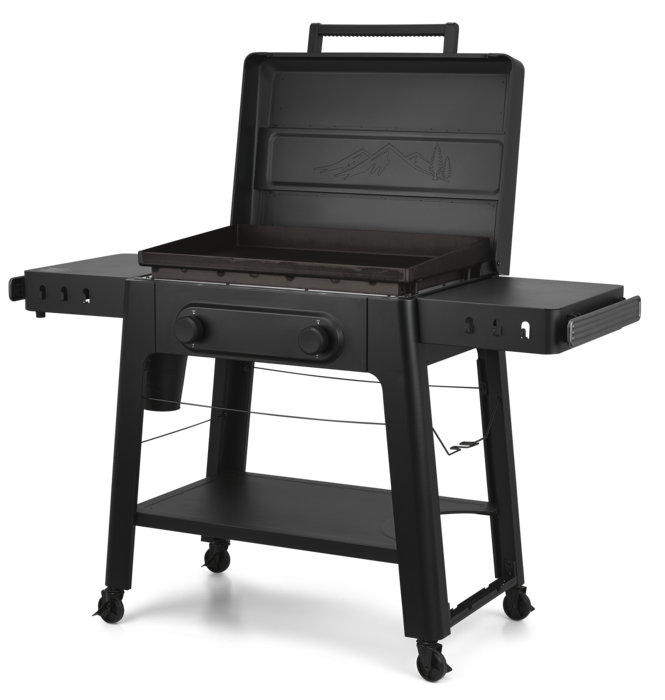

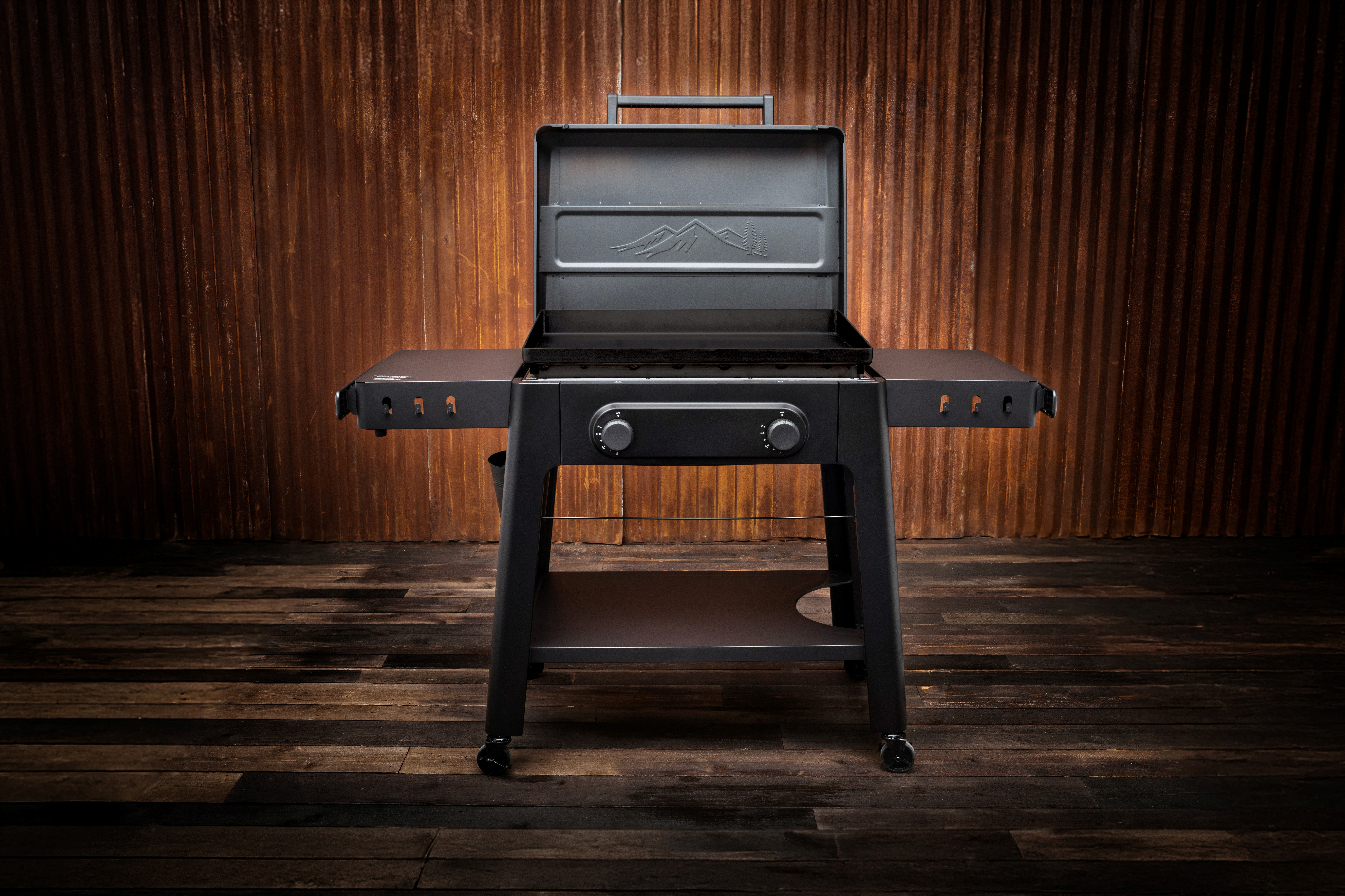

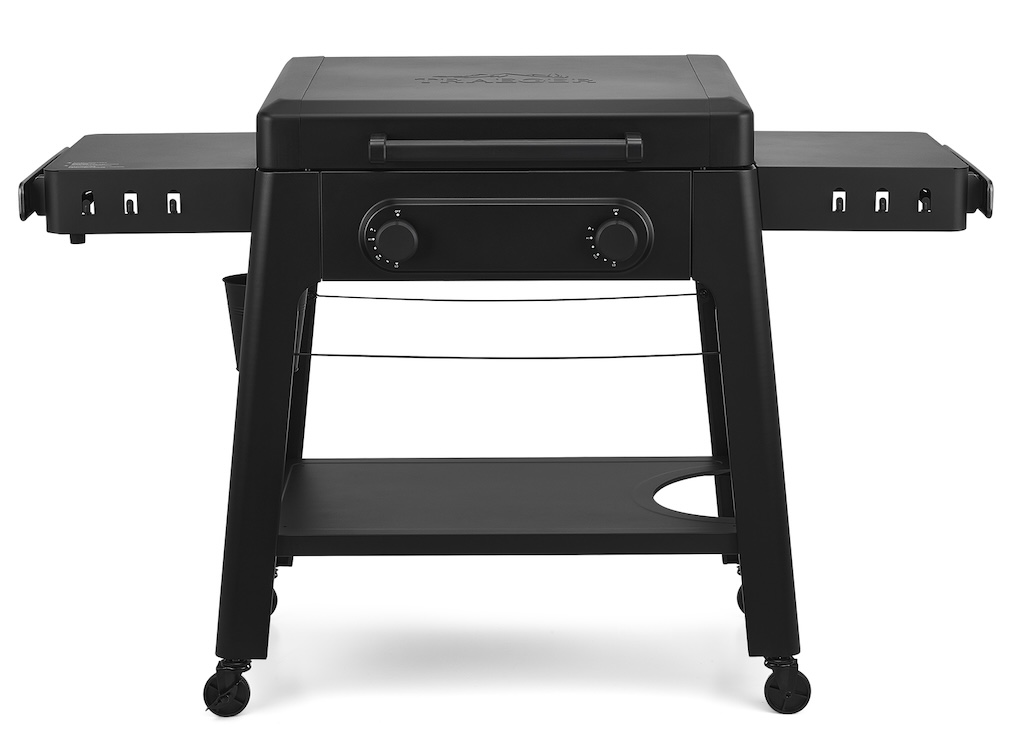

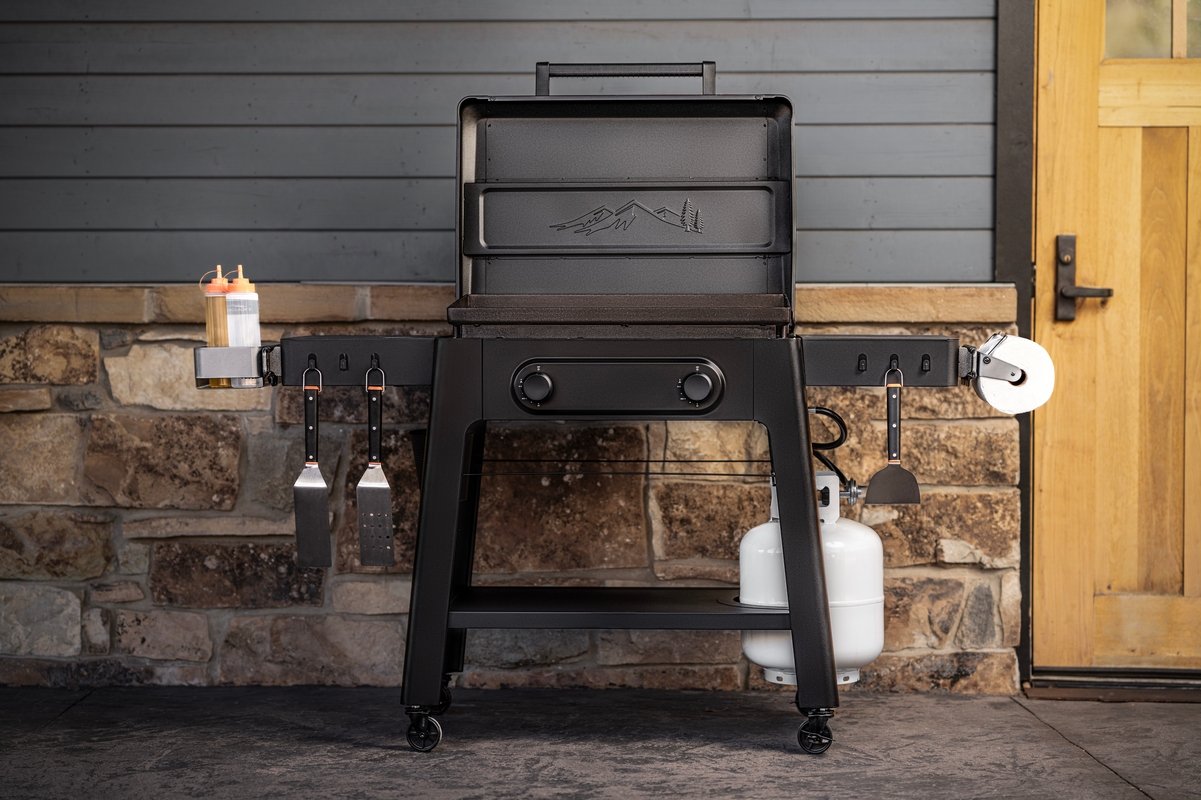

Find all your support needs for your Traeger IronTop 2-Burner flat top grill (TF2NN50DNU), including troubleshooting guides, owner's manual, specs, and replacement parts.
Model Number
- TF2NN50DNU
Documentation
- Owner's Manual/Assembly Guide- English
- Owner's Manual/Assembly Guide- CA French
Specs & Features
Grill Specs
- Assembled Dimensions: 59.25"L x 23" W x 39" H
- Assembled Weight: 95lbs
- Packaged Dimensions: 37.4"L x 29.44" W x20.66" H
- Packaged Weight: 145lbs
- Cooktop Dimensions: 28" L x 18" W
- Cooktop Area: 504 sq. in.
- Approx Burn Time (Full Tank): ~12 hours
- Propane Tank Size: 20lbs
- BTUs: 36,000/hour (both burners on high)
- Side Shelf: x1 folding, x1 stationary
- Fuel Type: Propane tank (not included). Not certified for use with natural gas

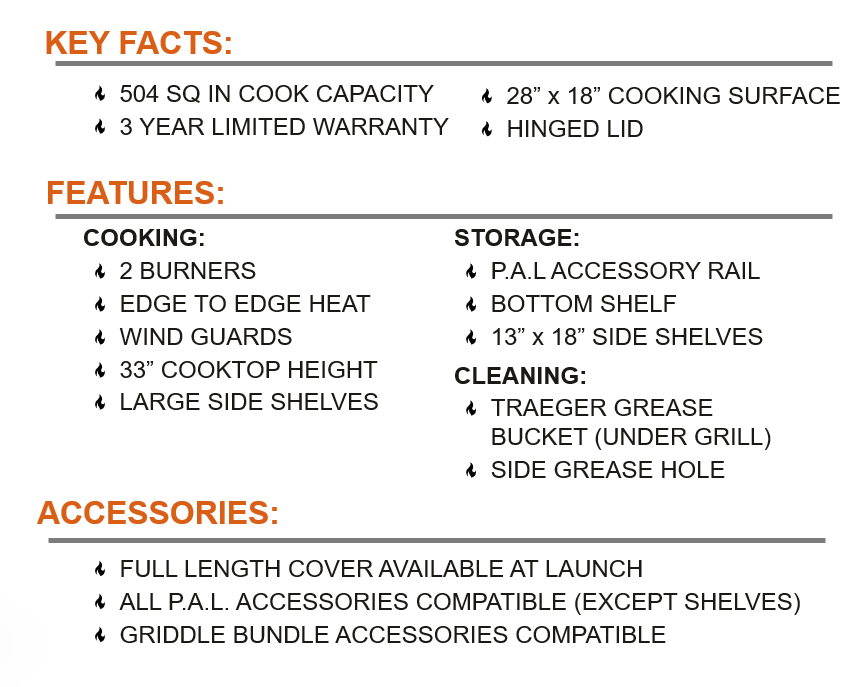

Grill Features
Accessories Included with Purchase
- Folding Side Shelf (FTK0153)
- P.A.L. Rail (FTK0157)
Using your IronTop Grill
Helpful articles on using a flat top grill
Always cook with the lid open on an IronTop grill. The lid should never be closed during use.
Service Parts
| Part | SKU |
| Burner Knob | FTK0159 |
| Burner Cavity Replacement | FTK0134 |
| Cooktop | FTK0133 |
| Fuel Management | |
| H Burner | FTK0135 Replacement Instructions |
| Manifold with Gas Valves | FTK0129 Replacement Instructions |
| Regulator Hose | FTK0005 |
| Propane Tank Wire | FTK0158 Replacement Instructions |
| Propane Tank Rest | FTK0152 Replacement Instructions |
| Grease Management | |
| Grease Keg | KIT1014 |
| Grease Bucket Hook | FTK0139 |
| Hardware | FTK0130 |
| Back Baffle Plate | FTK0131 Replacement Instructions |
| Ignitor | FTK0161 Replacement Instructions |
| Legs & Wheels | |
| Front Left Leg | FTK0148 Replacement Instructions |
| Front Right Leg | FTK0149 Replacement Instructions |
| Rear Left Leg | FTK0150 Replacement Instructions |
| Rear Right Leg | FTK0151 Replacement Instructions |
| Caster Wheels | FTK0163 Replacement Instructions |
| Lid Parts | |
| Lid Assembly | FTK0132 Replacement Instructions |
| Lid Handle | FTK0164 Replacement Instructions |
| Lid Brackets | FTK0165 Replacement Instructions |
| Rubber Stoppers | FTK0162 |
| Shelves | |
| Folding Shelf Brackets | FTK0154 Replacement Instructions |
| Folding Shelf | FTK0153 Replacement Instructions |
| Stationary Shelf Brackets | FTK0156 Replacement Instructions |
| Stationary Side Shelf | FTK0155 Replacement Instructions |
| Shelf P.A.L Rail | FTK0157 Replacement Instructions |
| Bottom Shelf | FTK0126 Replacement Instructions |
| Tank Prevention Rods | FTK0128 Replacement Instructions |
| Matchstick Holder | |
