Your support guide for your Flatrock Flat Top Grill.
Buy your Flatrock on Traeger.com here: https://www.traeger.com/griddles/flatrock
Meet the Flatrock!
Model Number
The Traeger Flatrock Flat Top Grill has the following model numbers:
- 1DFL42LLA
- TF3CN59AU
- TF3CN59AN (Available in Canada March 2025)
Find your Flatrock's model number and serial number can be found on the back of the grill skirt, next to the power panel. The model number is the "SKU NUMBER."
Documentation
- Owner's Manual
-
Assembly Guide on the Traeger App (Mobile Only) *QR Code and app animations are not available at this time*
Assembling Your Flatrock & Flatrock Box Stagecoach
Troubleshooting Resources for Your Flatrock
Below are links help you get the most out of your Flatrock, whether it's learning best-use practices or how to resolve common issues.
| Operating Your Flatrock | Powering Your Flatrock with a 9V Battery |
| How to season your Flatrock | |
| Cleaning your Flatrock | |
| Technical Support | Calibrate Your Fuel Sensor |
| Rust on Your Flatrock's Cooktop | |
| Cooktop Warping | |
| No Gas at Burners | |
| Part Replacement Instructions | Replacing Parts on Flat Top Grills |
Specs
| Assembled Dimensions (Shelves Up) |
74" L x 37" D x 42" H |
| Assembled Dimensions (Shelves Down) |
41.7" L x 37" D x 42" H |
| Assembled Weight |
189 lbs |
| Package Dimensions |
44.5" L x 26.53" W x 21" H |
| Package Weight |
200 lbs |
| Cooktop Dimensions |
33" L x 18" W |
| Cooktop Area |
594 sq. in. |
| BTUs | 47,000 (all three burners on high) |
| Side Shelf | x2 Folding Side Shelves |
| Fuel Type | Propane Tank (not included) Not compliant for natural gas conversion |
| Approx. Burn Time (Full Tank) | ~10 hours |
Compatible Accessories & Griddle-Specific Rubs
|
ACCESSORY |
BUY ON TRAEGER.COM |
|
| Conditioner | https://www.traeger.com/accessories/grill-conditioner | |
| Cover | https://www.traeger.com/grill-covers/flatrock | |
| Grease Keg Liner | https://www.traeger.com/accessories/liners/keg | |
| P.A.L Accessories | Accessory Hooks | https://www.traeger.com/accessories/pop-lock/hooks |
| Cup Holder | https://www.traeger.com/accessories/pop-lock/cup-holder | |
| Roll Rack | https://www.traeger.com/accessories/pop-lock/roll-rack | |
| Storage Bin | https://www.traeger.com/accessories/pop-lock/storage-bin | |
| Essentials Bundle | 2 Squeeze Bottles Flat Top Spatula Set Flat Top Grill Scraper |
https://www.traeger.com/accessories/flatrock-essential-kit |
| Smashed Burger Bundle | Cast Iron Grill Press Steam Dome Flat Top Large Spatula |
https://www.traeger.com/accessories/smash-burger-kit |
| RUB | SKU | Buy on Traeger.com |
| *These rubs were made especially for griddle recipes, though they are great options for use with pellet grill recipes, and other rubs are great options for griddle recipes too. | ||
| Breakfast Rub | SPC216 | Traeger Breakfast Rub |
| Burger Rub | SPC215 | Traeger Burger Rub |
| Spicy Fajita | SPC217 | Traeger Spicy Fajita Rub |

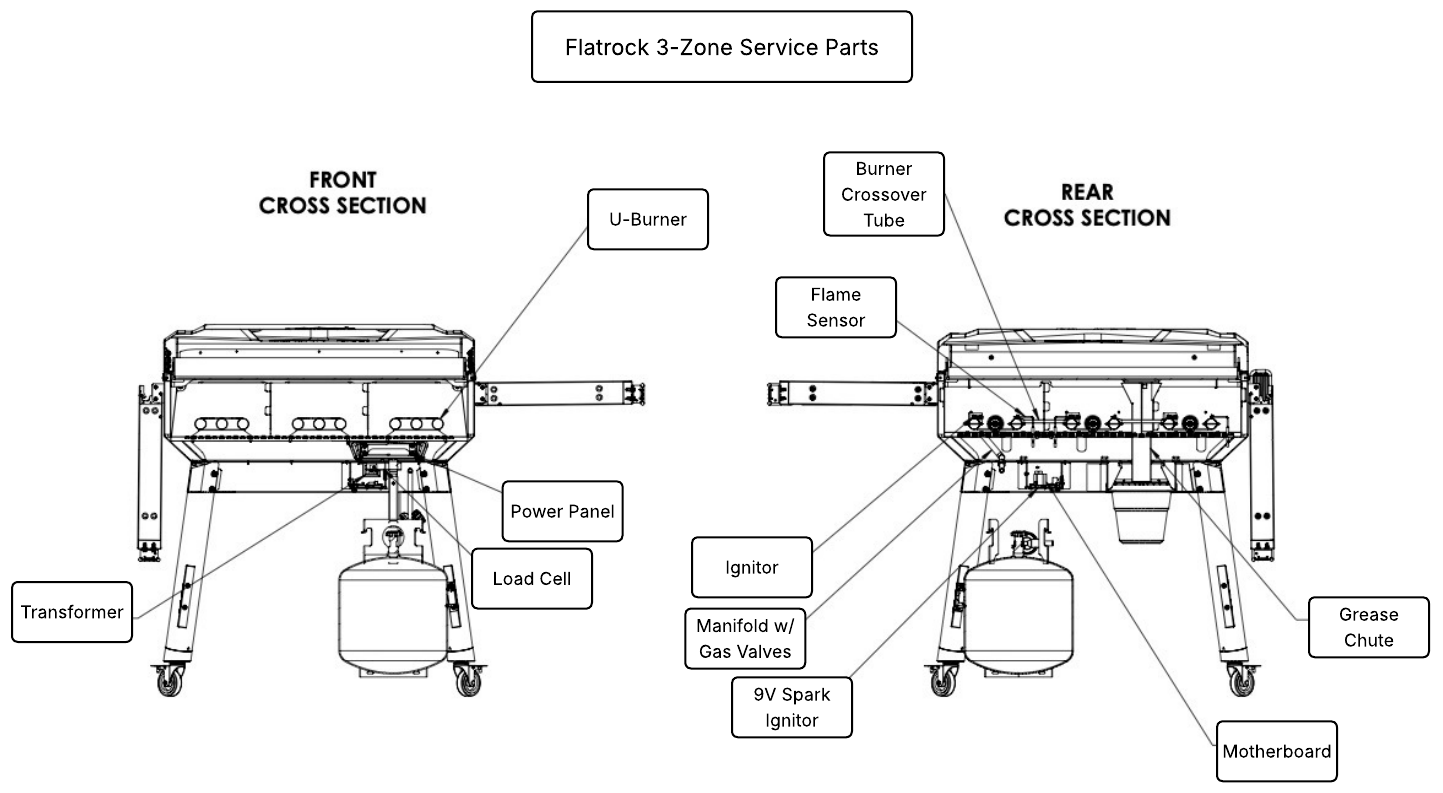

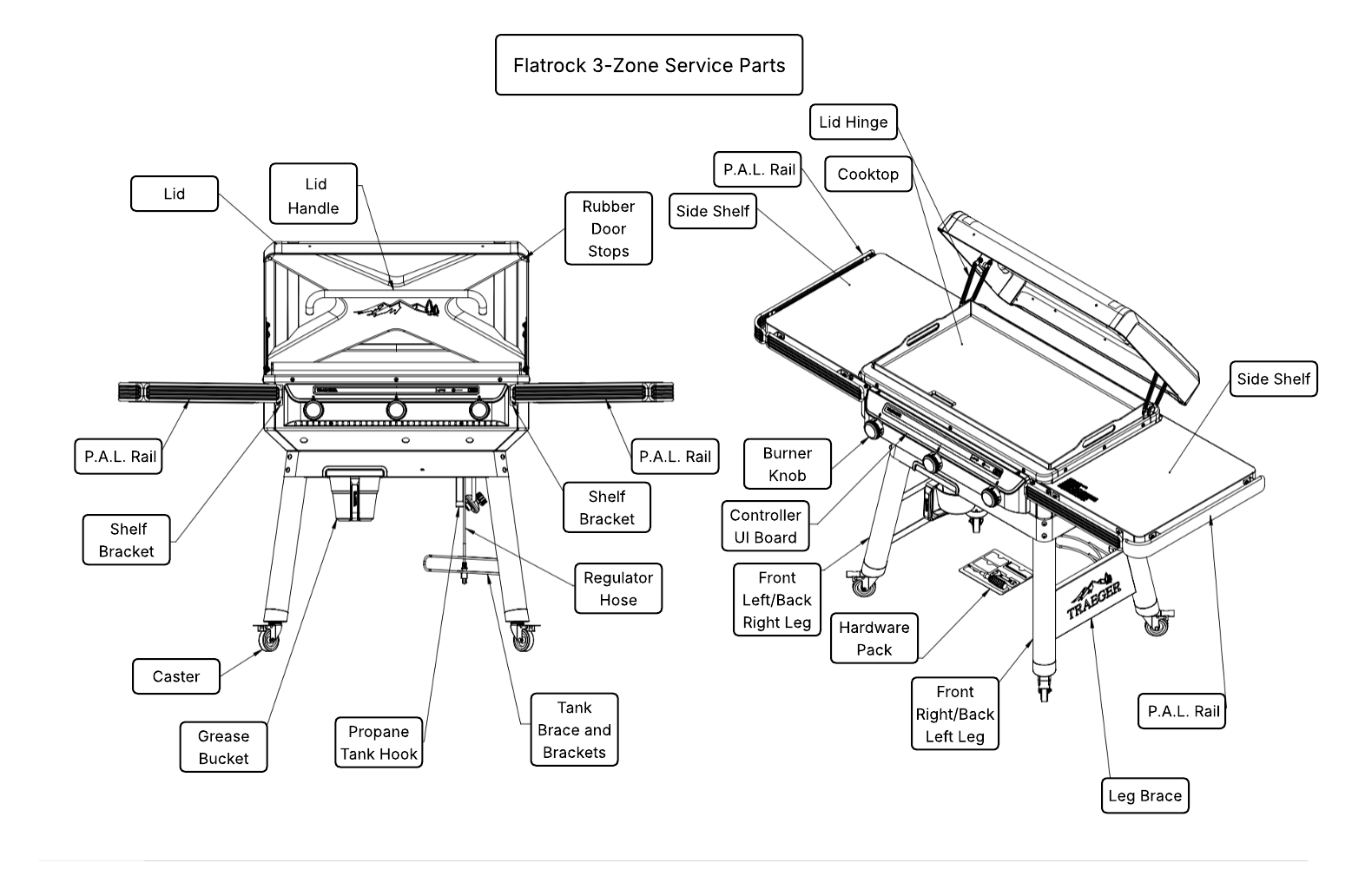

Replacement Parts
Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.
Hyperlinked SKUs are available to purchase on Traeger.com. SKUs without hyperlinks require contacting Customer Support to order.
|
Part |
Grill SKU TF3CN59AU |
Grill SKU TF3CN59AN |
Replacement Instructions |
|
| Controller | Controller | FTK0012 | FTK0058 | Controller UI Board & Knob Replacements |
| Controller Knob | FTK0003 | FTK0072 | ||
| Cooktop | FTK0031 | FTK0062 | ||
| Cooktop Claws | N/A | FTK0125 | ||
| Flame Sensor | FTK0008 | FTK0086 | Flame Sensor Replacements | |
| Fuel Management | U-Burner | FTK0006 | FTK0064 | Burner & Crossover Tube Replacements |
| Burner Crossover Tube | FTK0007 | FTK0065 | ||
| Manifold w/Gas Valves | FTK0021 | FTK0067 | Manifold & Gas Valves Replacements | |
| Regulator Hose | FTK0005 | FTK0063 | Regulator Hose Replacements | |
| Grease Management | Grease Chute | FTK0028 | FTK0070 | Grease Keg & Chute Replacements |
| Grease Keg | FTK0001 | FTK0069 | ||
| Grease Keg Front Trim | FTK0046 | FTK0071 | ||
| Assembly Hardware | FTK0017 | FTK0074 | ||
| Ignitor | FTK0009 | FTK0066 | Ignitor Replacements | |
| Legs | Caster Wheel | FTK0041 | FTK0083 | Leg Replacements |
| Leg Brace | FTK0025 | FTK0081 | ||
| Leg A | FTK0002 | FTK0080 | ||
| Leg B | FTK0026 | FTK0082 | ||
| Lid | Handle | FTK0033 | FTK0085 | Lid Parts Replacements |
| Hinges | FTK0027 | FTK0075 | ||
| Lid Assembly | FTK0004 | FTK0084 | ||
| Rubber Stopper | KIT0829 | FTK0079 | ||
| Power | 9V Spark Ignitor | FTK0043 | FTK0068 | |
| 9V Battery Cover | N/A | FTK0061 | ||
| Motherboard | FTK0019 | FTK0059 | ||
| Power Cord | FTK0044 | FTK0094 | ||
| Power Panel | FTK0013 | FTK0050 | Power Panel Replacements | |
| Transformer | FTK0014 | FTK0051 | Transformer Replacements | |
| Propane Tank Support | Load Cell | FTK0016 | FTK0087 | Load Cell Replacements |
| Tank Brace & Brackets | FTK0032 | FTK0077 | Tank Hook & Brace Replacements | |
| Tank Hook | FTK0015 | FTK0073 | ||
| Side Shelves | Brackets: Front-Right; Back-Left | FTK0030 | FTK0076 | Side Shelf Replacement Instructions |
| Brackets: Front-Left; Back-Right | FTK0042 | FTK0078 | ||
| Side Shelf: Left | FTK0010 | FTK0088 | ||
| Side Shelf: Right | FTK0029 | FTK0093 | ||
| P.A.L Rail: Front Left | FTK0020 | FTK0090 | ||
| P.A.L Rail: Front Right | FTK0011 | FTK0089 | ||
| P.A.L Rail: Left Side | FTK0024 | FTK0092 | ||
| P.A.L Rail: Right Side | FTK0022 | FTK0091 | ||
| Wire Harnesses | Grounding to Burner | FTK0039 | FTK0057 | |
| Grounding to Controller | FTK0038 | FTK0056 | ||
| Controller to Transformer | FTK0036 | FTK0054 | ||
| Flame Sensor | FTK0034 | FTK0052 | ||
| Igniter | FTK0035 | FTK0053 | ||
| Transformer to Power Switch | FTK0037 | FTK0055 | ||
| Matchstick Holder | This is NOT a service part. | |||
