Model TFB89BVH | Exclusively sold through Costco
Owner's Manual
Get Help Fast
Check out the links below to help you get the most out of your Redland XL, whether it's learning best practices or how to resolve common issues.
Quick Start
New to your Redland XL? Start with these essential guides:
- How to start your Redland XL
- Season your grill
- Navigate your controller
- How to shut down/turn off your Redland XL
- Cleaning your Redland XL - Keep it running smoothly
App & WiFi Setup
- Connect to WiFi & pair your Redland XL to the Traeger app: iPhone | Android
- Update your firmware - Keep your grill current
Temperature Issues
- Temperature Swings
- WiFIRE Grill Running too Cool
- WiFIRE Grill Running too Hot
- WiFIRE Grill not Igniting
Errors
Redland XL Specs
Cooking Space: 885 sq in (5709 sq cm) total
- Main grate: 570 sq in (3677 sq cm) - 30" × 19" (76 × 48 cm)
- Upper grate: 315 sq in (2032 sq cm) - 30" × 10.5" (76 × 27 cm)
Key Features:
- WiFi controller with app control
- Super Smoke mode for extra flavor
- Pellet Sensor (alerts when low)
- 20 lbs (9 kg) pellet hopper
- Max temp: 500°F (260°C)
Size & Weight:
- Assembled: 53" L × 27" W × 47" H (134 × 69 × 119 cm) - 163 lbs (74 kg)
- Shipping box: 49" L × 23" W × 28" H (124 × 59 × 71 cm) - 197 lbs (89 kg)
What's Included:
Your Redland XL comes with:
- Grill Cover (BAC513)
- Folding Front Shelf (BAC442)
- Drip Tray Liner (BAC855)
- Grease Bucket Liner (BAC407)
Replacement Parts
Important: Proper diagnosis is essential before ordering parts. Contact Traeger Support or consult a technician if unsure.
Auger System:
- Auger Assembly: KIT0431
- Auger Motor: KIT0577

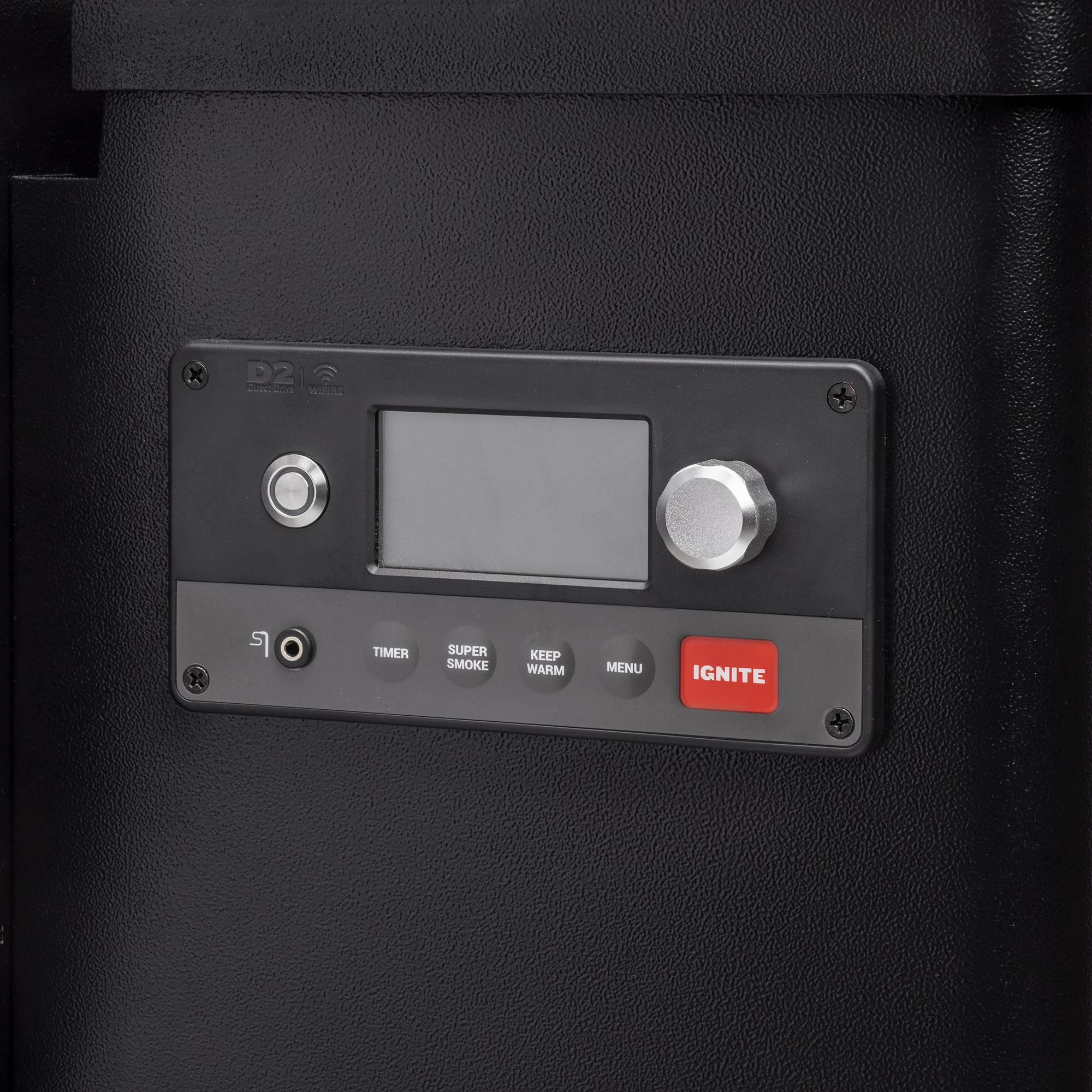

Controller:
- Controller: KIT0776
- Controller Knob: KIT0580
Exhaust:
- Exhaust Cover: KIT0393
Fans:
Fire System:
- Firepot and Ignitor/Hot Rod Assembly: KIT0382
- Heat Baffle: KIT0450
- Main Grate: KIT0409
- Upper Grate: KIT0446
Grease Management:
Hardware:
- Assembly Hardware: HDW333
- Lid Handle Hardware: KIT0244
- Side Shelf Hardware: KIT0243
Hopper:
- Hopper Access Panel: KIT0394
- Hopper-Burner Assembly: KIT0401
- Hopper Lid: KIT0525
- Hopper Pellet Guard: KIT0392
- Pellet Cleanout Door: KIT0526
Insulation:
- Lower Heat Shield: KIT0406
Legs/Wheels:
- Front Caster Wheel Leg: KIT0389
- Front All-Terrain Wheel Leg: KIT0407
- Rear Caster Wheel Leg: KIT0388
- Rear All-Terrain Wheel Leg: KIT0408
- Leg Brace: KIT0424
- All-Terrain Wheel: KIT0297
- Caster Wheel: KIT0792
Lid Components:
- Lid Assembly: KIT0766
- Lid Gasket: KIT0454
- Lid Handle: KIT0397
- Lid Handle Hardware: KIT0244
- Lid Hinge: KIT0001
- Left Door Arc: KIT0807
- Right Door Arc: KIT0789
- Probe Grommet: KIT0785
Meat Probe:
Power Components:
Shelves:
- Side Shelf: KIT0765
- Side Shelf Hardware: KIT0243
Temperature Sensor:
