Power Bricks for D2 WiFIRE Grills

Learn more about power bricks and where to find them.

Related Articles

• Power Brick Replacement Instructions

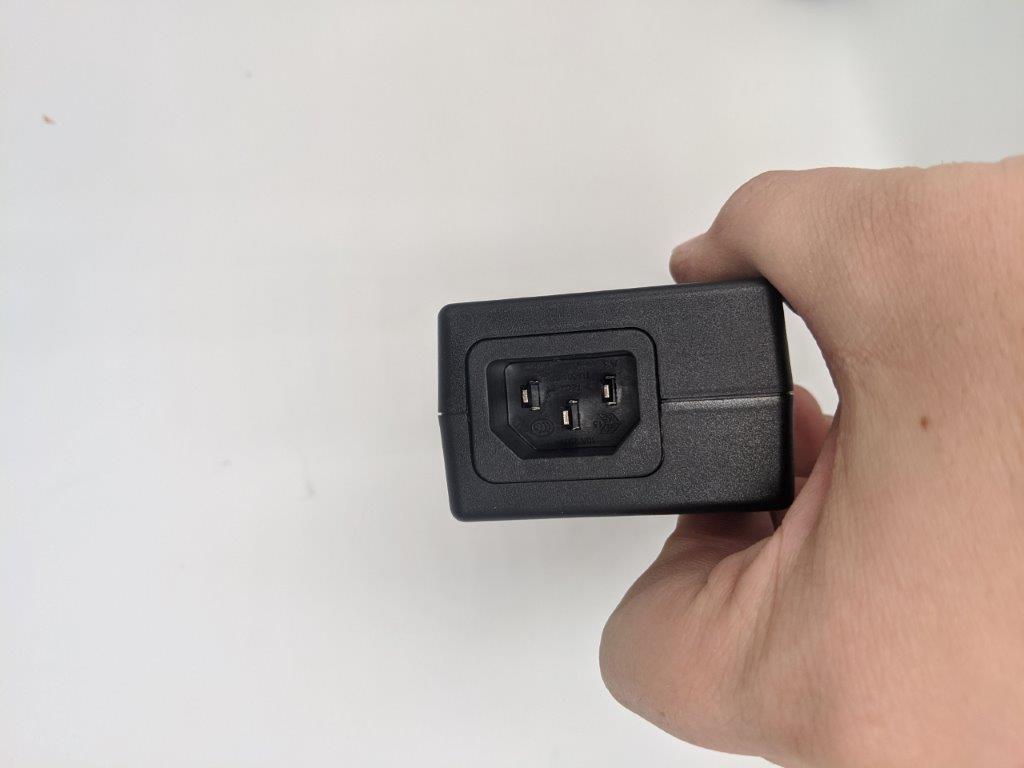

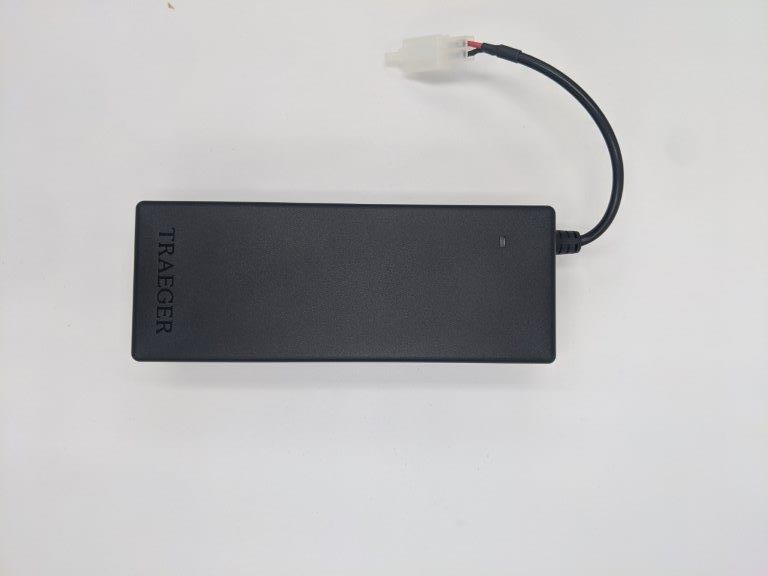

What Is a Power Brick?

A power brick is an external device that changes the electricity from your home (AC power) into the type of electricity that a D2 grill uses (DC power). It's used for devices that need power but don't have the internal components to create the right kind of electricity (voltage and power).

Power bricks are also known by various names, including AC adapter, plug pack, plug-in adapter, adapter block, power adapter, AC/DC adapter, and AC/DC converter.

Power Brick SKUs & Grill Compatibility

Power bricks are a part only on D2 grills. On AC grills the power cord is hardwired to the grill; on new Timberlines & Ironwoods, the power cord connects to a power strip/panel.

• KIT0480

Where is the Power Brick Located?

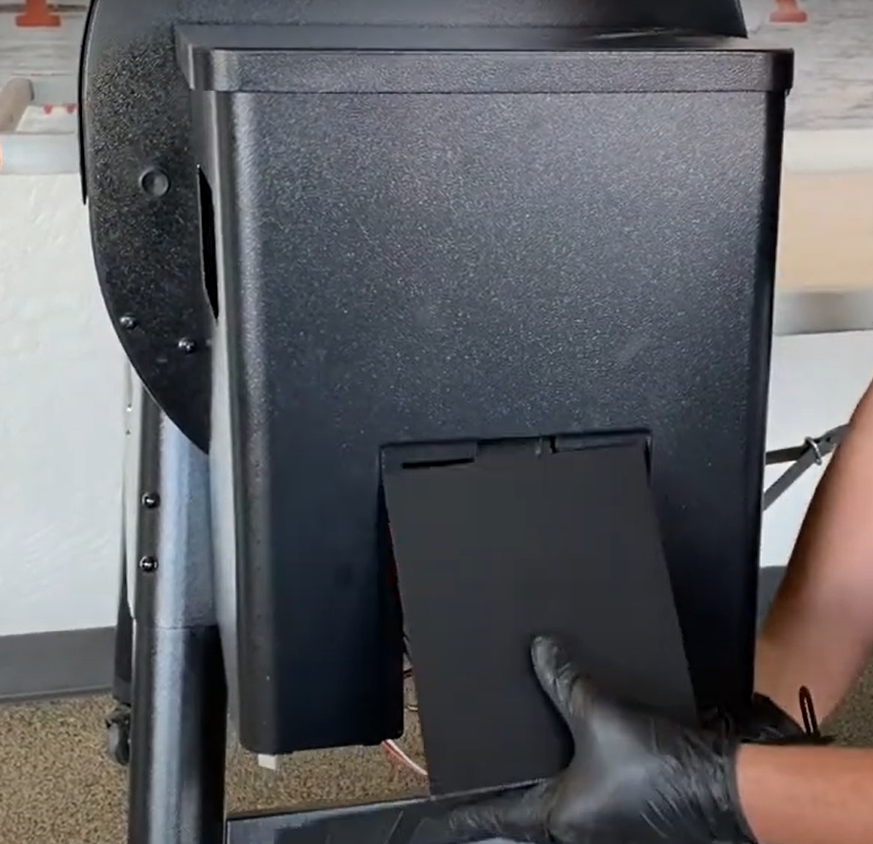

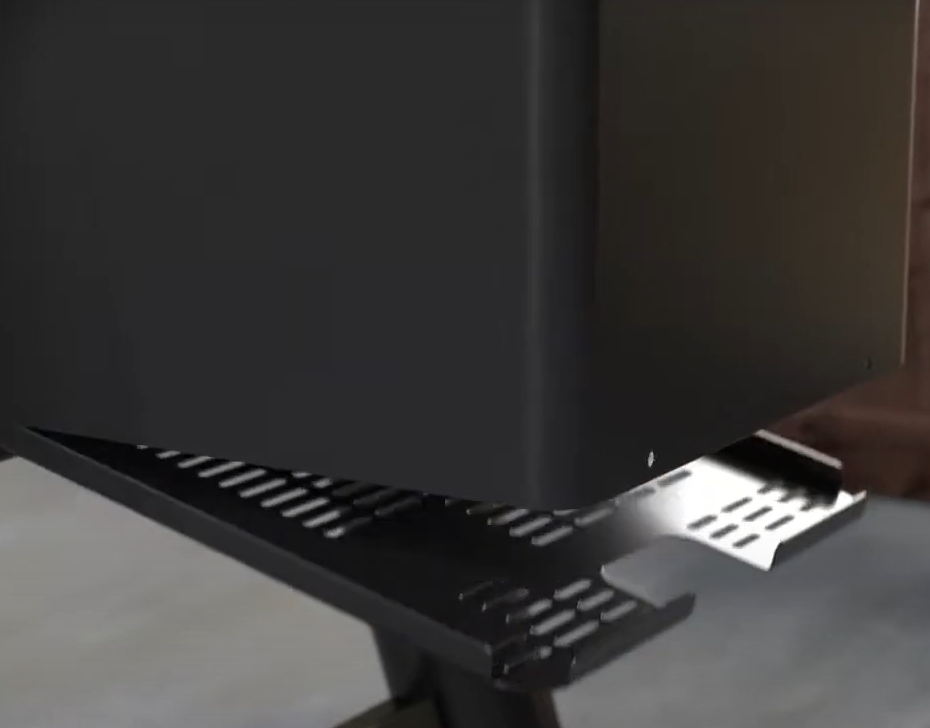

The power brick is located on the underside of the grill's hopper. To view the power brick, remove the side or bottom panel (depending on the model).

Power Brick LED Light Behavior

The power brick LED light is green in color. Look up from the ground into the underside of the hopper and look for a small green light near the top of the power brick.

If the grill is plugged in and powered on and Power Brick's light is off or flickering, contact Customer Support.

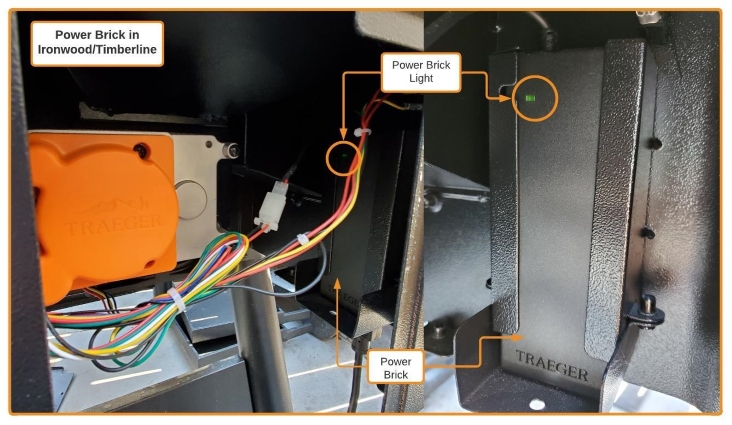

D2 Ironwood & Timberline
	The green LED (even when dull) indicates the power brick is working. If the power brick is not receiving power, there will be no indication of a green light. During a bright day, it may be difficult to tell if the light is on or off.

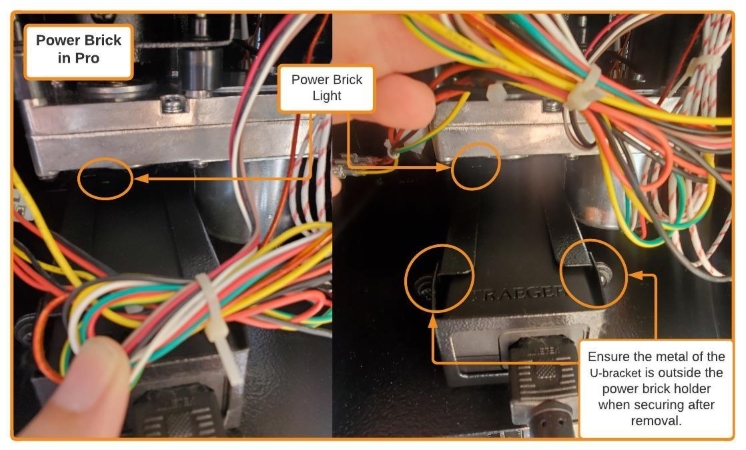

Pro, Century, Silverton
	The green LED (even when dull) indicates the power brick is working. If the power brick is not receiving power, there will be no indication of a green light. Due to the location of the power brick, you may need to remove the brick from the holder to check the light. During a bright day, it may be difficult to tell if the light is on or off.
