This article provides an overview of the wiring on a Woodridge series grill.
Woodridge Series Grill Wiring Layout
Woodridge series grill wiring is relatively straightforward. Each component of the grill connects directly into the main circuit board located in the auger box of the grill.
- The RTD and pellet sensor (Pro & Elite models only) connect directly into the controller and not into the main circuit board
Woodridge Series Grill's Wiring Connections

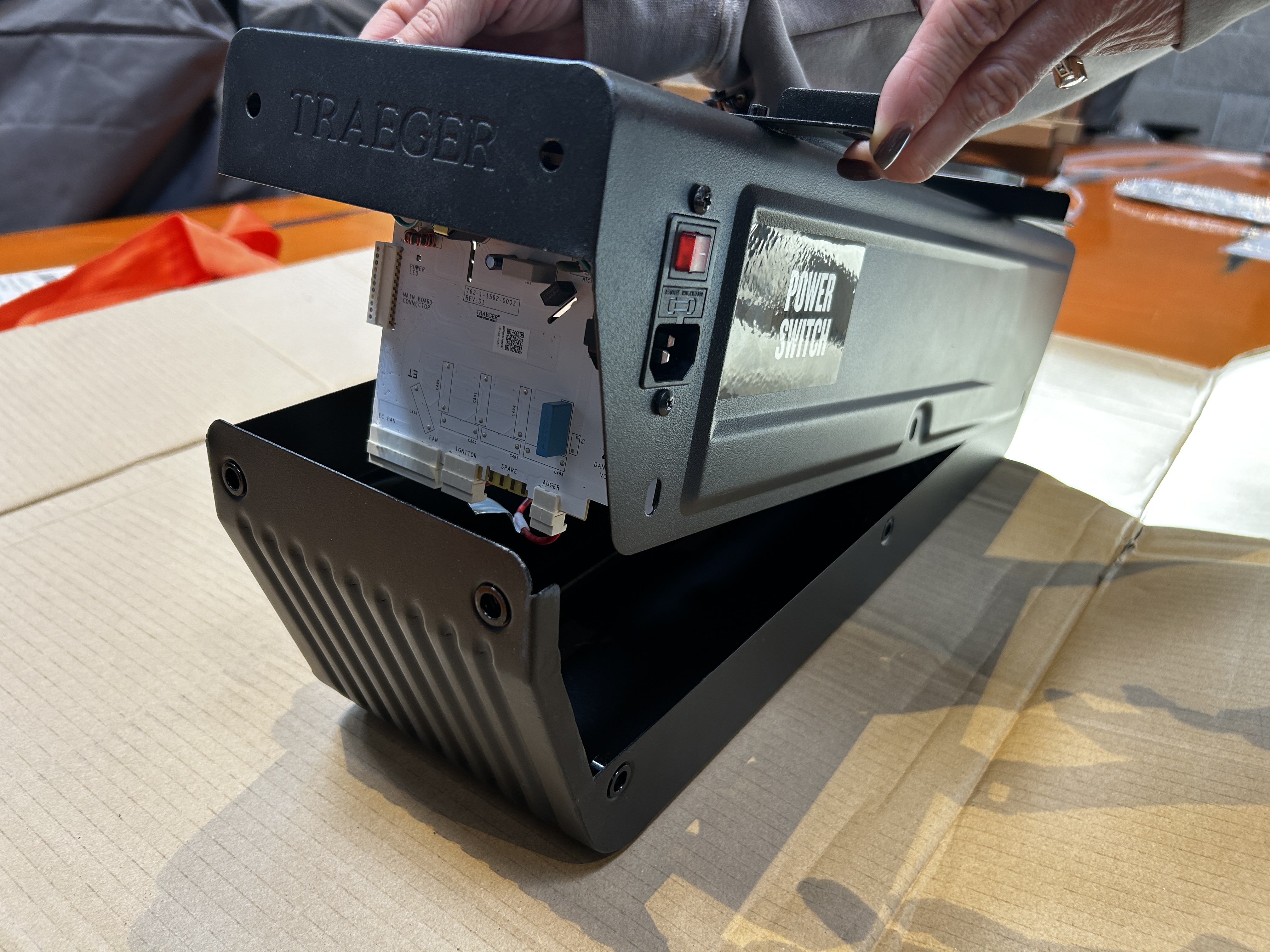

To access the main circuit board on a Woodridge series grill, you need to remove the bottom of the auger box:
- NOTE: You only need to remove the cover. The auger box can stay installed on the bottom of the grill.
Unscrew the x10 screws from the auger box (x2 on each end, x3 along each side).

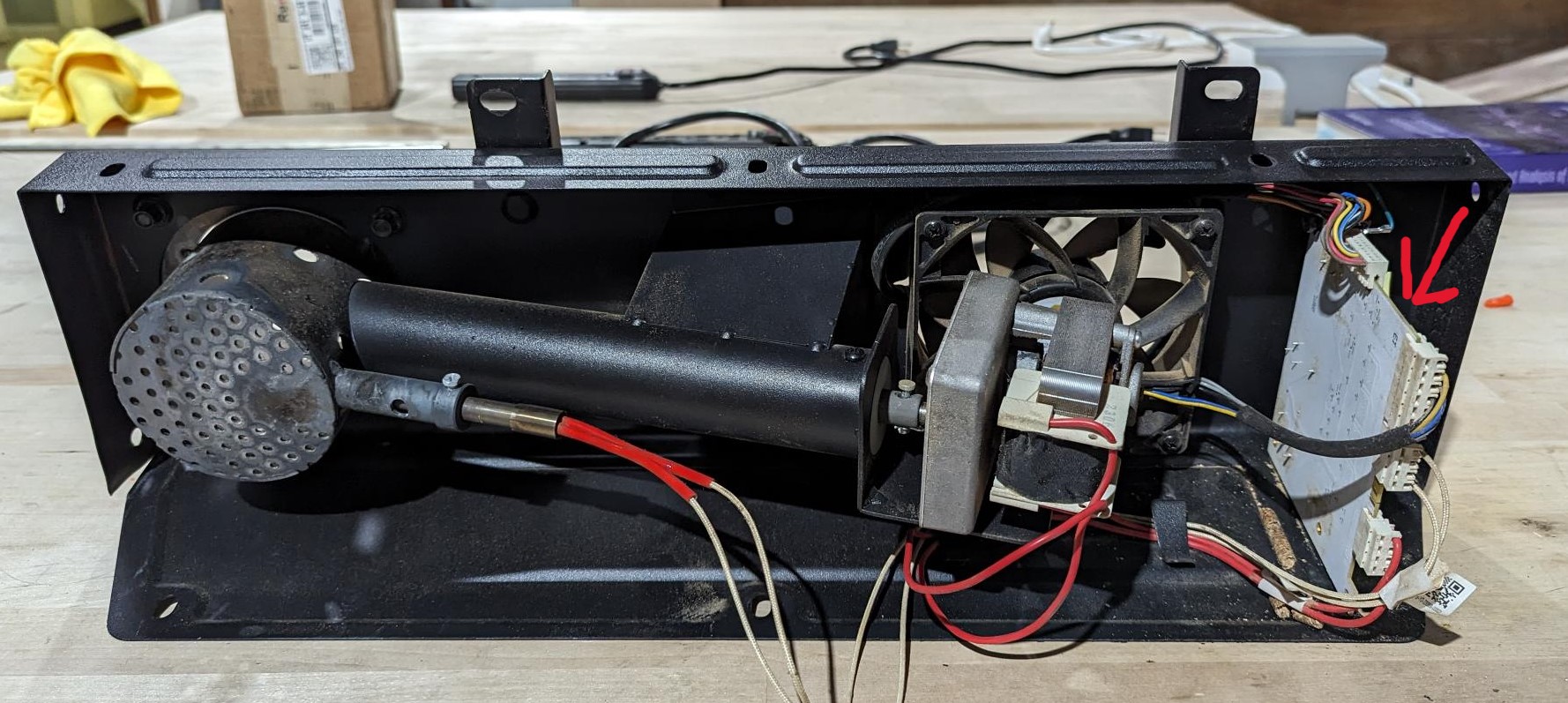

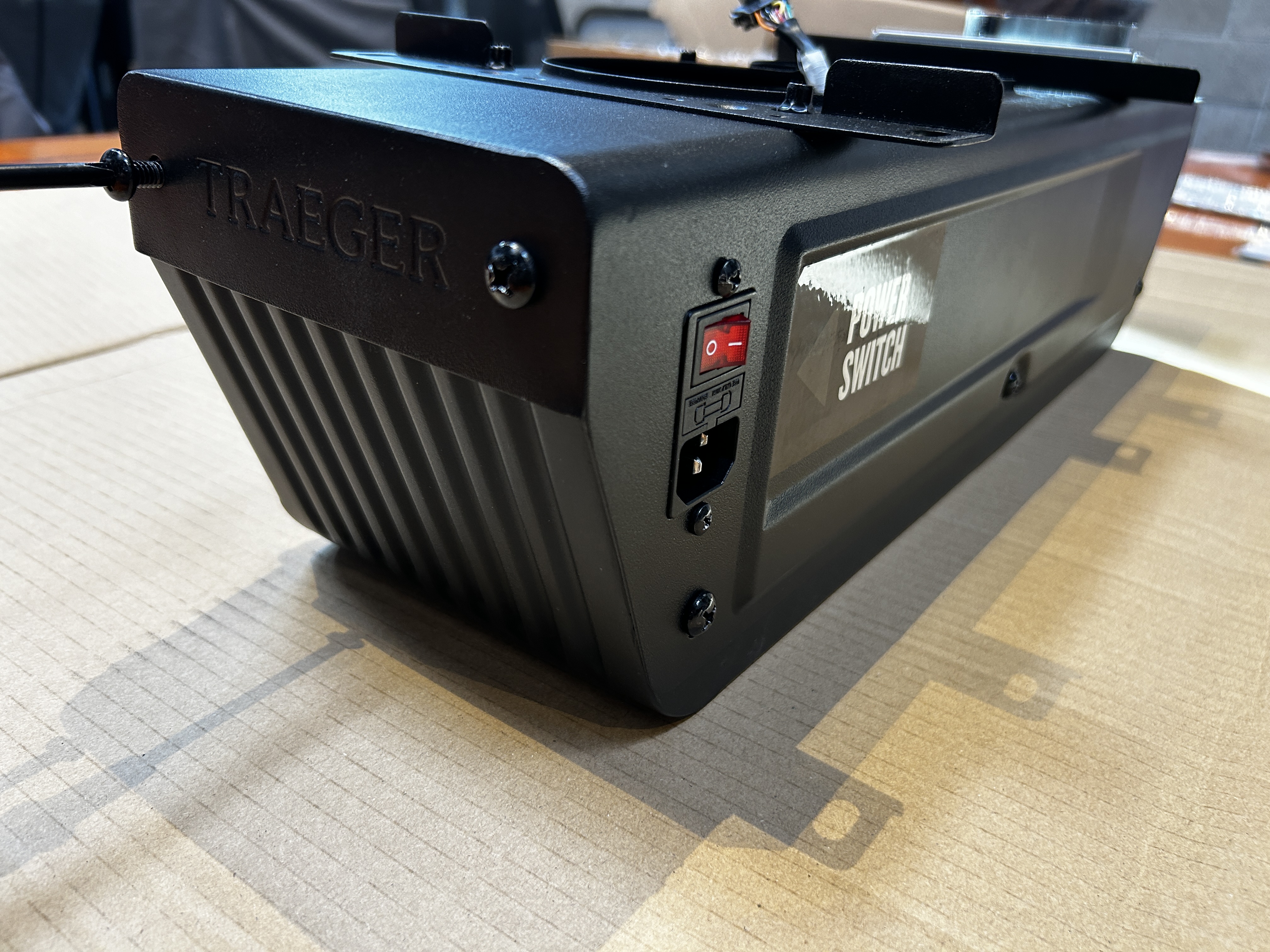

The main circuit board is located on the side of the auger box nearest to the power switch

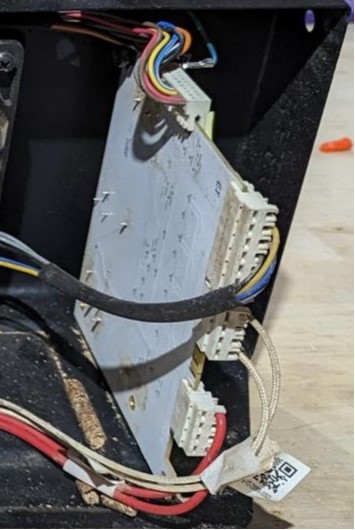

Each component plugs into a specific spot on the circuit board.
Woodridge Series Controller Wiring

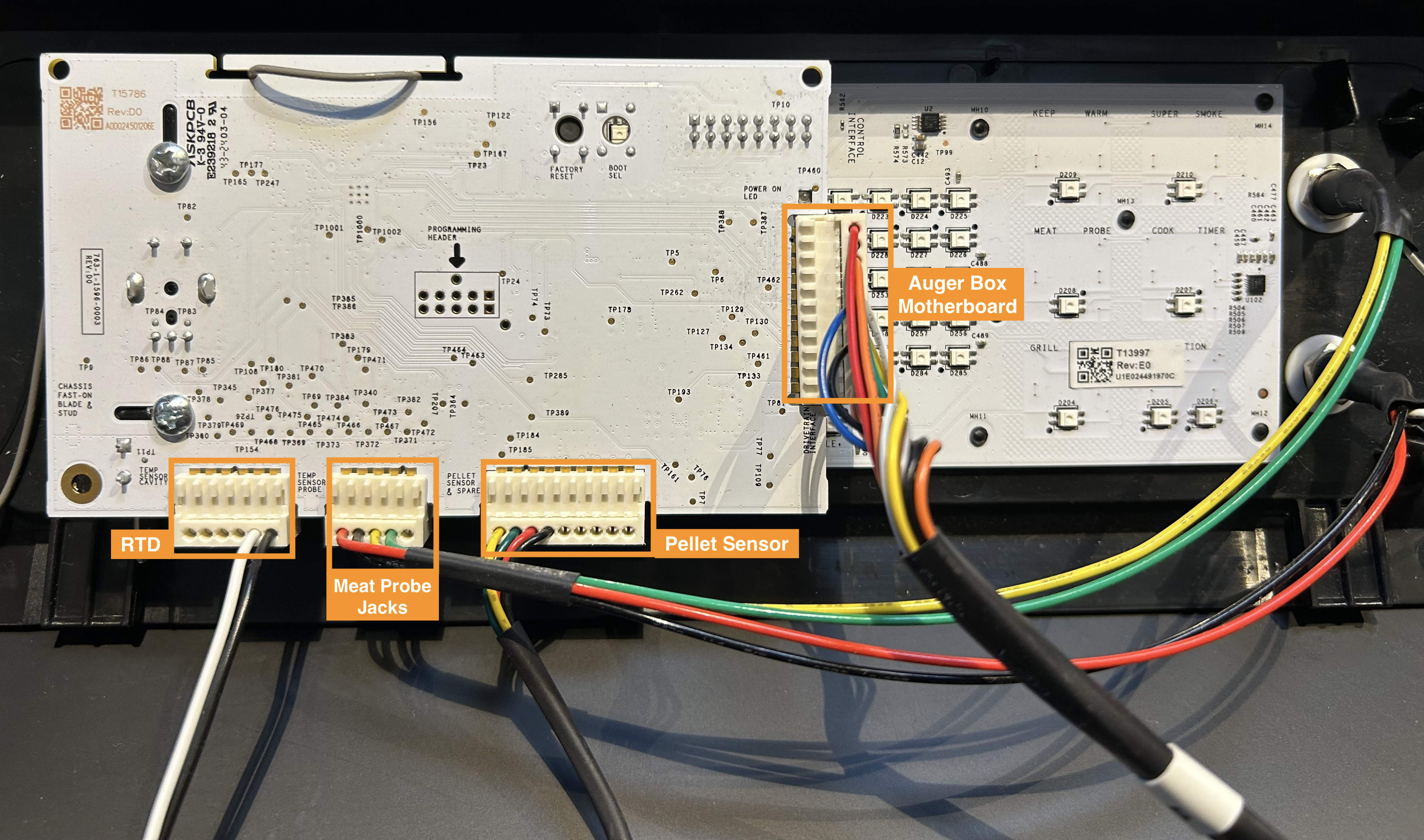

The Woodridge series controller also has a circuit board which connects to the main circuit board as well as to the pellet sensor (Pro & Elite models only), probe jacks, and the RTD.
Woodridge Series Grounding Wire

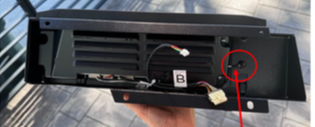

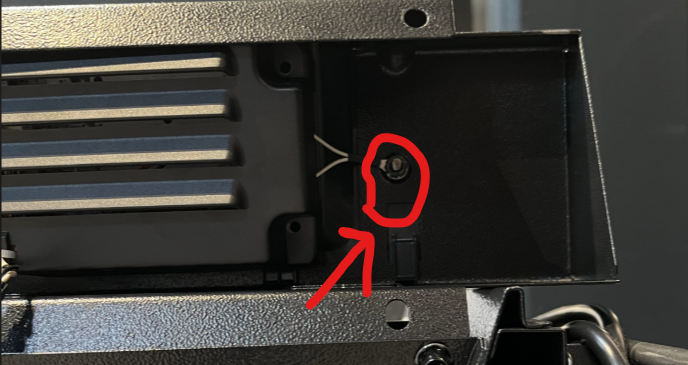

The Woodridge series grounding wire is located on the back of the controller housing, with the other end connected to the meat probe jacks.

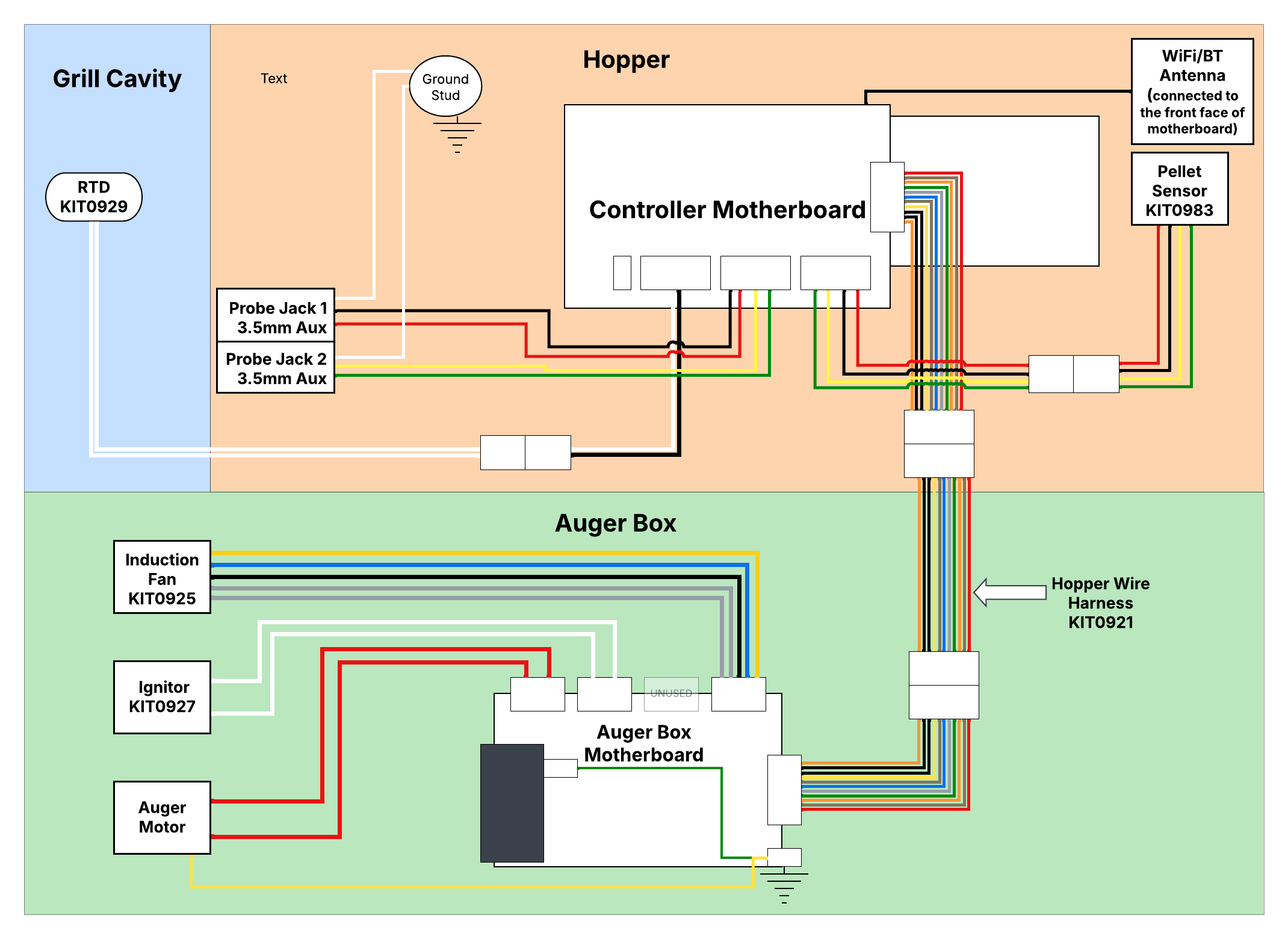

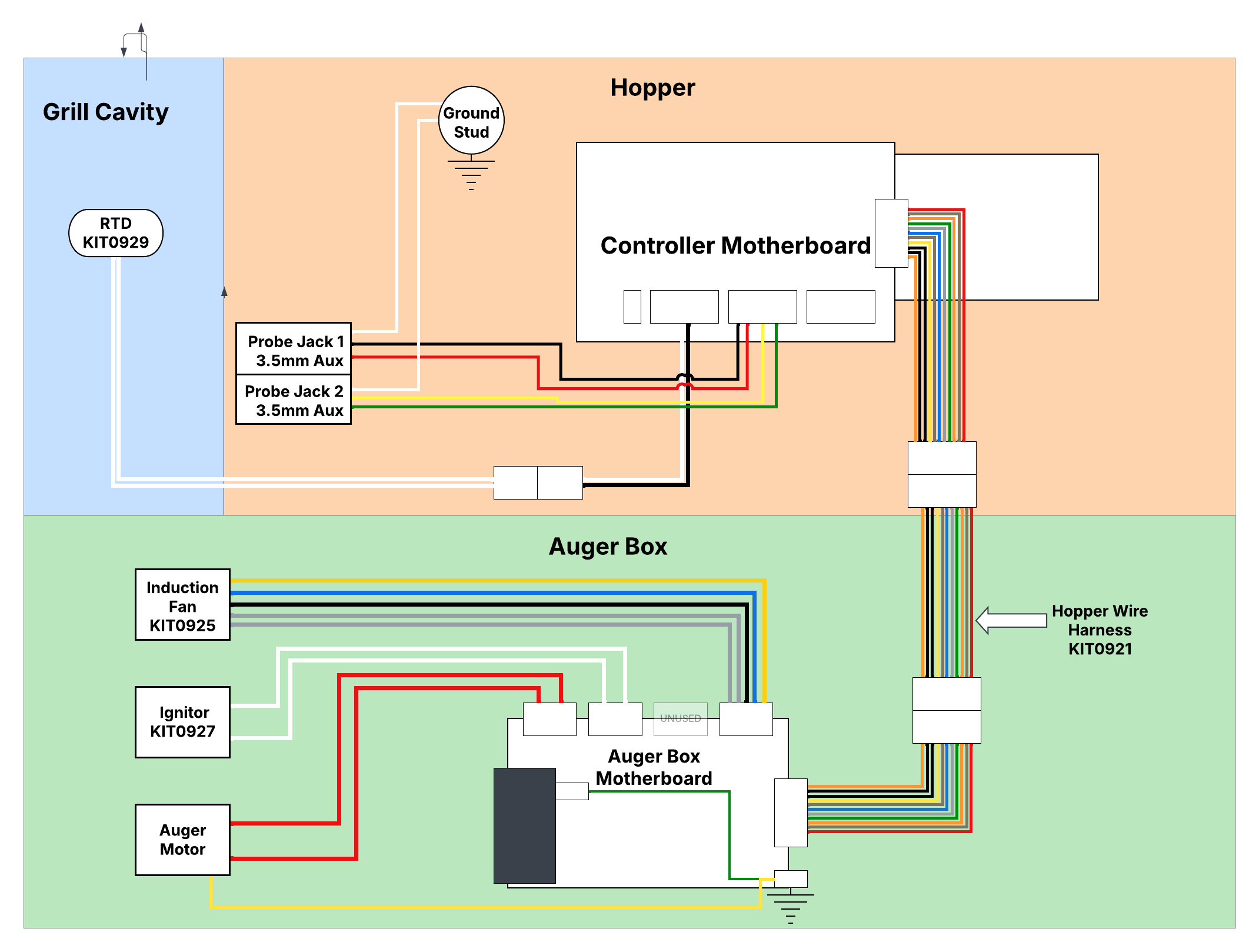

You can see the overall wiring set up in a Woodridge series grill in these diagrams:
