The Firepot & Ignitor Assembly is a crucial grill component responsible for igniting pellets and ensuring safe startup. It includes the firepot, ignitor, flame sensor, wiring, and housing. Regular cleaning and is recommended to maintain proper ignition and grill performance.
Applicable Grills & Part Numbers
| Voltage | SKU | Description |
|---|---|---|
| 120V | KIT1032 | Ironwood / Timberline — Service boat, firepot, wing nut |
| KIT1043 | Ironwood XL / Timberline XL — Service boat, firepot, wing nut | |
| 230V | KIT1050 | Timberline 230V — Service panel + firepot |
| KIT1049 | Timberline XL 230V — Service panel + firepot |
What Is the Firepot & Ignitor Assembly?
The Firepot & Ignitor Assembly is the part of your grill that starts the fire. It includes the components that heat pellets, detect flame, and help your grill ignite safely. During startup, the ignitor (hot rod) heats up and lights the pellets inside the firepot. The flame sensor confirms ignition, while the assembly housing and wiring provide safe power flow.

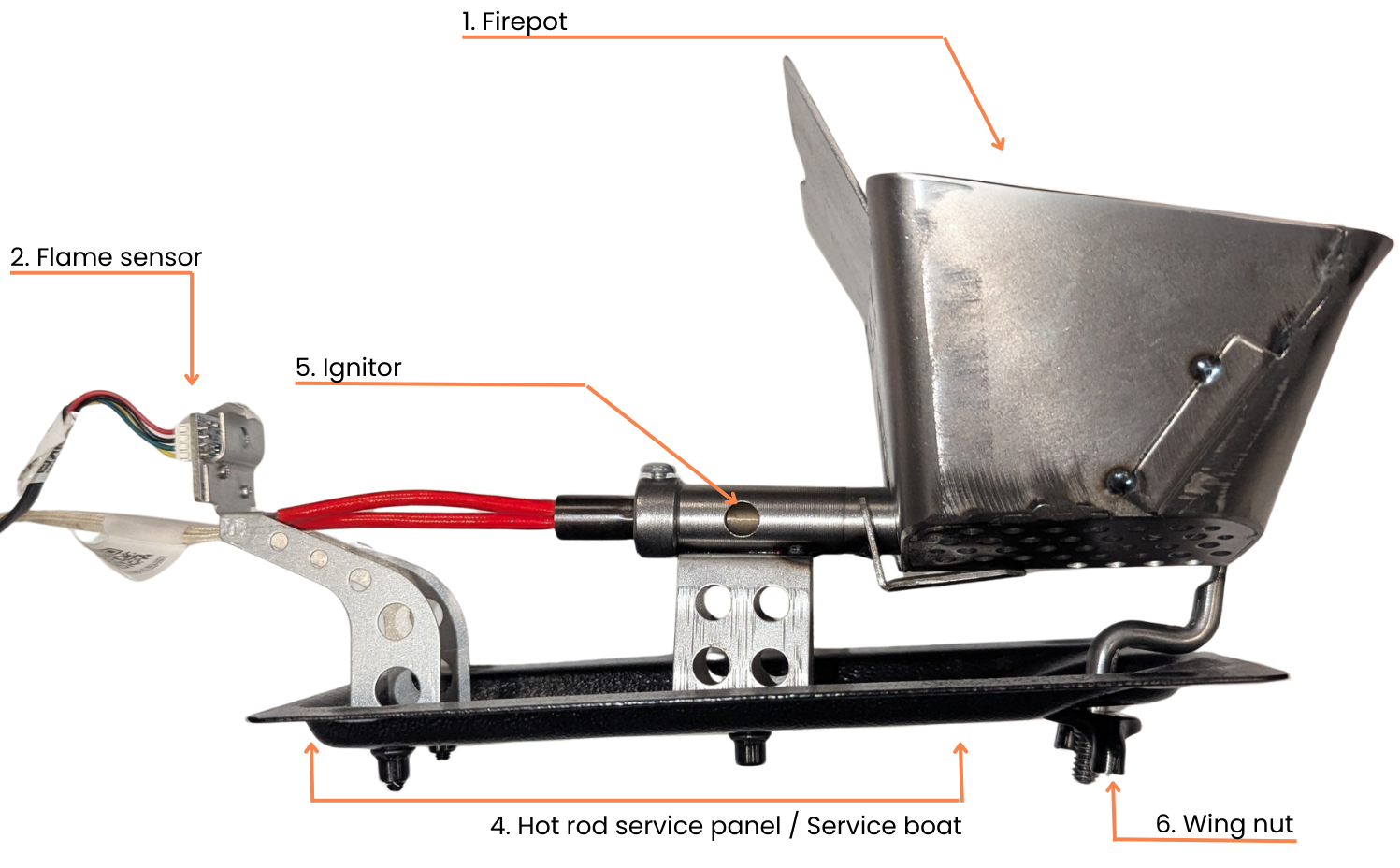

Assembly Components
| Component | Purpose |
|---|---|
| 1 .Firepot | Holds pellets and serves as the combustion chamber. |
| 2. Flame Sensor | Detects whether a flame is present during startup. |
| 3. Ground Wire | Helps prevent electrical faults by grounding the assembly. |
| 4. Hot Rod Service Panel/ Service Boat | Protects wiring for the ignitor and flame sensor. |
| 5. Ignitor (Hot Rod) | Heats up to ignite pellets during startup. |
| 6. Wing Nut | Keeps the firepot secured in position for proper airflow and ignition. |
Quick Tips
- Clean the firepot regularly: Ash buildup can prevent ignition.
- Check for loose wires: Unsecured connections can cause ignition issues.
