Mesa 22 Support Guide

What's in This Article?

Mesa 20_Studio_front_Lid closed.png

Your support guide for your Mesa 22 Traeger grill, sold exclusively at Costco.



Model Numbers

Not sure what your grill's model number is? See, Find Your Grill's Serial & Model Number.

MODEL NUMBER COUNTRY STATUS

TFB42PLF

US Active

TFB42PLFC

Canada Active

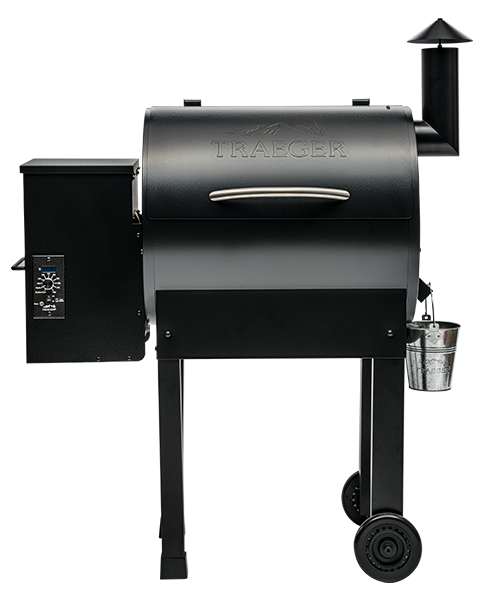

<Grill Image: Front Facing> <Grill Image: Back Facing>



Documentation

DOCUMENT LANGUAGE AMENDMENTS
Owner's Manual

English


Assembly Guide

English





Troubleshooting Resources for Your Mesa 22

Below are links help you get the most out of your Mesa 22, whether it's learning best-use practices or how to resolve common issues.

Operating Your Mesa 22 How to start/ignite your Mesa 22
How to shut down/turn off your Mesa 22
How to season your Mesa 22
Cleaning your Mesa 22
Navigating your WiFIRE controller
Error Messages & Notifications Grill Notifications
Temperature Management Grill Running too Hot
Grill Running too Cool
Temperature Swings



Specs

Controller Digital Pro Controller
Startup Method Closed-Lid Startup
Assembled Dimensions

42" L x 32" W x 49" H

Assembled Weight

99.8 lbs

Package Dimensions

41" L x 22" W x 24.2" H

Package Weight

126 lbs

Main Grate Dimensions

22" L x 19" D

Total Grilling Area

418 sq. in.

Barrel Size

22"

Hopper Capacity

18 lbs

Maximum Temperature 450°F
Meat Probe Count 1
Exhaust System Chimney
Pellet Evacuation Trapdoor
Pellet Sensor No; Not compatible
Super Smoke No
WiFIRE No




Compatible Accessories

ACCESSORY

SKU

Buy on Traeger.com

Cover BAC591
Drip Tray Liner BAC507 https://www.traeger.com/accessories/drip-tray-liner-5-pack-pro-575
Extra Grill Rack BAC351
Folding Front Shelf BAC362 https://www.traeger.com/accessories/front-folding-shelf-22-575-650-series
Grease Bucket Liner BAC407 https://www.traeger.com/accessories/bucket-liner-5-pack
Insulation Blanket BAC626 https://www.traeger.com/accessories/insulation-blanket-22-575
Meat Probe BAC431 https://www.traeger.com/parts/replacement-meat-probes
Pellet Bucket BAC637 https://www.traeger.com/accessories/stay-dry-pellet-bin
Power Inverter BAC287 https://www.traeger.com/accessories/power-inverter



Replacement Parts

Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.

If you want to use your grill's warranty you will need to contact Customer Support to place your order.

PART

SKU

Auger Auger Assembly KIT0022
Auger Bushing KIT0021
Auger Motor KIT0020
Auger Motor Pin SUB186
Chimney Chimney-Barrel Gasket INS145
Chimney Cap KIT0008
Chimney Pipe KIT0005
Controller KIT0576
Drip Tray KIT0761

Fans

Induction Fan KIT0019

Firepot

KIT0396
Frame KIT0123
Grates Main Grate HDW195
Grease Bucket HDW152
Hardware Assembly Hardware HDW333
Heat Baffle BCA012
Hopper  Hopper-Barrel Gasket INS144
Hopper-Burner Assembly KIT0575
Hopper Lid KIT0015
Hot Rod KIT0088
Legs Stationary Leg KIT0095
Wheel Leg KIT0094
Lid Lid Assembly KIT0574
Lid Handle KIT0002
Lid Handle Extension KIT0578
Lid Hinge KIT0001
Right Door Arc BCA002
Meat Probe Wired Meat Probe BAC289
Power Parts Power Cord KIT0089
RTD KIT0779
