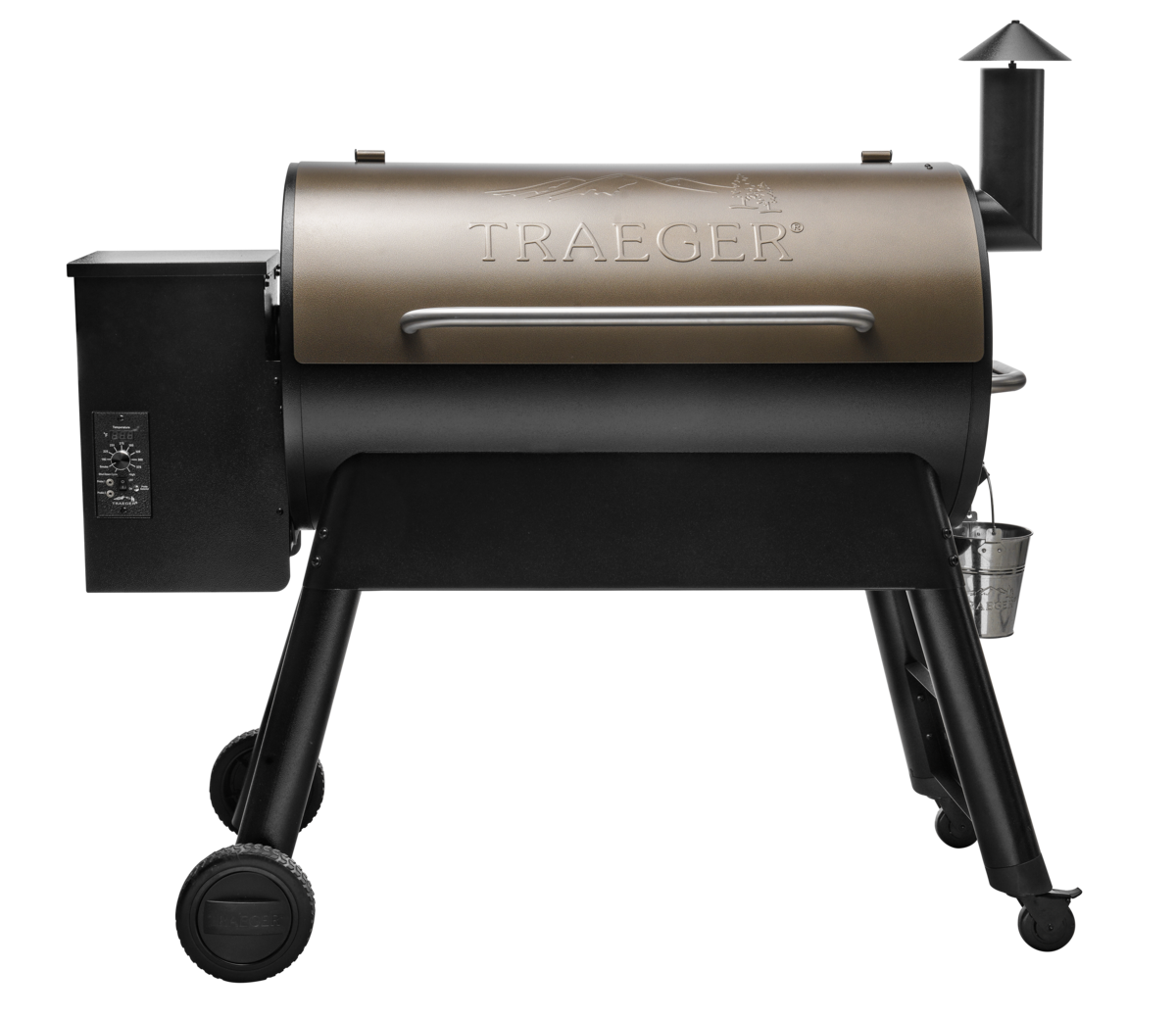

Your support guide for your Pro 34 Traeger grill.
Buy your Pro 34 on Traeger.com here:
- US: https://www.traeger.com/pellet-grills/pro/34-bronze
- CAN: https://www.traeger.com/ca/en/pellet-grills/pro/34-bronze
Model Numbers
How to Find Your Grill's Serial & Model Number
| MODEL NUMBER | VARIATION | COUNTRY | STATUS |
| TFB88PZB | Bronze | USA |
Active |
| TFB88PZBO | Amazon Exclusive, Bronze | USA | Active |
| TFB88PUBC | Blue | Canada | Active |
| TFB88PUB | Blue | USA | Discontinued |
Documentation
| DOCUMENT | LANGUAGE | AMENDMENTS |
| Owner's Manual |
English German |
|
| Assembly Guide | English |
Troubleshooting Resources for Your Pro 34
Below are links help you get the most out of your Pro 34, whether it's learning best-use practices or how to resolve common issues.
| Operating Your Pro 34 | How to start/ignite your Pro 34 |
| How to shut down/turn off your Pro 34 | |
| How to season your Pro 34 | |
| Cleaning your Pro 34 | |
| Error Messages & Notifications | Grill Notifications |
| Temperature Management | Grill Running too Hot |
| Grill Running too Cool | |
| Temperature Swings |
Specs
| Controller | Universal AGL | |
| Startup Procedure | Closed-Lid Startup | |
| Assembled Dimensions |
53" L x 27" W x 49" H |
132,5 cm L x 56 cm W x 61,5 cm H |
| Assembled Weight |
135.8 lbs |
69 kg |
| Package Dimensions |
53" L x 24" W x 22" H |
132,5 cm L x 142,25 cm W x 56 cm H |
| Package Weight |
168.1 lbs |
76,25 kg |
| Main Grate Dimensions |
34" L x 19" D |
86,5 cm L x 48,25 cm D |
| Main Grilling Area |
646 sq. in. |
4168 sq. cm |
| 2nd Grate Dimensions |
34" L x 7" D |
86,5 cm L x 18 cm D |
| 2nd Grate Grilling Area |
238 sq. in. |
1535,5 sq. cm |
| Total Grilling Area |
884 sq. in. |
5703 sq. cm |
| Barrel Size |
34" |
86,5 cm |
| Hopper Capacity |
18 lbs |
8 kg |
| Max Temperature | 450°F | 232°C |
| Meat Probe Count | Grills manufactured before May 2022: 2 Grills manufactured May 2022 and later: 1 |
|
| BTUs | 36,000 | |
| Exhaust System | Chimney | |
| Pellet Evacuation | Door | |
| Pellet Sensor | No; Not compatible | |
| Super Smoke | No | |
| WiFIRE | No | |
Compatible Accessories
|
ACCESSORY |
SKU |
Buy on Traeger.com |
| Bottom Shelf | BAC364 | |
| Cover | BAC380 | Full-Length Grill Cover--34 Series |
| Drip Tray Liner | BAC410 | Drip Tray Liner 5 Pack-Pro 34 |
| Extra Grill Rack | BAC352 | |
| Folding Front Shelf | BAC363 | Folding Front Shelf 34-Series |
| Grease Bucket Liner | BAC407 | Bucket Liner 5 Pack |
| Insulation Blanket | BAC628 | Insulation Blanket - Pro 34 |
| Meat Probe | BAC431 | Traeger Replacement Meat Probe - 2 Pack |
Replacement Parts
Prior to purchasing replacement parts, we suggest contacting Customer Support to confirm the part you want is indeed the part you need.
Hyperlinked SKUs are available to purchase on Traeger.com. SKUs without hyperlinks require contacting Customer Support to order.
|
PART |
SKU |
Buy on Traeger.com |
|
| Auger | Auger Assembly | KIT0023 | Auger Assembly 34-Series |
| Auger Bushing | KIT0021 | ||
| Auger Motor | KIT0020 | Auger Motor Kit AC | |
| Auger Motor Pin | KIT0783 | ||
| Chimney | Chimney Cap | KIT0008 | |
| Chimney Pipe | KIT0005 | ||
| Chimney Gasket | KIT0795 | ||
| Controller | KIT0747 | ||
| Drip Tray | BCA006 | Drip Tray: 34-Series | |
|
Fans |
Induction Fan | KIT0019 | Draft Inducer Fan Kit AC |
| KIT0396 | Firepot Assembly 7 Hole | ||
| Frame | KIT0145 | ||
| Grates | Main Grate | HDW194 | |
| Upper Grate | BAC352 | ||
| Grease Bucket | HDW152 | Grease Bucket | |
| Handles | Lid Handle | KIT0141 | |
| Side Handle | KIT0144 | ||
| Hardware Kit | HDW333 | ||
| Heat Baffle | BCA012 | Heat Baffle: 22, 34, PIG | |
| Hopper | Hopper-Burner Assembly | KIT0143 | |
| Hopper Lid | KIT0015 | ||
| Hopper Shroud | KIT0799 | ||
| Hot Rod | KIT0088 | Hot Rod Kit, AC | |
| Legs | Front Left Leg | KIT0134 | |
| Front Right Leg | KIT0140 | ||
| Rear Left Leg | KIT0135 | ||
| Rear Right Leg | KIT0139 | ||
| Leg Brace | KIT0150 | ||
| Lid | Lid Assembly | KIT0153 | |
| KIT0142 | |||
| Lid Handle | KIT0141 | ||
| Lid Hinge | KIT0001 | KIT0001: Door Hinge Kit | |
| Probe Grommet | BRN249 | ||
| Right/Left Door Arc | KIT0789 | ||
| Meat Probe | BAC329 | ||
| Power Cord | KIT0089 | 120V Electrical Cord, Fixed, AC | |
| RTD | KIT0779 | 7 Inch RTD Probe | |
| Wheels | Caster Wheel | KIT0792 | |
| Stationary Wheel | KIT0138 | ||
