Wiring Harnesses - Touchscreen Grills

What's in This Article?

Get to know the various sensors and wiring harnesses that connect to the Timberline and Ironwood Motherboard. Here you will find information on all the different sensors and wiring harnesses inside the new Timberline and Ironwood grills.



What Is a Wiring Harness?

Traeger uses the term, "harness," when referring to a bundle of wires that does not have a part hardwired to it. Each wire leads to a connector that will connect either directly to a part or to another connector.

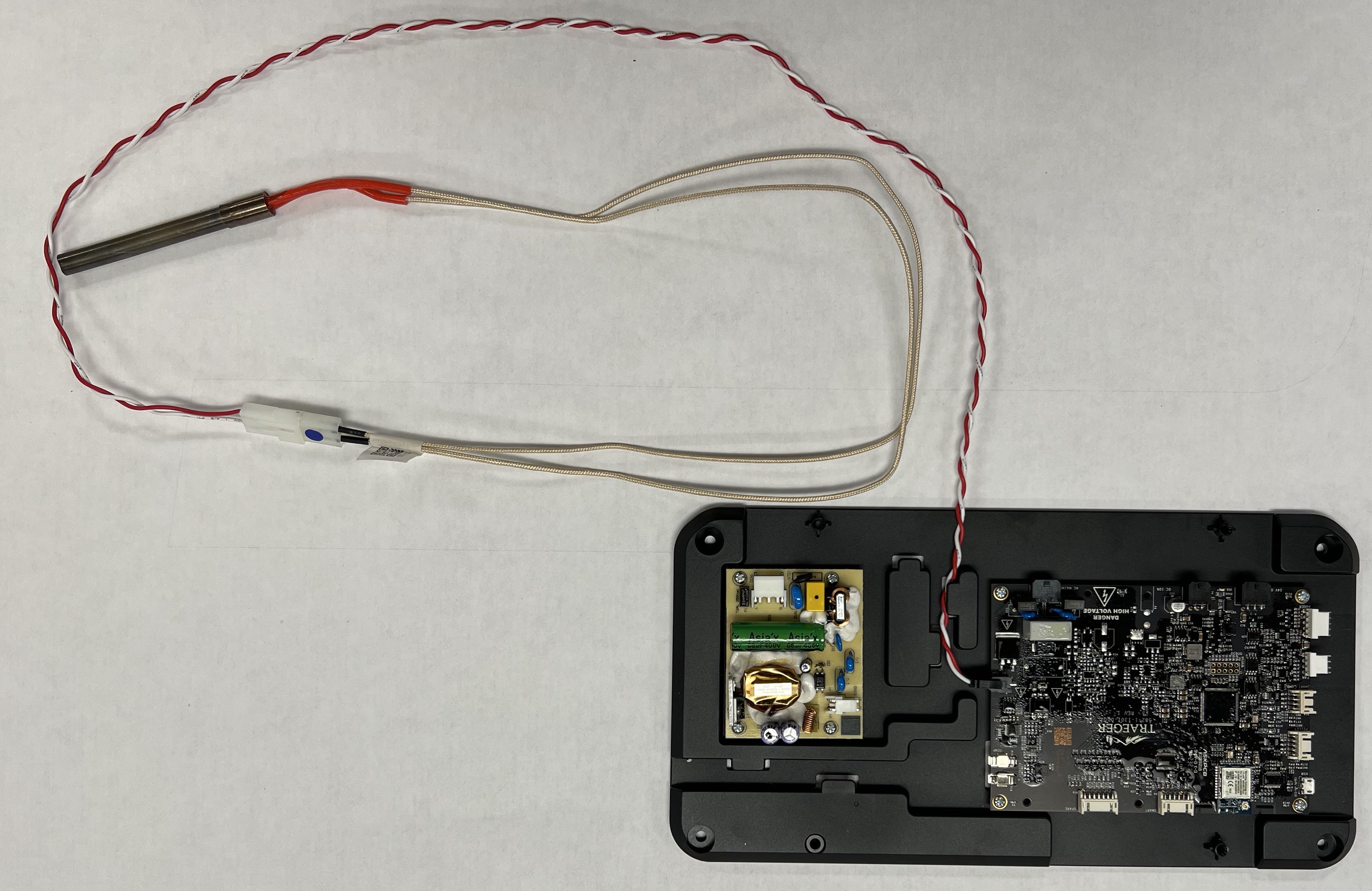

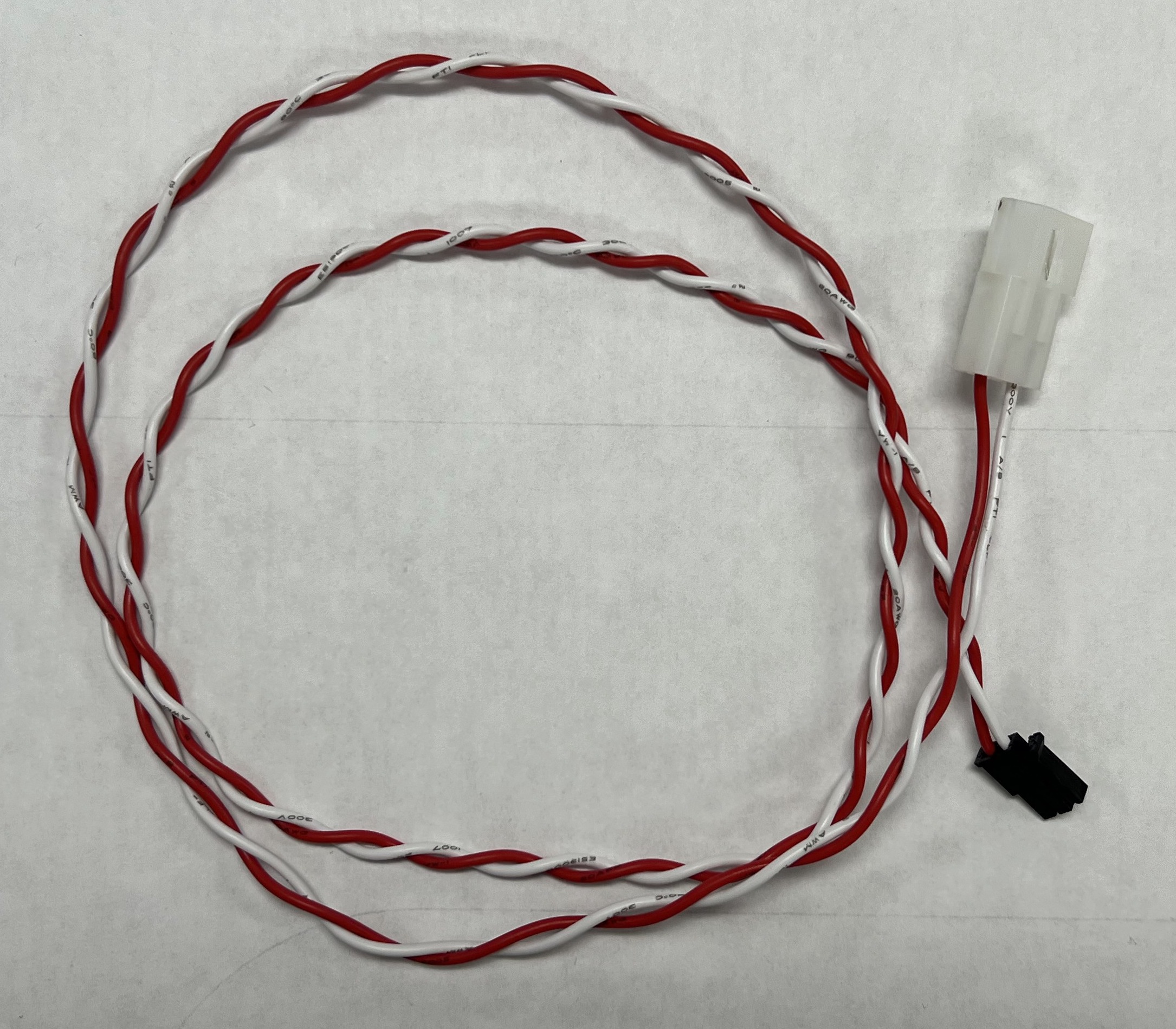

AC Ignitor Wire Harness

AC Ignitor Harness.jpg AC Ignitor Harness-Connected-all.jpg

SKU KIT0685
Connected Parts Motherboard, Hot Rod
Function Delivers power to the hot rod.
Include whenever replacing the Ignitor & Flame Sensor Assembly

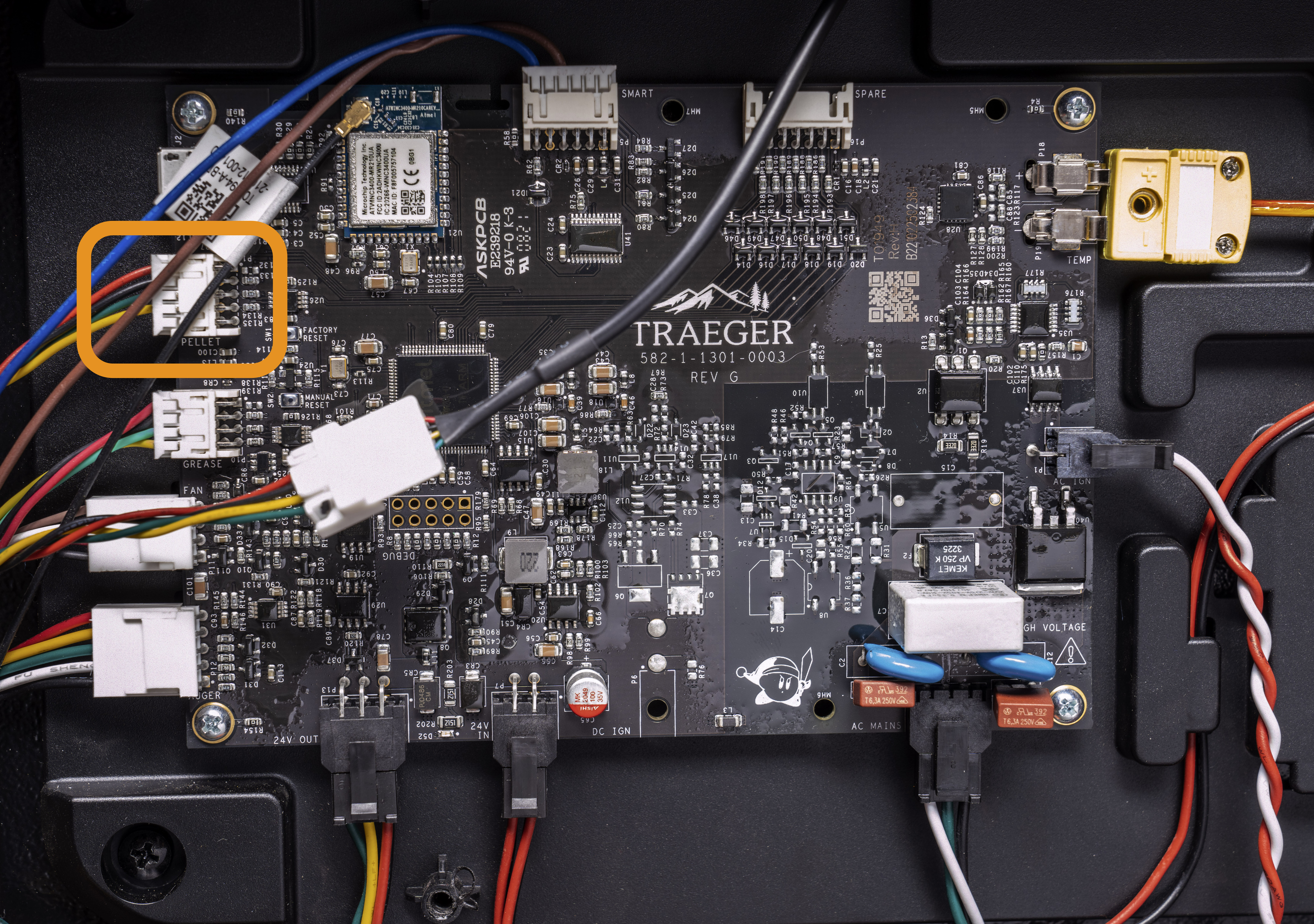

Motherboard Connection Point AC IGN

Ignitor Harness.jpg Gen2_Motherboard-ACIgn.jpeg

Harness Connections Wire Colors Connector Size
1. Motherboard - AC Ignitor Connection Red,White 2 pin
2. Ignitor - AC Ignitor Connection Red, White 2 pin

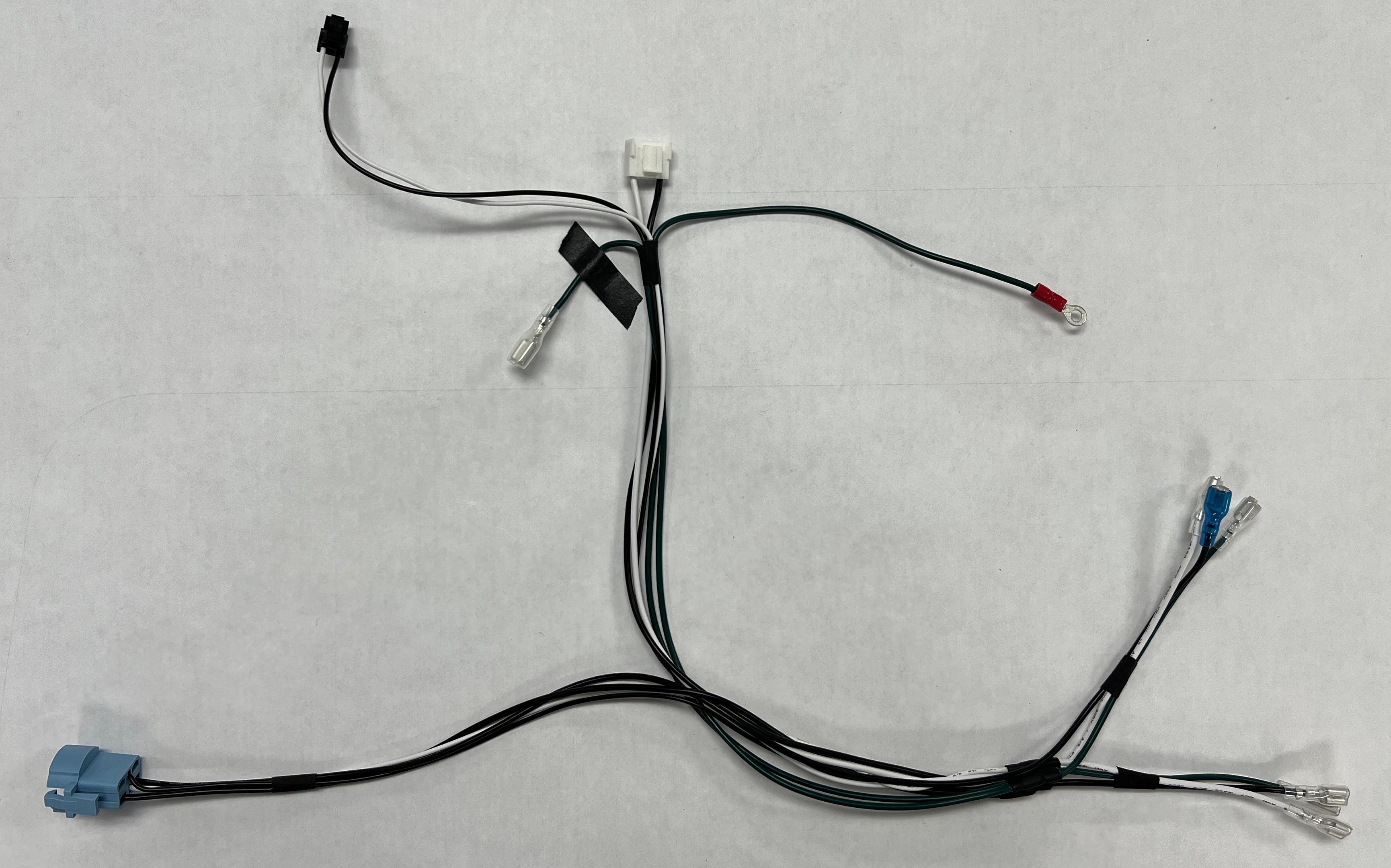

AC Wire Harness

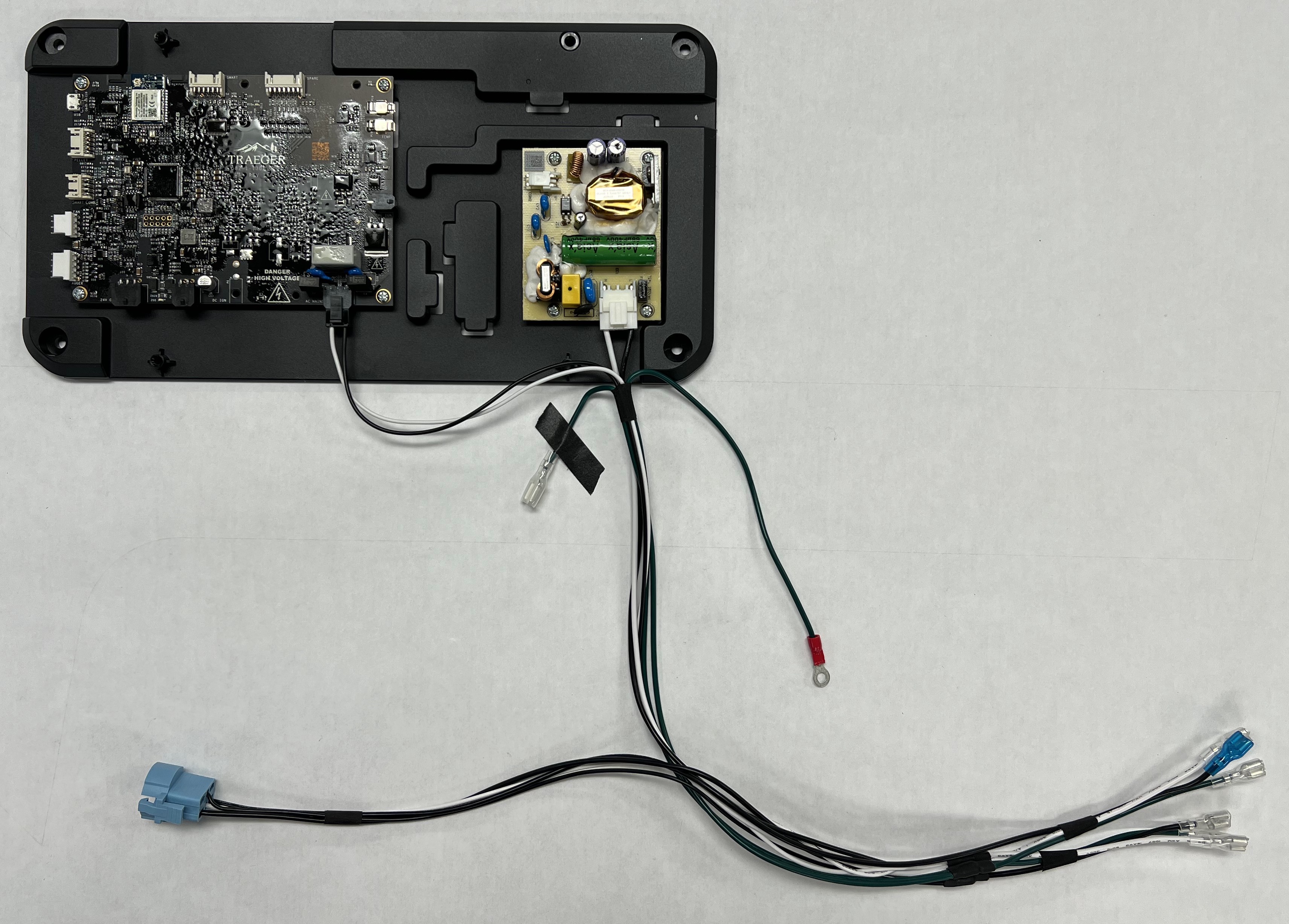

AC Wire Harness.jpg AC Wire Harness-Connected-Motherboard.jpg

SKU KIT0684
Connected Parts Power Supply Board, Motherboard, Power Button
Function Delivers AC power to the power supply board when triggered by the power button

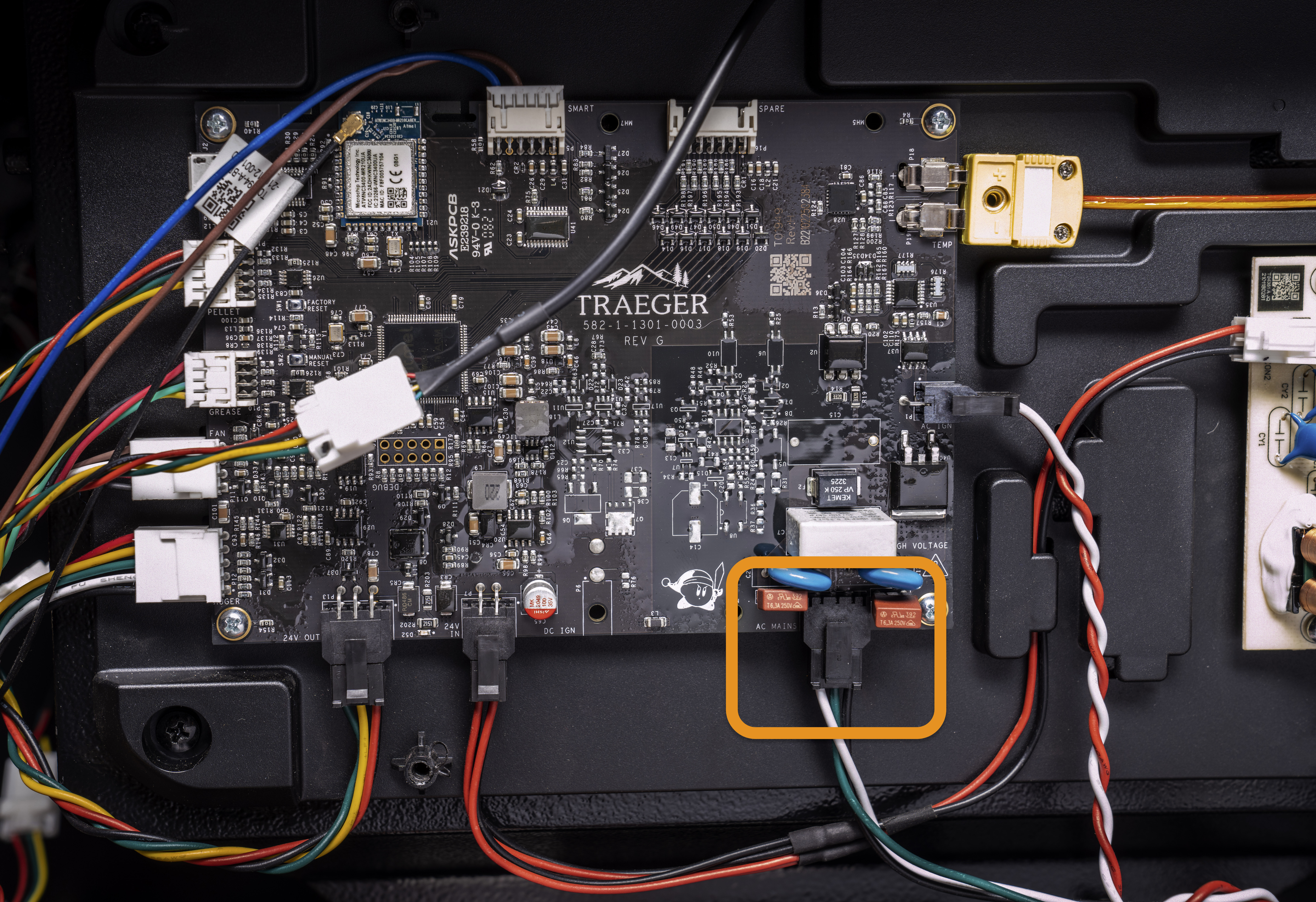

Motherboard Connection Point AC MAINS

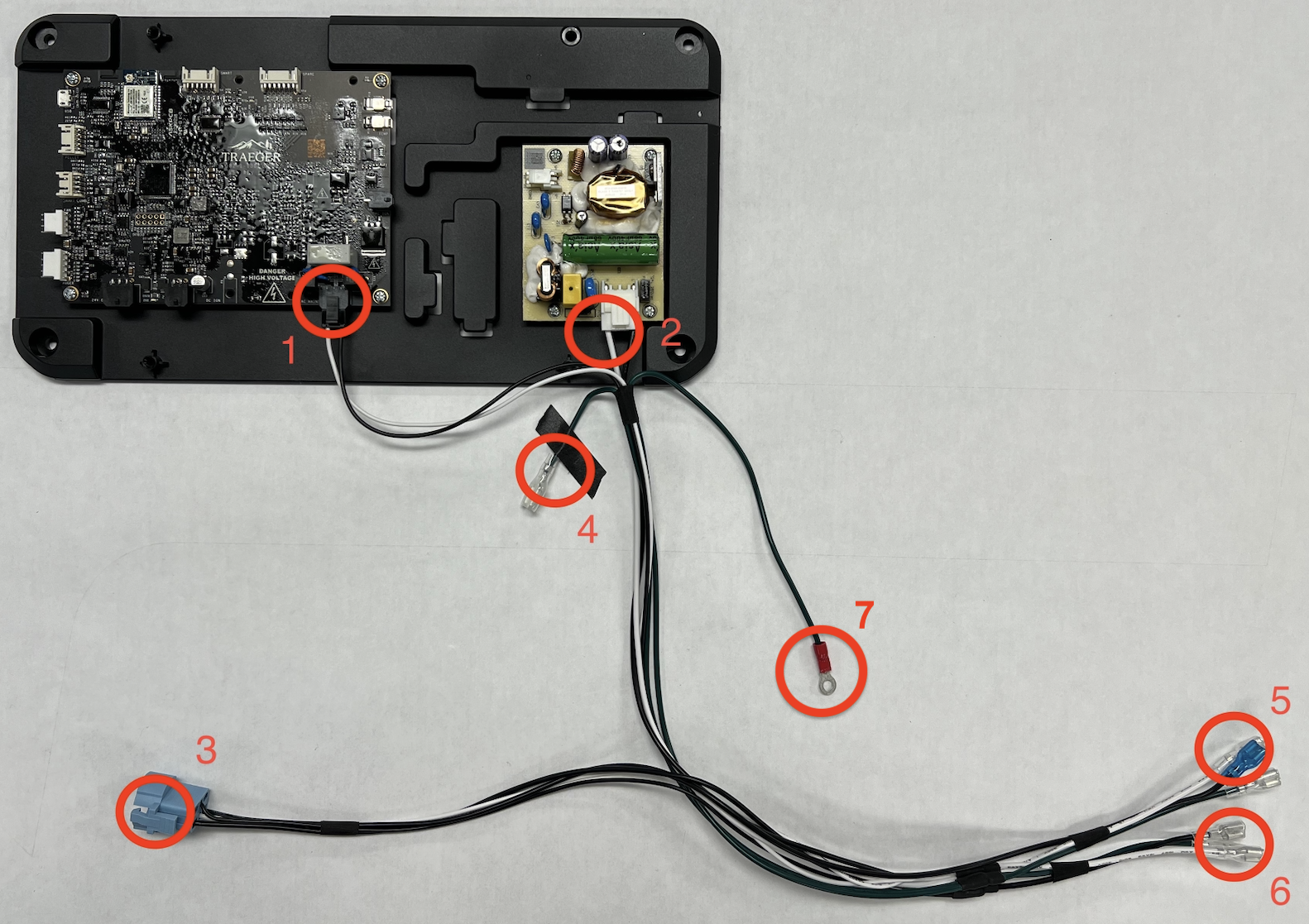

ac harness - connections numbered.png Gen2_Motherboard-AC MAINS.jpeg

Harness Connections Wire Colors Connector Size
1. Motherboard - AC in Connection Black, White 3 pin
2. Power Supply - AC in Connection Black, White 4 pin
3. Power Button Connection Black, White 4 pin
4. Grounding Wire - Version A: Not connected Green 1 pin
5. AC Power In (Power Cord Inlet) Black, White, Green 3 pin
6. AC Power Out (Induction Side Burner) Black, White, Green 3 pin
7. Grounding Wire Green 0 pin



Auger Motor Wire Harness

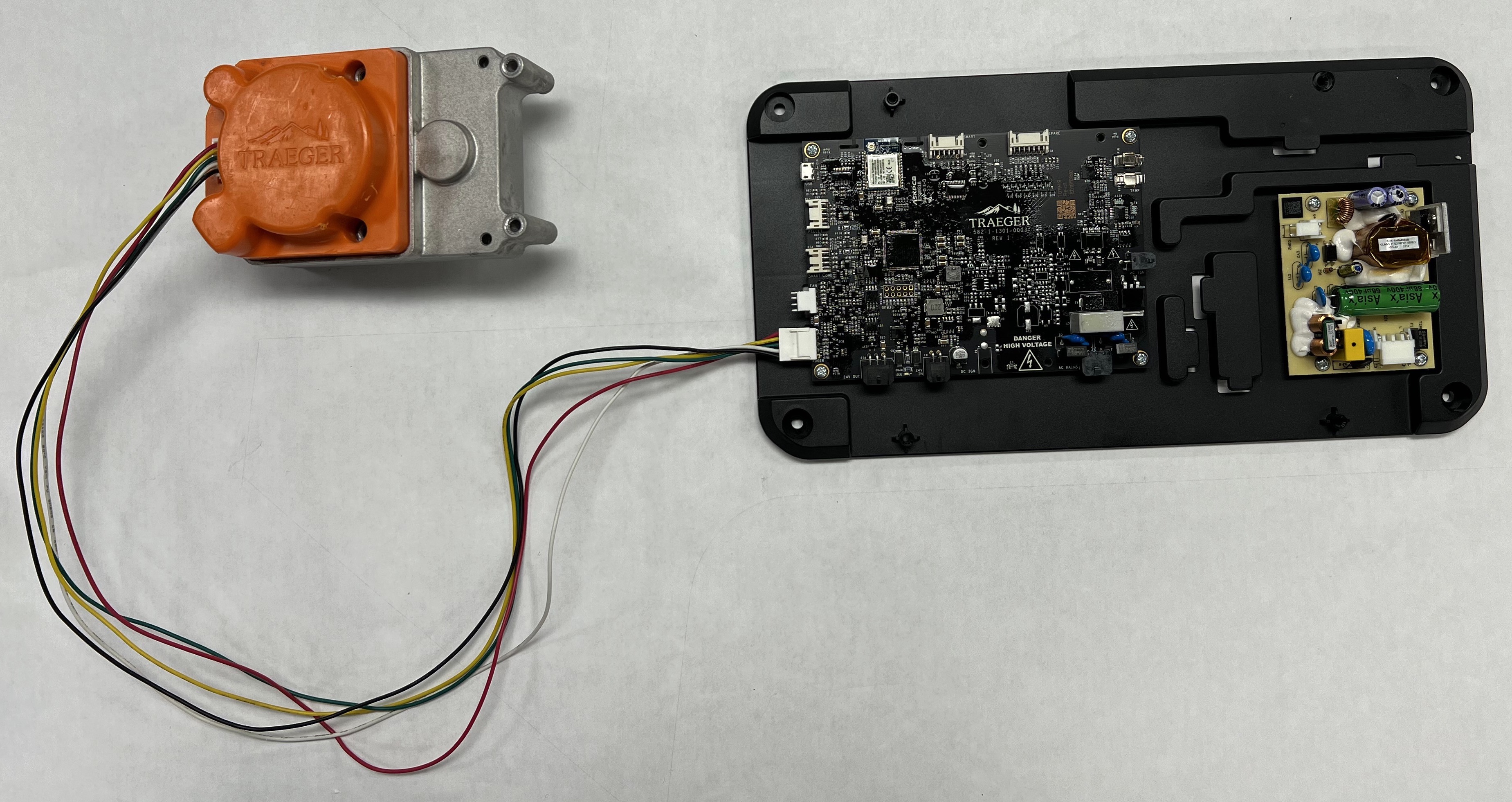

auger motor connection.jpg

SKU N/A; Hardwired to auger motor
Connected Parts Motherboard, Auger Motor
Function Delivers power and communication between the motherboard and the auger motor
Motherboard Connection Point AUGER


Harness Connections Wire Colors Connector Size
AUGER Red, Yellow, Green, White, Black 3 pin



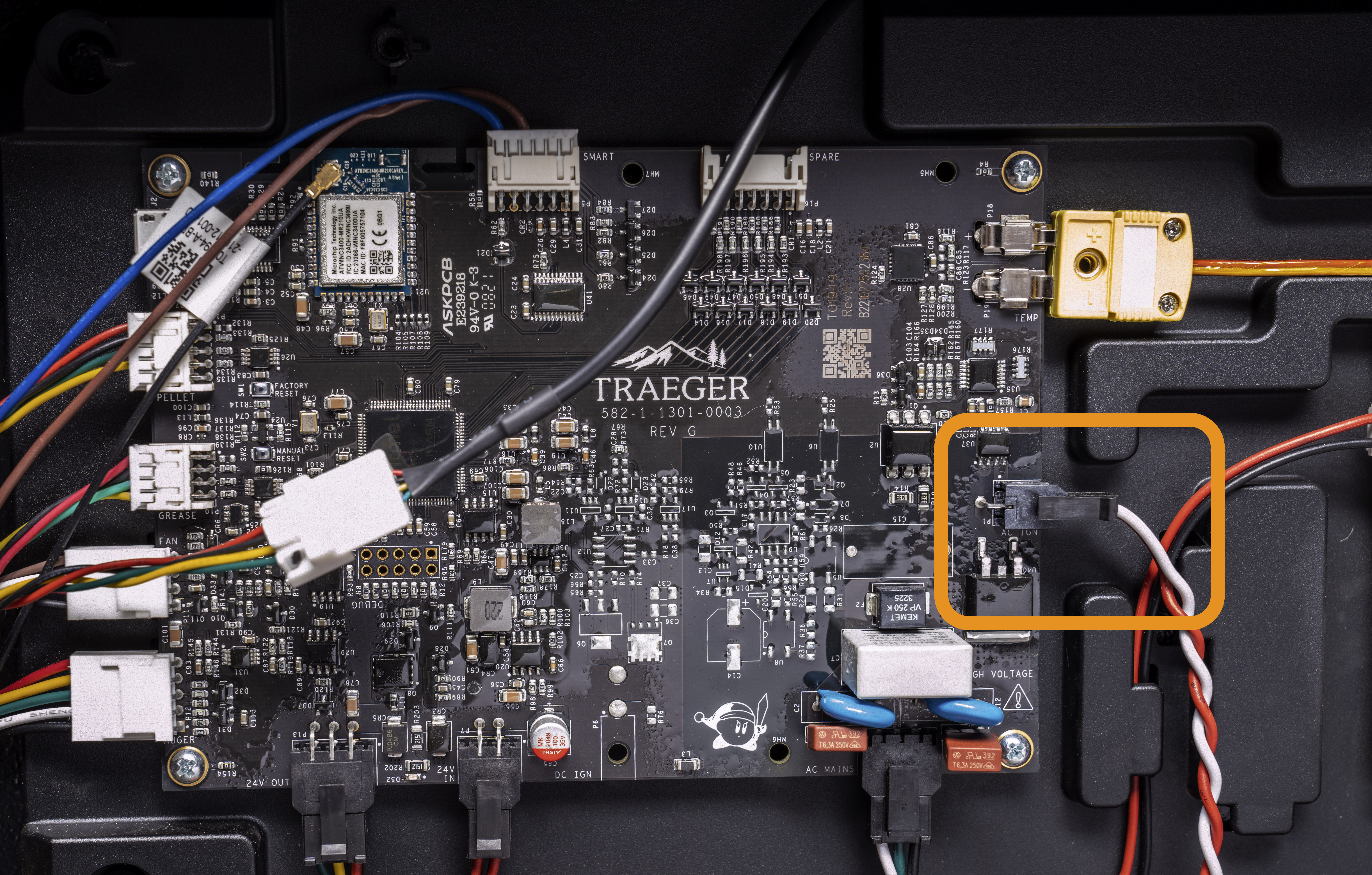

DC Power Wire Harness

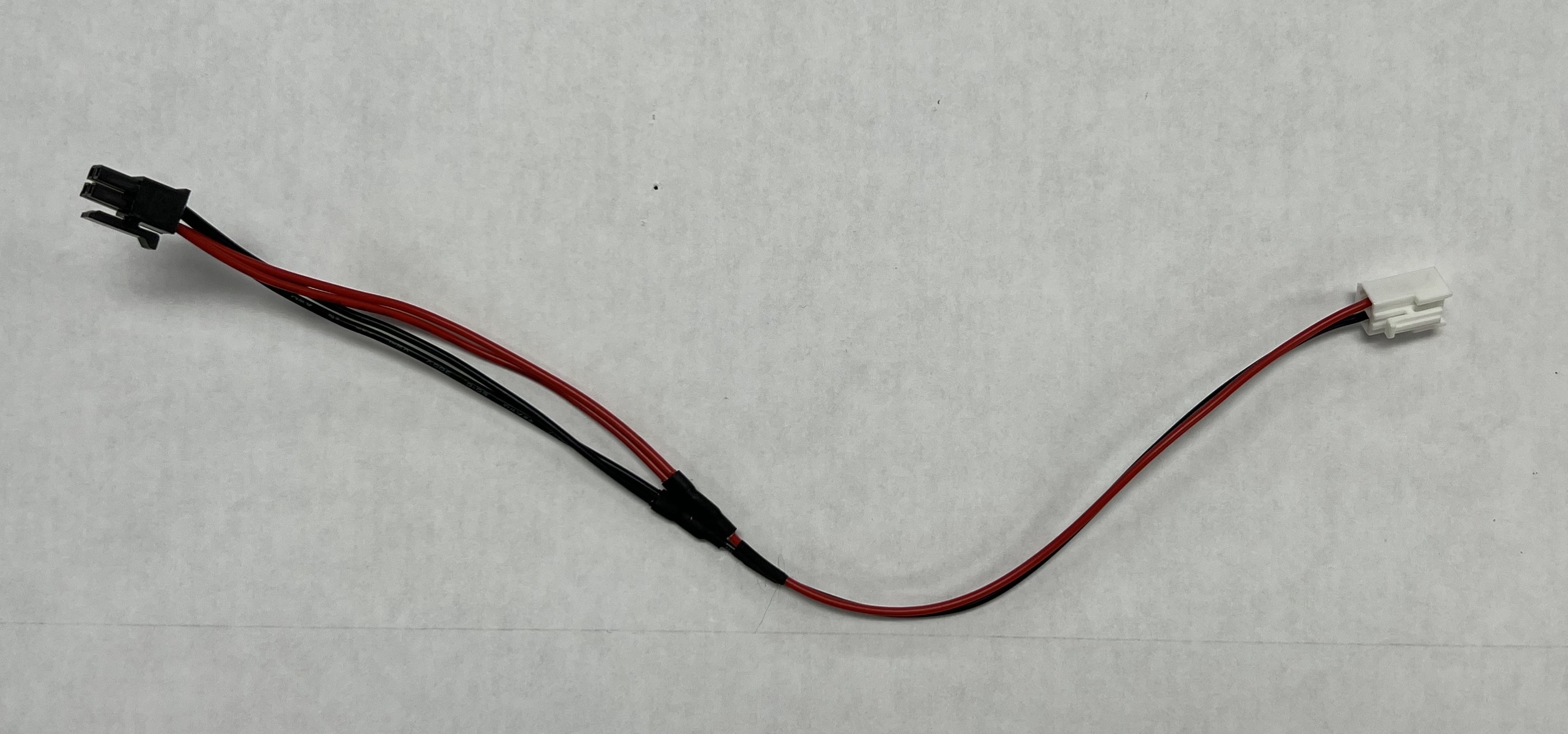

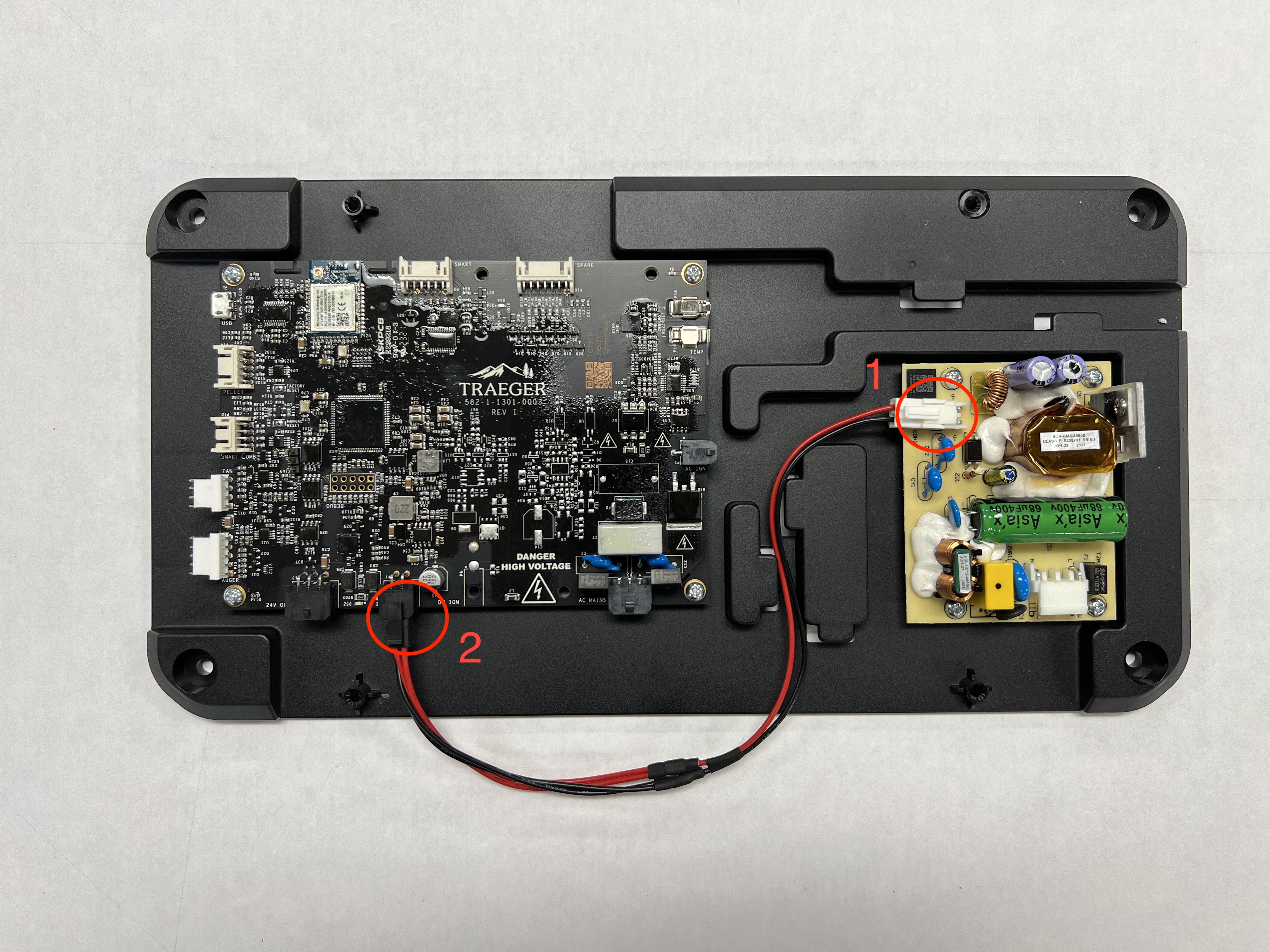

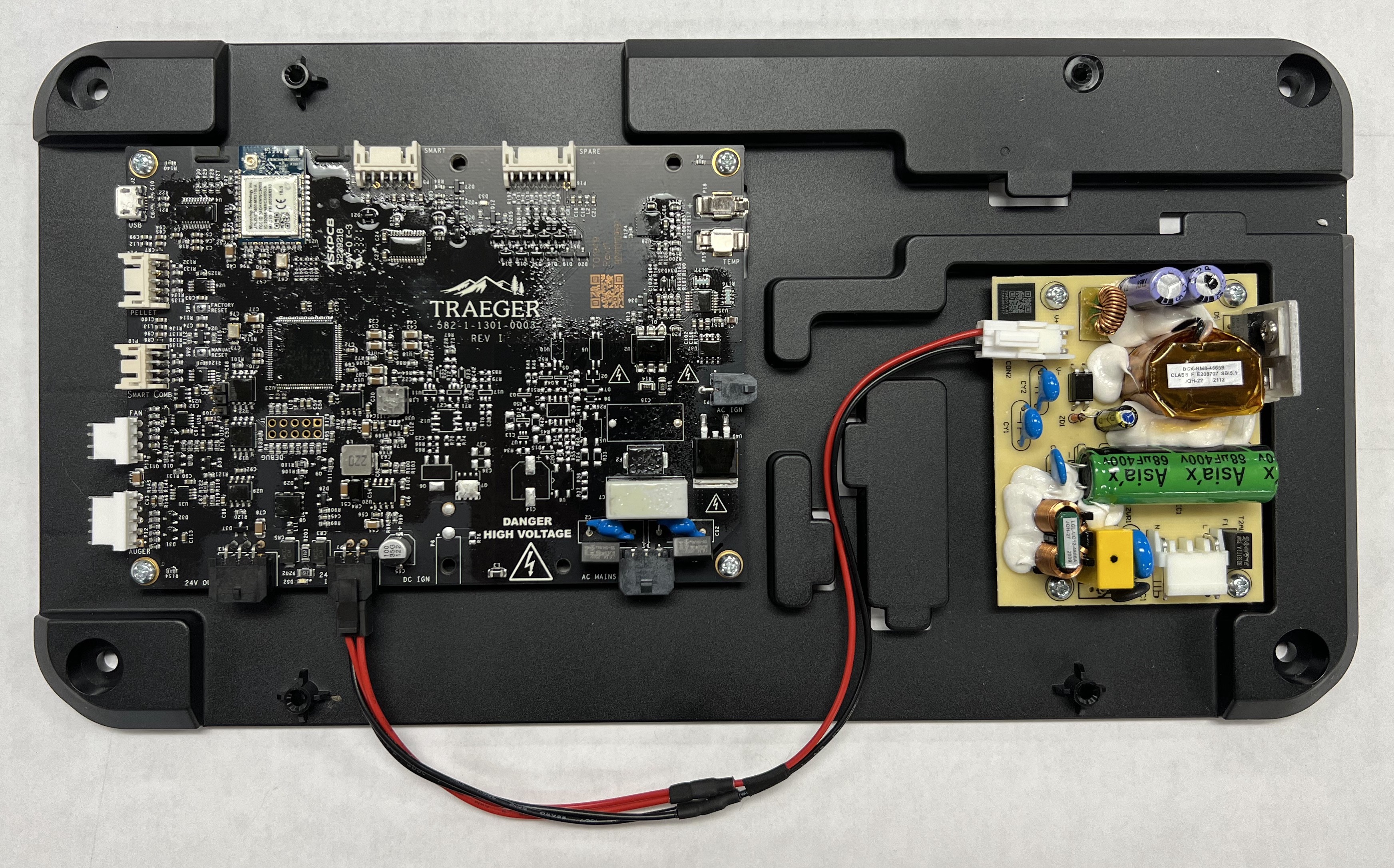

DC Power Harness.jpg DC Power Harness-Connected.jpg

SKU N/A; Included with Motherboard
Connected Parts Motherboard, Power Supply Board
Function Delivers DC power from power supply board to motherboard

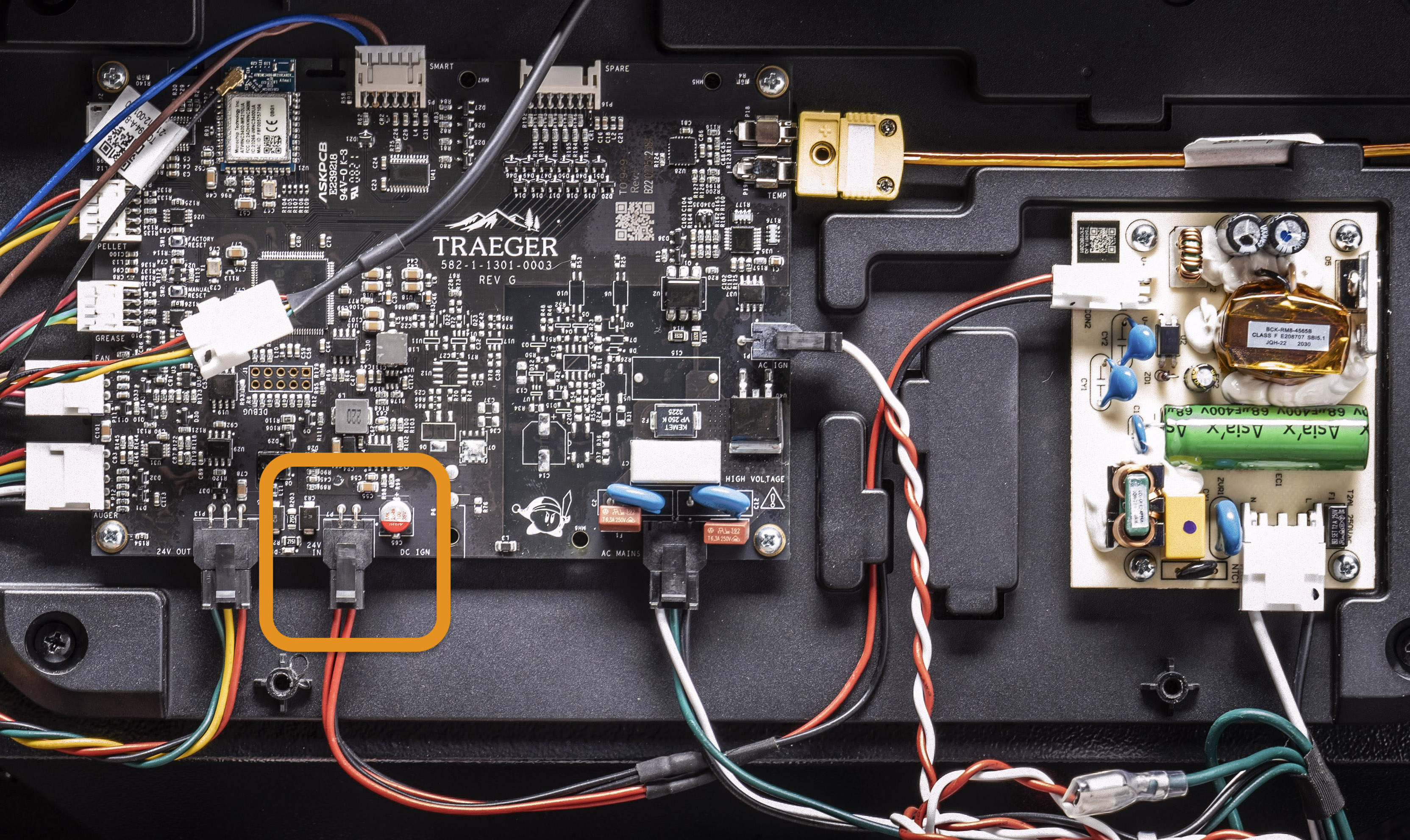

Motherboard Connection Point 24V IN

Motherboard DC.jpg Gen2_Motherboard-24V IN.jpeg

Harness Connections Connector Size Wire Colors
1. Power Supply - 24V Out 2 pin Red, Black
2. Motherboard - 24V In Connection 4 pin Red, Black

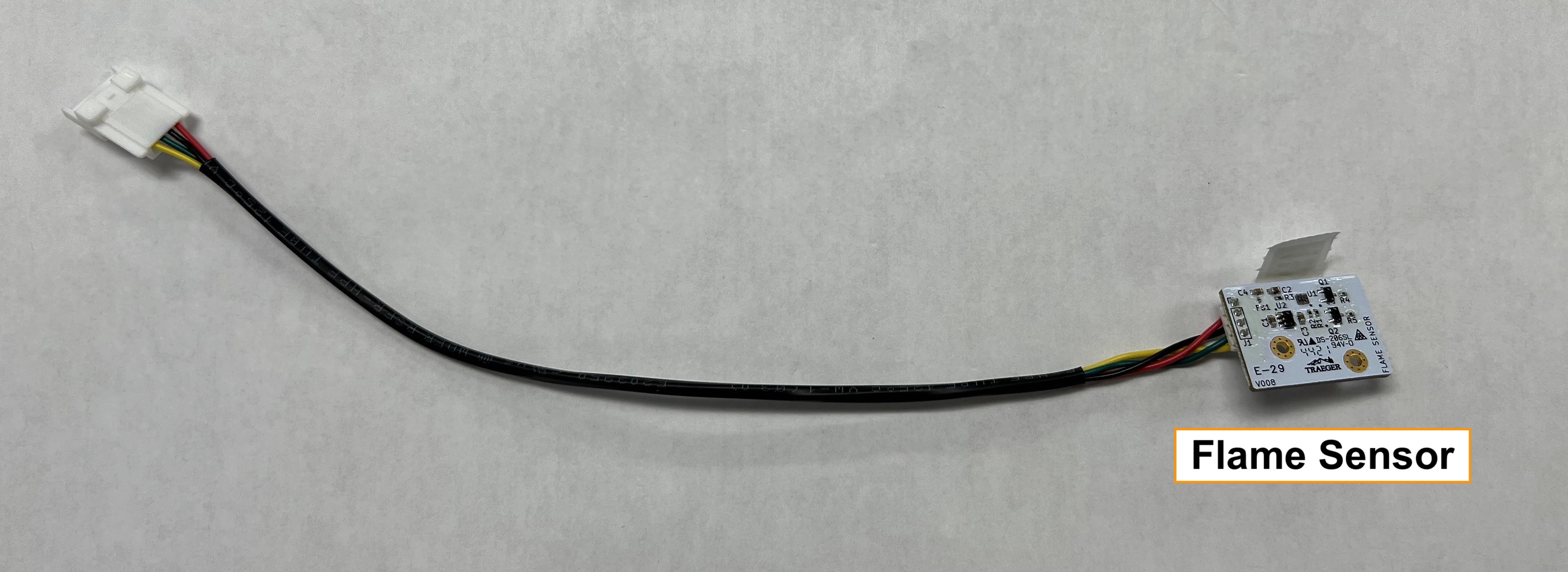

Flame Sensor Wire Harness

Flame Sensor labeled.jpeg

SKU N/A; Hardwired to the Flame Sensor
Connected Parts Flame Sensor, Smart Combustion Wire Harness
Function Delivers power to the flame sensor and communication between the flame sensor and motherboard via the Smart Combustion Wire Harness
Motherboard Connection Point Does not connect directly to the motherboard; connects to the Smart Combustion Wire Harness.

Smart Combustion Harness-Connected-labeled.jpeg

Harness Connections Wire Colors Connector Size
Flame Sensor Wire Harness Black to Red, Yellow, Green, Black 4 pin



Induction Fan Wire Harness

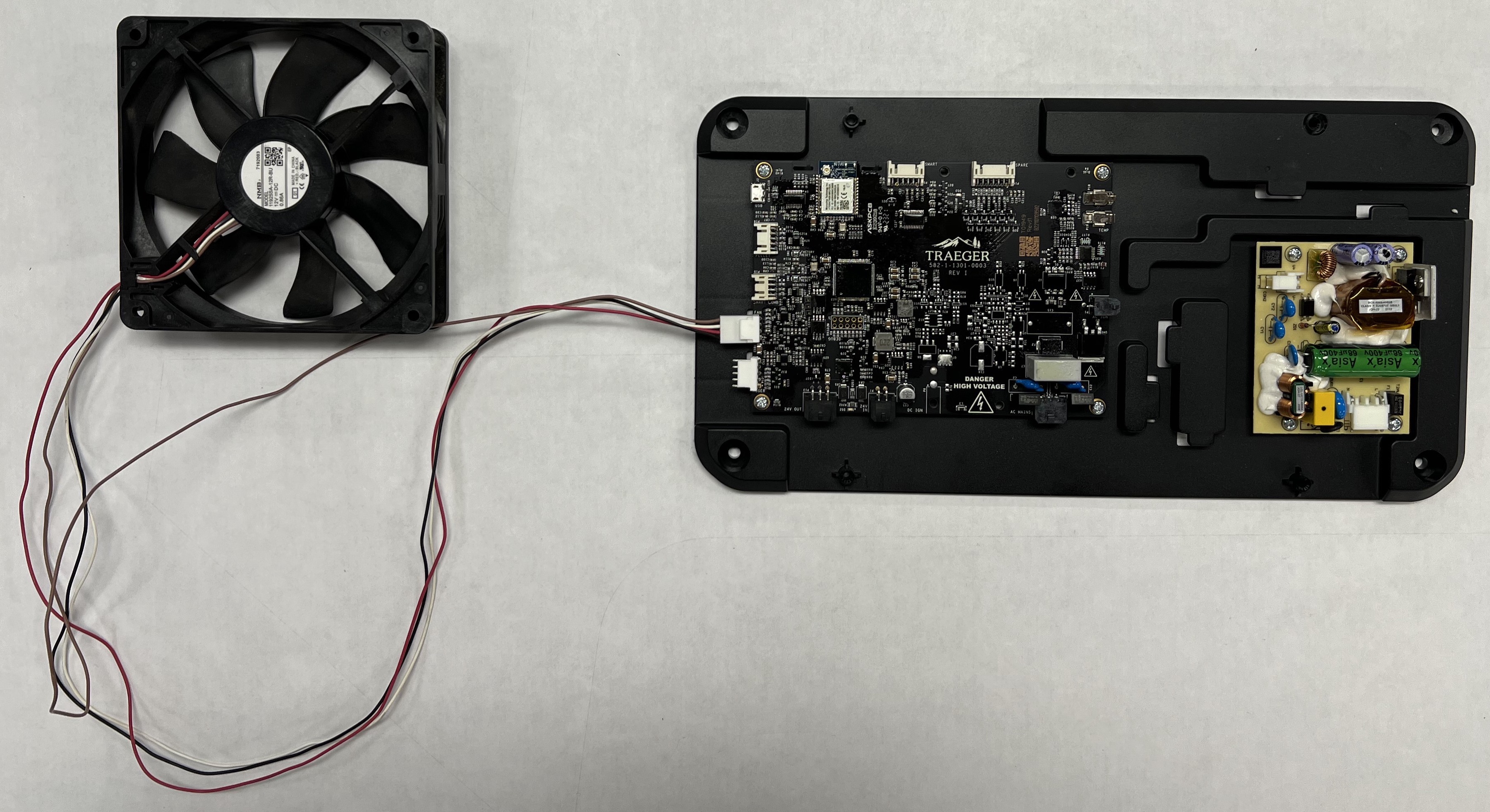

Induction Fan-Connected.jpg

SKU N/A: Hardwired to Induction Fan
Connected Parts Motherboard, Induction Fan
Function Delivers power and communication between the induction fan and the motherboard
Motherboard Connection Point FAN


Harness Connections Wire Colors Connector Size
Flame Sensor Wire Harness Brown, White, Red, Black 3 pin

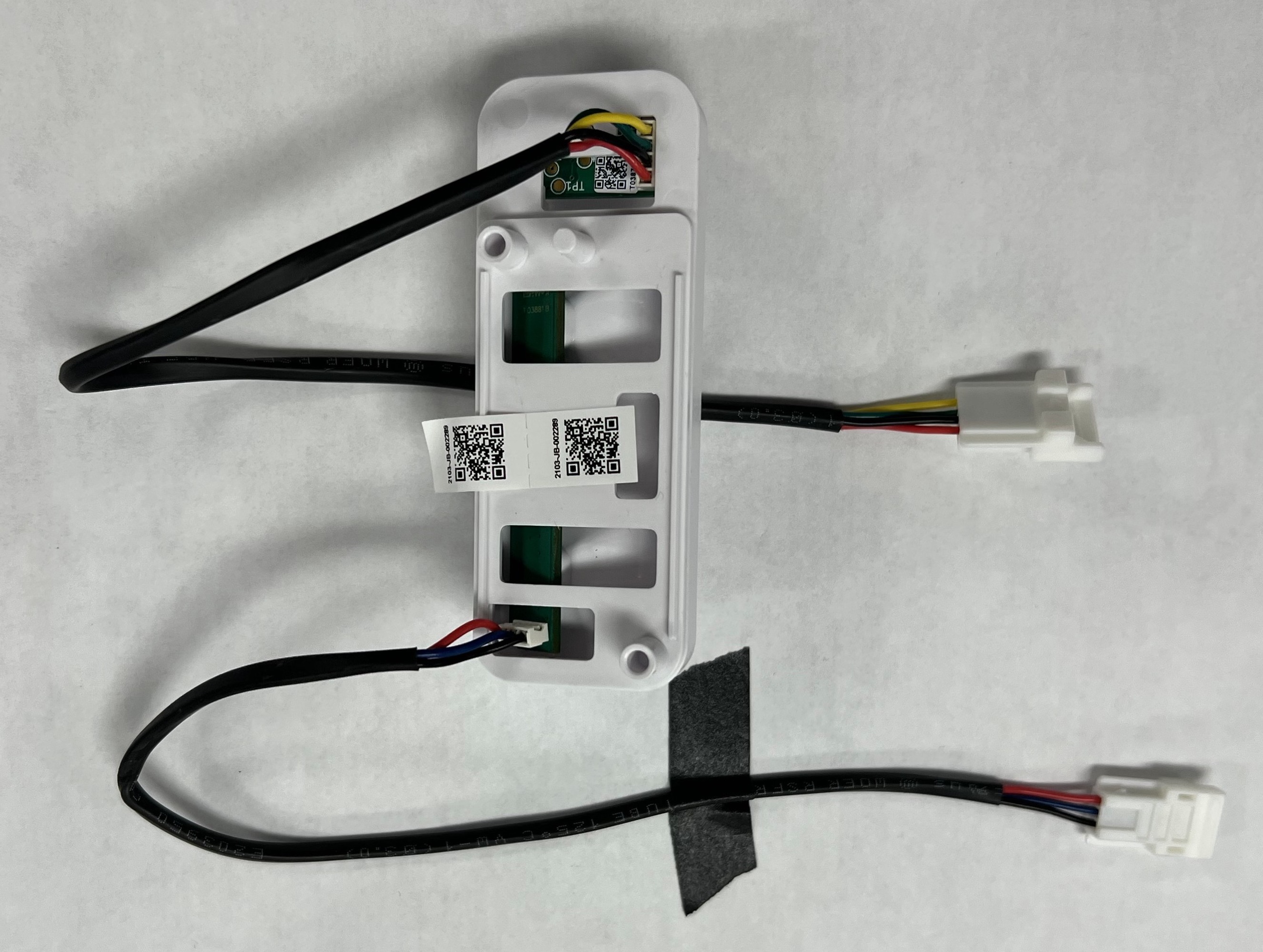

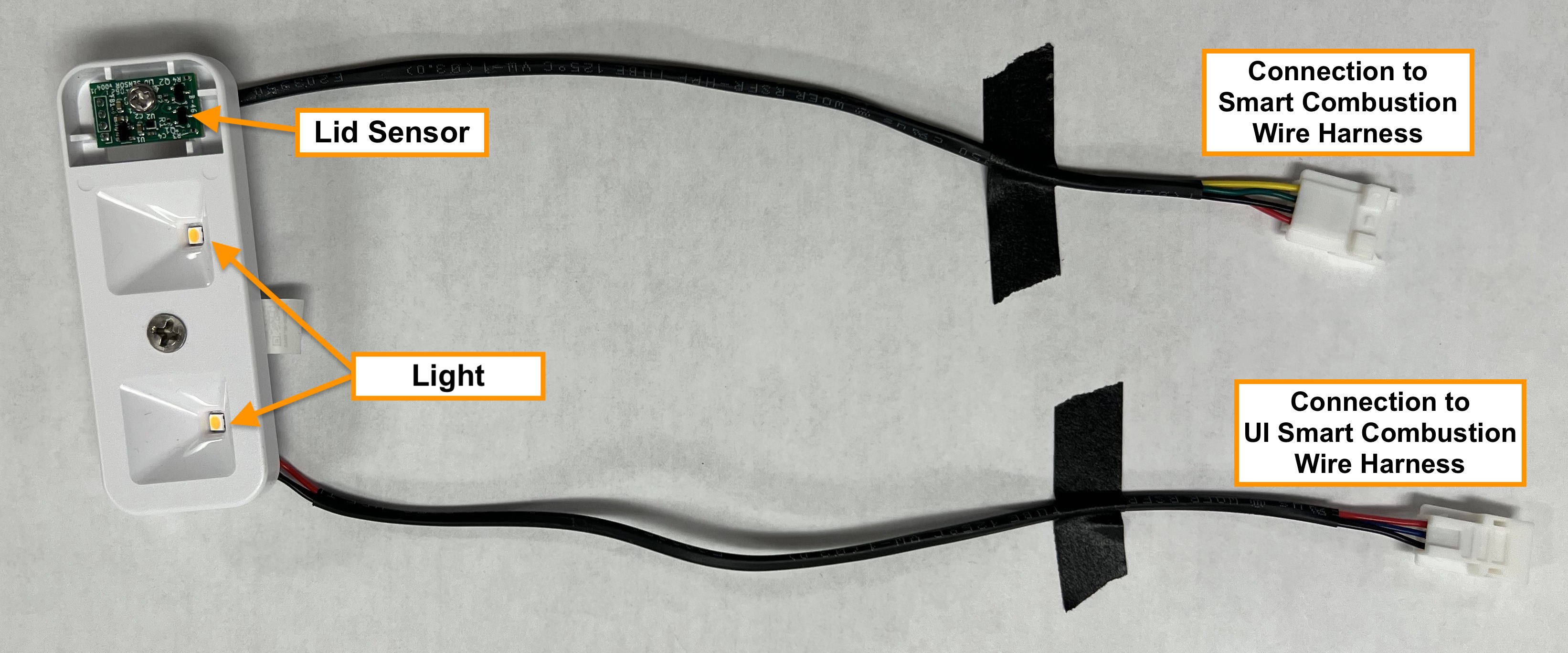

Lid Sensor & Light Wire Harness

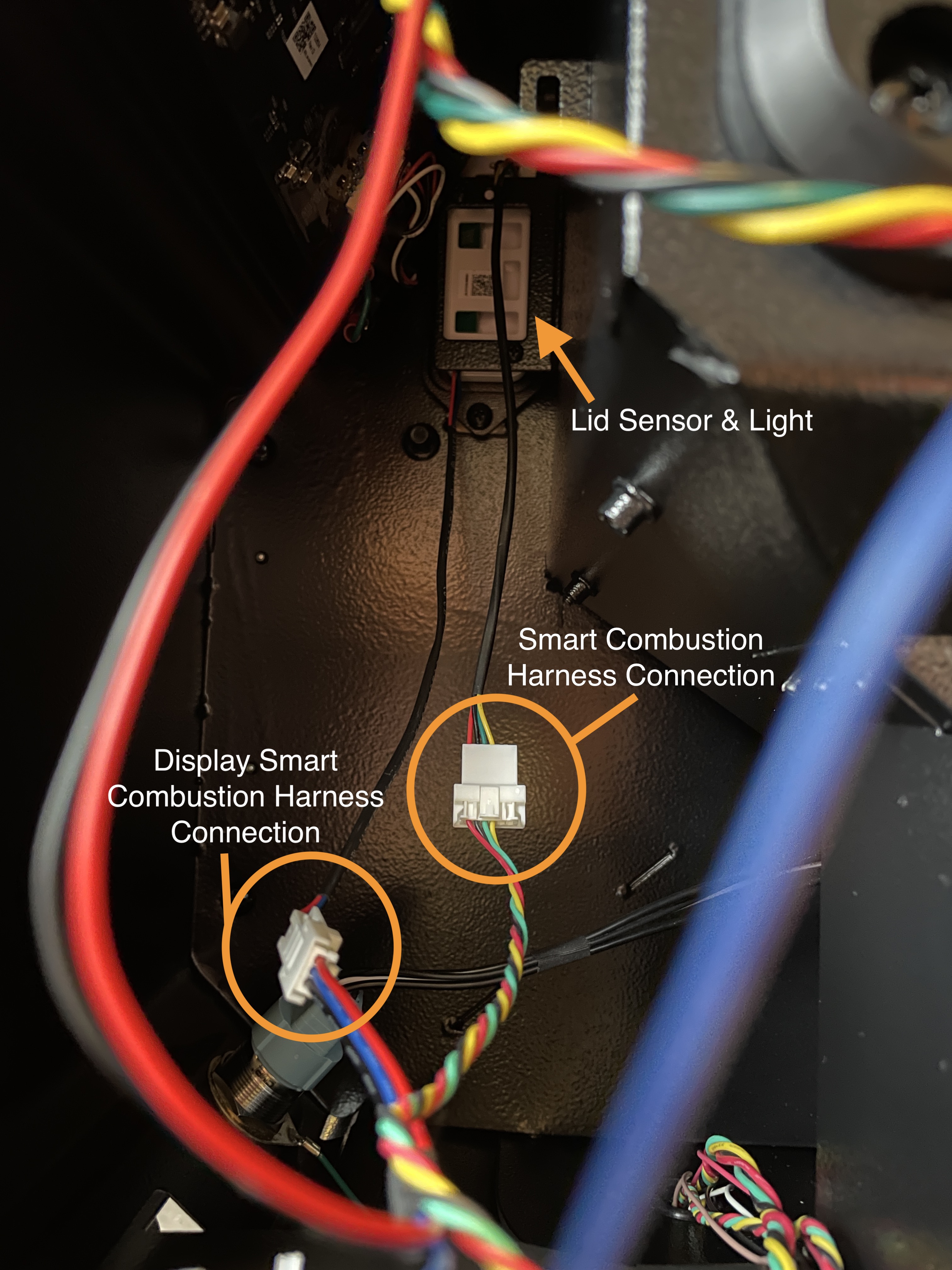

The lid sensor & light is two parts in one. The top wire connects the lid sensor to the Smart Combustion Wire Harness, and the bottom wire connects the light to the UI Smart Combustion Wire Harness.

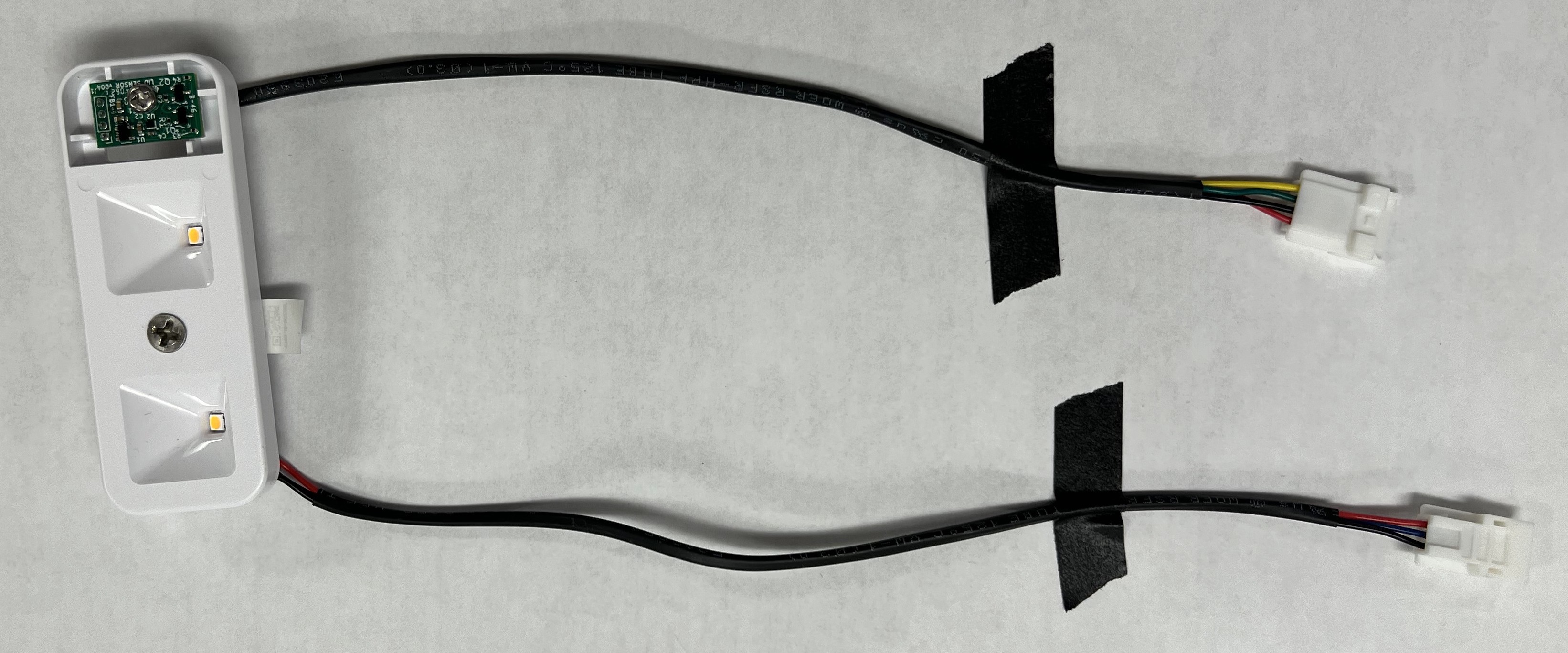

Lid Sensor Light.jpgLid Sensor Light Back.jpg

SKU N/A; Hardwired to/included with the Lid Sensor & Light
Connected Parts Lid Sensor & Light, Smart Combustion Wire Harness, UI Smart Combustion Harness
Function Delivers power to the lid sensor & light. Sends communication to the motherboard and display via both the Smart Combustion Harness and the UI Smart Combustion Harness.
Motherboard Connection Point Does not connect directly to the motherboard; connects to the Smart Combustion Wire Harness and the UI Smart Combustion Harness

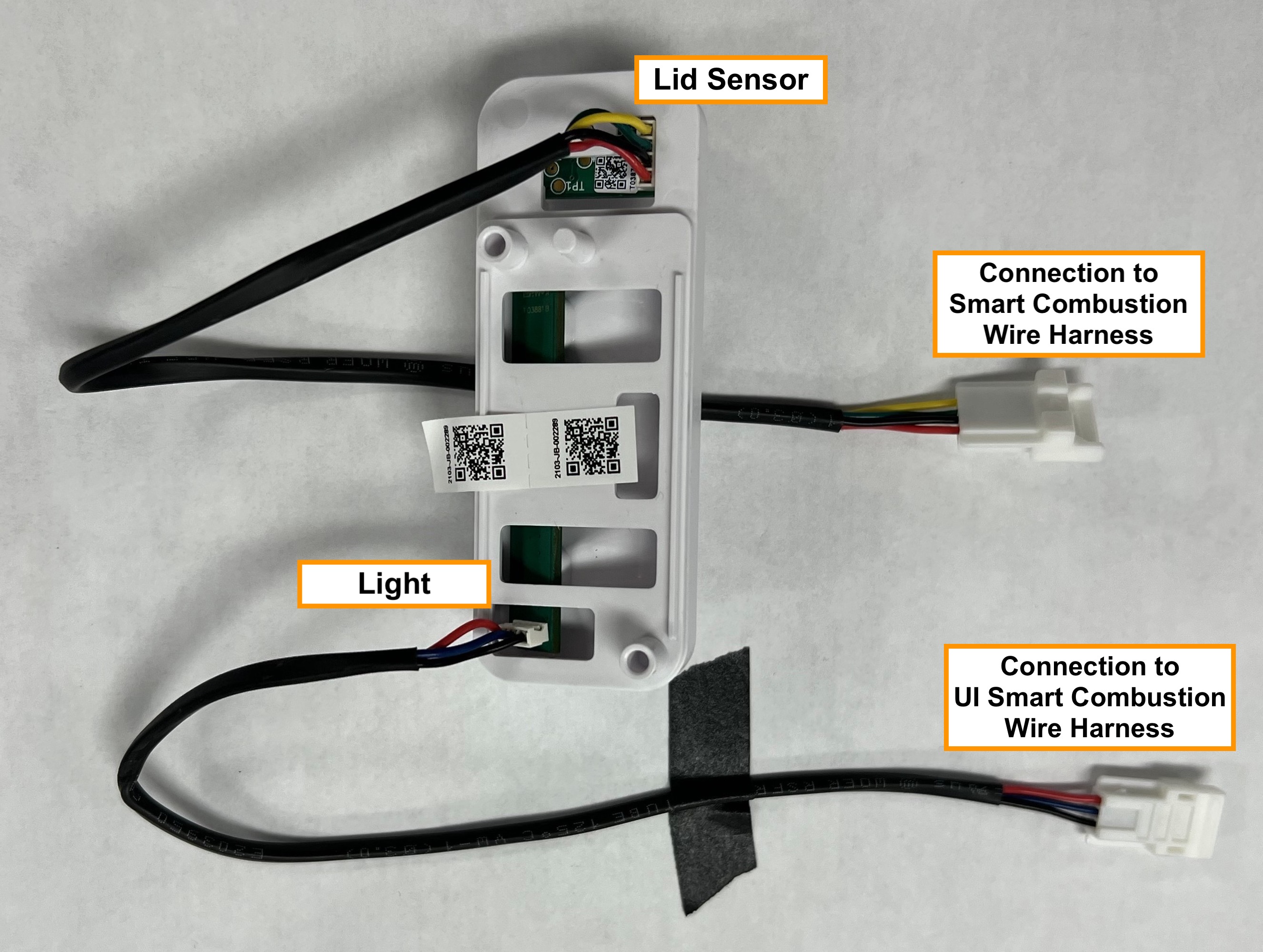

yos_lidsensor_wiring.JPG Lid Sensor Light Back-Labeled.jpegLid Sensor Light Harness-Labeled.jpeg

Harness Connections Wire Colors Connector Size
Lid Sensor Red, Green, Yellow, Black 6 pin
Light Red, Blue, Black 3 pin

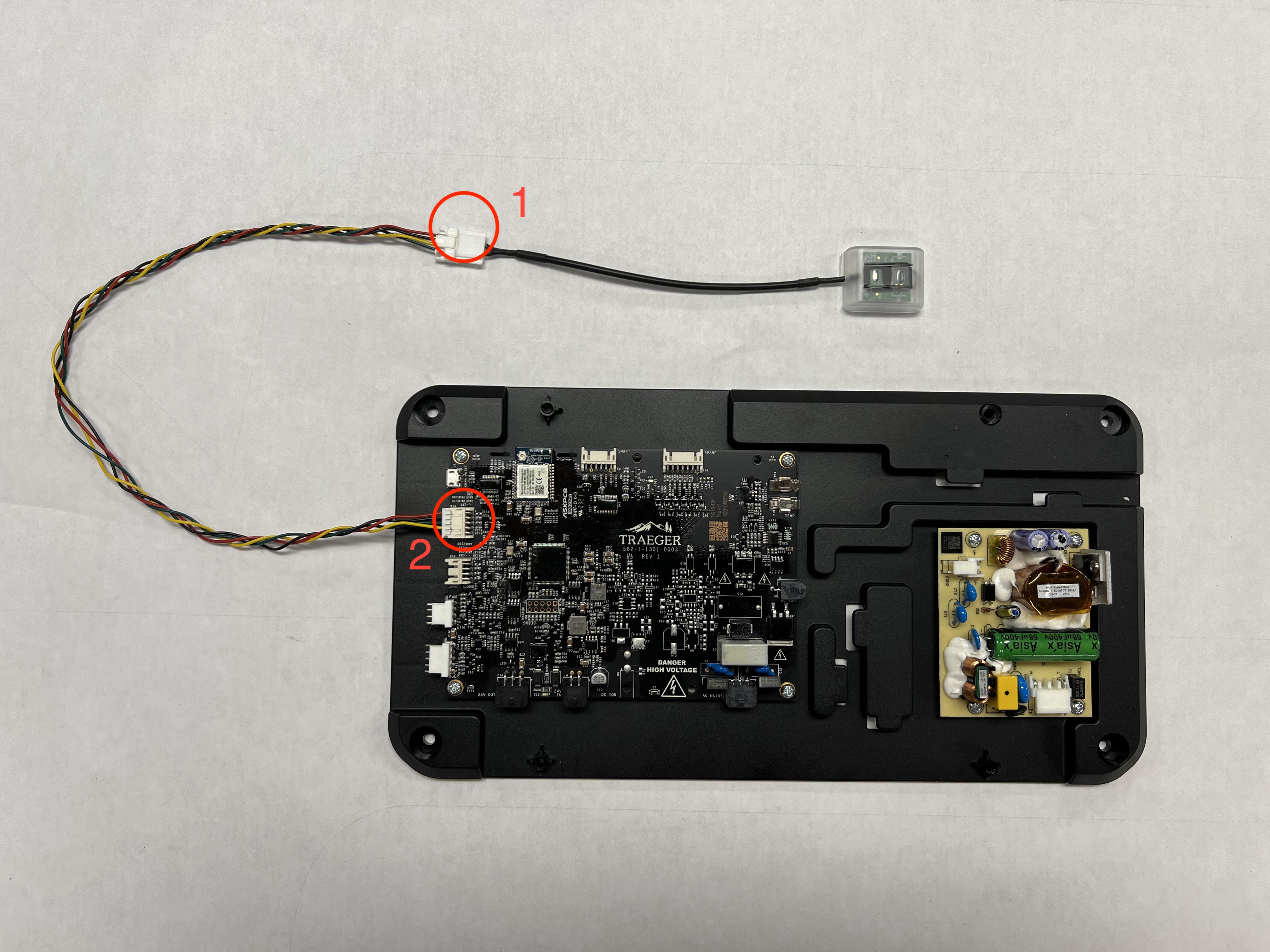

Pellet Sensor Wire Harness

The pellet sensor has a wire harness hardwired to it as well as an additional wire harness that connects the first harness to the motherboard. Both are included with the pellet sensor.

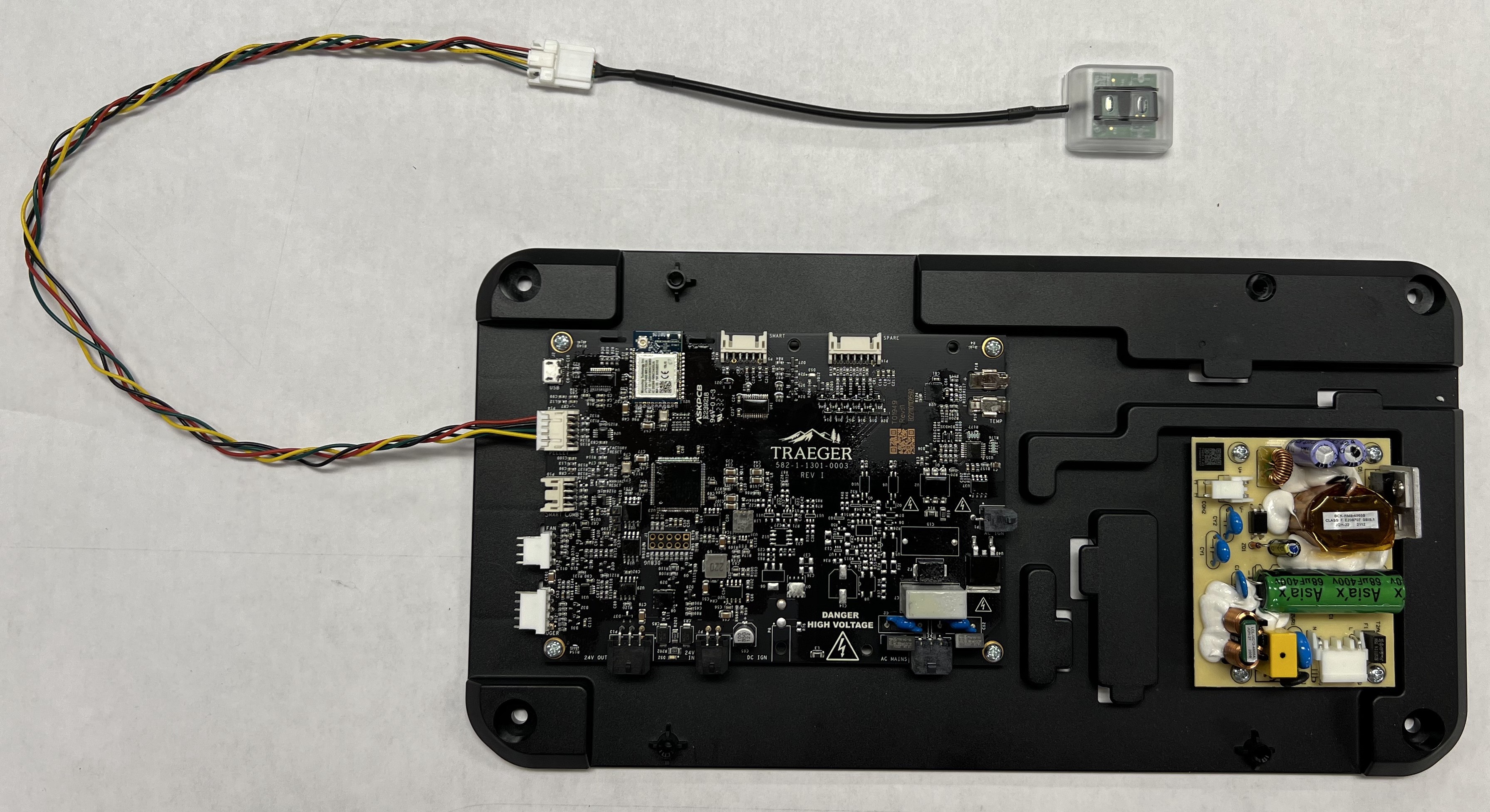

Pellet Sensor Harness-Connected-all.jpg

SKU KIT0686; also included with Pellet Sensor
Connected Parts Pellet Sensor, Motherboard
Function Delivers power to the pellet sensor and communication between the pellet sensor and the motherboard

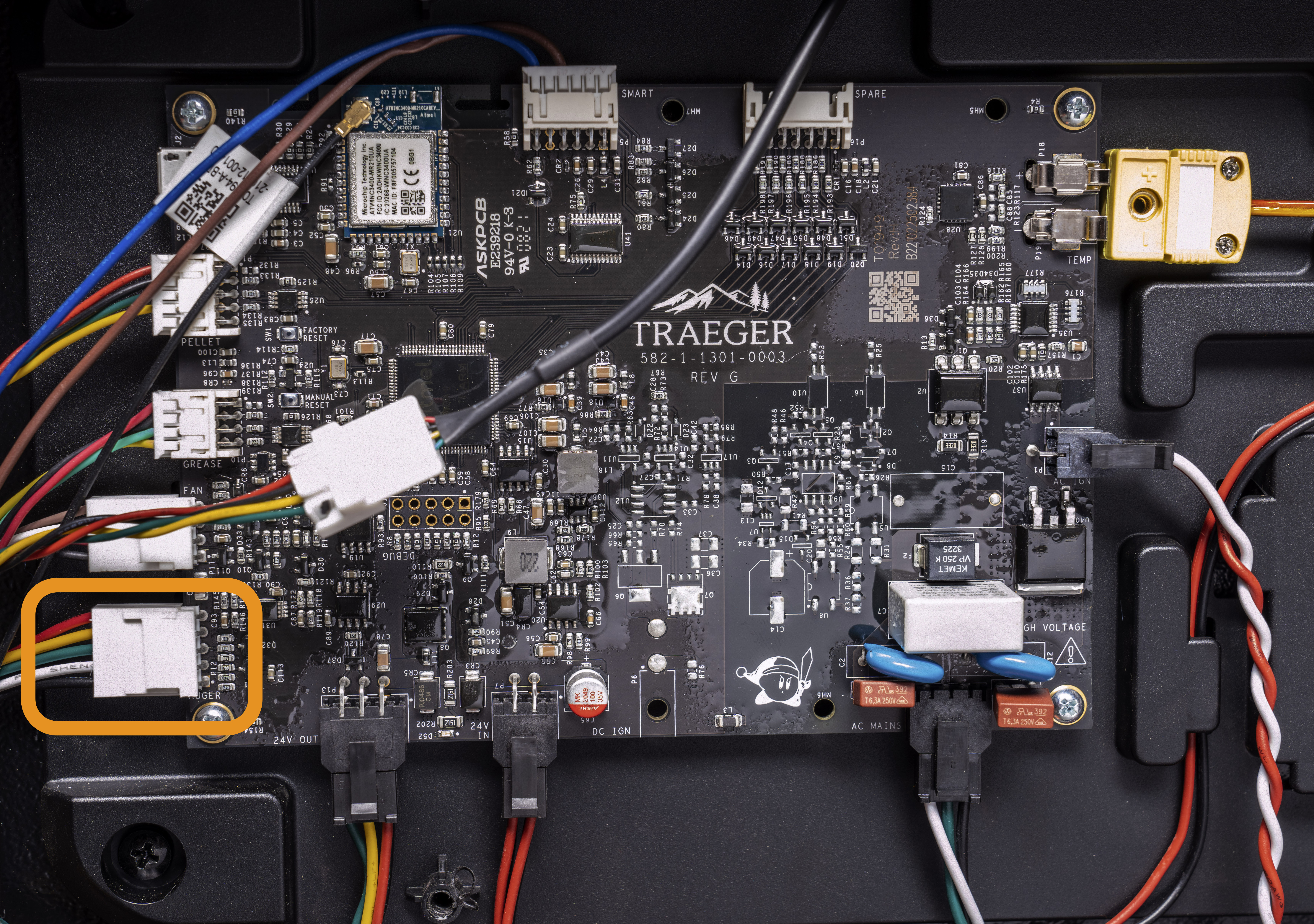

Motherboard Connection Point PELLET

Pellet Sensor Harness.jpg Gen2_Motherboard-Pellet.jpeg

Harness Connections Wire Colors Connector Size
1. Pellet Sensor Harnesses Connection Red, Black, Green, Yellow 4 pin
2. Motherboard - Pellet Connection Red, Black, Green, Yellow 10 pin

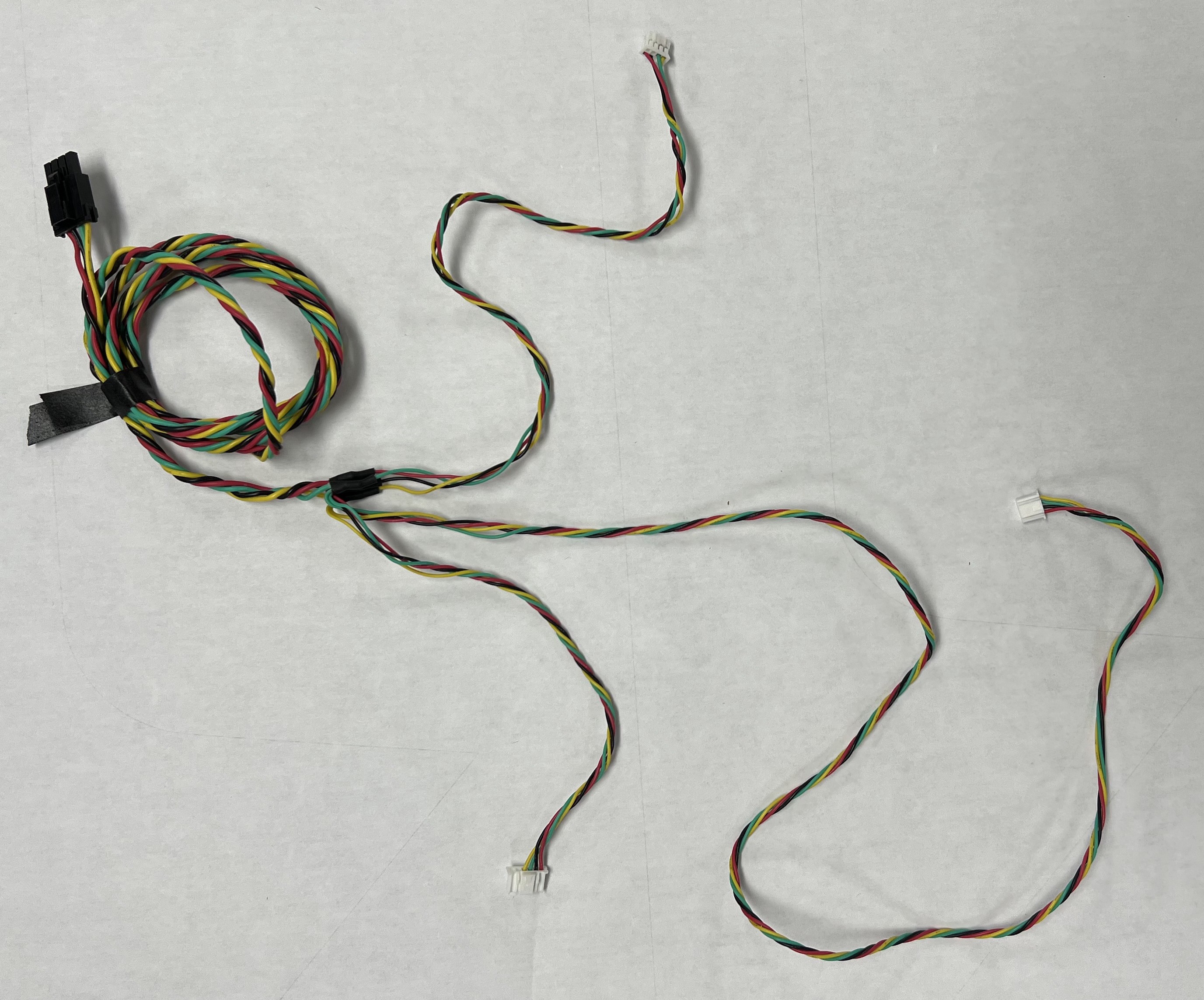

Smart Combustion Wire Harness

The Smart Combustion Wire Harness connects to the motherboard and then splits three ways. Two of these connect to the lid sensor and the flame sensor. The third split is not connected to anything; it was originally intended to connect to a grease sensor, which was not included in the final design.

Grease Sensor Connection: The grease sensor was located next to the grease & ash keg. You will find that in some grills, the grease sensor portion of the Smart Combustion Harness runs across the bottom of the grill as if it were connected to the grease sensor. The connector is not actually connected to anything. This does not pose a problem. Do not cut this wire.

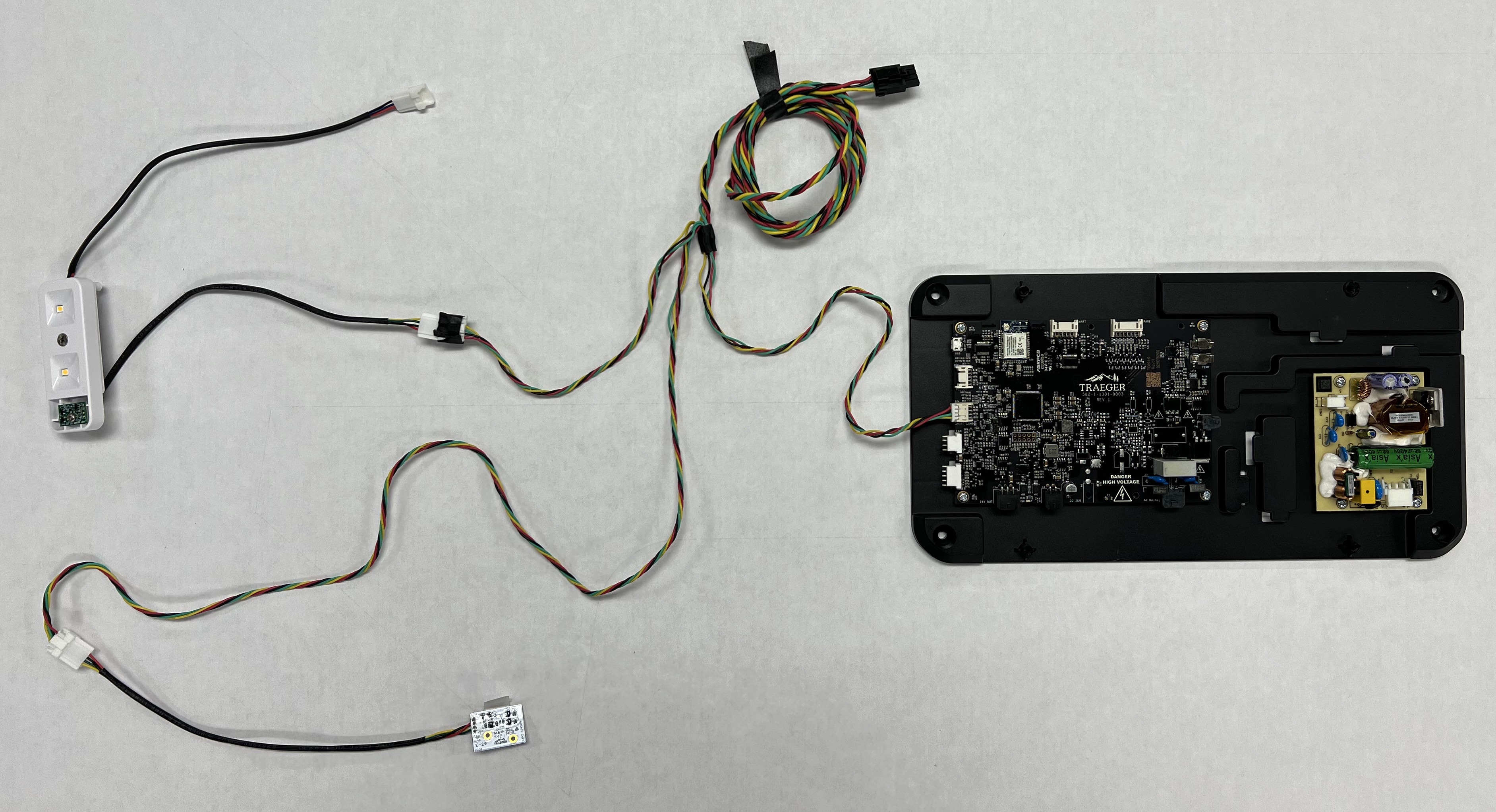

Smart Combustion Harness.jpg Smart Combustion Harness-Connected-all.jpg

SKU KIT0889
Connected Parts Motherboard, Lid Sensor & Light, Flame Sensor
Function Delivers power to Lid Sensor and Flame Sensor and communicates between those parts and the motherboard
Motherboard Connection Point SMART COMB or GREASE, depending on motherboard version

grease sensor.png

Harness Connection Wire Colors Connector Size
1. Flame Sensor Connection Red, Black, Green, Yellow 4 pin
2. Grease Sensor Connection Not used
3. Lid Sensor Connection Red, Black, Green, Yellow 6 pin
4. Motherboard Connection Red, Black, Green, Yellow 8 pin

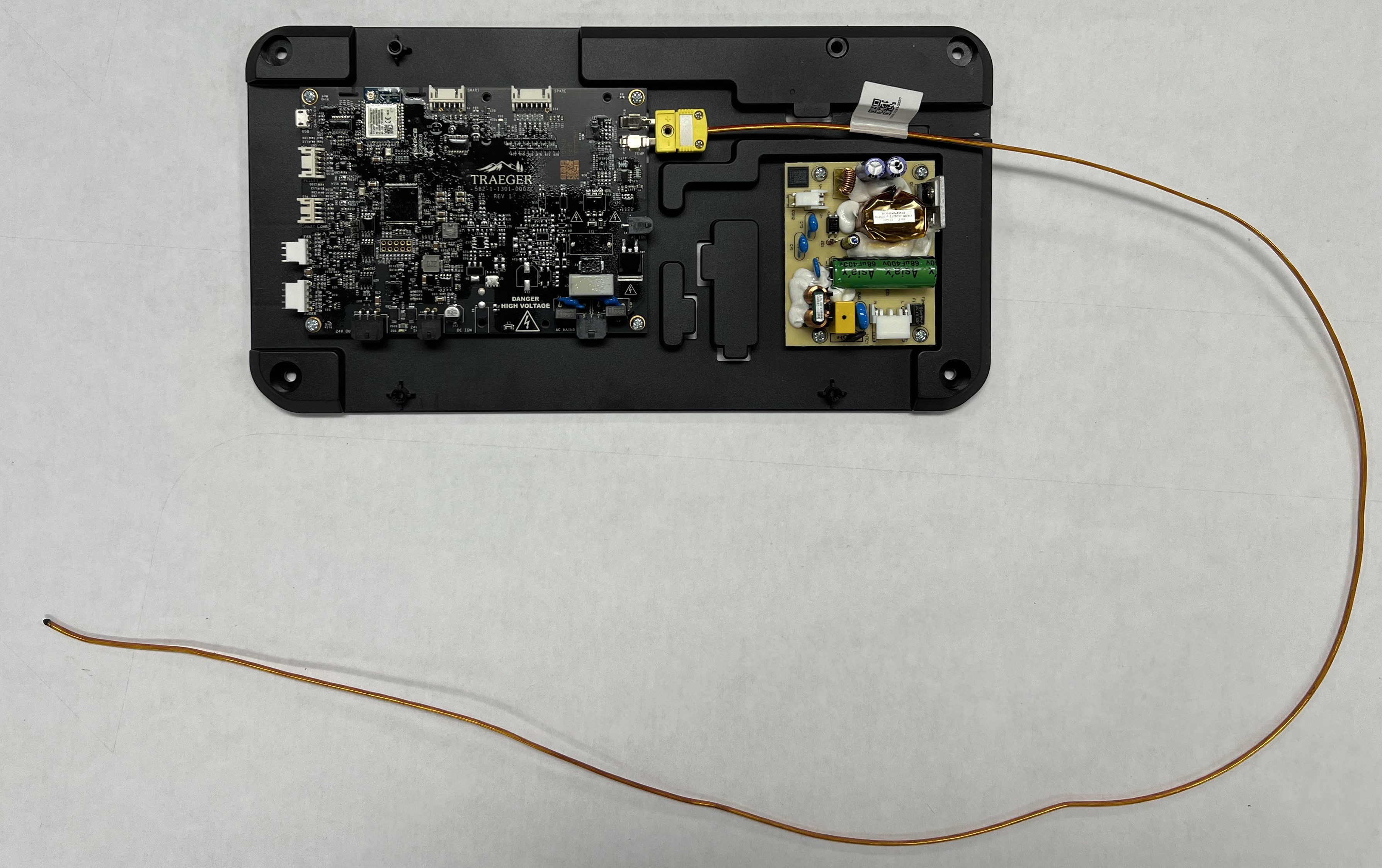

Thermocouple Wire Harness

The thermocouple wire harness is included and attached to the thermocouple.

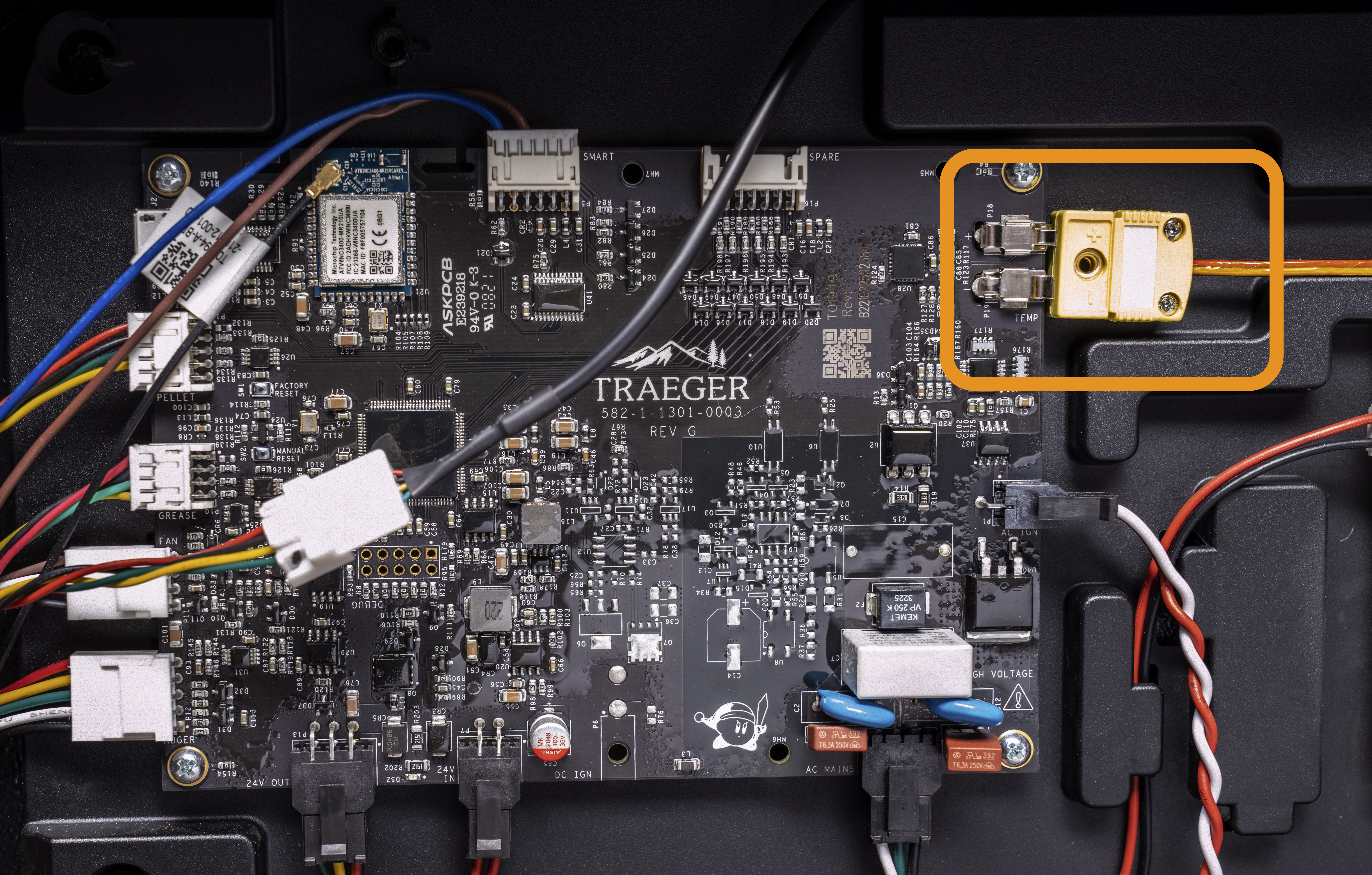

Thermocouple Harness-Connected Motherboard.jpg Gen2_Motherboard-Temp.jpeg

SKU N/A; Included with the Thermocouple
Connected Parts Motherboard, Thermocouple
Function Communicates between thermocouple and motherboard
Motherboard Connection Point TEMP

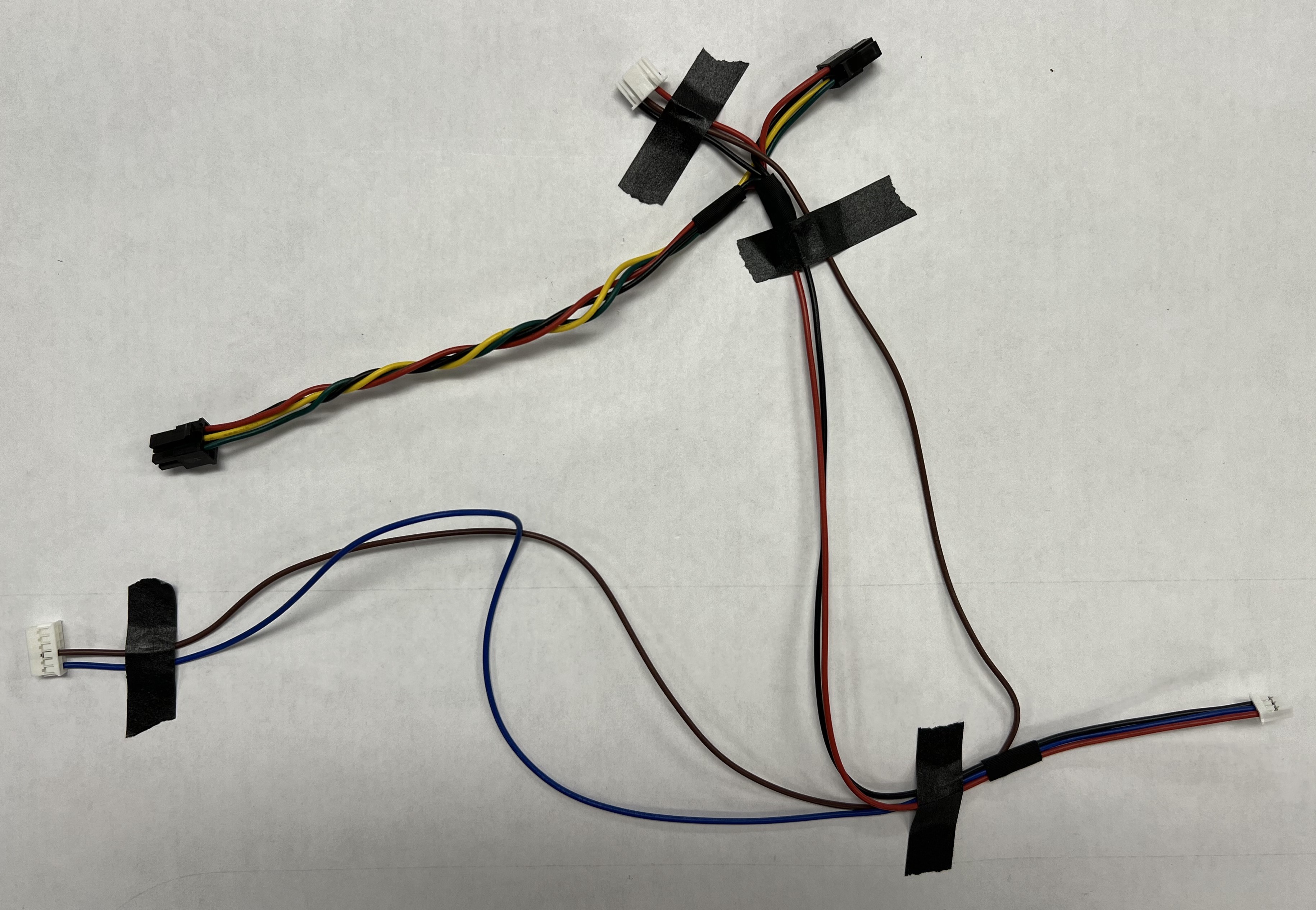

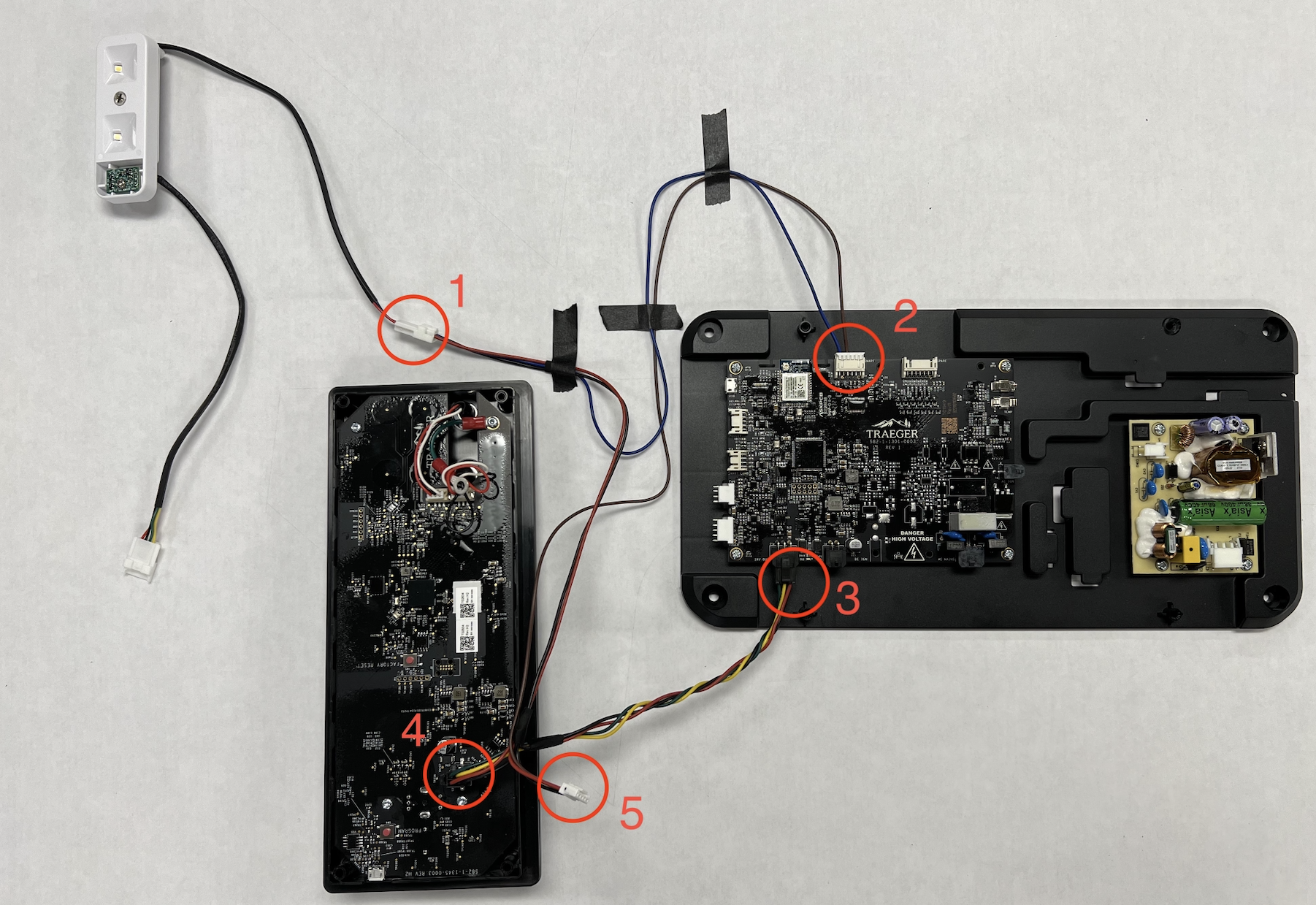

UI (Display) Smart Combustion Wire Harnesses

The UI Smart Combustion Wire Harness, also called the Display Smart Combustion Harness, connects to the motherboard at two points and splits multiple times, connecting the motherboard, display, lid light and auxiliary fan.

UI Smart Comb Harness.jpg

SKU KIT0890
Connected Parts Motherboard, Display, Lid Light, Auxiliary Fan
Function Allows the motherboard to communicate information it receives from all components to the controller display.
Sends power to the auxiliary fan and the lid light and communicates between them and the motherboard.

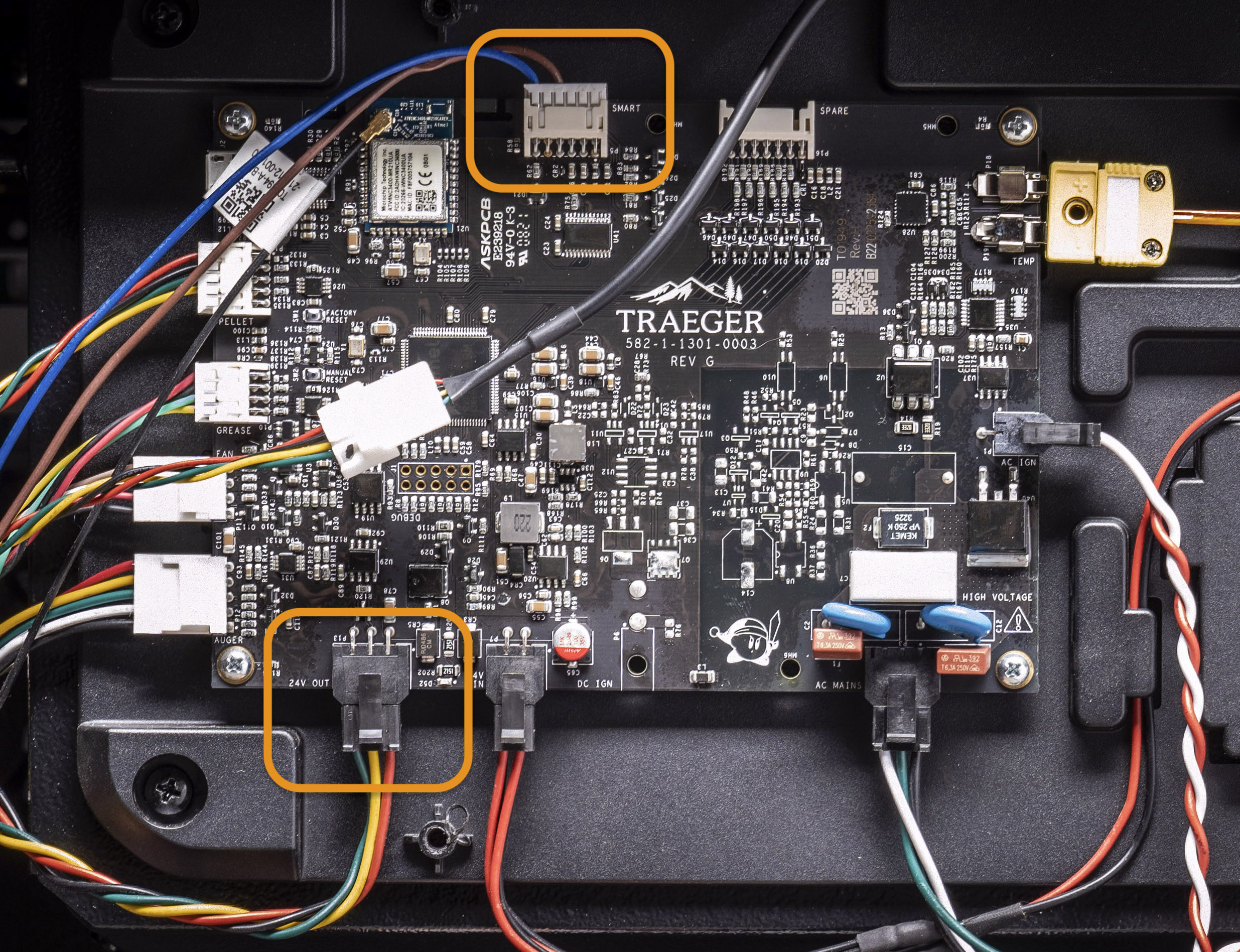

Motherboard Connection Point SMART, 24V OUT

ui:smart comb.png UI Smart Combustion Harness-Motherboard Connections.jpeg

Harness Connections Wire Colors Connector Size
1. Lid Light Connection Red, Blue, Black 3 pin
2. Motherboard - SMART Blue, Brown 12 pin
3. Motherboard - 24V OUT Green, Black, Yellow, Red 6 pin
4. Display Connection Red, Black, Green, Yellow 4 pin
5. Auxiliary Fan Connection Red, Brown, Black 4 pin

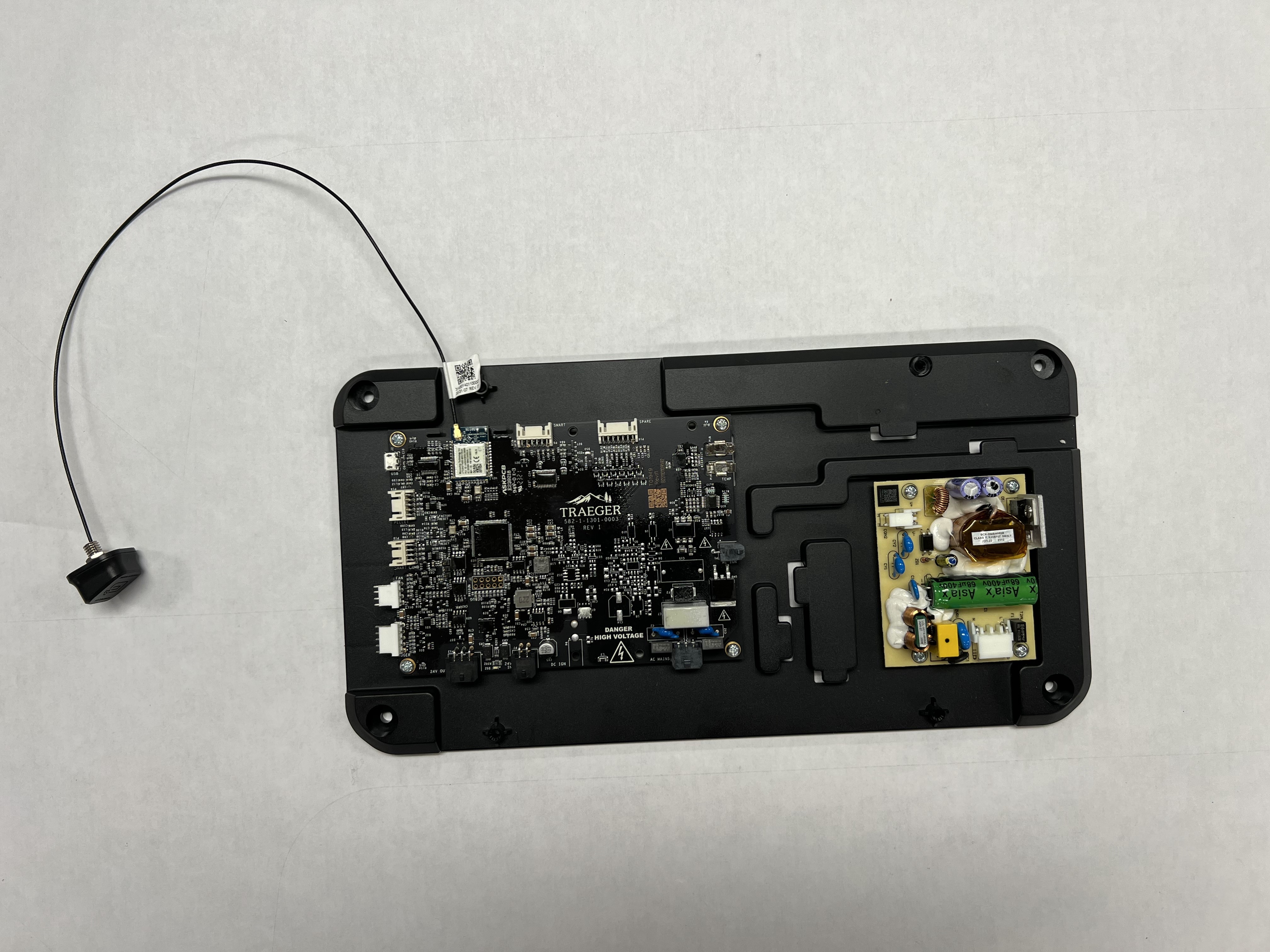

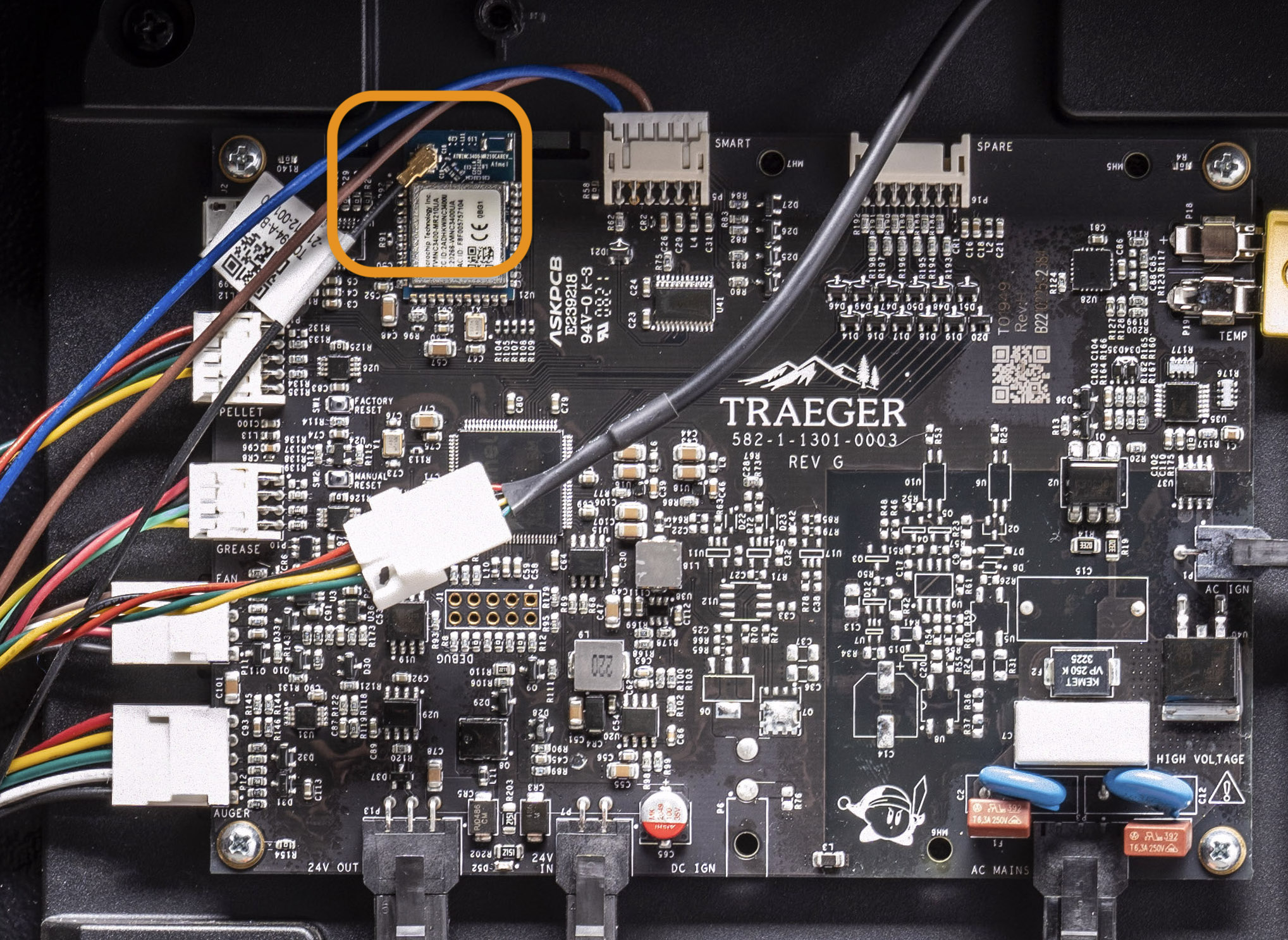

WiFi Wire Harness

bluetooth.jpg WiFi Antenna Connection.jpeg

SKU N/A; Included with WiFi Antenna
Connected Parts Motherboard, WiFi Antenna
Function Communicates between WiFi antenna and motherboard
Motherboard Connection Point Unlabeled
