Folding Front Shelf

What's in This Article?

A folding front grill shelf makes a great landing pad for messy grilling utensils or a cold beverage. Prep like a pro and keep your tools of the barbecue trade on hand for every turn in the BBQ process.

traeger-pal-front-shelf-lifestyle-1.jpg  Folding-Front-Shelf_Pro-780_Ironwood-885-PDP-Features_Mobile.jpg

Traeger has two types of folding front shelf: one designed for our newest grills that have a P.A.L Pop-and-Lock Accessory Rail, and a version for grills without the P.A.L rail.



Folding Front Shelf Grill Compatibility

GRILL SKU DIMENSIONS BUY ON TRAEGER.COM
20-Series BAC361 23.25" L x 10" W x 4.5" H Folding Front Shelf for Tailgater Grill

34-Series

BAC363 37" L x 12" W Folding Front Shelf - Pro 34
Century 885 BAC363 37" L x 12" W Folding Front Shelf - Pro 34
Ironwood BAC604 24.1” x 10.6” x 7.75” P.A.L. Folding Front Shelf
Ironwood 650 BAC563 25" L x 12" W Folding Front Shelf - Pro 22, 575 & Ironwood 650
Ironwood 885 BAC564 32.5" L x 11.6" W Folding Front Shelf - Pro 780 & Ironwood 885
Ironwood XL BAC605 34.1” x 10.6” x 7.75” P.A.L. XL Pop-And-Lock Folding Front Shelf
Pro 22 BAC563 25" L x 12" W Folding Front Shelf - Pro 22, 575 & Ironwood 650
Pro 575 BAC563 25" L x 12" W Folding Front Shelf - Pro 22, 575 & Ironwood 650
Pro 780 BAC564 32.5" L x 11.6" W Folding Front Shelf - Pro 780 & Ironwood 885
Redland BAC563 25" L x 12" W Folding Front Shelf - Pro 22, 575 & Ironwood 650
Silverton XL BAC604 24.1” x 10.6” x 7.75” P.A.L. Pop-And-Lock Folding Front Shelf
Timberline BAC604 24.1” x 10.6” x 7.75” P.A.L. Pop-And-Lock Folding Front Shelf
Timberline XL BAC605 34.1” x 10.6” x 7.75” P.A.L. XL Pop-And-Lock Folding Front Shelf



P.A.L Pop-and-Lock Folding Front Shelf


Assembly Guide

Features

  • Detachable front shelf that can be custom-placed on your grill
  • Offers extra room for prepping, resting, & more
  • Folds down for easy storage when not in use
  • Handles to make moving easier
  • Compatible with most grills featuring P.A.L. Pop-And-Lock™ Accessory Rail
  • Cold-rolled steel with high temperature-resistant powder coating

Tips & Tricks

  • For easier installation, first attach plastic clips onto rail at approximate location where you would like to install shelf.
  • Shelf cannot be positioned on sides of grill – it must be fastened to shelf supports on front of grill above cabinet.
  • Slide metal brackets onto plastic clips. Move brackets as needed to attach them to shelf.
  • Wash with soap and water. Dry thoroughly.



Folding Front Shelf for AC & D2 Grills

Features

  • Made from durable steel
  • Conveniently folds down for easy storage

Installation Instructions

Included Parts

Assembly Guide #

Description

QTY

1

Screw 1/4-20 x .75 Truss Head Zinc

4*

2

Shelf Assembly Bracket Left

1

3

Shelf Assembly Bracket Right

1

4

Shoulder Bolt 1/4-20 Thread

4

5

Folding Front Shelf 20 Series

1

5

Folding Front Shelf 22 Series

1

5

Folding front shelf 30 Series

1

5

Folding Front Shelf 34 Series

1

6

Folding Shelf Retrofit Bracket Kit

1

*These screws come pre-installed on your grill. They will not be included with the shelf.

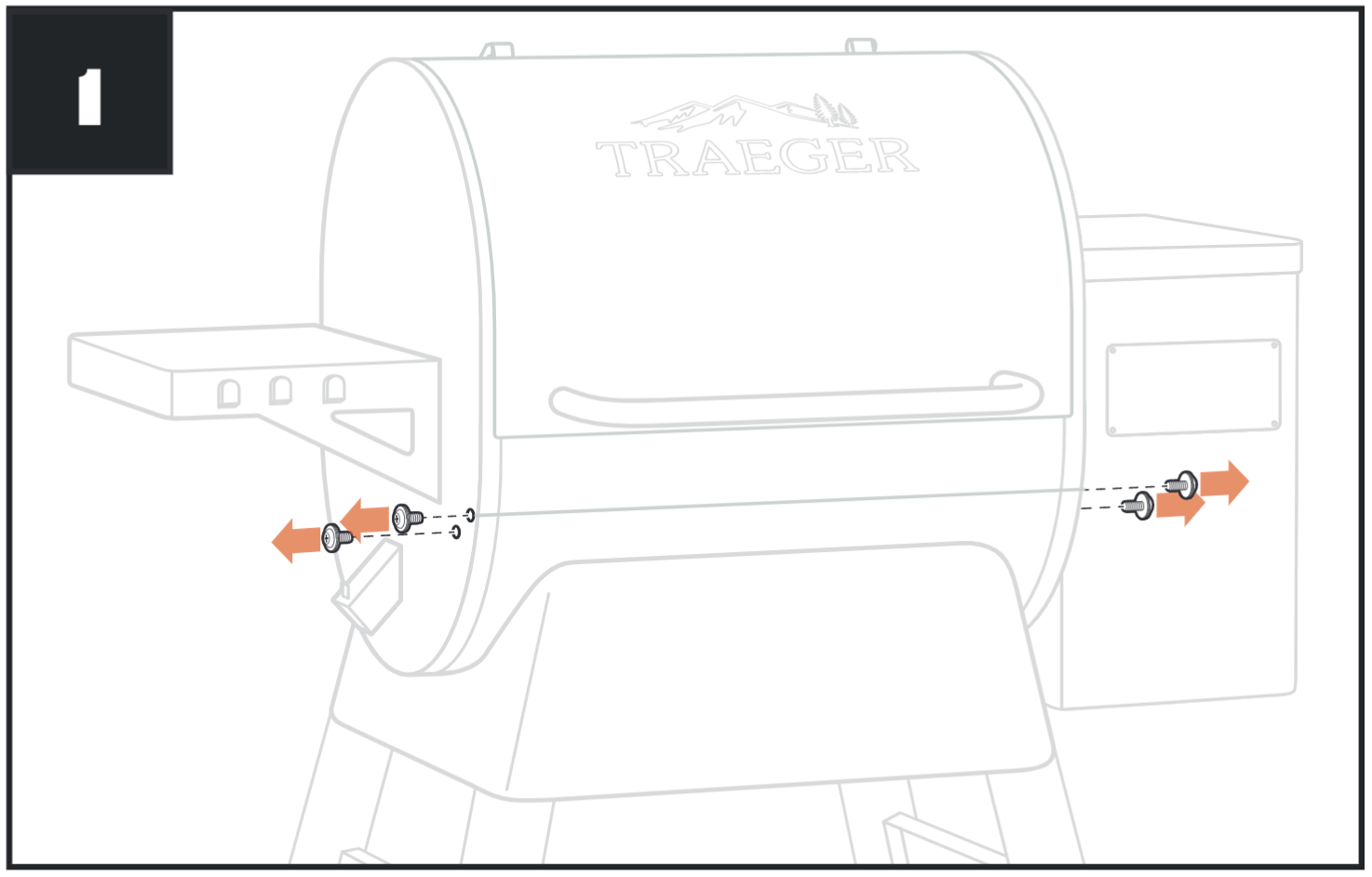

  1. With the Traeger grill in the upright position, remove the 4 screws (1) located on the sides of the grill barrel. You'll use these screws for mounting the folding shelf bracket assemblies.
    Folding front shelf - assembly 1.png

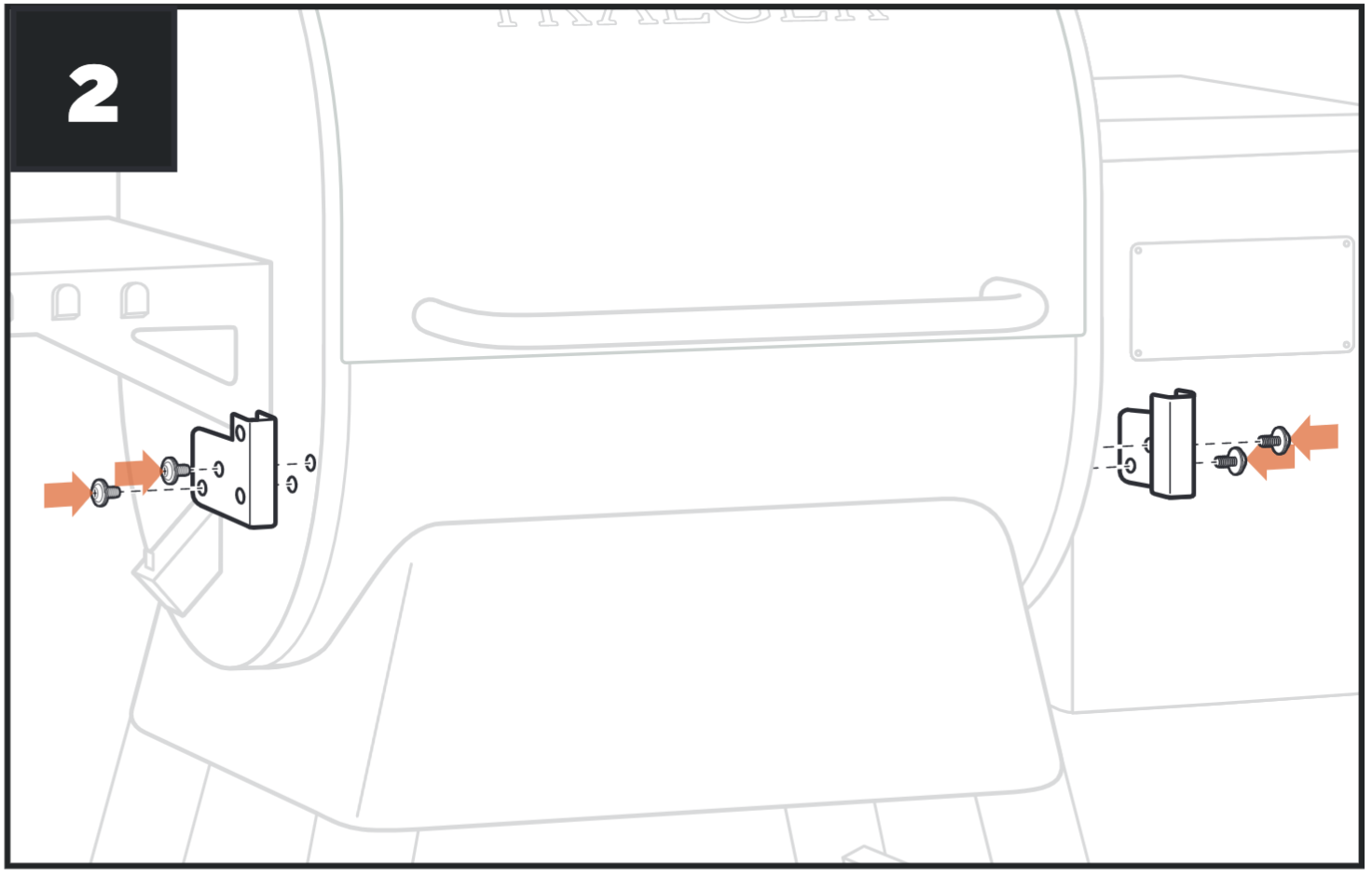

  2. Insert the left shelf bracket assembly (2) onto the left side of the grill barrel.
    Folding front shelf - assembly 2.png
    1. Secure the left shelf bracket assembly using the screws (1) from step 1.
    2. Repeat the process for the right shelf bracket assembly (3) on the right side of the grill barrel.

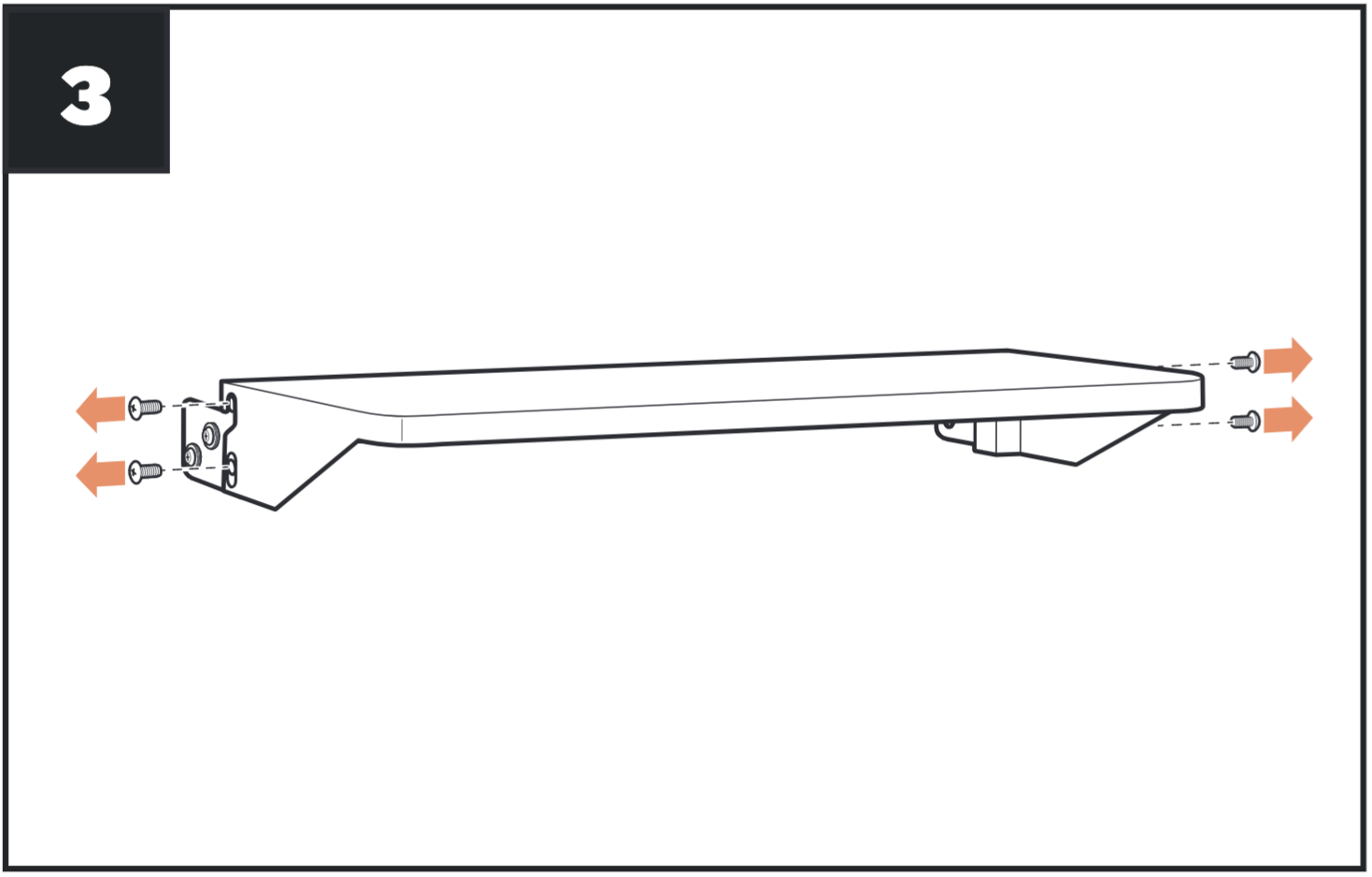

  3. Remove the screws from the folding front shelf.
    Folding front shelf - assembly 3.png

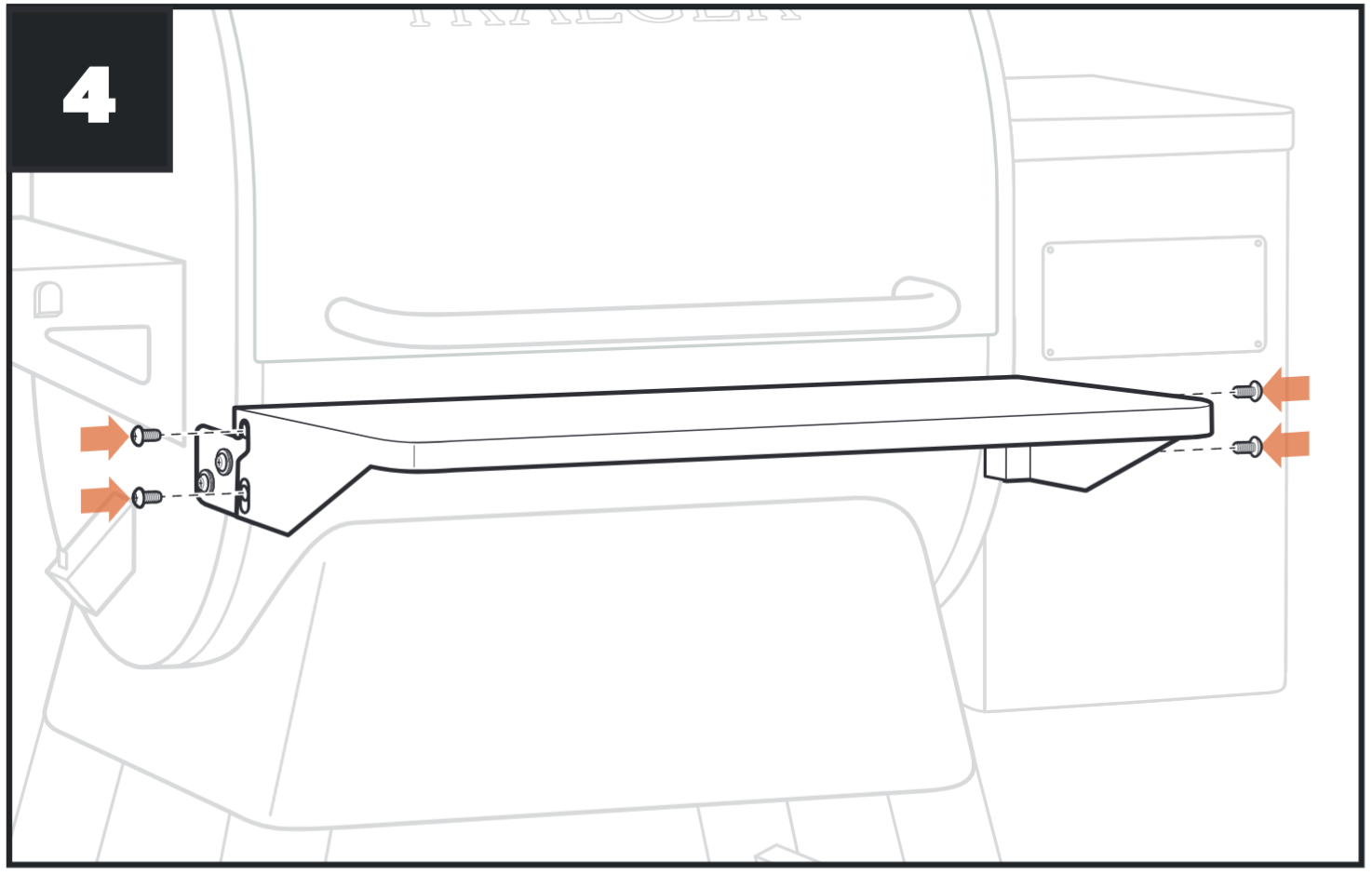

  4. Insert the front shelf (5) onto the shelf supports so that the slots align with the holes in the shelf supports.
  5. Insert the shoulder bolts (4) through the slots in the shelf and into the threaded inserts in the shelf supports and tighten.
    Folding front shelf - assembly 4.png
  6. To fold the shelf down, pull the shelf until it releases, and lower to the grill body.
    • CAUTION: Be careful that your fingers do not get pinched between the shelf and the shelf supports.
