Quickly check your grill’s components—no disassembly needed!

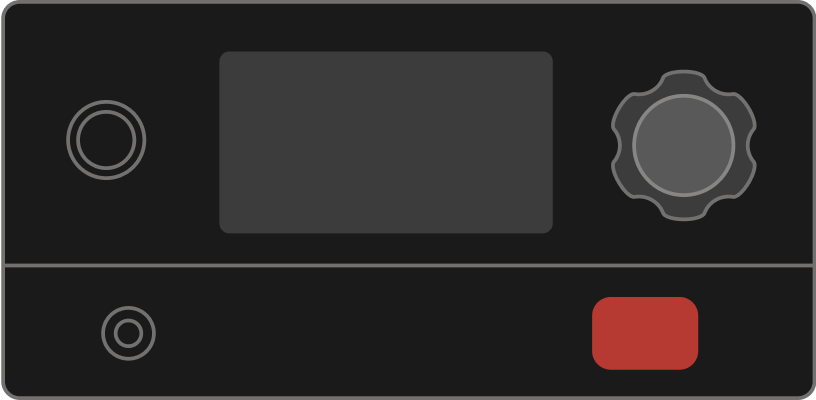

This article applies to Traeger's D2 WiFIRE grills, which have controllers similar to this:
What Is a Self Test?
A Self Test confirms whether your grill’s components are connected and working properly.
Heads up: During the test, parts like the fan, auger, and ignitor will turn on. Be cautious!
Should the Grill Be Cool?
Yes! Run the Self Test only when the grill is cool, especially if testing the ignitor, which gets very hot.
How to Run a Self Test on Your Traeger Grill
1. Access the Grill's System Test Menu
- Make sure the grill is plugged in and in the power switch is in the OFF position.

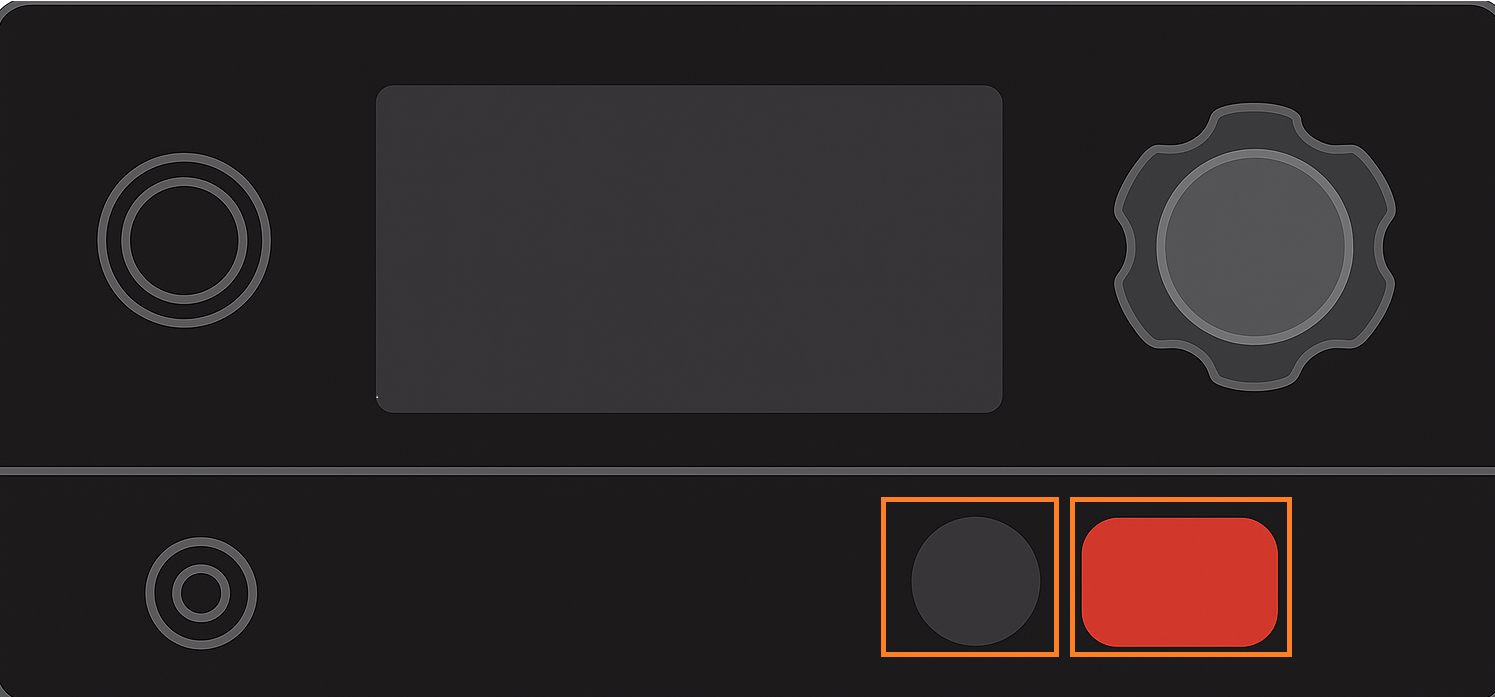

- Press and hold Menu and Ignite buttons simultaneously and flip the power switch to the ON position.

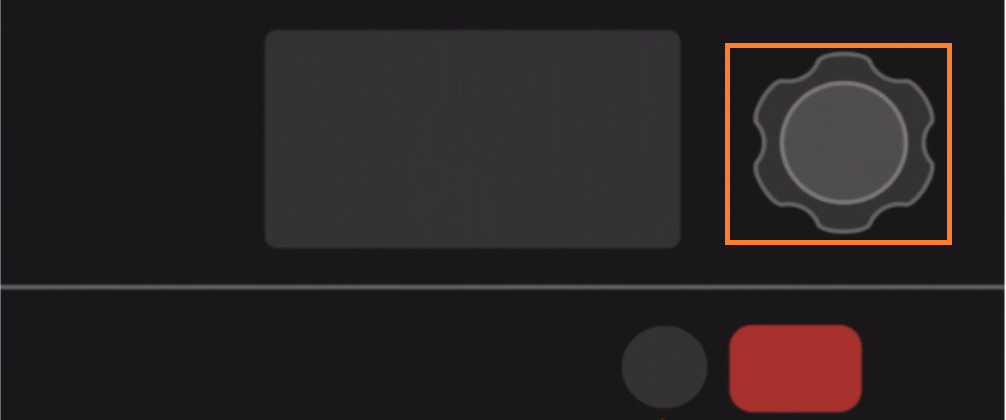

- While still holding the buttons, press the dial or silver Standby button on D2, depending on your grill.

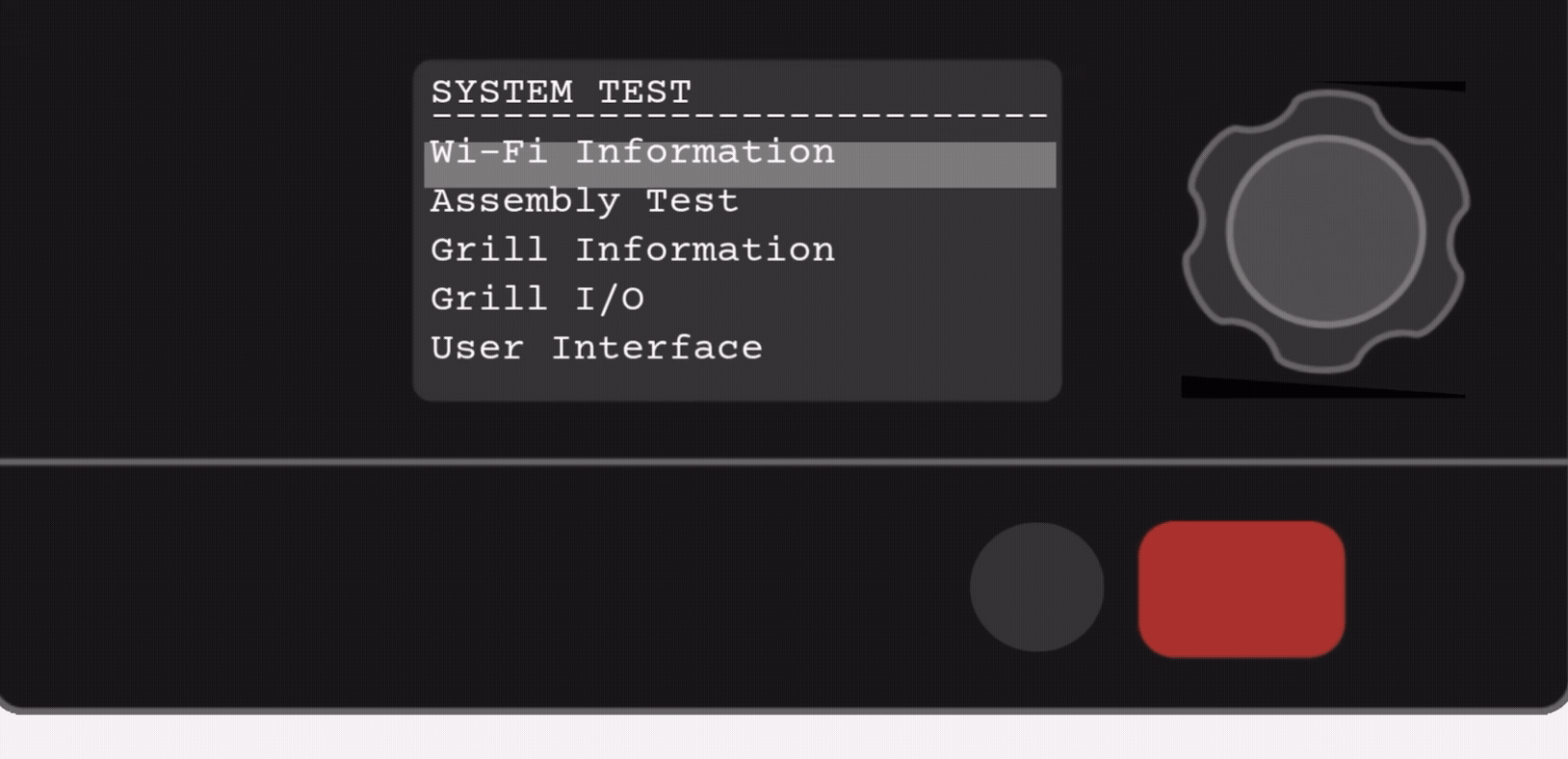

Pro Tip: The System Test screen appears in about 5 seconds. Release buttons once you see it.
-

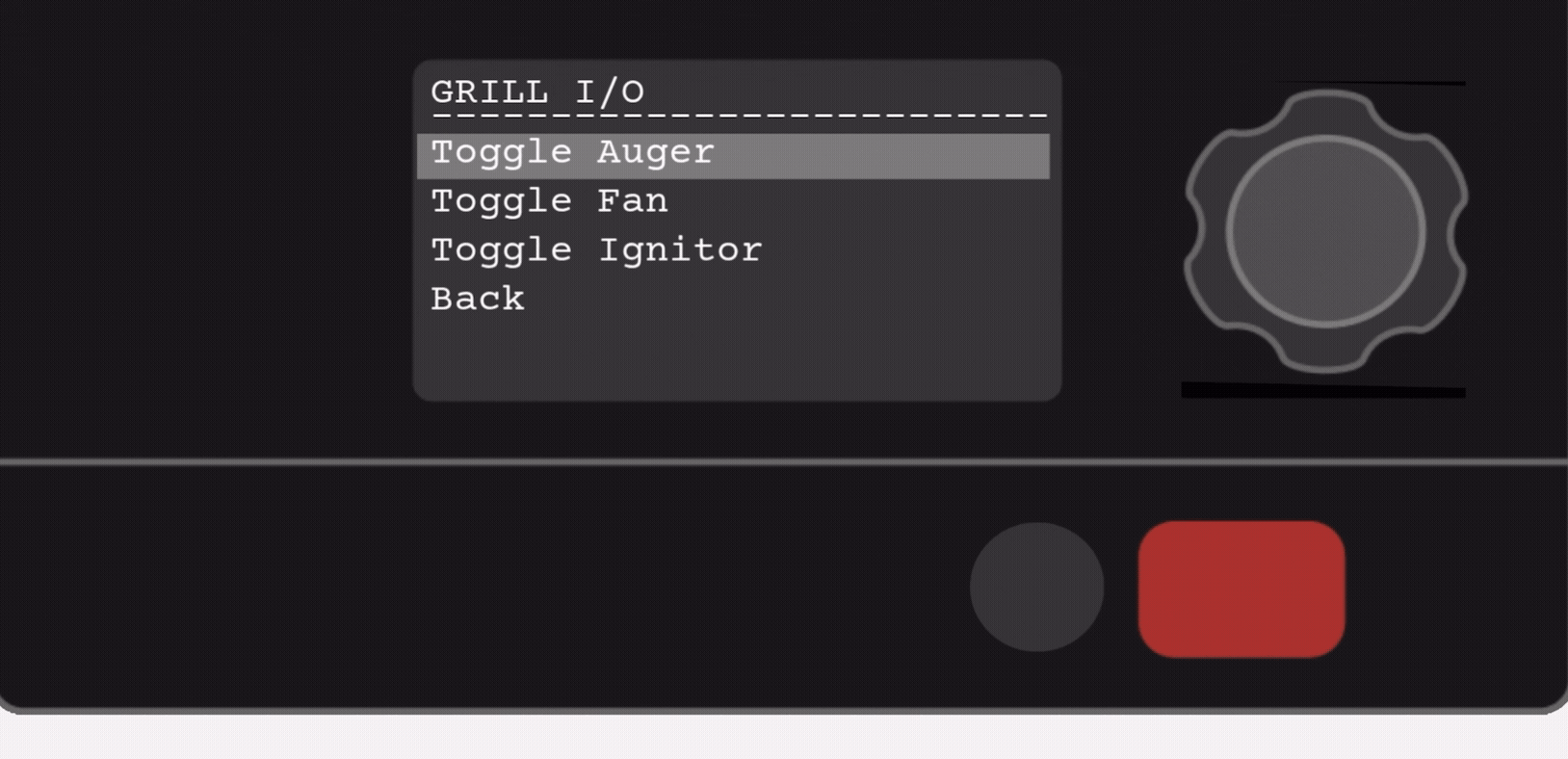

Access Grill I/O Menu: Use the dial to scroll down and select Grill I/O.
Pro Tip: From this menu, you can toggle components ON/OFF to check functionality..
2. Test Each Component
- Use the dial to select the component, pressing the dial to enter each component's test screen.

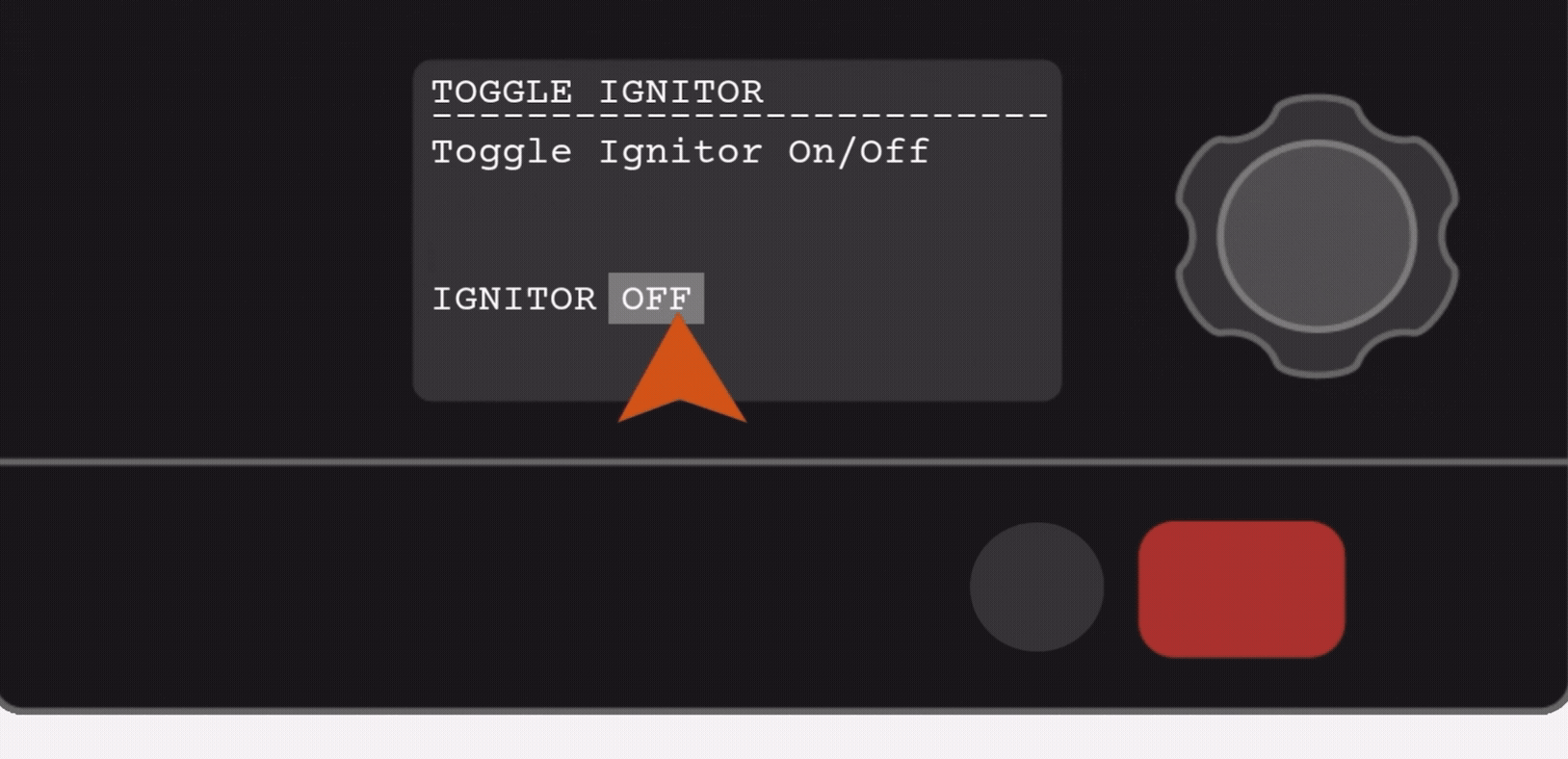

For example, select "Toggle Ignitor" to test if the ignitor is working. - From this menu, you can toggle components ON/OFF to check functionality.
Pro Tip: If working, you’ll see or hear activation (fan spins, auger moves, ignitor heats).
- Repeat this process for each component..
Exiting Self Test Mode
Return to I/O menu → Back → Exit Test Mode.
Common Issues Seen When Running a Self Test
Controller Shuts Off When Testing
Component Doesn’t Turn On
If the component you're testing doesn't turn on, it could be disconnected. Check the back of the controller to make sure the component is connected.
- Turn off and unplug the grill.
- Remove the controller (unscrew the 4 screws on the hopper).
- Gently pull the controller forward.
- Check that all wires are securely connected.
Pro Tip: If a part was recently replaced, double-check its connected fully
Still Not Working?
If all connections are secure and a component still doesn’t respond, contact Customer Support.
