P.A.L. Rail & Trim Replacement Steps - Woodridge Pro & Elite

Applicable SKUs & Grill Compatibility

The replacement instructions outlined in this article apply to the following P.A.L. Rail replacement part SKUs for Traeger's Woodridge Pro and Woodridge Elite grills.

• KIT0985: Rail
• KIT0984: Trim Piece

Replacing the Rail & Trim on a Woodridge Pro

1. Turn off and unplug grill from power.
2. Open grill lid and remove all grill grates and the drip tray.
3. Lift the side shelf to the horizontal position. On the front and back side shelf brackets, remove the bottom two screws. Lift the side shelf off of the top shoulder screw, leaving it installed.
4. Remove three screws from the front side shelf bracket, then slide the bracket out to remove and set aside.

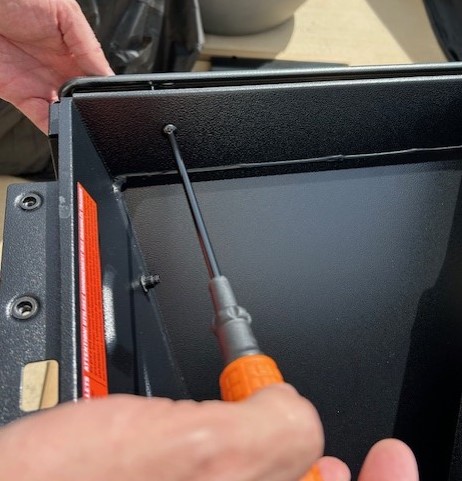

5. At the front of the grill, remove six screws to detach the grill body front trim with P.A.L rail (x4 screws are located in the grill body, x2 screws are located on the outside below the trim).
6. Remove x6 screws from the P.A.L. rail and remove it from the front trim.
7. Position the P.A.L. rail on the new front trim and fasten with x6 screws.
8. Position the new front trim on the front of the grill. Attach with screws inside the grill body and screws at the bottom of the trim on the outside (6 total).
9. Slide the front side shelf bracket into position in the front trim and attach with three screws.
10. Place the side shelf back onto the top shoulder screws. Reinstall one screw on each side (2 total).
11. Place drip tray and all grill grates back in grill.



Replacing the Rail & Trim on a Woodridge Elite

1. Turn off and unplug grill from power.
2. Open grill lid and remove all grill grates and the drip tray.

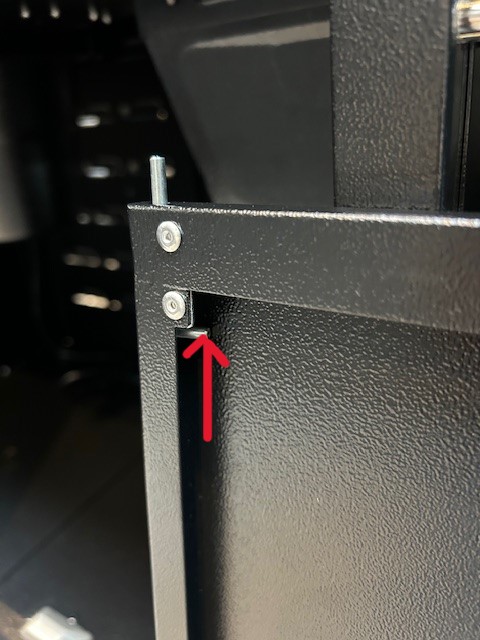

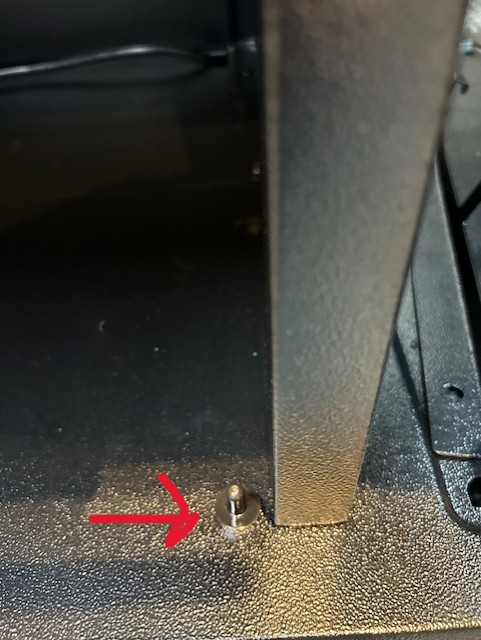

3. Remove the cabinet doors by retracting x2 spring pins at the top of each door (1 per side). Remove the bottom hinge pins too.


   Top Pin	Bottom Pin

4. Below the controller, remove four screws from the front right trim panel.
5. Remove four screws from the cabinet front trim panel. Set it aside.
6. Remove the power cord from the side burner.
7. Remove six screws from the side burner shelf assembly (x3 are located in the front of the grill, and x3 are located in the back).
8. Slide the side burner shelf assembly out to remove it from the grill and set it aside.
9. At the front of the grill, remove x6 screws to detach the grill body front trim with P.A.L rail (x4 screws are located in the grill body, x2 screws are located on the outside below the trim). Hold the P.A.L. rail while removing so that it doesn't fall, then place the front trim on a work surface.
10. Remove x6 screws from the P.A.L. rail and remove it from the front trim.
11. Position the P.A.L. rail on the new front trim and fasten with x6 screws.
12. Position the new front trim on the front of the grill. Attach with the x4 screws inside the grill body and x2 screws at the bottom of the trim on the outside (6 total).

13. Slide the side burner shelf assembly into place on the grill and attach with x6 screws (x3 are located at the front, and x3 are located at the back).
14. Reattach the power cord to the side burner.
15. Reattach the cabinet front trim panel using x4 screws.
16. Below the controller, reattach the front right trim panel using four screws.
17. Place x2 bottom door hinge pins in the cabinet base.

18. Place the cabinet doors back onto the hinge pins. Retract the top spring pins and slide the doors in until the spring pins are seated.

19. Place drip tray and all grill grates back in grill.
