Induction Fan Replacement Instructions - D2 WiFIRE Grills

What's in This Article?

Let's walk through how to replace the induction fan on your D2 WiFIRE-enabled Traeger pellet grill.

KIT0411-d2 induction fan.jpeg

Related Articles & Links



Applicable Part Numbers

The issues reviewed in this article apply to Traeger's D2 grills with WiFIRE technology. The part numbers for induction fans on these grills include the following:

  • KIT0411
  • KIT0254
  • KIT0481
  • KIT0353

Replacing an Induction Fan on a Pro 575 & Pro 780

  1. Power off and unplug the grill.
  2. Using a Phillips screwdriver, remove the access panel from the bottom of the hopper.
  3. Cut the zip ties holding the cables.
  4. Using the Phillips screwdriver, remove 4 screws that hold the controller in place.
  5. Unplug fan from controller and remove fan with Phillips screwdriver.
  6. Install a new fan and plug it into the controller.
  7. Replace the controller.

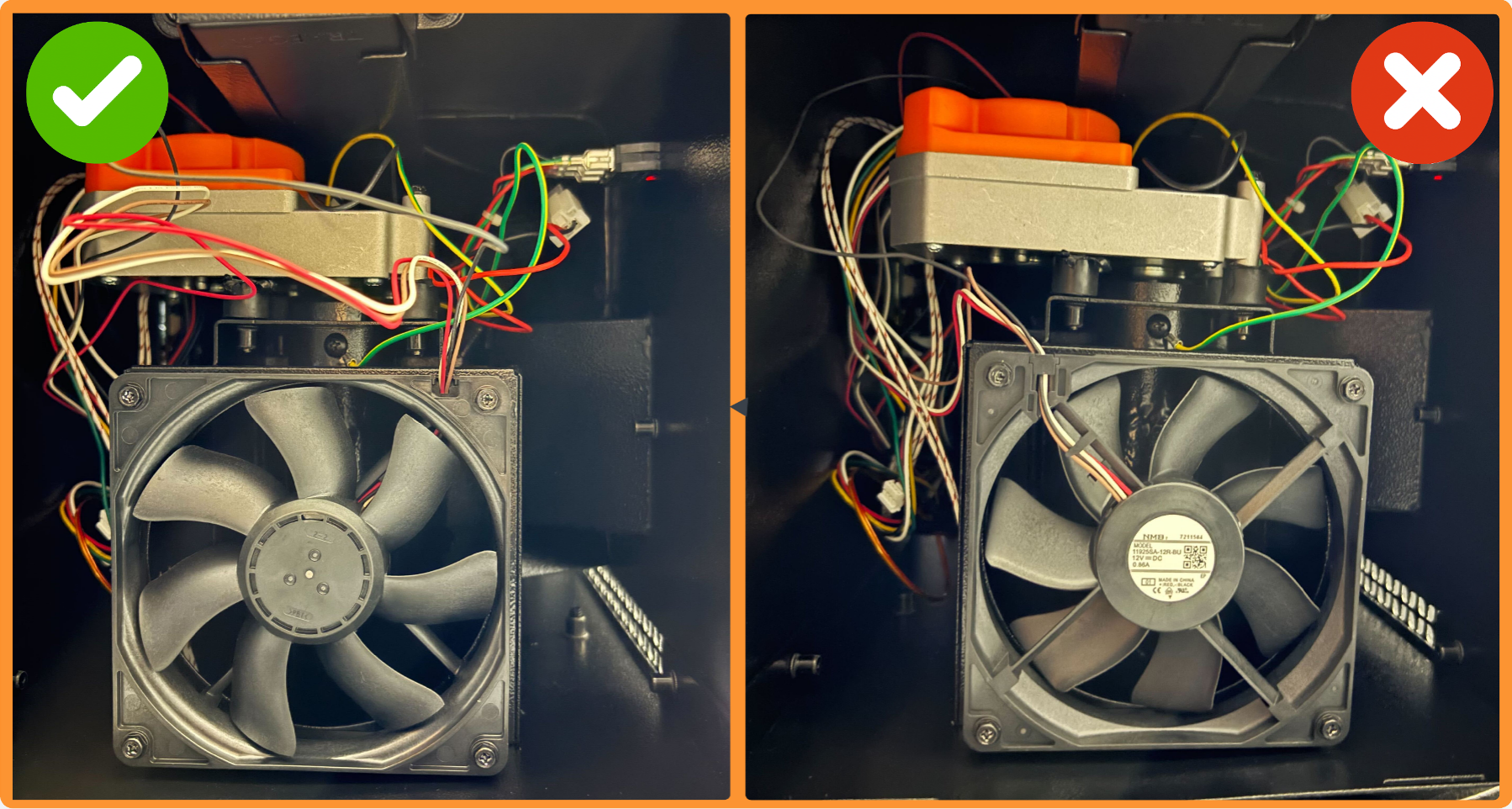

  8. Add zip ties to keep wires organized and away from the fan.
  9. Reinstall the hopper access panel.
  10. Plug in the grill and start Traegering!

Replacing an Induction Fan on an Ironwood 650 & 885, Timberline 850 & 1300, and Costco D2 Models

  1. Power off and unplug the grill.
  2. Using a Phillips screwdriver, remove the access panel from the bottom of the hopper.
  3. Cut the zip ties holding the cables together.
  4. Using the Phillips screwdriver, remove the 4 screws that hold the controller in place.
  5. Unplug the fan from controller.
  6. Use the Phillips screwdriver to uninstall the old fan, and install the new fan.
  7. Plug the fan into the controller.
  8. Reinstall the controller.
  9. Add zip ties to keep wires organized and away from the fan.
  10. Reinstall the hopper access panel.
  11. Plug the grill back in and turn on.
