Control Panel Replacement - Flatrock 2-Zone

Controller UI Board SKU

• FTK0119

Replacing a Flat Top Grill Control Panel

Tools Needed

• Phillip Screwdriver
• 3/8" wrench

Replacement Instructions

1. Move all control knobs to the OFF position.
2. Close the propane tank valve and disconnect the regulator from the propane tank.
3. Remove the griddle knobs.

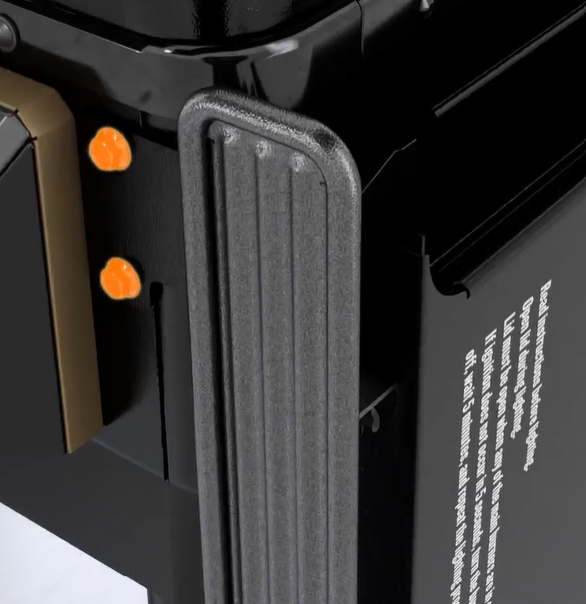

4. Fold down the righthand side shelf, exposing 2 bolts.

5. Remove the side shelf by removing the 2 bolts on the front bracket and the 2 bolts on the back bracket.
   •  Be sure to hold the shelf so it does not drop when removing the screws.
   • You may need the help of another person for this as the shelf can be awkward to remove.

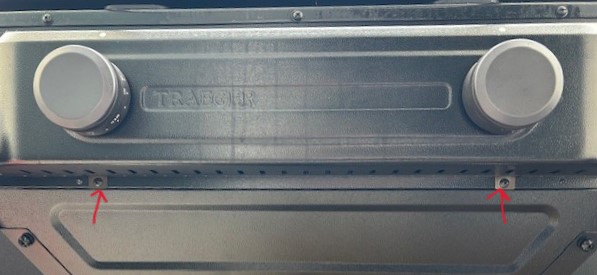

6. Use a Phillips screwdriver to remove the two screws at the bottom of the control board.

7. Slide the control panel to the right until it stops and pull the panel away from the wall of the grill body.
   • This at times can be tricky. It helps to jiggle the control panel and lift upward to get it off the mounting screws. This may take some effort to get the panel to come off.

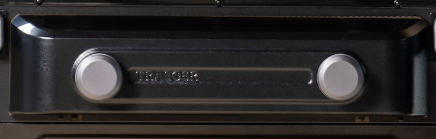

8. Position the new control panel onto the mounting screws and slide left until it is secure in place with the two screws you removed in step 6.
9. Replace the side shelf.
10. Install burner knobs.
