Ignitor Replacement - Flatrock 2-Zone

Steps to replace an ignitor on the 2 Zone Flat Top grill.

What is an Ignitor on a Flat Top Grill?

The ignitor is the component of a flat top grill that creates sparks to ignite the propane coming from the grill's burner.

Applicable SKU:

• FTK0099

Tools Needed:

• Phillips screwdriver
• Pliers

Replacement Steps for Ignitor

1. Turn burner knobs to OFF, close the propane tank, and disconnect the regulator.
2. Open the lid and remove the cooktop.
3. Disconnect the burner that the ignitor being replaced is attached to by removing the 2 screws.

4. Lift up the burner enough to access the ignitor wire connection.

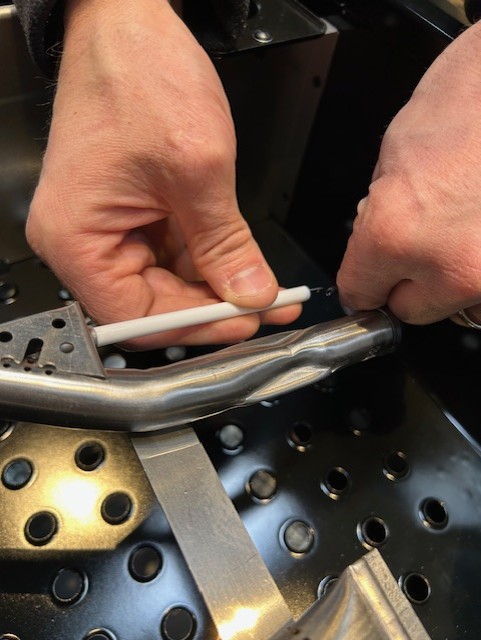

5. Remove the wire by sliding it off the back of the ignitor.
   • You can use pliers to grip the connector, so you don't have to pull on the wire and risk damaging it.

6. After the wire is disconnected, remove the burner from the grill.

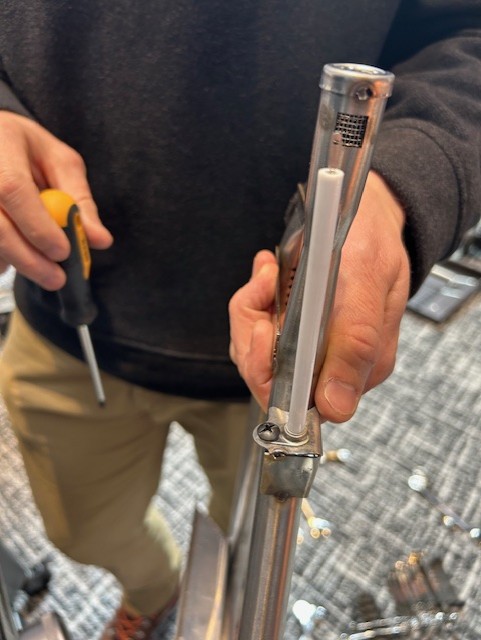

7. Unscrew the screw holding the ignitor to the burner and pull the ignitor away from the burner.


8. Replace with the new ignitor and replace the screw.
9. Reconnect the ignitor wire to the new ignitor.
10. Place the burner back inside the grill and replace the x2 screws to hold it in.
11. Replace cooktop and close the lid.

*Note: If the ignitor wire needs to be replaced, you must remove the manifold & gas valves. See Replacing the Manifold & Gas Valves for removal instructions.
