Lid Components
Note: Not all grills have all these components on them. Please refer to your owner's manual for more information on a specific grill.
| Part | Notes |
| Lid |
|

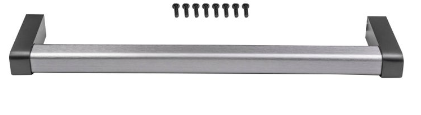

| Handle |
|

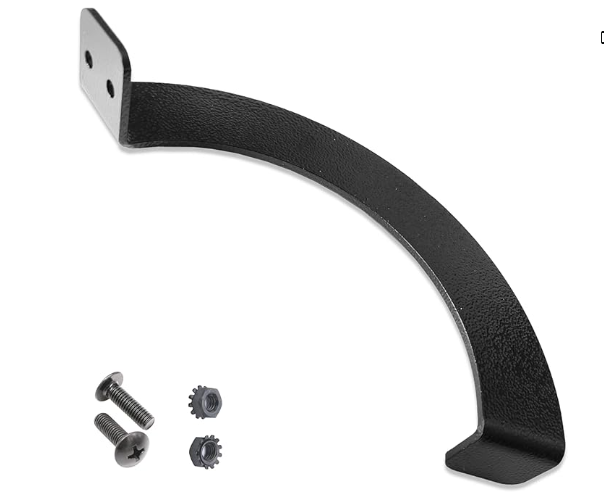

| Arc |
Used to prevent the grill lid from opening too far. |
| Shoulder Bolt |
Used to attach the lid to the grill barrel. |

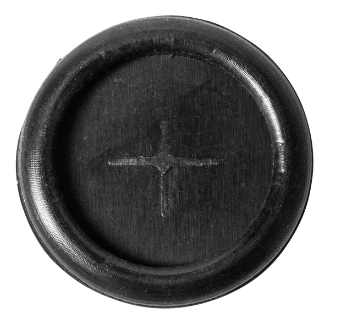

| Rubber Stop |
Used on select grill models to prevent metal on metal contact. |
|

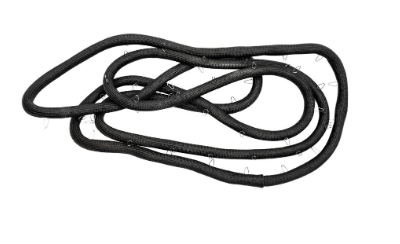

Lid Gasket |
A flexible elastic strip attached to the grill lid's border to create a seal for the grill when it's closed. |
| Hinge |
Used to attach the lid to the grill barrel. |
| Silicone Probe Grommet |
Wired meat probe runs through this into the cooking chamber. |
| Lid Sensor and Light |
Senses if the lid is open and turns on the light. |

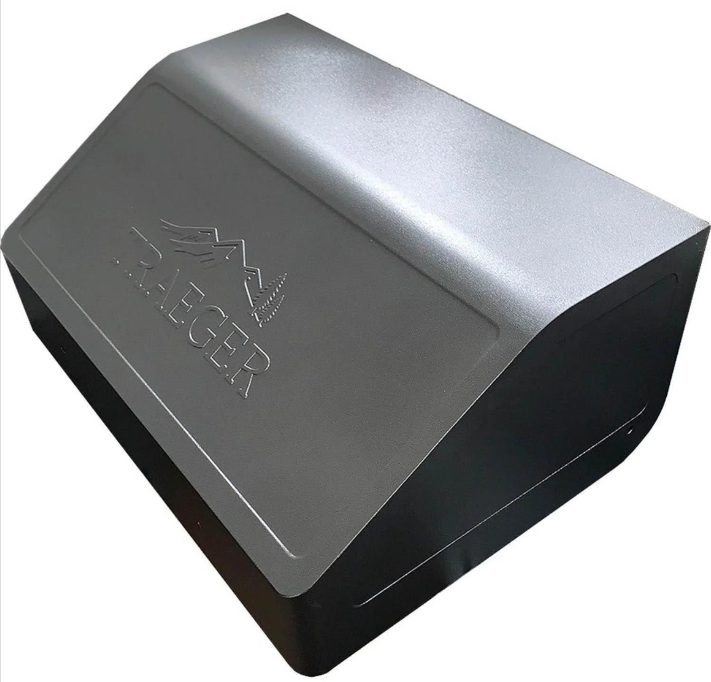

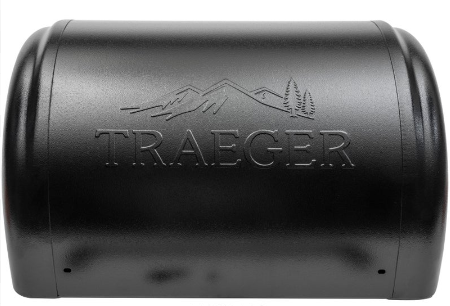

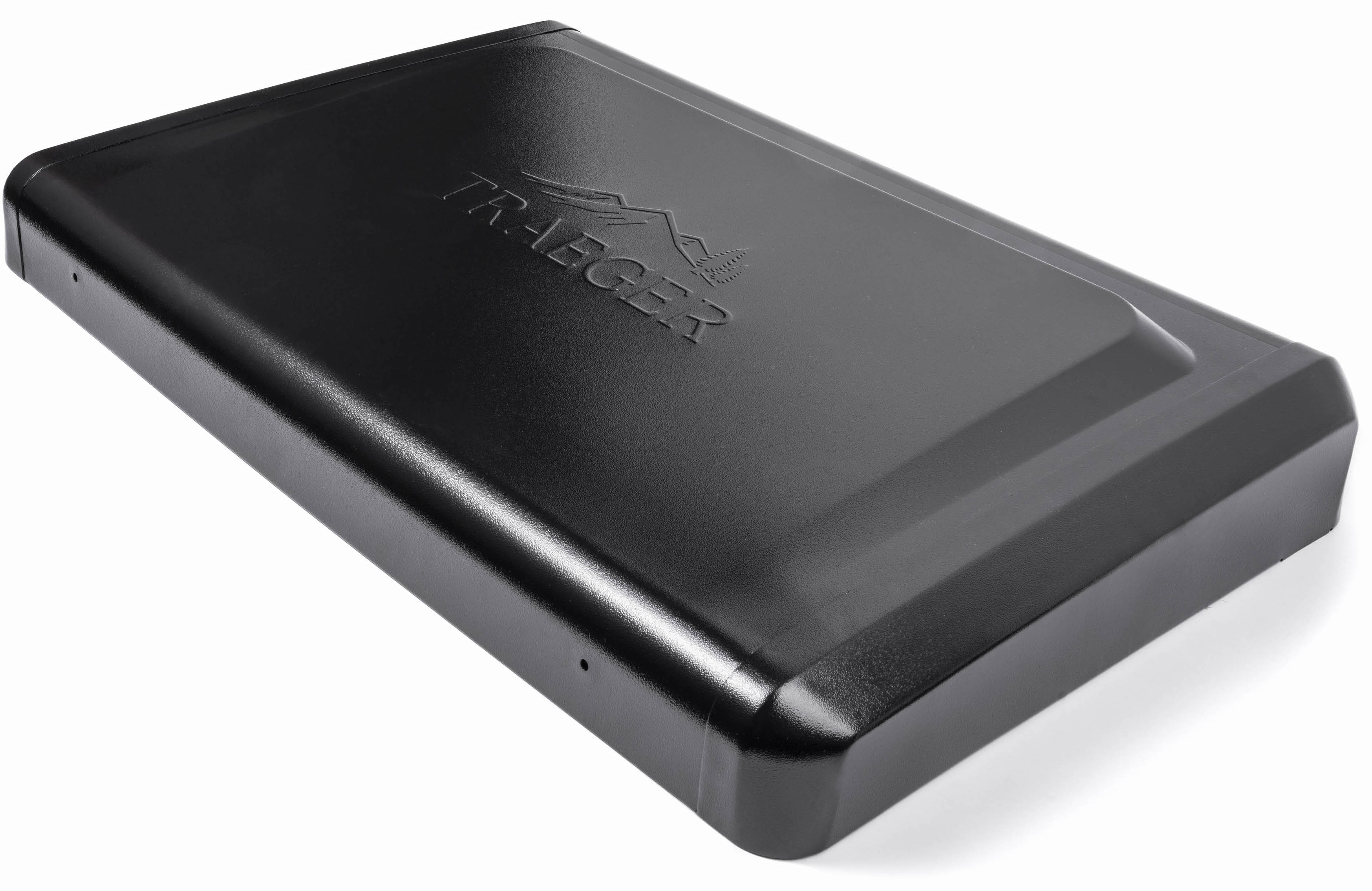

Lid Styles
Replacement Instructions
- Non-WiFIRE Grills: Lid Replacement- AC & D2 Grills
- WiFIRE Grills: Lid Replacement- AC & D2 Grills
- Touchscreen Grills: Lid Replacement-Touchscreen Grills
- Woodridge Series Grills: Replacing Woodridge Series Lids
- Westwood Series Grills: Replacing Westwood Series Lids
- Flat Top Grills:
Lid-Related Issues/Errors
| Error | Applicable Grills |
|
Lid Open Alert Non-critical alert letting the customer know the grill lid is open. |
Touchscreen grills |
|
Lid Sensor Disconnected Grill cannot connect to the lid sensor. |
Touchscreen grills |
|
Lid Sensor Error Lid sensor reports the lid is open, but controller does not see a drop in temp. |
Touchscreen grills |
|
Hot Lid Handle Handles can become overly hot during a cook. |
Mesa 22, Pro 575, Pro 780, Redland |
|
Lid Gap Lid does not sit flush on the grill barrel. |
Non-WiFIRE, WiFIRE, Touchscreen, Flatrock |
|
Lid Light not Turning On Light does not turn on when the grill lid is opened. |
Touchscreen grills |
|
Lid Burp Audible pop that occurs when there is built up pressure inside a grill. |
Non-WiFIRE, WiFIRE, Touchscreen |
