Grill Insulation

What's in This Article?

All of Traeger's grills have a powder coated interior, however some grills have added insulation. Below is a chart of the grills that have added insulation.

Grill Insulation Comparison Chart

Grill Model Partial Insulation Full Insulation Sidewall Insulation Lower Heat Shield Middle Heat Shield Lid Insulation Full Stainless-Steel Insulation
Ironwood 650 check mark.png   check mark.png check mark.png check mark.png
Ironwood 885 check mark.png   check mark.png check mark.png check mark.png
Ironwood   check mark.png check mark.png check mark.png   check mark.png check mark.png
Ironwood XL   check mark.png check mark.png check mark.png   check mark.png check mark.png
Pro 22 check mark.png     check mark.png
Pro 34 check mark.png     check mark.png
Pro 575 check mark.png     check mark.png
Pro 780 check mark.png     check mark.png
Redland check mark.png   check mark.png check mark.png
Redland XL check mark.png   check mark.png check mark.png
Silverton check mark.png     check mark.png
Silverton 620 check mark.png     check mark.png
Silverton 810 check mark.png     check mark.png
Silverton XL check mark.png   check mark.png check mark.png
Timberline 850 WiFIRE   check mark.png check mark.png check mark.png   check mark.png check mark.png
Timberline 1300 WiFIRE   check mark.png check mark.png check mark.png   check mark.png check mark.png
Timberline   check mark.png check mark.png check mark.png   check mark.png check mark.png
Timberline XL   check mark.png check mark.png check mark.png   check mark.png check mark.png
Woodridge check mark.png     check mark.png
Woodridge Pro check mark.png     check mark.png
Woodridge Elite check mark.png     check mark.png   check mark.png



Examples of Grill Insulation

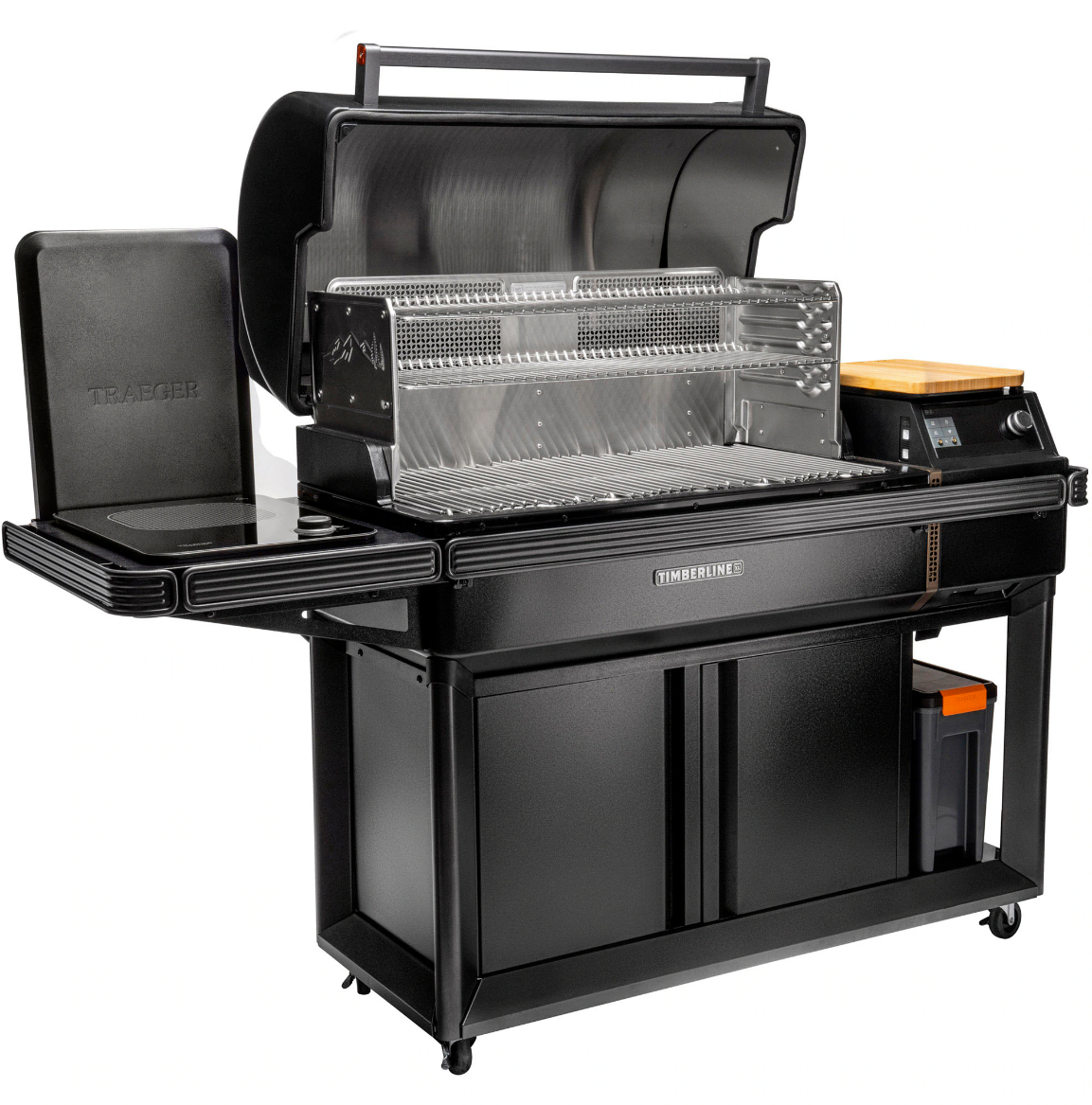

Full Stainless-Steel Insulation

The grill's lid, sidewall, and bottom is fully insulated.

Timberline XL Insulation.png

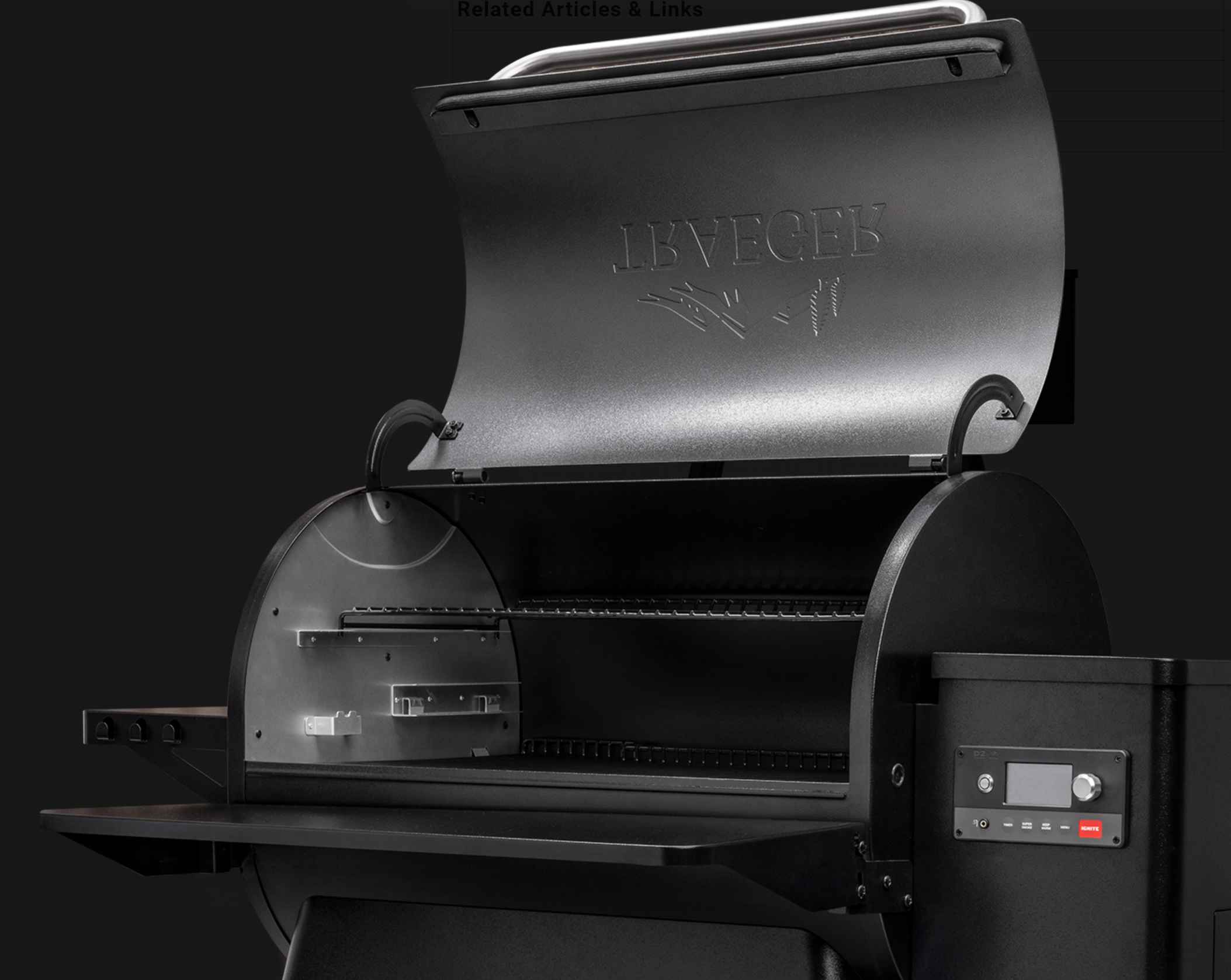

Sidewall Insulation

Double-wall stainless-steel added to the inside walls of the grill barrel.



Sidewall Insulation.png

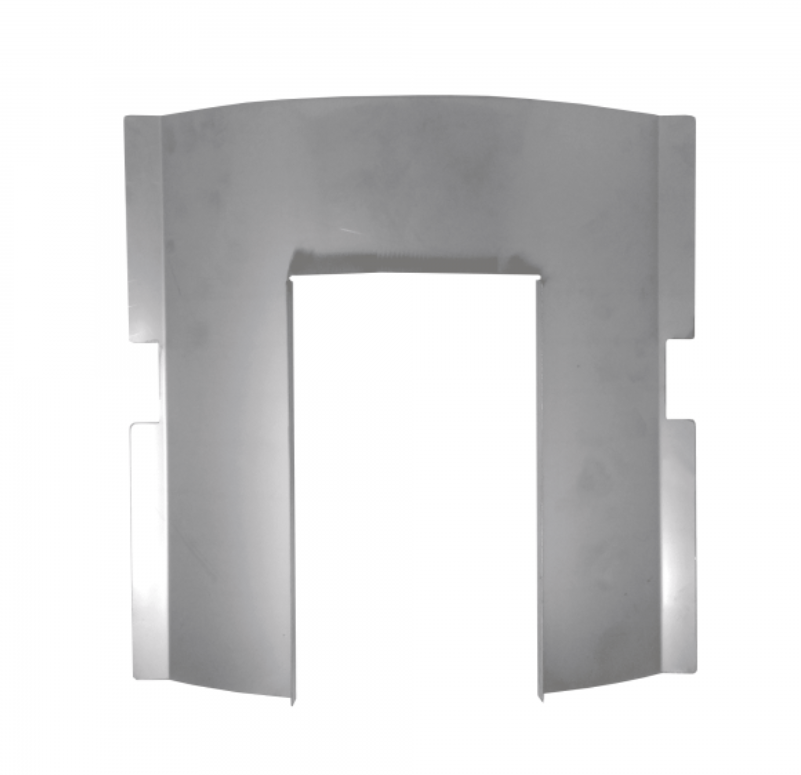

Lower Heat Shield

Stainless-steel plate in the bottom of the grill barrel.

Lower Heat Shield.png

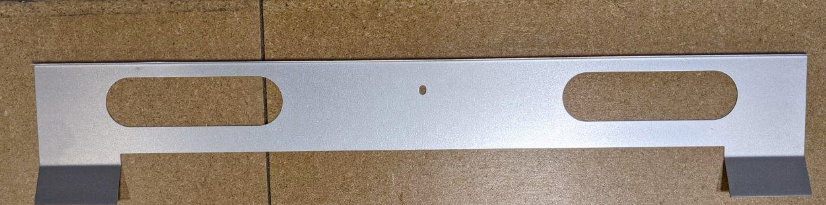

Middle Heat Shield

Stainless-steel plate in the middle of the grill.

Middle Heat Shield KIT0587.png

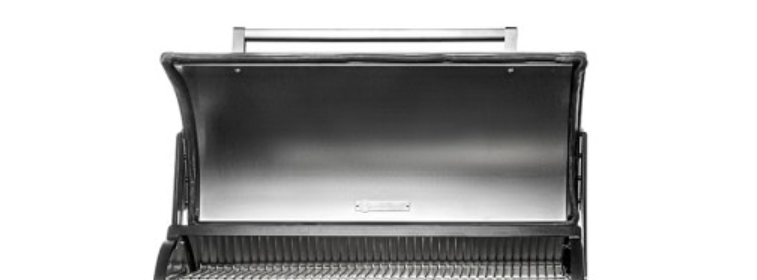

Lid Insulation

Stainless-steel added to the inside of the grill's lid.

Lid Insulation.png
