How to Replace the Hopper-Burner Assembly for Non-Connected Grills

Applies to:

• Non-Connected Grills

Part #:	Description:
KIT0759	Fremont
KIT0763	Mesa 20
KIT0575	Mesa 22
KIT0148	Pro 22
KIT0143	Pro 34
KIT0036	Renegade
KIT0870	Tailgater 20 (AC)
KIT0187	Tailgater 20 (Digital Elite)

HBAs on Portable Grills

Hopper-Burner Assemblies are not available for the PTG, Scout, Trailhead or Ranger. These require a full grill replacement.

What is a Hopper-Burner Assembly (HBA)?

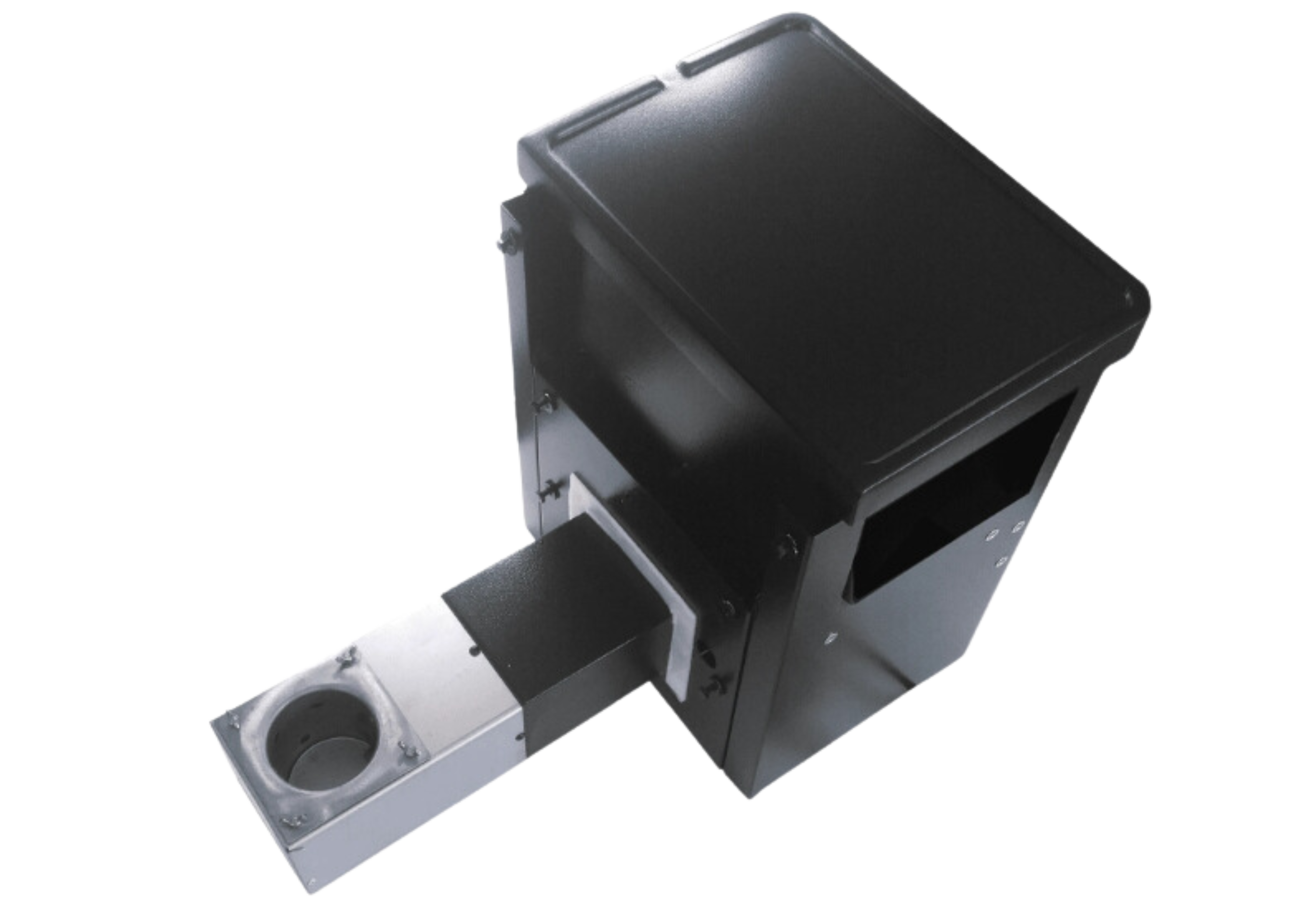

A hopper-burner assembly (HBA), is a combination your grill's hopper (the black box on the side of your grill that holds your pellets) and all the major components of your grill: the controller, auger, auger motor, hot rod, and firepot.

Removing your grill's HBA is sometimes necessary in order to access certain internal components, resolve mechanical issues, and replace some parts.

To learn more about this part, see Hopper Burner Assemblies & Hopper Assemblies.

Tools Needed

• Small Flathead Screwdriver
• Phillips Screwdriver

Estimated Time to Complete

• 15 - 20 minutes

HBA Replacement Steps for Non-Connected Grills

Remove HBA

1. With the grill turned off and unplugged, open the grill lid.
2. Remove all internal items, such as grill grates, heat baffles, and drain pans.
3. Remove the controller from the front of the hopper.
4. With the controller removed, take a small flathead screwdriver and disconnect the RTD probe from the controller.
5. With the RTD probe disconnected, go inside the grill body and remove the RTD screws, slowly pulling the RTD out of the grill until it is completely removed.
6. With the RTD removed, find the 4 screws on the inside of the grill (some models have 6 screws), located on the hopper side of the grill, and remove them.
7. With the 4 screws removed, the hopper is now loose. Remove the 4 wing nuts holding the firepot in place.
8. With the wing nuts removed, the hopper burner should slide out.

Install New HBA

1. On the new hopper burner, remove the firepot wing nuts.
2. Install the new RTD into the grill body and feed the wire through the hole in the grill body.
3. Remove the controller from the new hopper burner and feed the RTD wires into it.
4. Connect the RTD wires to the controller on the new HBA and then reinstall the controller onto the new HBA.
5. With the RTD connected to the new HBA and the wing nuts removed from the new HBA, slide the new HBA into the grill body.
6. Reinstall the 4 screws holding the HBA to the grill.
7. Reinstall the 4 wing nut screws into the firepot.
8. Reinsert the heat baffle, drain pan, and grill grate.
