Step-by-step instructions for how to replace the auger on your Non-Connected Traeger pellet grill. Includes part numbers, required tools, and estimated completion time.
Applies to:
Auger Replacement Steps on a Non-Connected Grill
Use for: KIT0022 | KIT0023 | KIT0053
Tools Needed
- Phillips Screwdriver
- 7/64 Allen Wrench or 5-16" Socket Wrench
- Pliers
Estimated Time to Complete
- 15 minutes
Replacement Steps
- On the access panel under the hopper, locate the 4 screws that hold it in place and remove them.
- Remove the 2 screws holding in the controller.
- Once removed, rotate the controller to push it through where it was housed.
- Unless already removed, clip the zip ties holding all the wires together.
- Locate the 4 screws holding the hopper assembly on the grill and remove them (2 on either side).
- Carefully remove the hopper shroud.
- Using a 7/64 Allen wrench & pliers, or a 5-16" socket wrench, remove the shear pin, freeing the auger from the Auger motor, and remove the motor.
- Remove the 1/4" bushing screw (the screw holding the auger to the grill frame), and remove the auger.
- Insert the new auger into the auger tube and screw the bushing screw back into place.
- Connect the auger motor and align the holes for the shear pin. Insert the shear pin back into place and attach screws securely.
- Put the hopper shroud back in place.
Auger Replacement Steps on a Portable Grill
Use for: KIT0226 | KIT0369
Tools Needed
- Phillips Screwdriver
- 7/64 Allen Wrench or 5-16" Socket Wrench
- Pliers
Estimated Time to Complete
- 15 minutes

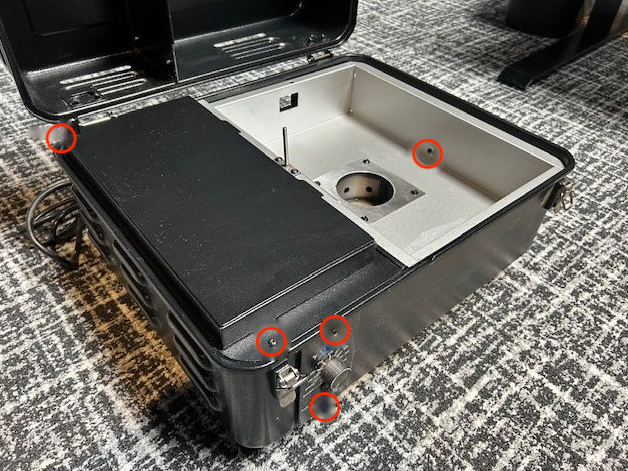

- Open the grill and remove the 5 screws (1 inside grill, 2 on opposite sides of the hopper, 2 on the controller).
- Once removed, rotate the controller to push it through the hopper.

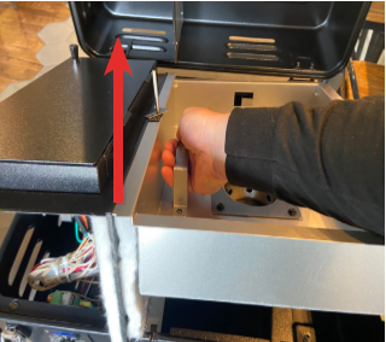

- Grab the handle inside the barrel and lift up.
- Locate the 4 screws holding the hopper assembly on the grill and remove them (2 on either side).
- Carefully remove the hopper shroud.
- Cut the zip ties

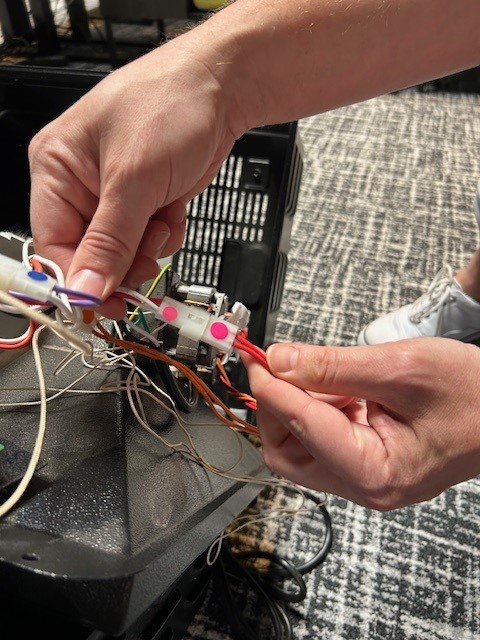

- Undo the Molex connector for the red wires.
- Remove the screw holding the 2 grounding wires (1 green, 1 green and yellow) in place and unhook grounding wires .

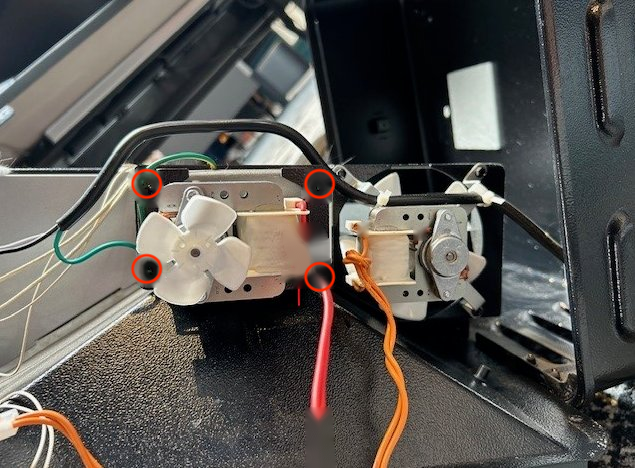

- Remove the 4 screws holding the auger motor in place.

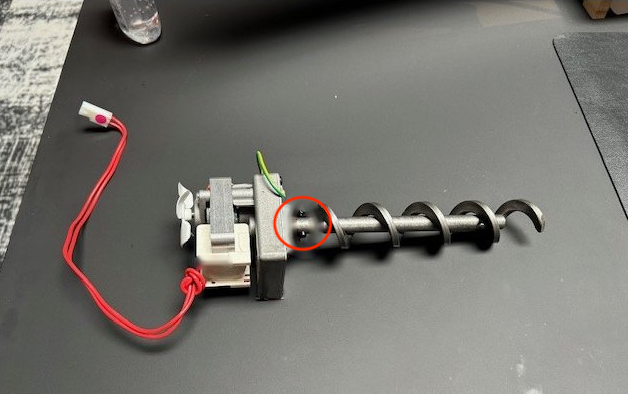

- Pull out the motor and auger, and locate the auger pin.
- Using small pliers, remove the auger pin and slide the auger out.
- Put the new auger in place and replace the auger pin.
- Follow the steps in reverse to put grill back together.
Still need help?
If you need help replacing your part, or if you run into additional concerns after replacement, contact Traeger Support. We're ready to help 365 days a year.
