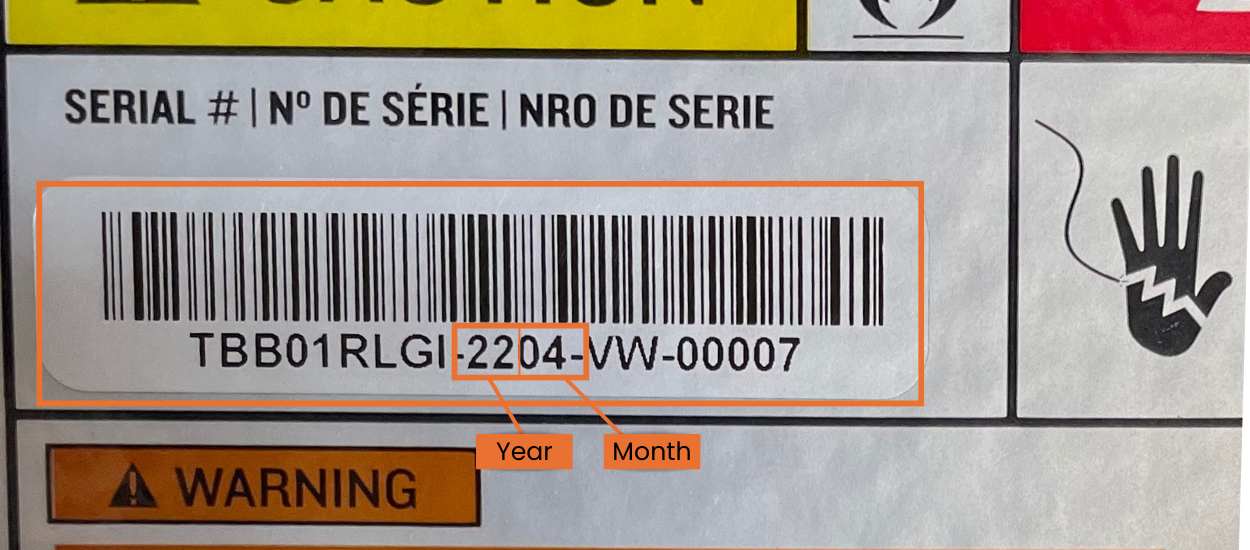

Auxiliary Fan Replacements - New Timberlines & Ironwoods

What's in This Article?

How to replace a hopper/auxiliary fan, which is located inside your hopper and keeps the electronic components cool, on your Timberline grill.


Applicable Part Numbers

KIT0621



What Is an Auxiliary Fan?

The auxiliary fan, sometimes called the hopper fan or the hopper aux fan, is a small fan located inside your grill's hopper next to the motherboard. The purpose of this fan is to prevent the electronic components within the grill from overheating -- very similar to the fan in your laptop.

What's the difference between this fan and the induction fan?

New Timberline and Ironwood grills have two fans: the induction fan and the auxiliary fan.

The auxiliary fan keeps the electronic components from overheating; whereas, the induction fan promotes air circulation, creating the convection-style cooking that we know and love in Traeger grills.

If you have questions about replacing the induction fan, see Induction Fan Replacements on Timberline and Ironwoods.



How to Replace an Auxiliary Fan on a New Timberline & Ironwood Grill

IMPORTANT: Before proceeding

To continue you'll need to remove your hopper service panel. To remove this panel for the first time, you'll want to use an impact driver to remove the screws behind the P.A.L rail on your hopper service panel.

  1. If this is your first time removing the hopper service panel and you don't have an impact driver of your own. Contact our customer support team and we'll send you a complimentary manual impact driver.
    • If you already have a manual impact driver, proceed to removing the hopper service panel.
    • If you have already removed the service panel screws, you can disregard the impact driver and use a regular Phillips screwdriver.
  2. Once you've removed the screws using the impact driver, continue with the next steps outlined here in this article.


Once the hopper service panel is removed, continue:

  1. Turn off and unplug the grill.
  2. Remove the hopper service panel by removing the 6 screws located at the top and bottom of the panel and underneath the P.A.L rail.
  3. Find the fan housing cover near the front bottom of the grill, just to the left of the orange auger motor.
  4. Loosen the screws on the housing.
  5. Follow the wires from the fan housing to the wire harness connecter. Disconnect the two sets of wires.
  6. Remove the screws from the fan cover housing. You may need to use needle-nose pliers on the nuts on the bottom of the housing to be able to remove the screws.
  7. Remove the fan housing.
  8. Replace with the new fan housing.
  9. Replace the screws into the fan housing and tighten them.
  10. Re-connect the fan wire harness.
  11. Replace the hopper service panel and screw it into place.
