Auger & Auger Motor Replacement Instructions for Touchscreen WiFIRE Grills

What's in This Article?

Find out how to replace an auger and an auger motor on the new Timberline and Ironwood grills.

Related Articles

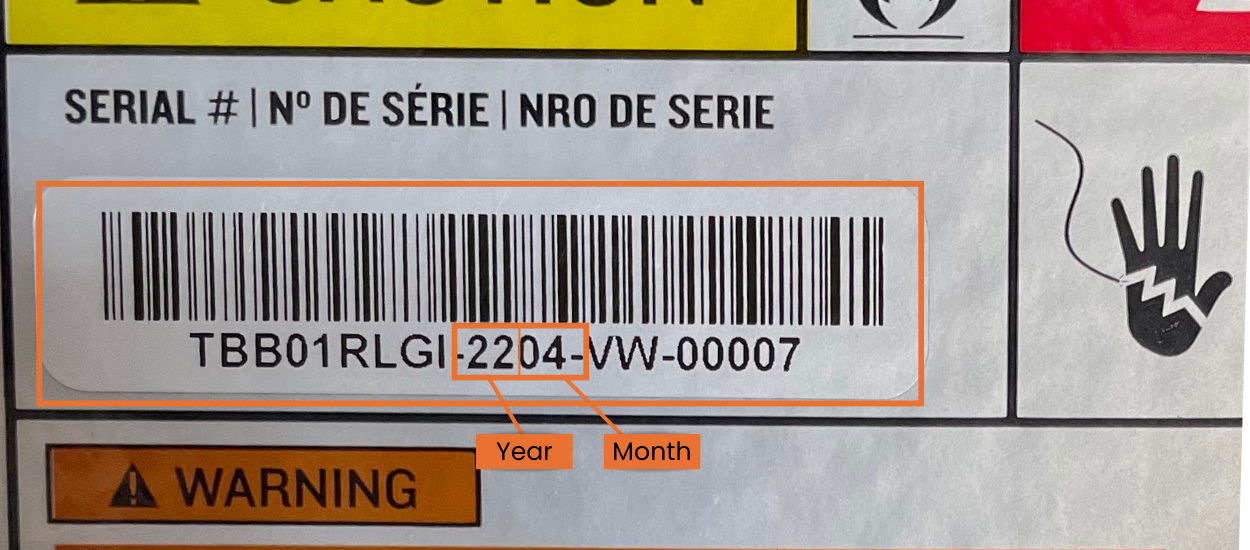

Applicable SKUs

The instructions outlined in this article apply to Timberline and Ironwood models with a touchscreen controller, which use the following item numbers:

  • Auger Motor
    • KIT0689
  • Auger
    • KIT0596
    • KIT0599

Replacement Instructions

IMPORTANT: Before proceeding

To continue you'll need to remove your hopper service panel. To remove this panel for the first time, you'll want to use an impact driver to remove the screws behind the P.A.L rail on your hopper service panel.

  1. If this is your first time removing the hopper service panel and you don't have an impact driver of your own. Contact our customer support team and we'll send you a complimentary manual impact driver.
    • If you already have a manual impact driver, proceed to removing the hopper service panel.
    • If you have already removed the service panel screws, you can disregard the impact driver and use a regular Phillips screwdriver.
  2. Once you've removed the screws using the impact driver, continue with the next steps outlined here in this article.


Replacing an Auger on New Timberlines & Ironwoods

  1. Turn off and unplug the grill.
  2. Remove the hopper service panel (right panel), using a manual impact driver to unscrew the four screws holding the panel to the hopper.
  3. Find the auger motor and disconnect the 4-wire molex connector from the motor.
  4. Remove the four Phillips-head screws holding the motor in place.
  5. Pull the auger motor away from the grill.
  6. Remove the Phillips-head screw to the right of the screw that holds the X in place.
  7. Pull out the X.
  8. Grip the end of the auger and pull it out of the auger tube.
  9. Insert the new auger into the auger tube and push it into place.
  10. Replace the X, making sure it inserts into the bushing's two ridges.
  11. Insert and tighten the Phillips-head screw to secure the X in place.
  12. Align the auger motor with the partial circle at the end of the auger.
  13. Rotate the auger motor to align with four screw holes together.
  14. Insert and tighten the four Phillips-head screws to secure the auger motor.
  15. Reconnect the 4-wire molex connector to the auger motor.
  16. Replace the hopper service panel.

Replacing an Auger Motor on New Timberlines & Ironwoods

  1. Turn off and unplug the grill.
  2. Remove the hopper service panel (right panel), using a manual impact driver to unscrew the four screws holding the panel to the hopper.
  3. Find the auger motor and disconnect the wires from the motor.
  4. Remove the four Phillips-head screws holding the motor in place.
  5. Pull the auger motor away from the grill.
  6. Align the auger motor with the partial circle at the end of the auger.
  7. Rotate the auger motor to align with four screw holes together.
  8. Insert and tighten the four Phillips-head screws to secure the auger motor.
  9. Reconnect the 4-wire molex connector to the auger motor.
  10. Replace the hopper service panel.
