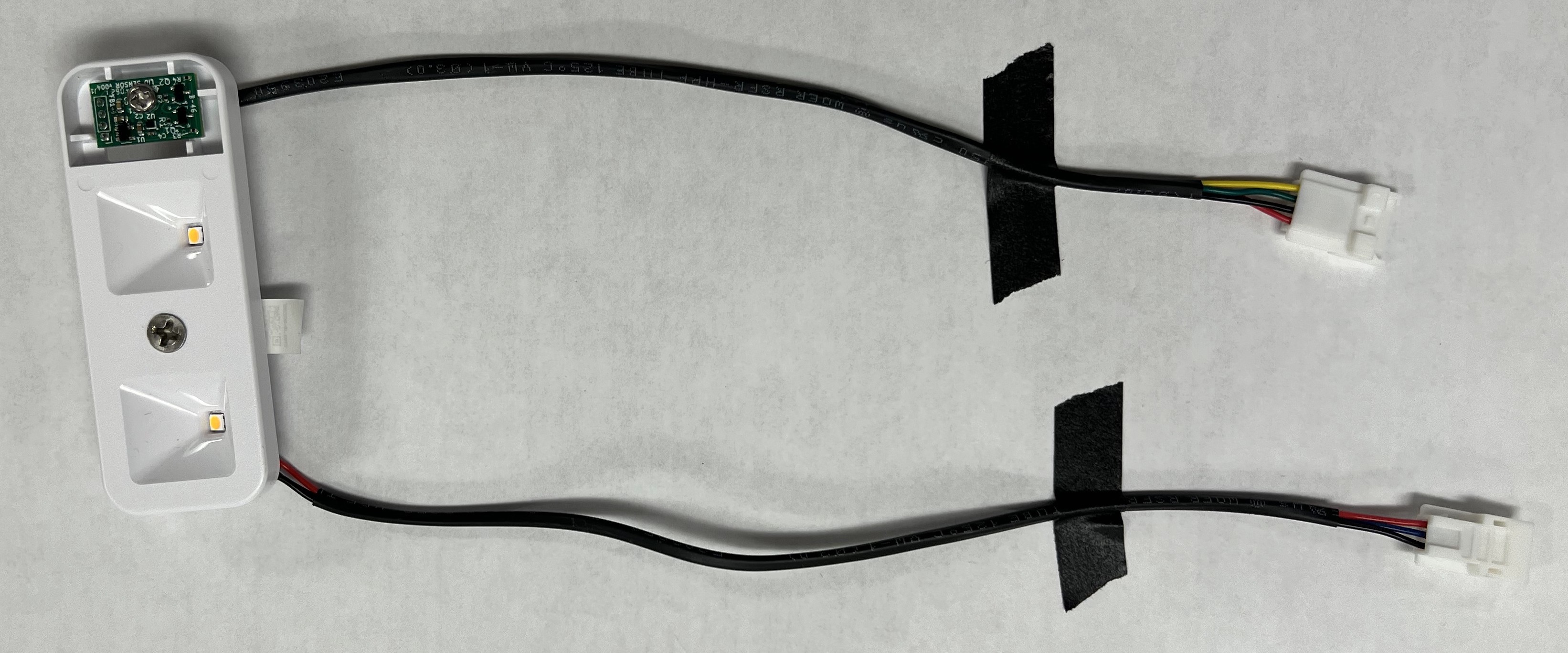

More information on the lid sensor & light wire harness and the connections for replacements.
Related Articles
- Wiring Harnesses - Touchscreen Grills
- Replacing a Smart Combustion Wire Harness on Touchscreen Grills
- Lid Sensor & Light Replacements

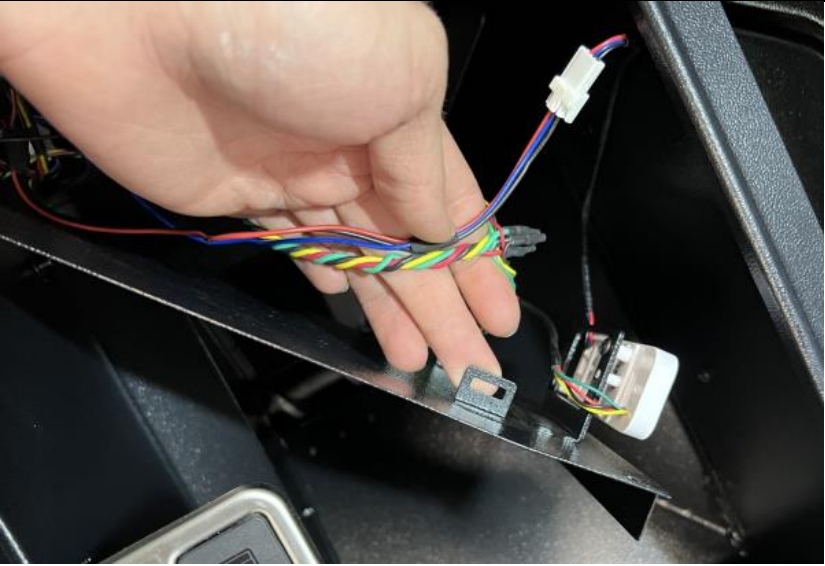

What is a Lid Sensor & Light Wire Harness?
A lid sensor & light wire harness delivers power to the lid sensor & light. Sends communication to the motherboard and display via both the Smart Combustion Harness and the UI Smart Combustion Harness.
The lid sensor & light wire harness does not connect directly to the motherboard.
Applicable SKU
- Hardwired to/included with the Lid Sensor & Light - KIT0633
Connected Parts
- Smart combustion wire harness
- UI (display) smart combustion wire harness
How to Replace a Lid Sensor & Light Wire Harness
Replacing a lid sensor & light wire harness requires replacing the entire lid sensor & light KIT. The harness cannot be replaced on its own.
Tips on Harness Connection Points

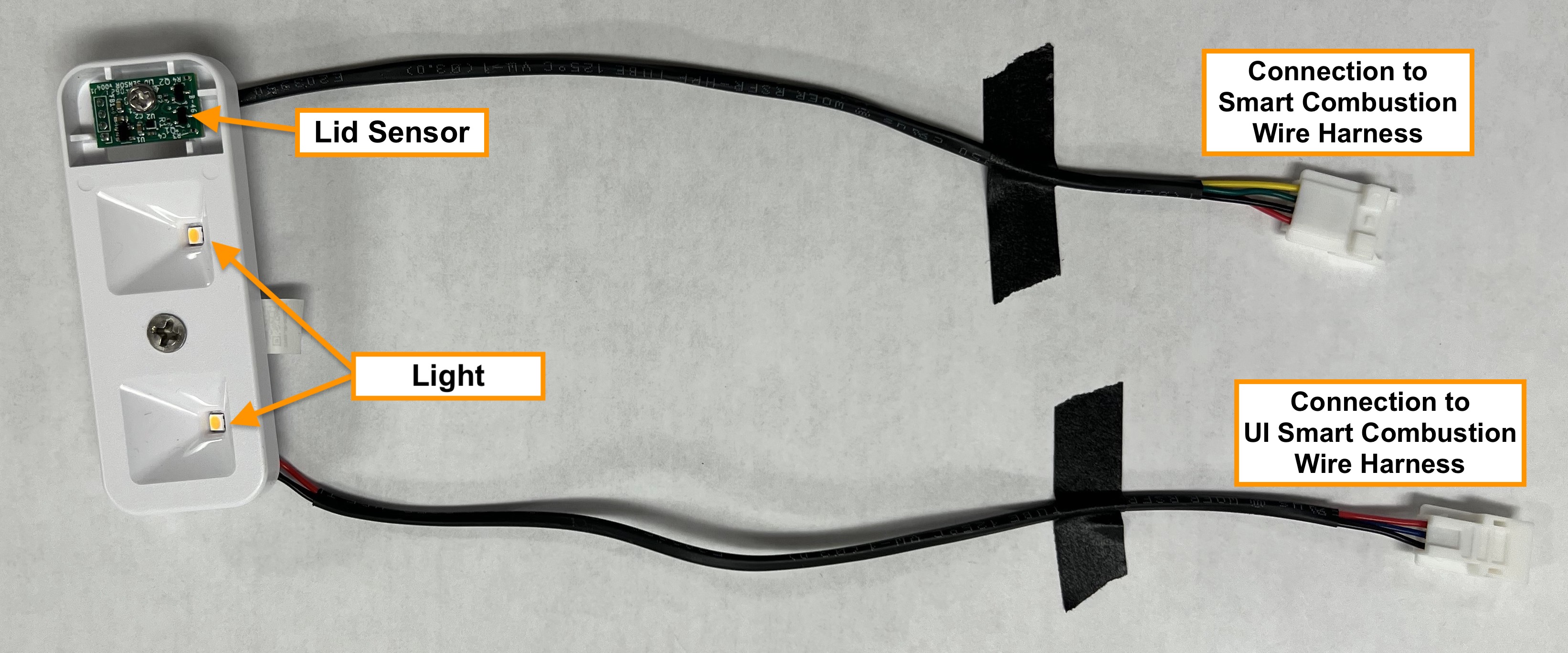

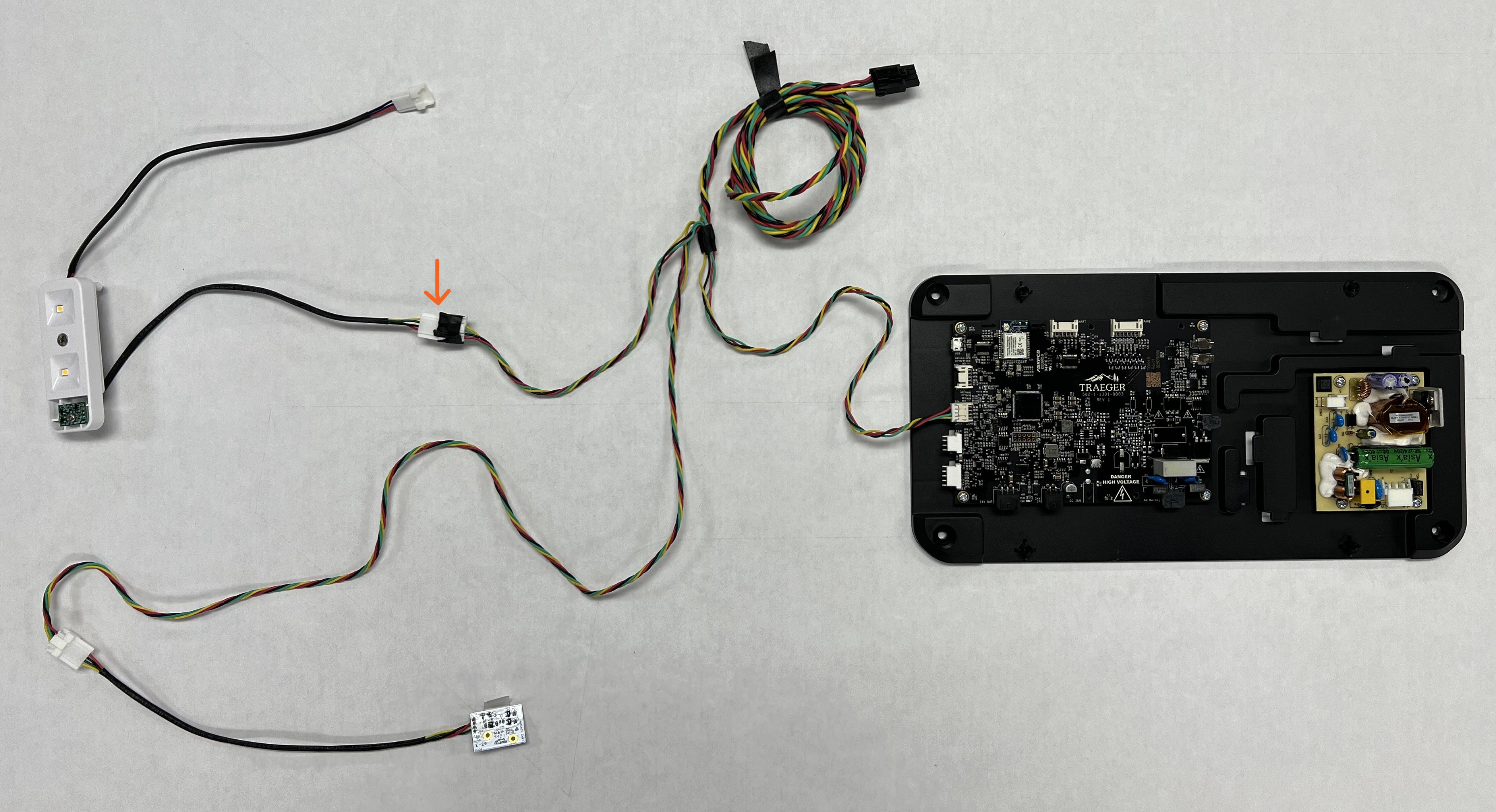

The top wire on the harness connects the lid sensor to the Smart Combustion Wire Harness, and the bottom wire connects the light to the UI Smart Combustion Wire Harness.

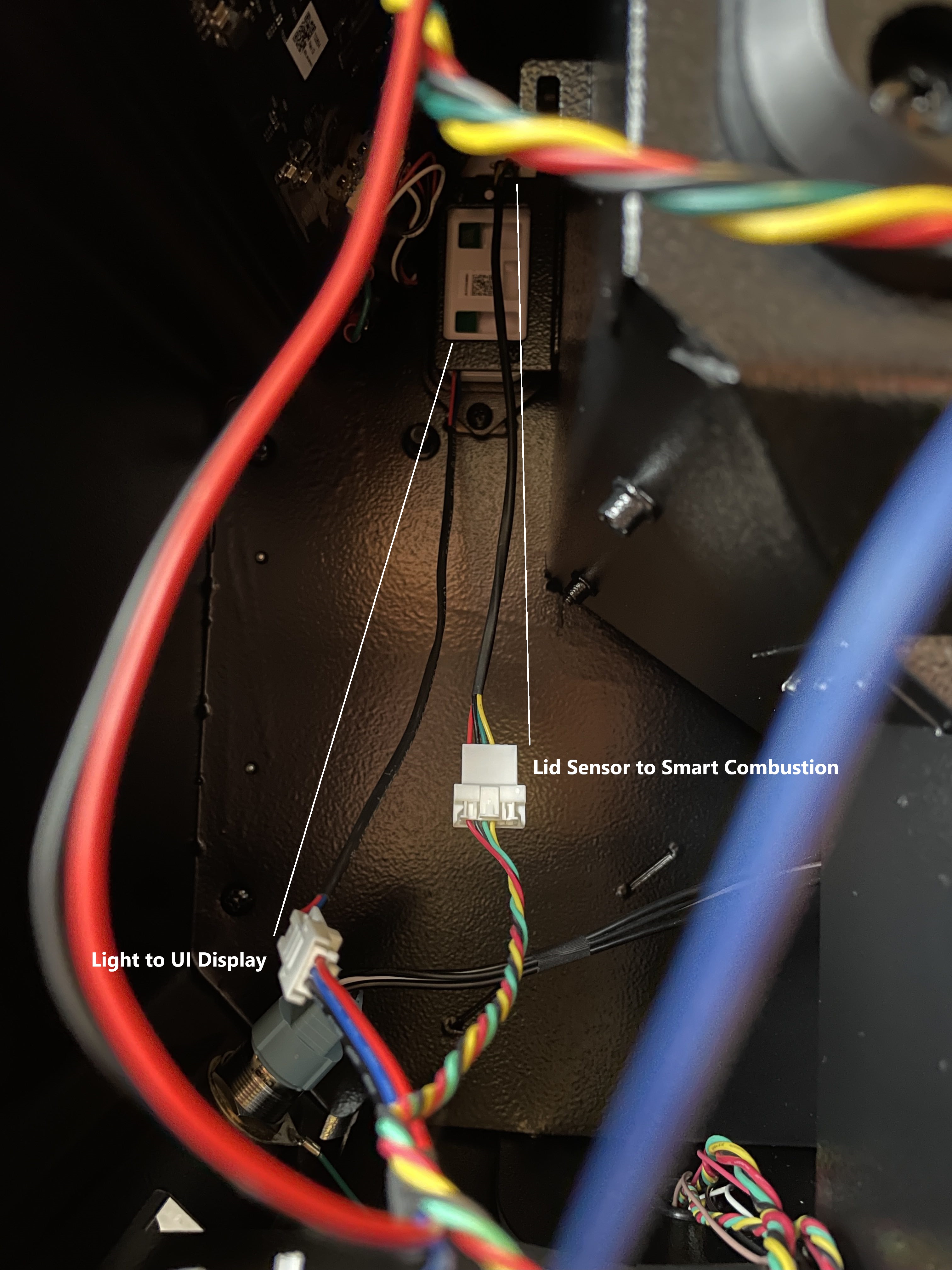

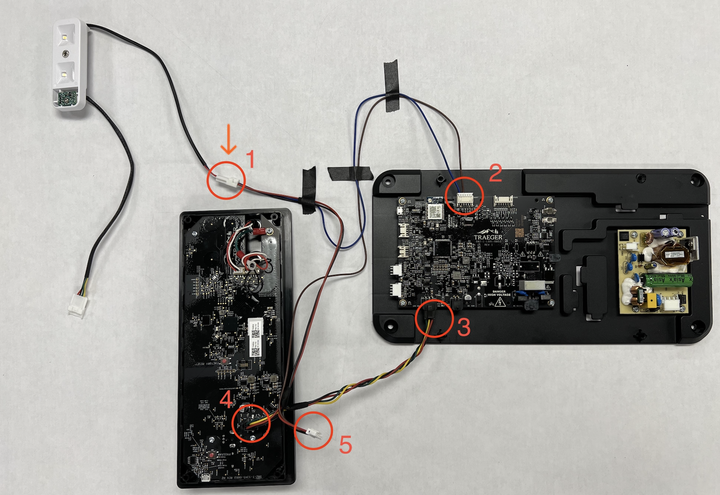

View of Wire Harness Connections
|
Lid Sensor to Smart Combustion |
|
|
Light to UI Display |
