Step-by-step instructions to replace legs on your Traeger Non-WiFIRE grill. Includes part numbers, required tools, and estimated completion time.
Applies to: Non-WiFIRE Grills
Find Your Leg Style
Choose the model closest to your grill for leg replacement steps.

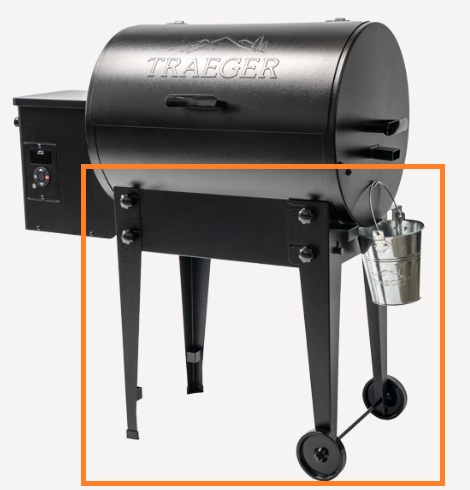

Legs fold under the grill. Used on: Tailgater styles grill. See Folding Sawhorse Leg Style.
Part #: Description: KIT0044 Rear Left KIT0045 Front Left KIT0046 Rear Right KIT0047 Front Right

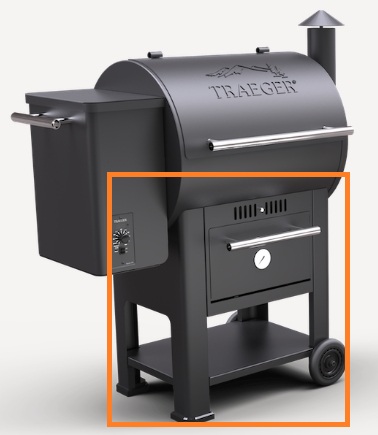

Legs slide into slots with clips/tabs. Used on: Century 22-style grills. See
Cabinet Clip-In Style.
Part #: Description: KIT0551 Hopper Side KIT0552 Chimney Side

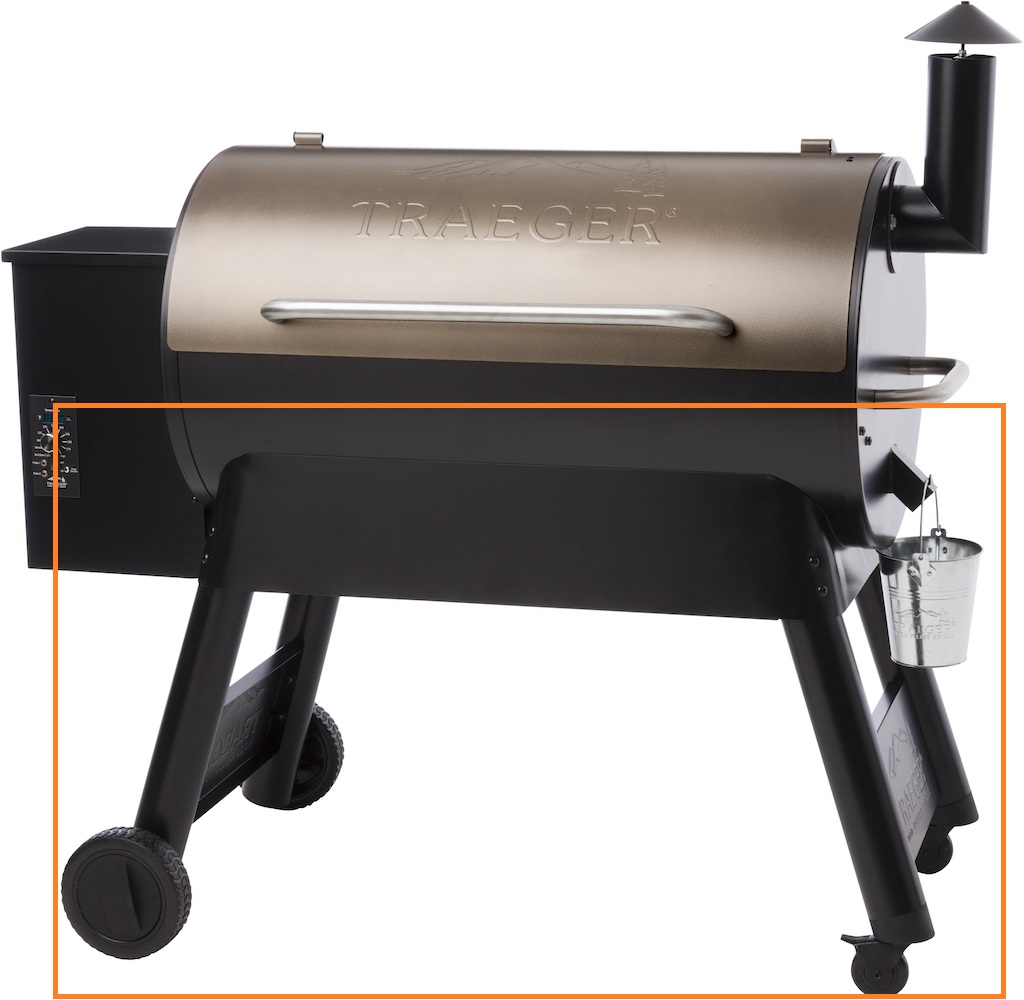

Bolts + nuts + washers (no clips or folding legs). Used on: Pro style grills (Freemont, Mesa 20, Pro 22, Pro 34). See Sawhorse Leg Style.
Part #: Description: KIT0134 Front Left KIT0135 Rear Left KIT0136 Front Right KIT0137 Rear Right KIT0139 Rear Right (Pro 34 Only) KIT0140 Front Right (Pro 34 Only)
Tools Needed (varies by model)
- Phillips Screwdriver
- Wrench
Pro Tip: Have a second person help you safely handle the grill
Estimated Time to Complete
- 20-30 minutes (varies by model)
Replacement Steps
Pro Tip: Need More Detail?
If you need a reference for a specific model, refer to the grill’s original assembly guide. The leg installation section shows exact hardware placement and orientation.
If you need a reference for a specific model, refer to the grill’s original assembly guide. The leg installation section shows exact hardware placement and orientation.
Important: Before You Start
- Make sure the grill is OFF and completely cool
- Remove all internal parts (grill grates, drip tray, and heat baffle)
- Remove the grease bucket
- Place the grill on a flat, stable surface
- Have a second person help you safely handle the grill
- Gather the tools you’ll need (tools may vary by model)
- Keep all screws and hardware unless new ones are included
Folding Sawhorse Style Leg
Used on: Tailgater-style grills
- Unplug the Grill.
- With the help of another person, carefully lay the grill on its back.
- Remove the wheels and axel that holds the right legs together.
- Remove screws that holds the leg to the grill body( including knob screws).
- Pull leg away from grill.
- Attach new leg to the grill body. Start all screws loosely.
- Reinstall wheels and axle.
- Tighten all hardware securely.
Cabinet Clip Style Leg
Used on: Century 22-style grills
- Unplug the Grill.
- With the help of another person, carefully lay the grill on its back.
- Remove the wheels and axel.
- Remove bolts securing leg to grill body.
- Remove bottom shelf.
- Pull leg out from grill body slots.
- Align new leg with grill body slots.
- Push legs fully into place.
- Install screws loosely first.
- Reinstall bottom shelf.
- Reinstall wheels and axle.
- Tighten screws fully.
Bolt-On Steps
Used on: Pro style grills
- Unplug the Grill.
- With the help of another person, carefully lay the grill on its back.
- Remove leg brace, if applicable.
- Remove bolts securing leg to grill body.
- Pull leg away from grill.
- Position new leg on mounting points.
- Install hardware in this order:
- Bolt → washer → leg → washer → spring washer → nut
- Start all fasteners loosely.
- Attach leg brace.
- Tighten all hardware evenly.
After Installation
- Return grill to upright position (2 people required)
- Confirm:
- All fasteners are tight
- Grill is stable and level
- Reinstall any removed parts (shelf, wheels, etc.)
Still need help?
If you need help replacing your part, or if you run into additional concerns after replacement, contact Traeger Support. We're ready to help 365 days a year.
If you need help replacing your part, or if you run into additional concerns after replacement, contact Traeger Support. We're ready to help 365 days a year.
