What to do if your grill produces a "Fan Disconnected", Error 0009 Fan Not Detected, or ER09.

What happens when this error occurs?

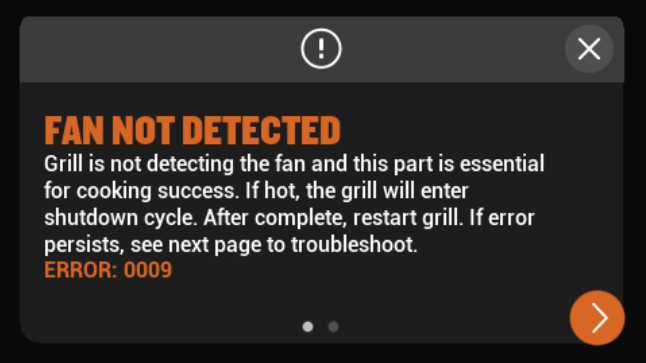

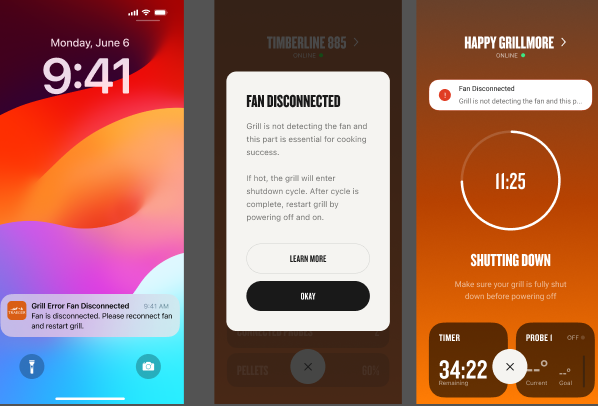

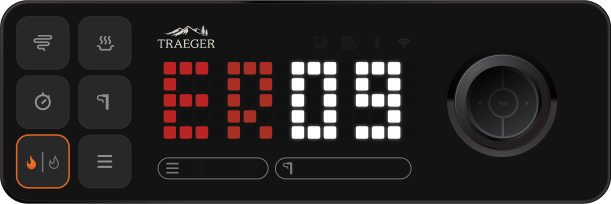

Depending on which grill you have, a Fan Disconnected error may also show on your controller as, Error: 0009 Fan Not Detected, or ER09. If the grill is paired with the Traeger app, it will also trigger a notification from the app. After throwing this error, the grill will begin a shutdown cycle.

What Causes the Error/Notification?

Common causes of a Fan Disconnected error may vary, depending on the type of grill you have.

D2 Grill	Touchscreen Grills	Woodridge Series
Fan wiring has disconnected from the back of the controller Damage to the fan wiring harness Induction fan needs to be replaced	Old firmware or incorrect config version Strong wind blowing directly into the downdraft exhaust Induction fan wire harness disconnected from the motherboard Damaged wires Obstruction in fan blades Failing fan	The grill is not measuring the expected rotation from the induction fan’s speed sensor.

What to Do

Select your grill below for instructions on what to do when you receive a fan disconnected alert.

Safety Considerations: The fan blades are sharp enough to cause harm. Proceed with caution.

Resolving a Fan Disconnected Error on a D2 WiFIRE Grill

Applicable Grills

Steps

Turn off and unplug the grill.
Unscrew the controller and pull it out enough to see the wires connected to the back.

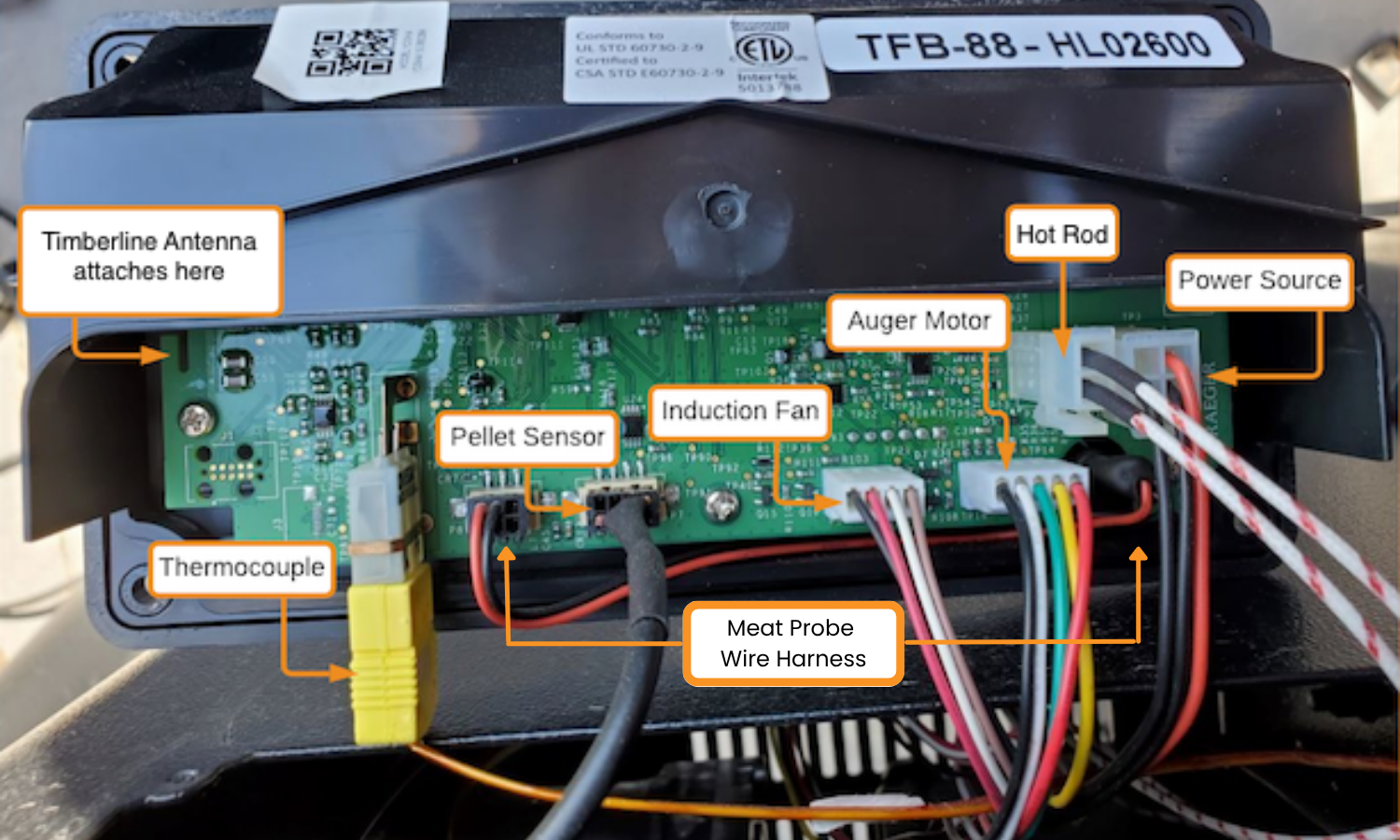

Check if the fan is correctly connected to the controller (connector with the black, red, white, and tan wires).
- See D2 WiFIRE Grill Wiring for additional details on wiring connections on D2 WiFIRE grills.
Disconnect and reconnect to ensure a solid connection, even if the harness appears to be connected.
Plug in and power on the grill and check if the error has cleared.
Remove the bottom or side panel of the hopper so you can view the grill's internal components and locate the induction fan.
Ignite the grill so you can check if the fan starts spinning.
- If the fan is disconnected, the fan will not spin.
Proceed based on your findings:
- Error cleared; fan spinning: Success! Reconnecting the wires to the controller fixed the issue.
- Error continues; fan spinning: Replace the controller.
- Fan doesn't spin: Replace the induction fan.

Resolving Error 0009 Fan Not Detected on a Touchscreen WiFIRE Grill

Applicable Grills

Steps

Check your grill's firmware to make sure it's on the latest version.
Was there strong wind when the error triggered?
This error can trigger when winds stronger than 30 mph are blowing into the downdraft exhaust for longer than 10 minutes.
- If so, the error should clear once restarted. Position the grill so the exhaust is facing toward a wall or at least so the wind is not blowing directly into the downdraft exhaust.
Ensure the grill is cool and finished with its shutdown cycle.
Run a SELF-TEST to ensure there are no disconnects. Follow the steps below:
1. On the controller display, go to MENU > MAINTENANCE & CARE > SELF-TEST. The test should take about 10 seconds to complete.
2. If the fan test fails, proceed to the next step.

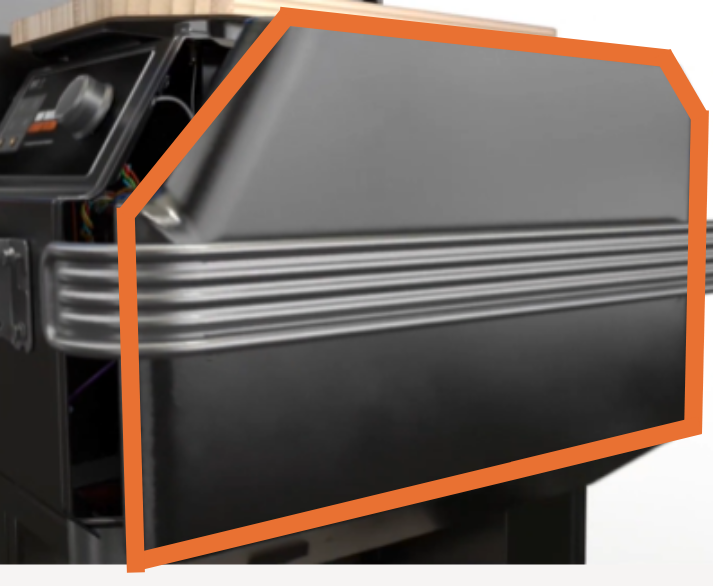

To continue you'll need to remove your hopper service panel. To remove this panel for the first time, you may need to use an impact driver to remove the screws behind the P.A.L rail on your hopper service panel.
Once you've verified current firmware and have the hopper service panel removed:
1. Turn off and unplug your grill.
2. Confirm all connectors are fully connected manually.
3. Remove the smart combustion cover.

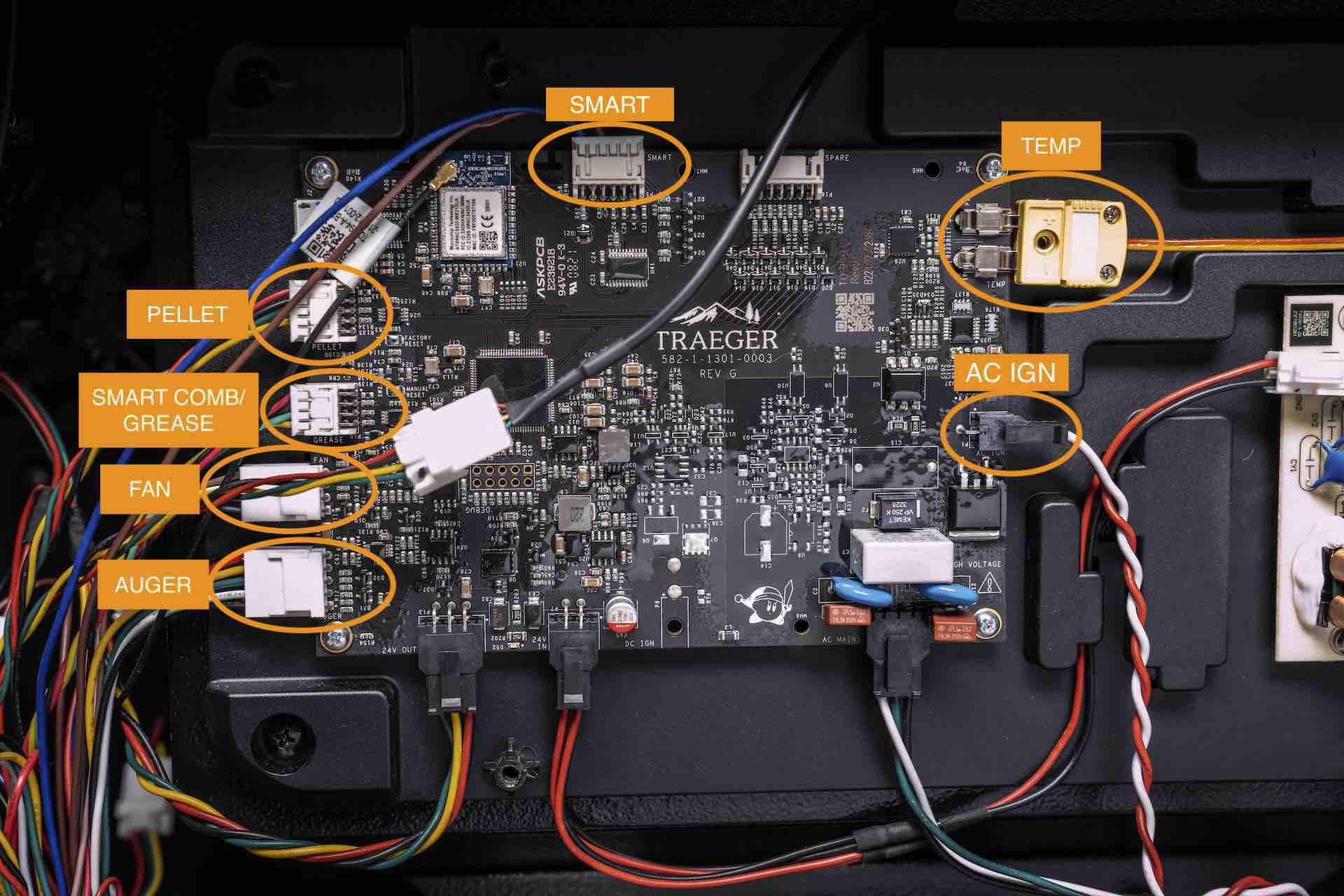

4. Confirm connections are secure on the motherboard.
5. Confirm wiring is not pinched, cut, or damaged inside the hopper.
6. Confirm no obstructions are caught in fan blades.
Rerun a SELF-TEST to ensure connections are solid.

If the fan test fails again, contact Customer Support.

Resolving ER09 on a Woodridge WiFIRE Grill

Applicable Grills

Steps

Shut down the grill and ensure it is completely cooled.

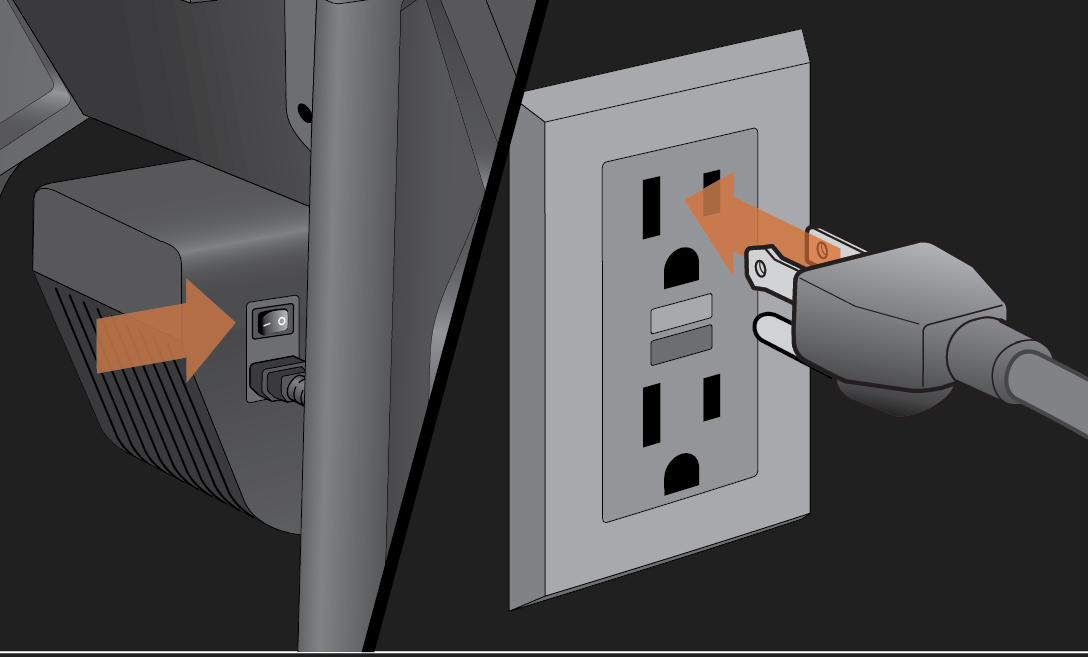

Turn grill OFF and UNPLUG grill from outlet.

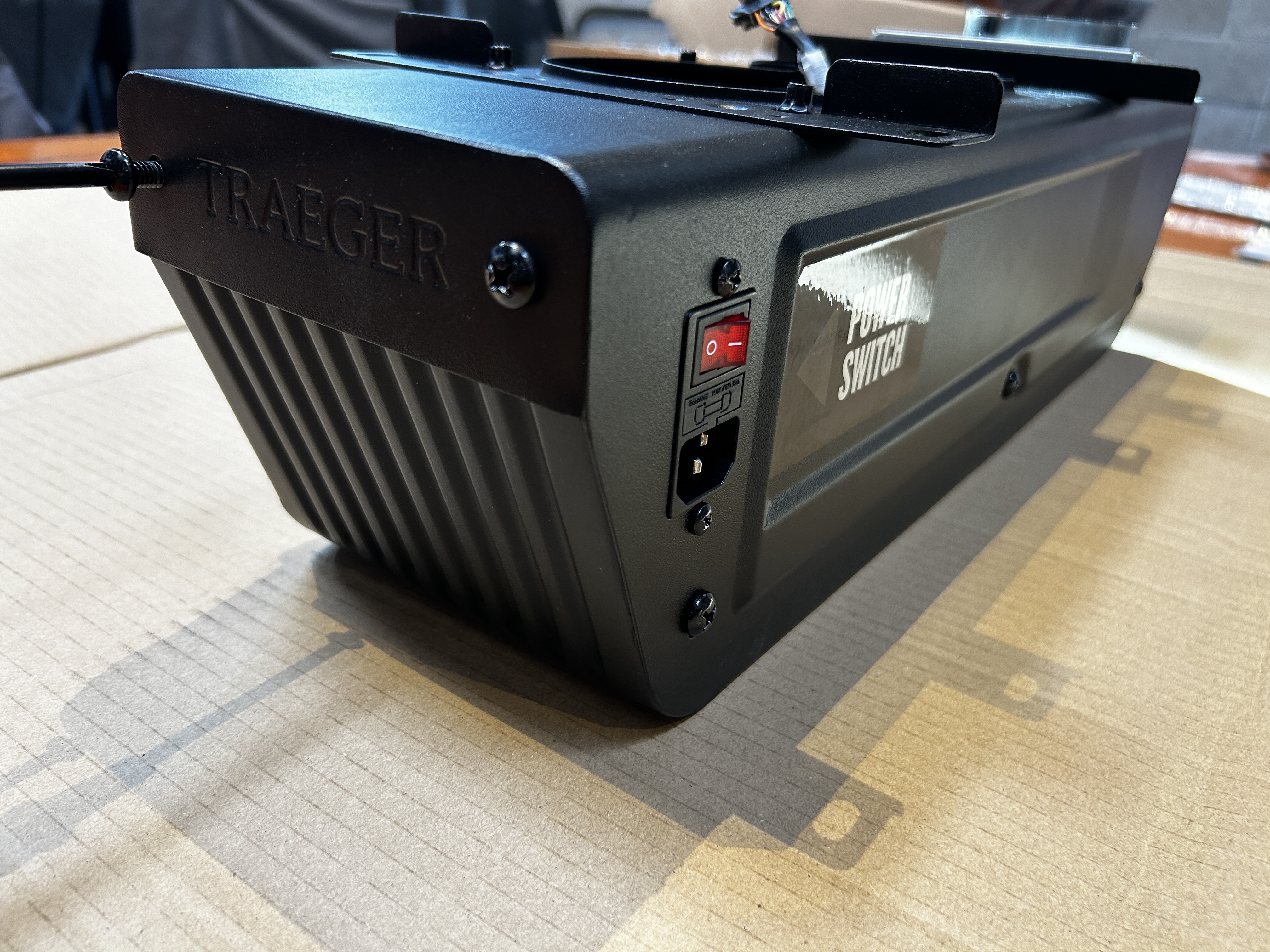

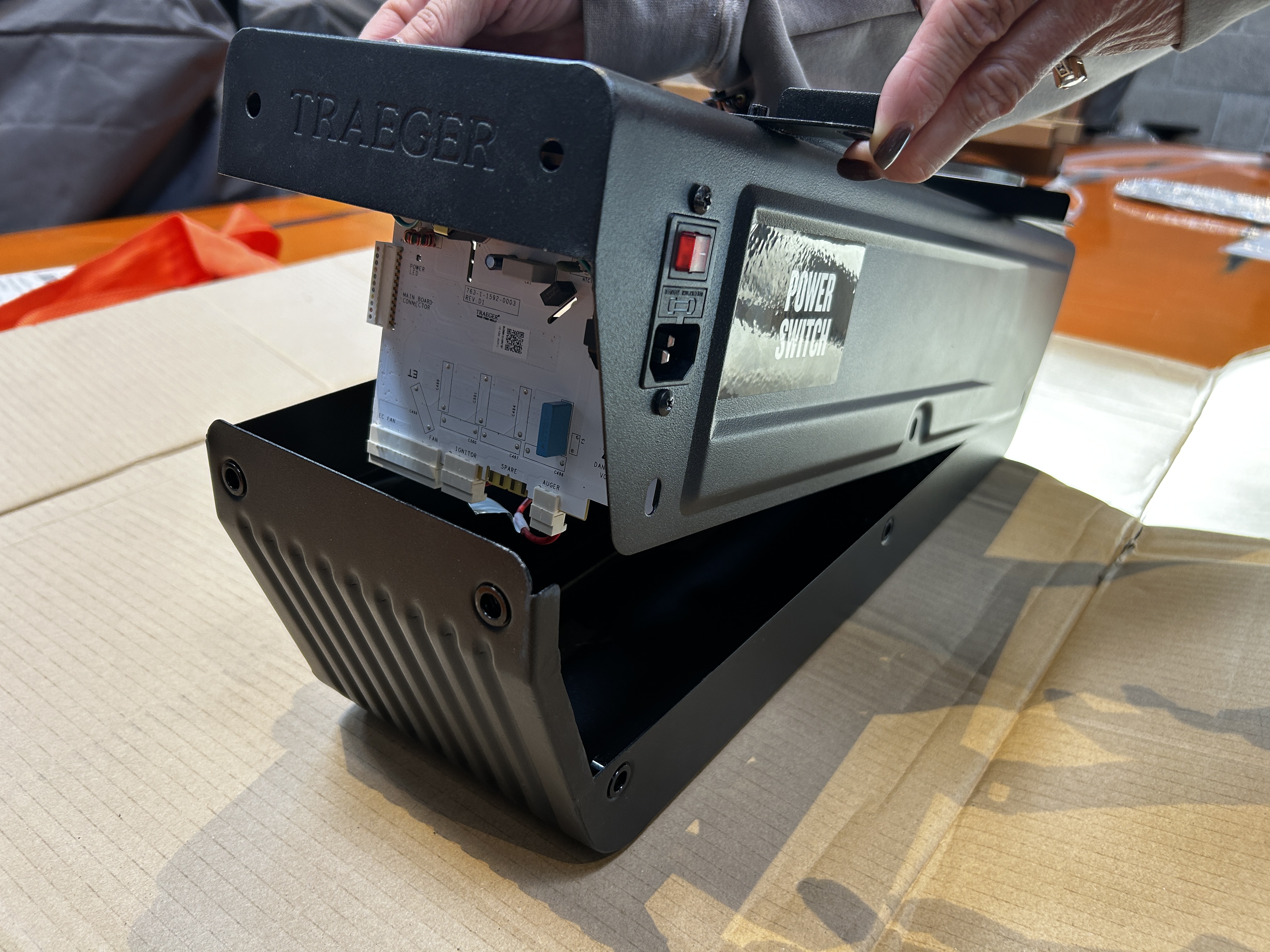

Remove the auger box cover.
- Unscrew the 10 screws from the auger box (2 on each end, 3 along both sides).

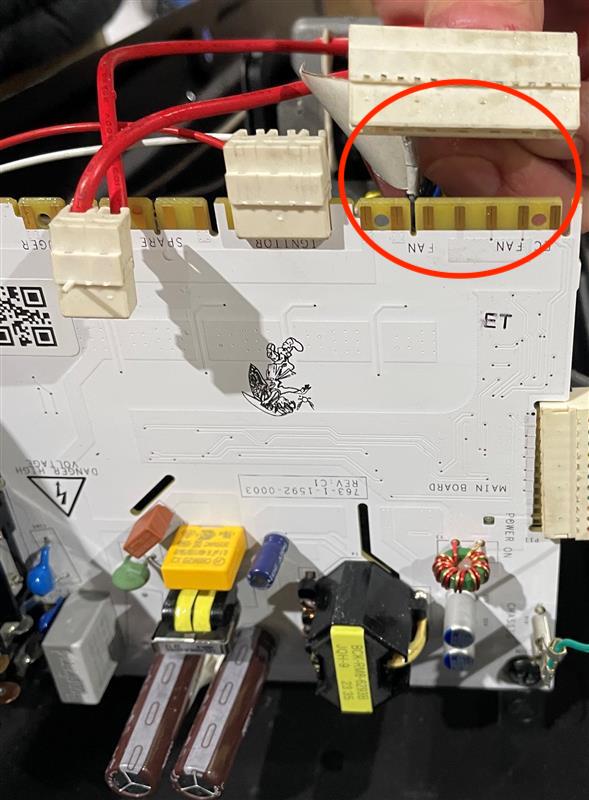

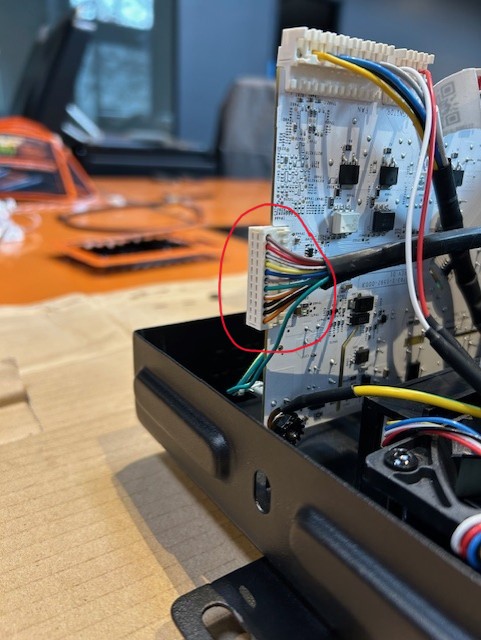

Confirm all connectors are fully connected from the fan to the drivetrain circuit board.

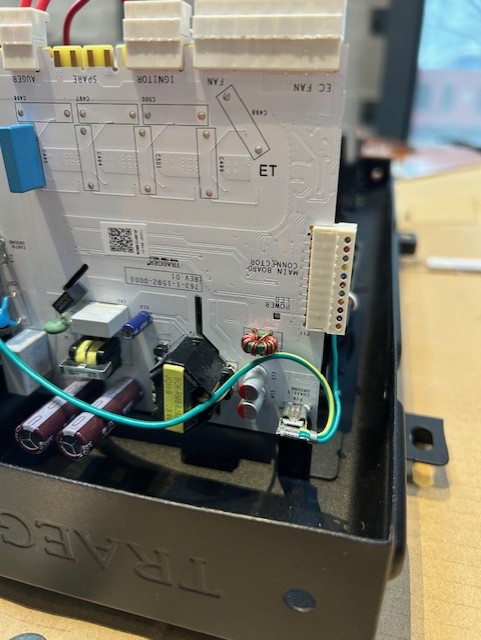

Ensure that the cable from the drivetrain circuit board is connected to the main controller.
Confirm wiring is not pinched, cut, or damaged inside auger box.

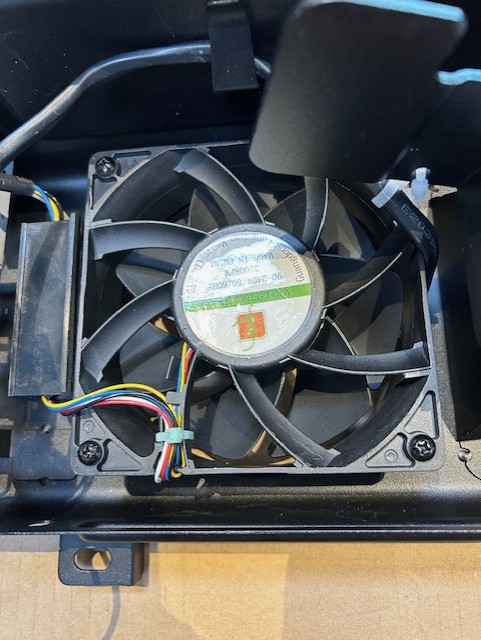

Ensure there are no obstructions caught in fan blades.
If the issue persists, replace the fan.
If fan has been replaced and the issue persists, contact customer service.
