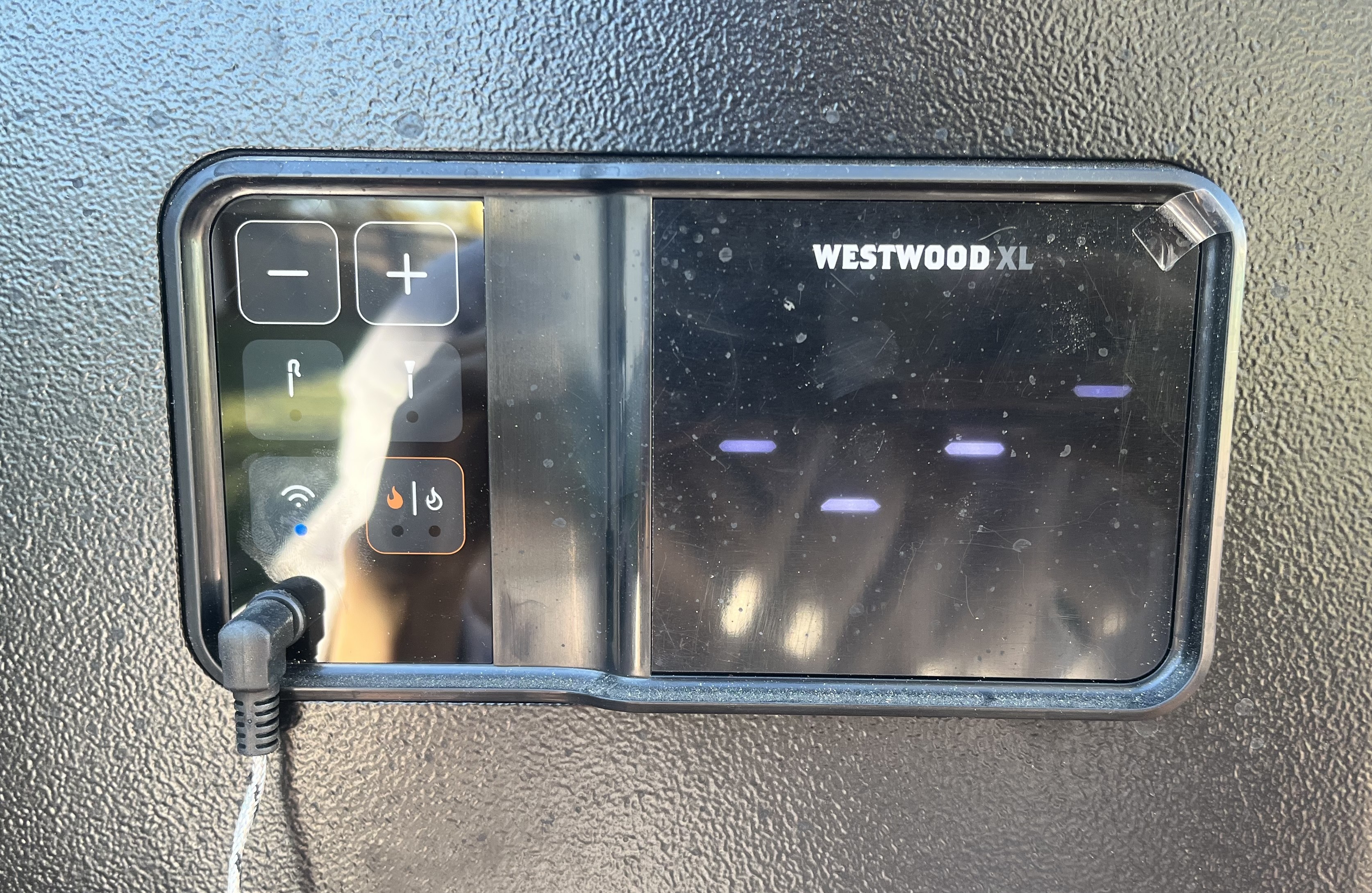

Important: Ensure the protective film has been removed from the controller display prior to use. Failure to remove the film can affect the controller's responsiveness to button presses as well as cause "phantom" button presses.
Differentiating Between the Grill Not Turning on and The Controller Not Turning On
The first step is to determine if the grill is getting power. If the grill is getting power but the controller is not turning on, this is the correct article to use.
If the indicator beneath the flame icon is lighting up, the grill is getting power. The controller may be asleep. Press the + or - button to wake the controller.
If the grill is not getting power, refer to No Power- Westwood Series Grills.
Check the Connections on the Controller
-
Access the Back of the Controller
- Power off and unplug the grill.
- Remove the x6 screws from the hopper service panel on the side of the hopper in the following order:

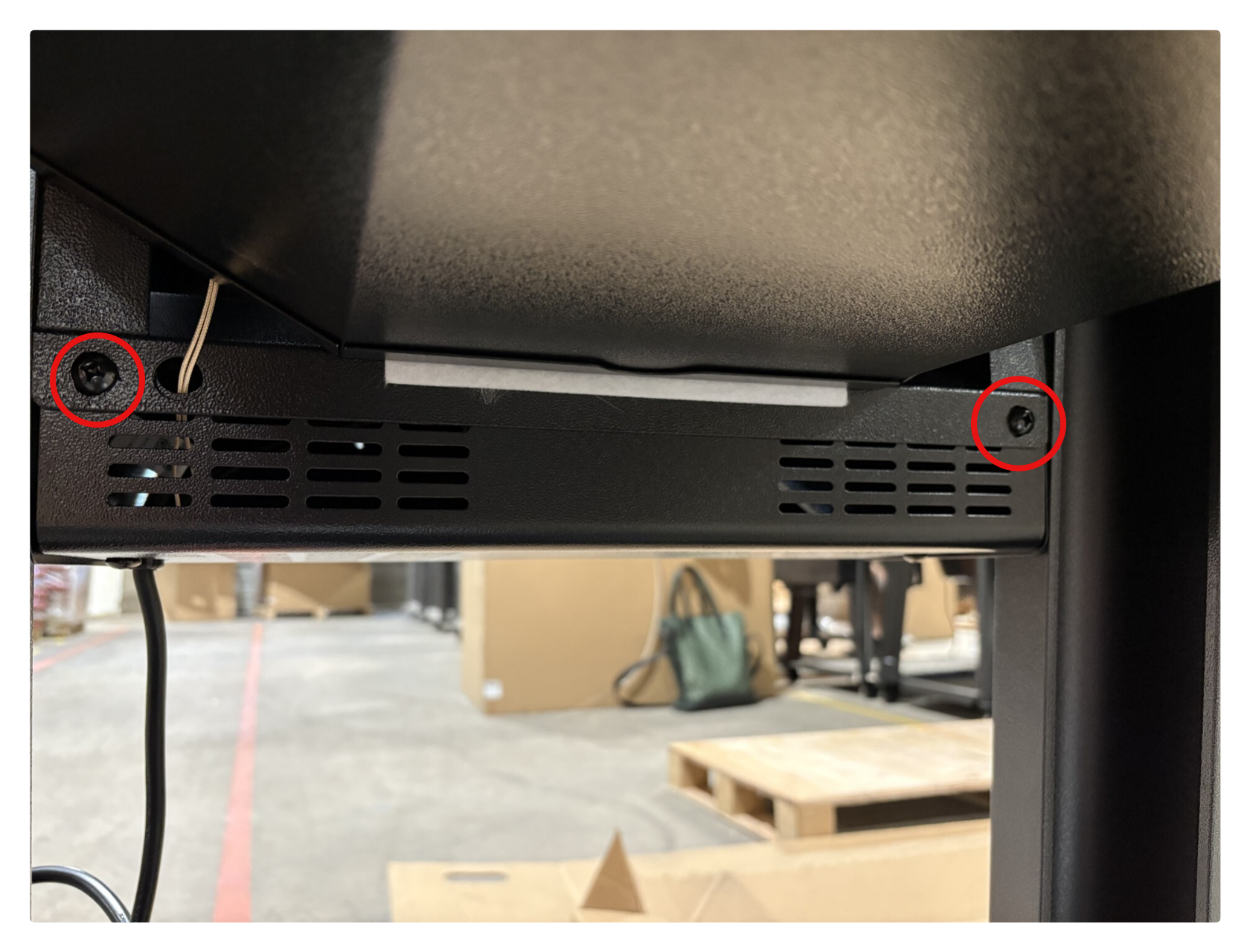

- Remove x2 screws on the back of the panel by the vents first.

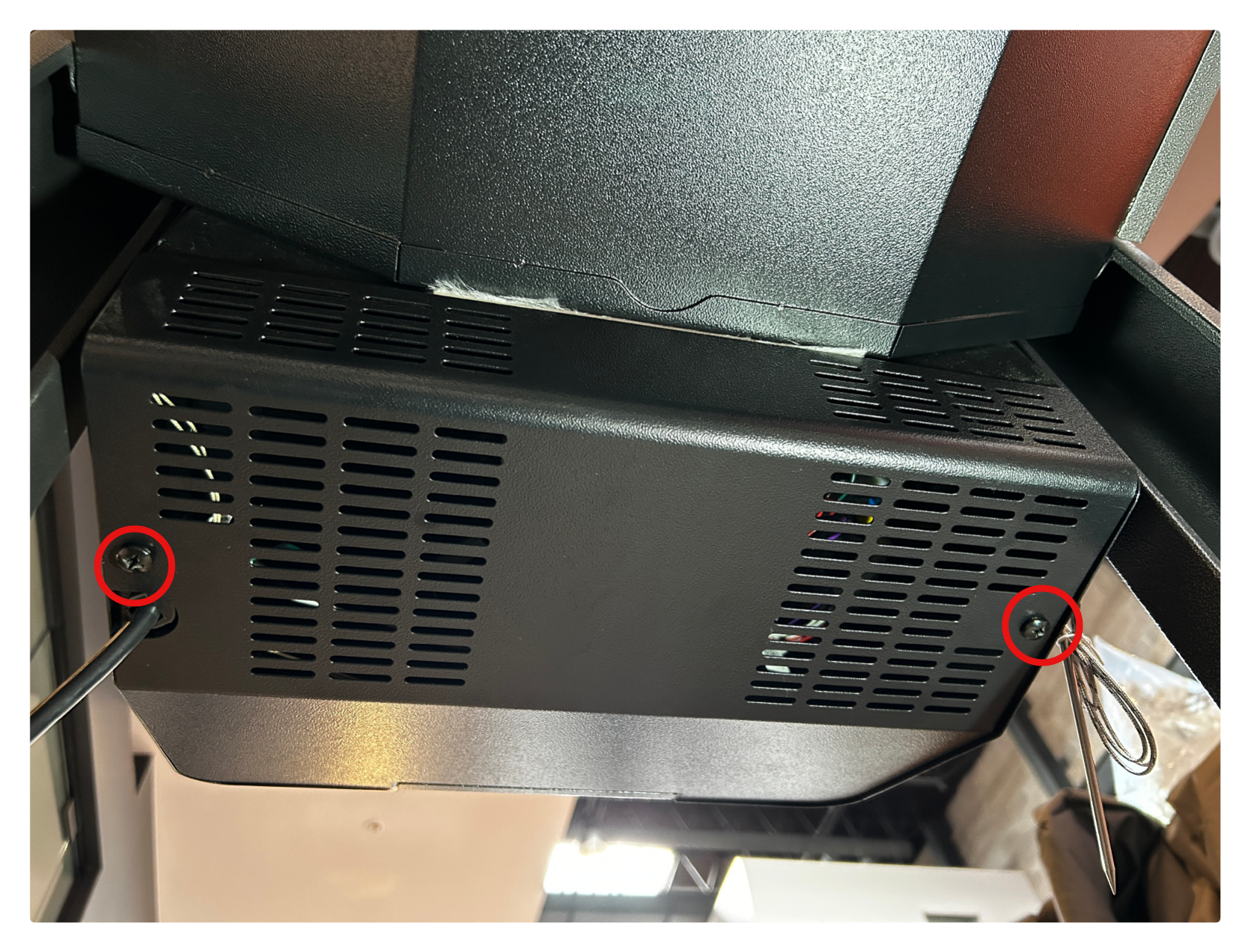

- Remove x2 screws on the bottom of the panel second.
-

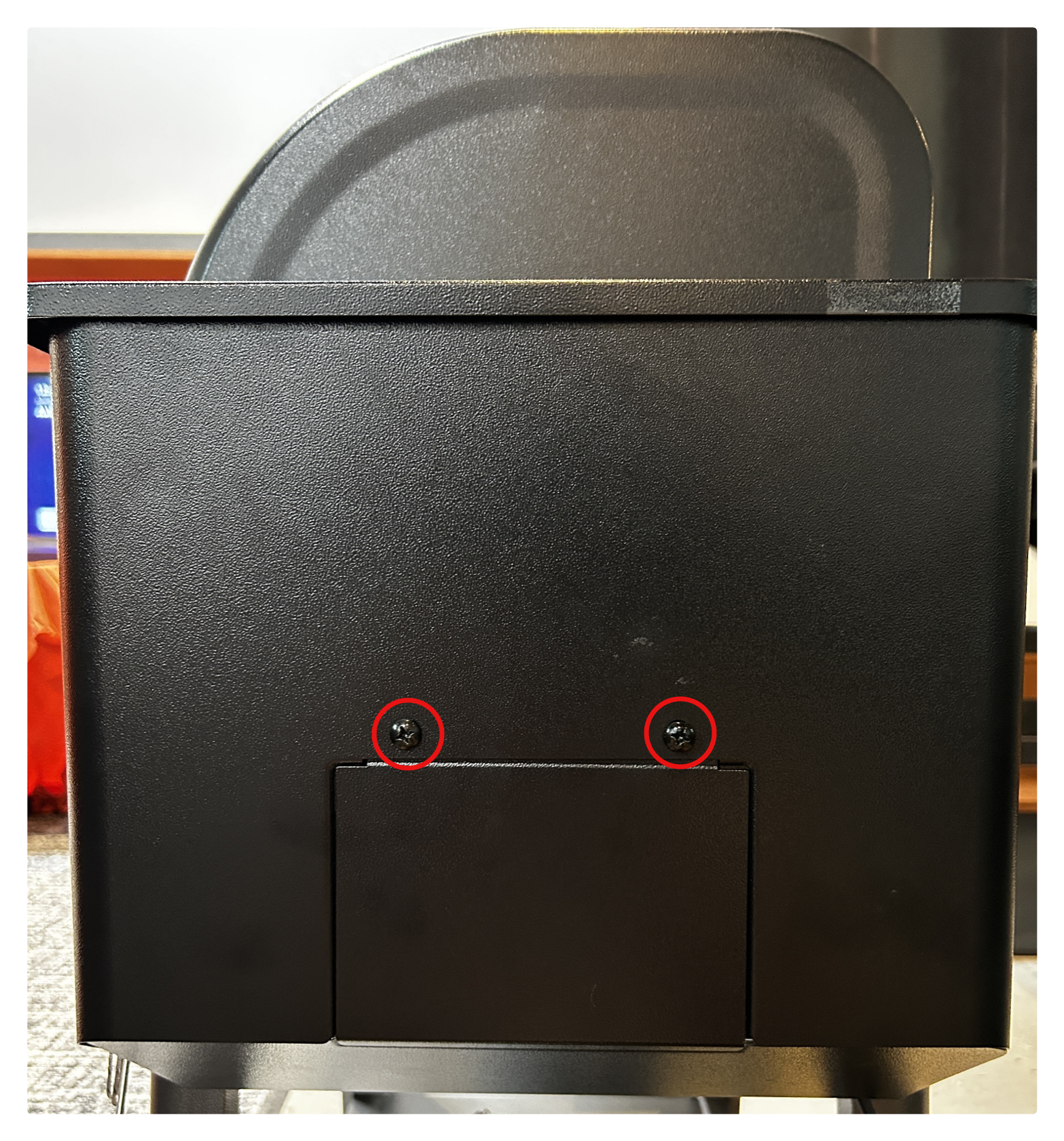

Remove x2 screws on the side of the panel last.
Hold the panel with one hand to prevent it from falling when the last 2 screws are removed.
- Remove x2 screws on the back of the panel by the vents first.
-
Check the Wire Connections for the Power Switch & Power Cord

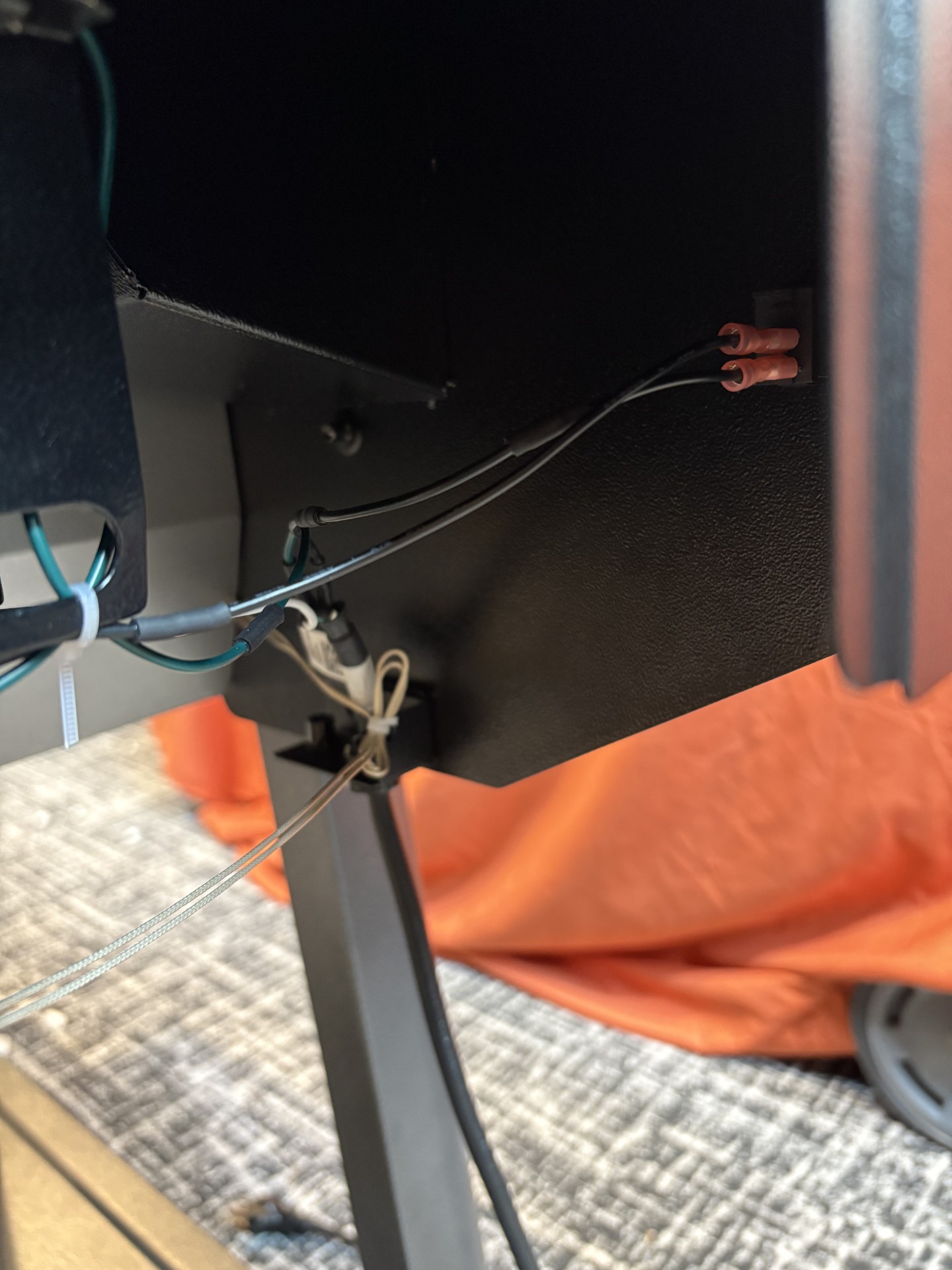

- Disconnect and reconnect the x2 red connections on the back of the power switch to ensure a solid connection.

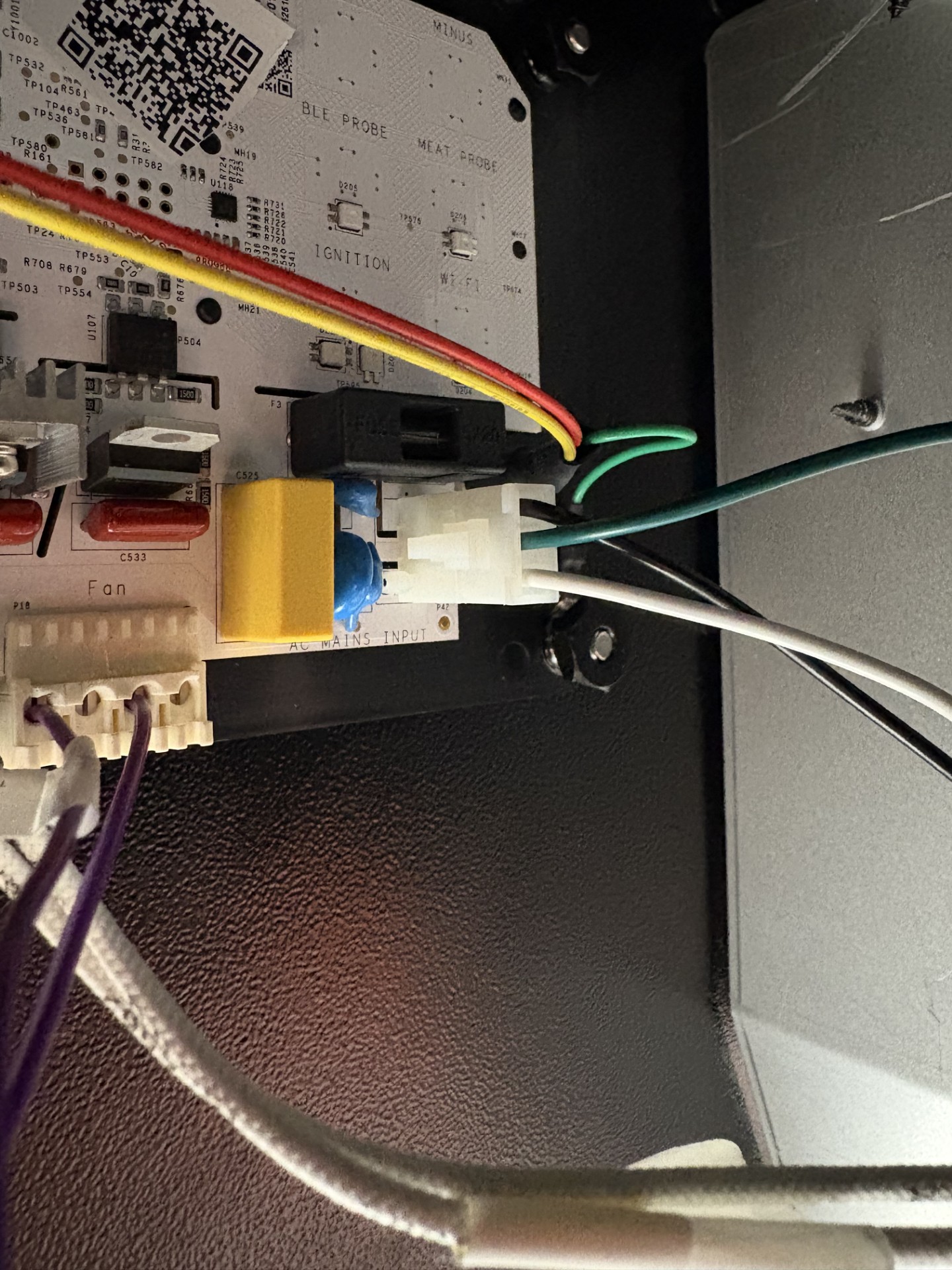

- Check the power cord connection to the back of the controller. This is the connector with the green, black, and white wires.
- Make sure it's pushed in all the way.
- Make sure it's pushed in all the way.
- Disconnect and reconnect the x2 red connections on the back of the power switch to ensure a solid connection.
- Plug the grill back in and power it on.
- If the controller screen comes on, you have resolved the issue.
- If the controller screen is still blank, continue troubleshooting.
3. Check the Fuse on the Back of the Controller
- Power off and unplug the grill.

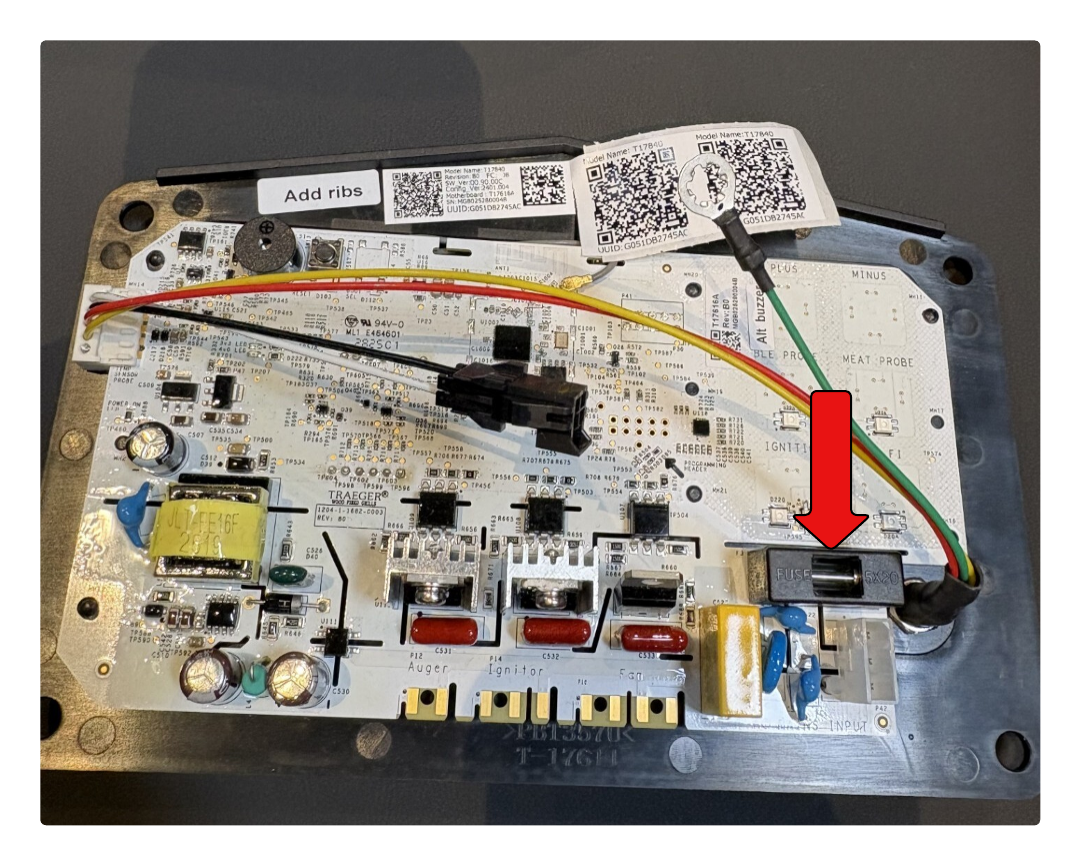

- Directly above the power cord wire connection, locate the fuse on the back of the controller.

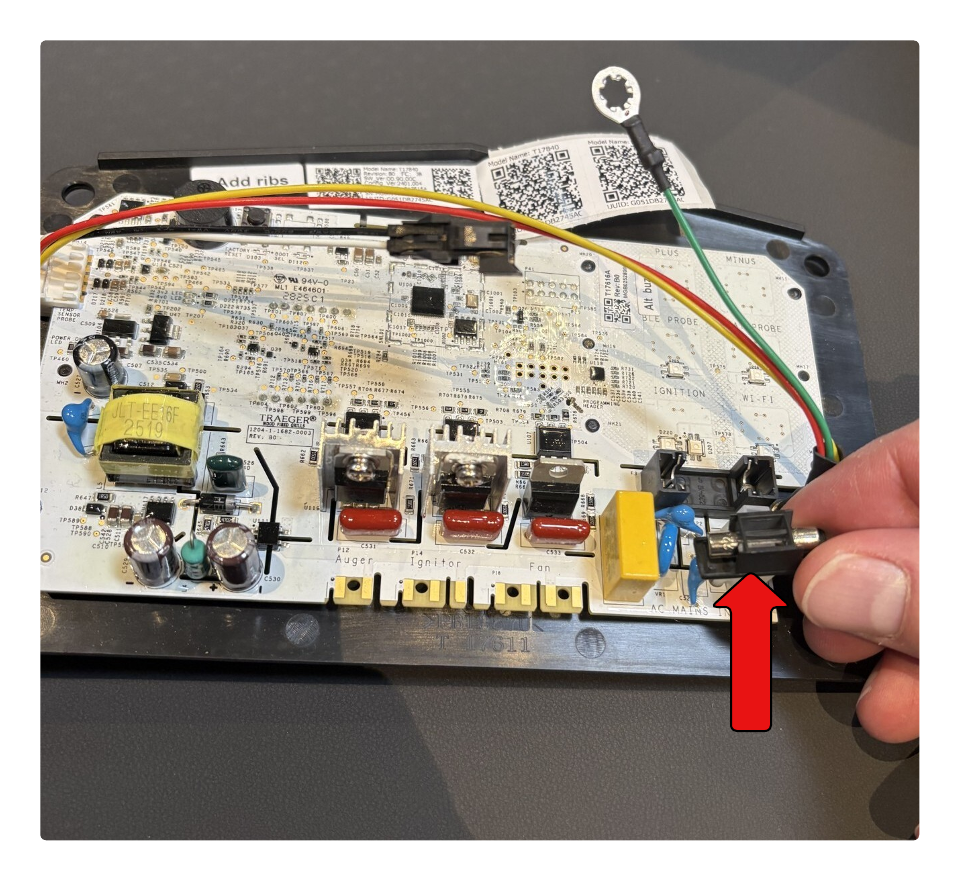

- Remove the fuse from the controller panel and check to see if it's blown.
-

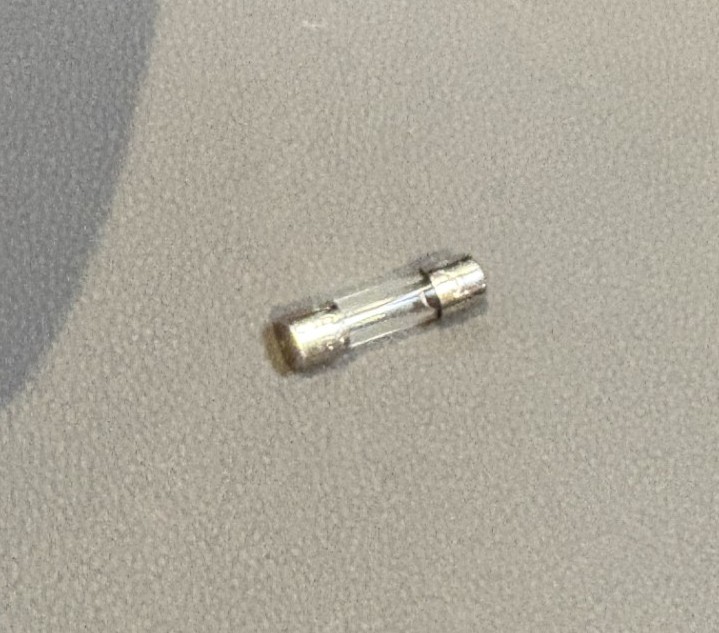

If the fuse is blown (looks burnt, like a burnt-out light bulb), replace the fuse using a T6.3A 250V fuse. These can be purchased at your local hardware store.
- Plug the grill in and power on and check to see if the controller is turning on.
4. Contact Us
- If the controller still does not turn on, contact us.
