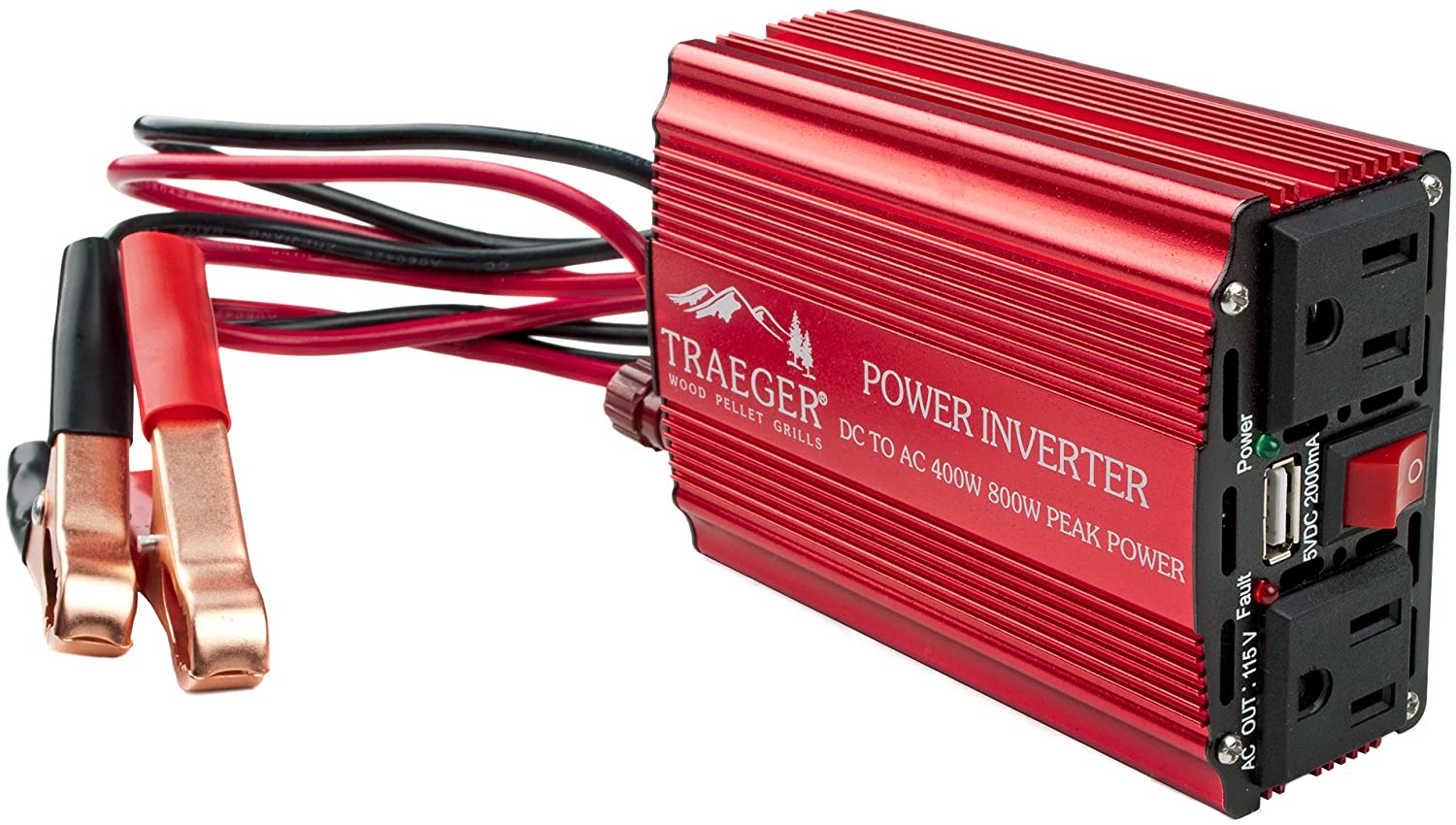

DC to AC High-Efficiency Power Inverter

What's in This Article?

This handy 400-watt mobile power inverter (SKU: BAC287) turns your Traeger into a portable flavor station. From tailgating to camping, even the neighborhood BBQ at the park, now you’ll never have to be without deliciously simple grilled creations. So with your imagination being your only limitation, where will you let your Traeger take you?

Purchase yours here!




How It Works

Simply attach this portable power inverter to your car battery the same way you’d jump-start your car, and voilà, you can start smoking delicious food out on the open road! See How to Use (hyperlink) below.

Features

  • Connects to any Traeger Model equipped with a Digital Thermostat Control
  • Converts standard 12Vdc power to 110V/60HZ AC
  • It comes with two 3-Prong outlets and a USB port for convenience.

Specs

Input Voltage Range 11-16VDC
No Load Current ≤0.15A

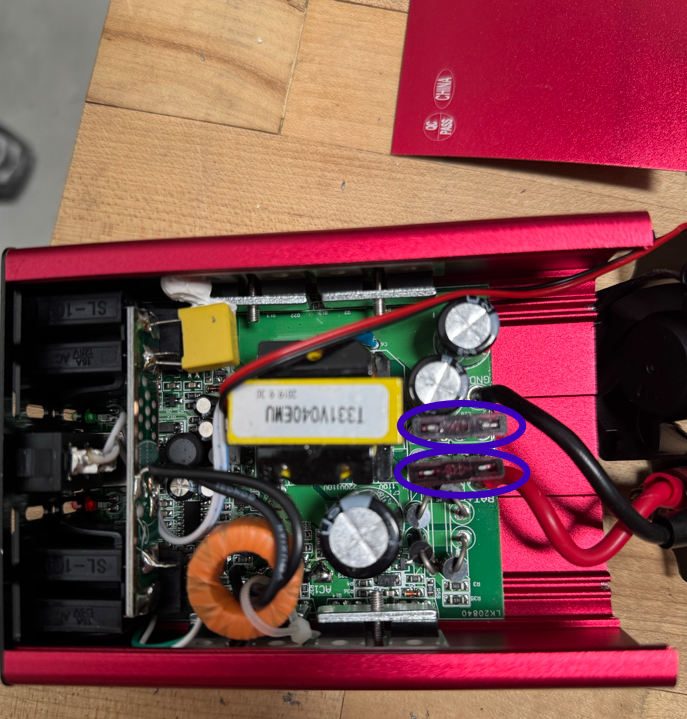

Input Fuse 30Ax2
Input Reverse Protection By Fuse
AC Voltage Range 120±5VAC
AC Output Power 60±1Hz
Continuous Output Power 400W
Peak Output Power 900W
USB Output Voltage 5.0±0.25VDC
USB Output Current 2.0A
Efficiency ≥92%

Grill Compatibility

The DC to AC High-Efficiency Power Inverter is designed to work with Traeger's portable grill series. However, it will work to power any Traeger grill with the understanding that larger grills require more power and will drain your car's battery much quicker (possibly before your meal is done cooking).



How to Use a Power Inverter

  1. With the car turned off, look at the car battery to identify the positive and negative terminals.
    • Each terminal should be clearly marked with a + (plus) sign for positive and a - (minus) sign for negative.
  2. With the grill and the power inverter turned off, plug the grill's electrical cord into the power inverter.
  3. Take the red (+/positive) and black (-/negative) cables and secure them to the correct terminals on the car battery.
  4. Once the cables are properly secured, safely start your car.
  5. Turn on the power inverter by flipping the switch.
    • The light should light up, indicating power.
  6. Turn on the grill and begin the heating/cooking process.

How to Disconnect a Power Inverter

Once you’ve finished cooking and are ready to turn off your Traeger and the shutdown mode is complete, please take the steps below:

  1. Turn off the grill.
  2. Turn off the power inverter by flipping the switch.
  3. Unplug the grill from the power inverter.
  4. Turn off the car.
  5. Safely disconnect the red (+) and black (-) power cables from the battery terminals.
