TIMBERLINE SUPPORT GUIDE

What's in This Article?

Information on Traeger's Timberline  grill.

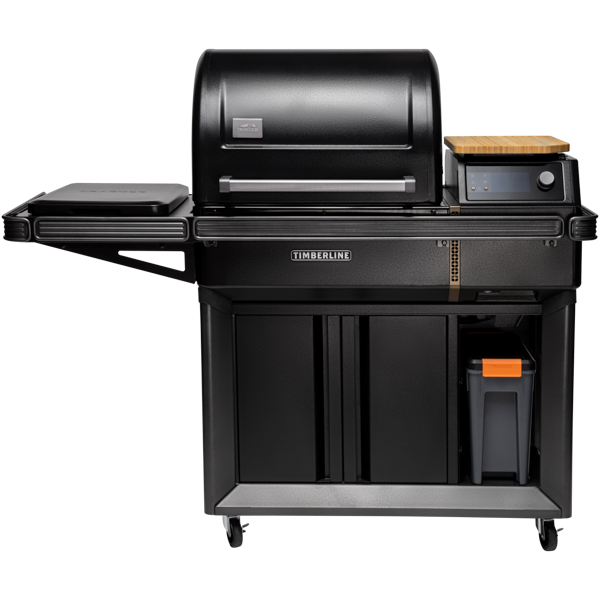

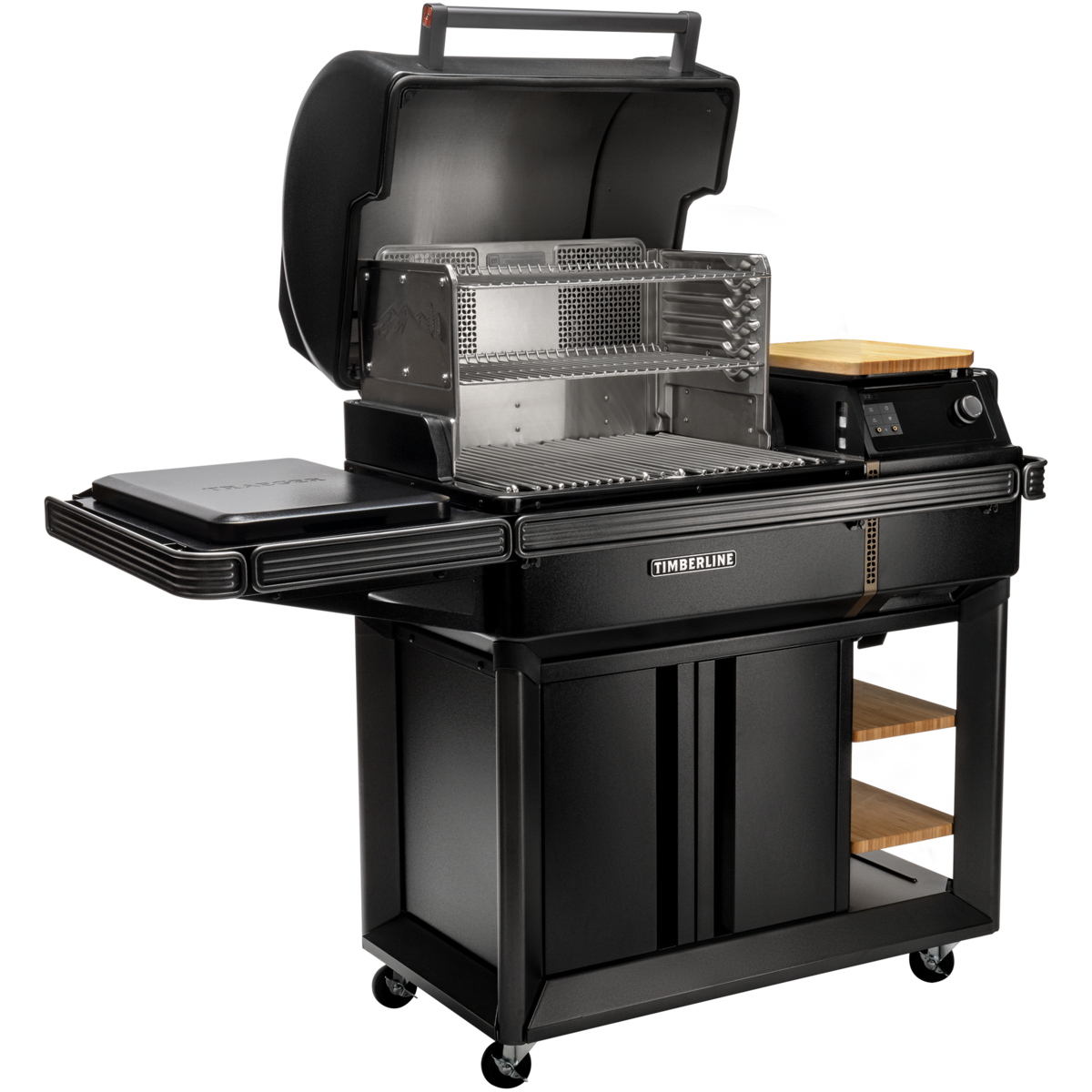

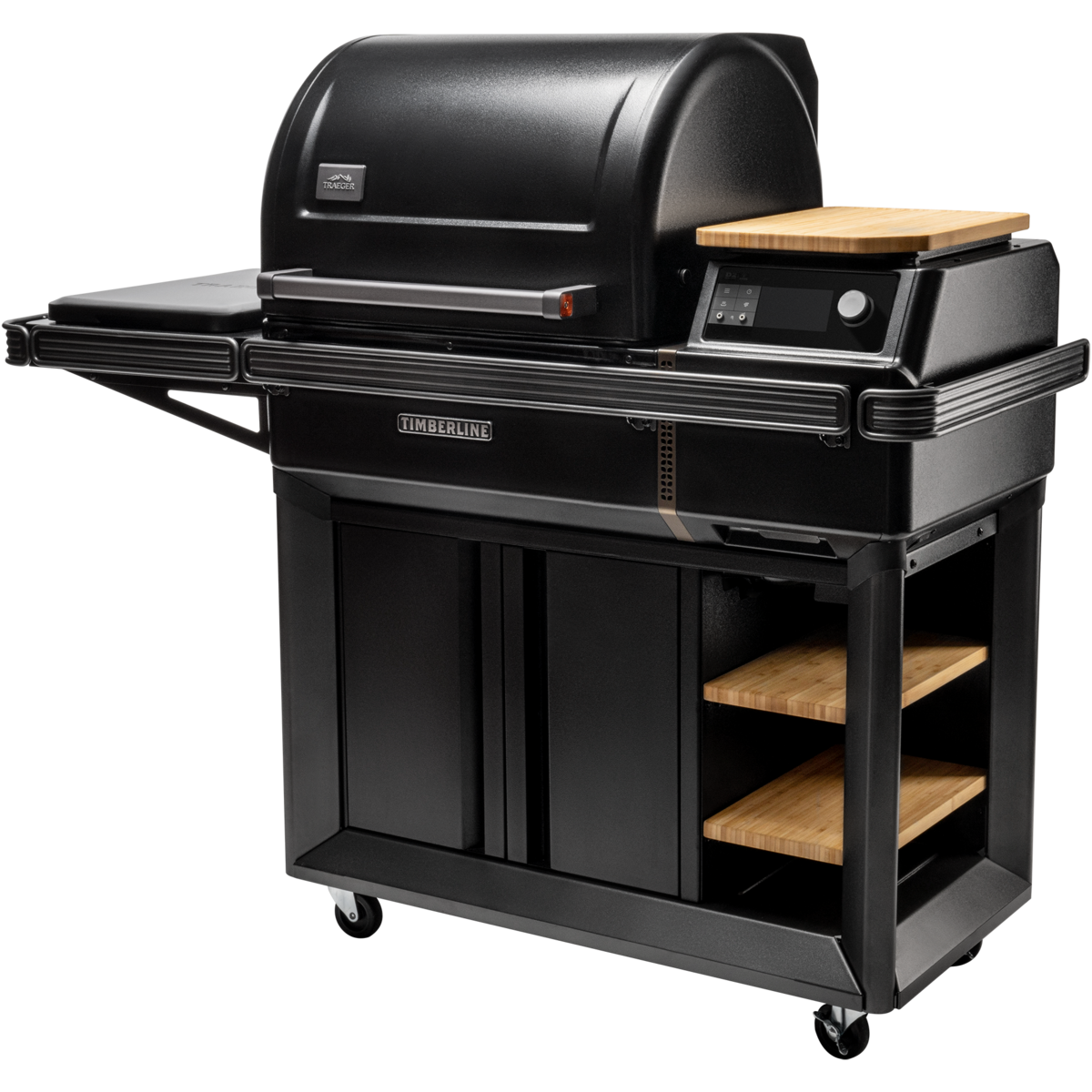

TBB86RLG_Timberline_Studio_002_WEB-1200x1200-28e5ebb.pngTBB86RLG_Timberline_Studio_009_WEB-1200x1200-28e5ebb.png

MODEL NUMBERS

MODEL NUMBER COUNTRY STATUS
TBB86RLG USA Active
TBB86RLGC Canada Active



DOCUMENTATION

DOCUMENT LANGUAGE NOTES

Owner's Manual

English

Assembly Guide

English Internal link. Do not share with customers.



TROUBLESHOOTING RESOURCES FOR YOUR TIMBERLINE

Below are links help you get the most out of your Timberline, whether it's learning best-use practices or how to resolve common issues.

Operating Your Timberline How to start/ignite your Timberline
How to shut down/turn off your Timberline
How to season your Timberline
Cleaning your Timberline
Connecting to WiFi & App Pairing How to pair a Timberline grill
How to update your grill's firmware
Grill won't connect to WiFi/Grill won't pair
Error Messages & Notifications Timberline Errors & Notifications
Temperature Management Timberline Won't Get to Temp
Temperature Swings
Accessories Using Your Timberline Induction Cooktop
Pairing Your Induction Cooktop
Troubleshooting an Induction Cooktop
Using Your Traeger X MEATER Wireless Probes



SPECIFICATIONS

Controller Timberline WiFIRE Controller
Startup Procedure Closed-Lid Startup
Assembled Dimensions

59" L x 25" W x 51" H

380.64 cm L x 161.3 cm W x 329 cm H

Assembled Weight

238 lbs

107.95 kg

Package Dimensions

43.3" L x 23.2" D x 48.2" H

279.35 cm L x 149.7 cm D x 311 cm H

Package Weight

249 lbs

112.94 kg

Main Grate Dimensions

22" L x 18" W

141.94 cm L x 116.13 cm W

Main Grilling Area

386 sq. in.

2490.32 sq. cm

2nd Grate Dimensions

22" L x 11" W

141.94 cm L x 71 cm W

2nd Grate Grilling Area

242 sq. in.

1561.28 sq. cm

3rd Grate Dimensions

22" L x 11" W

141.94 cm L x 71 cm W

3rd Grate Grilling Area

242 sq. in.

1561.3 sq. cm

Total Grilling Area

880 sq. in.

5677.4 sq. cm

Hopper Capacity

22 lbs

9.98 kg

Max Temperature 500°F  260°C
Meat Probe Count 1 Wired Probe; 2 Wireless Traeger X MEATER Probes
Supports up to 2 wired and 4 wireless
Side Shelf Side shelf with built-in induction cooktop
P.A.L Accessory Rail Yes
Exhaust System Downdraft
Pellet Evacuation Slide
Pellet Sensor Yes; Included
Super Smoke Yes
WiFIRE Yes



COMPATIBLE ACCESSORIES

ACCESSORY

SKU

INCLUDED w/ PURCHASE

Cast Iron Griddle BAC609: ModiFire Reversible Cast Iron Griddle No
Cast Iron Skillet BAC620: Traeger Induction Cast Iron Skillet No
Cover: Full BAC638: Timberline Full-Length Grill Cover No
Cover: Built-In BAC684: Timberline Outdoor Kitchen Grill Cover No
Cutting Board KIT0651: Cutting Board: TL, TLXL Yes
Drip Tray Liner N/A: Do Not Use Liners or Foil --
Fish & Veggie Stainless Steel Grill Tray  BAC610: ModiFIRE Fish & Veggie Stainless Steel Grill Tray No
Grease Keg Liner BAC608: EZ-Clean Grease & Ash Keg Liner 5 Pack
Meat Probe - Wired BAC431: Traeger Replacement Meat Probe - 2 Pack Yes; x1
Meat Probe - TXM Wireless BAC645: Traeger X MEATER Wireless Meat Thermometer 2 Pack Yes; x2
Outdoor Kitchen Trim Kit BAC682: Timberline Outdoor Kitchen Trim Kit No
P.A.L Accessory Hooks BAC643: P.A.L Pop-and-Lock Accessory Hooks 3 Pack No
P.A.L Folding Front Shelf BAC604: P.A.L Pop-and-Lock Folding Front Shelf No
BAC605: P.A.L Pop-and-Lock Folding Front Shelf XL No
P.A.L Roll Rack BAC644: P.A.L Pop-and-Lock Roll Rack No
P.A.L Storage Bin BAC642: P.A.L Pop-and-Lock Storage Bin No
Pellet Storage Bin BAC637: StayDry Pellet Bin & Lid Yes x1



REPLACEMENT PARTS

PART

REPLACEMENT PART

Auger Auger Assembly KIT0599: Auger Assembly
Auger Motor KIT0689: Auger Motor
Cabinet Cabinet Door KIT0619: Cabinet Door
Cabinet Door Hinge KIT0699: Cabinet Door Hinge
Cabinet Panel: Back KIT0616: Cabinet Back Panel
Cabinet Panel: Bottom KIT0617: Cabinet Bottom Panel
Cable Clips KIT0682: Hopper Cable Clips
Controller Display & Motherboard Display KIT0601: Front Display
Display Knob KIT0642: Display Knob
Smart Combustion Motherboard KIT0751: Motherboard Combustion Housing with Boards Assembly
Power Supply Board KIT0722: Power Supply Motherboard, DC
Motherboard Cover KIT0726: Motherboard Combustion Cover
Cutting Board KIT0651: Cutting Board
Drip Tray/Manifold KIT0623: Drip Tray: Timberline
Emblem KIT0701: Emblem Kit: Timberline

Fans

Auxiliary Fan KIT0621: Hopper Auxiliary Fan
Induction Fan KIT0674: Draft Induction Fan Assembly

Firepot

Firepot KIT0724: Firepot
Grates Bottom Grate KIT0620: Bottom Grate
Upper Grates KIT0692: Top Tier Grate
Grease Management Grease & Ash Keg KIT0629: EZ Clean Grease and Ash Keg
Grease Drain Cap KIT0666: Grease Drain Cap
Grease Drain Extension KIT0688: Grease Drain Extension
Grease Keg Gasket KIT0720: Ash Bin Gasket
Grease Keg Rail KIT0678: Grease Bucket Rail
Hardware Kit KIT0681: Hardware Kit
Heat Shield KIT0627: Manifold: Timberline
Hopper  Hopper Assembly KIT0662: Hopper Assembly: Timberline
Hopper Lid KIT0672: Hopper Lid
Hopper Pellet Guard KIT0652: Pellet Grate
Hopper Service Panel KIT0638: Hopper Service Panel
Pellet Cleanout Slide KIT0704: Pellet Cleanout Slide
Ignitor & Flame Sensor Assembly KIT0639: Ignitor and Flame Sensor Assembly
Induction Cooktop Cooktop KIT0833: Induction Hob 120V Service Kit
Cooktop Cover KIT0754: Hob Induction Cover Kit
Cooktop Cover Bin KIT0755: Hob Induction Storage Bin
Lid Lid Assembly KIT0607: Lid Assembly: Timberline
Lid Gasket KIT0670: Lid Gasket: Timberline
Lid Handle KIT0646: Lid Handle Assembly
Lid Hinge KIT0606: Lid Hinge Kit
Lid Sensor & Light KIT0633: Light/Lid Sensor
Shoulder Bolt HDW047: Shoulder Bolt for Lid
Meat Probe Wired Meat Probe BAC289: Meat Probe 1 (Black)
Wireless Probe KIT0832: Traeger X MEATER Wireless Meat Probe
Wireless Probe Charging Dock KIT0831: Traeger X MEATER Charging Dock
Wireless Probe Clips KIT0836: Traeger X MEATER Clips
Wireless Probe Battery Cover KIT0835: Traeger X MEATER Battery Cover
P.A.L. Rails Front Rail KIT0647: Front Rail Assembly P.A.L: Timberline
Hopper Side Rail KIT0679: Hopper Side Rail Assembly P.A.L
Shelf Rail Front KIT0703: Shelf Rail Front Assembly P.A.L
Shelf Rail Side KIT0680: Shelf Side Rail Assembly P.A.L
Pellet Bin Pellet Bin KIT0665: StayDry Pellet Storage Bin
Pellet Bin Lid KIT0707: StayDry Pellet Storage Bin Lid
Pellet Sensor KIT0632: Pellet Sensor
Power Power Button KIT0687: Power Button
Power Cord KIT0673: Detachable Power Cord
Power Strip KIT0690: Power Strip Assembly
Power Supply KIT0722: Power Supply Motherboard, DC
Shelves Side Shelf Insert KIT0705: Side Shelf Insert
Side Shelf No Cover KIT0650: Side Shelf No Insert
Side Shelf w/ Cooktop KIT0833: Induction Hob 120V Assembly Service Kit
Wood Shelves KIT0695: Wood Shelf
Thermocouple Thermocouple KIT0659: Thermocouple
Thermocouple Access Panel KIT0609: Thermocouple Access Panel
Wheels Caster Wheel KIT0613: Caster Wheels
WiFi Antenna KIT0634: WiFi Antenna
Wire Harnesses AC Wire Harness KIT0684: AC Wire Harness
Ignitor Harness KIT0685: AC Ignitor Wire Harness
Pellet Sensor Harness KIT0686: Pellet Sensor Harness
