REPLACE TIMBERLINE SHELVES

What's in This Article?

Timberline and Timberline XL grills have several shelving options to enhance your personalized grilling experience.



TIMBERLINE SIDE SHELF

The new Timberline grills' side shelf is the shelf that holds the Induction Cooktop.

Part Numbers: KIT0650, KIT0649, KIT0705

The following instructions can also be followed by going to page 4 of your grill's Assembly Guide.

  1. If replacing, remove the existing side shelf, keeping the four screws that attach the shelf to the grill body.

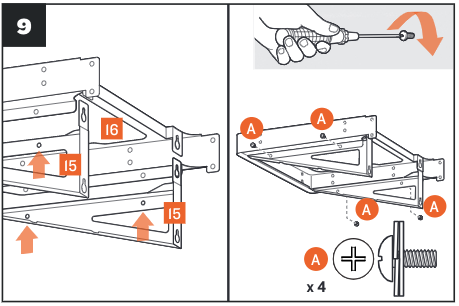

  2. Line up the shelf brackets with the shelf.
  3. Place both kinds of washers on the Phillips-head screws and use to attach the brackets to the shelf.
    1. Tighten screws.

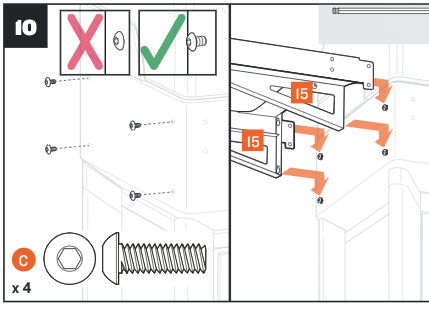

  4. Insert four long hex screws into the pre-drilled holes in the grill's body.
    1. Do not tighten the screws
  5. Line up the holes in the side shelf brackets with the four screws. Allow the shelf to drop into place.
  6. Use an Allen wrench to tighten screws

WOODEN SHELVES

The new Timberlines feature removable side shelves, located under the hopper. These shelves are great for holding grill tools, aprons, mits and more. You can also easily remove these shelves in order to put your pellet storage bucket in their place so you can easily empty the pellets from your hopper.

Part Number: KIT0695
