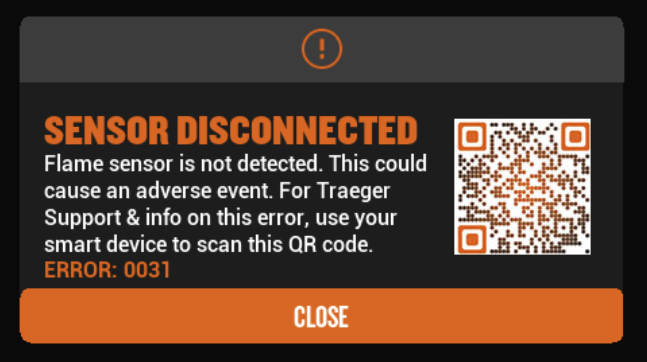

ERROR: 0031 FLAME SENSOR DISCONNECTED

What's in This Article?

Information on 'Error: 0031 Flame Sensor Disconnected' that sometimes appears on Timberline grills.




CAUSE

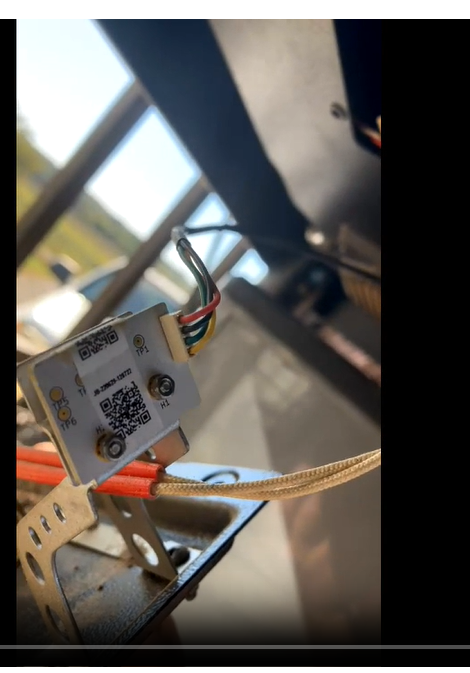

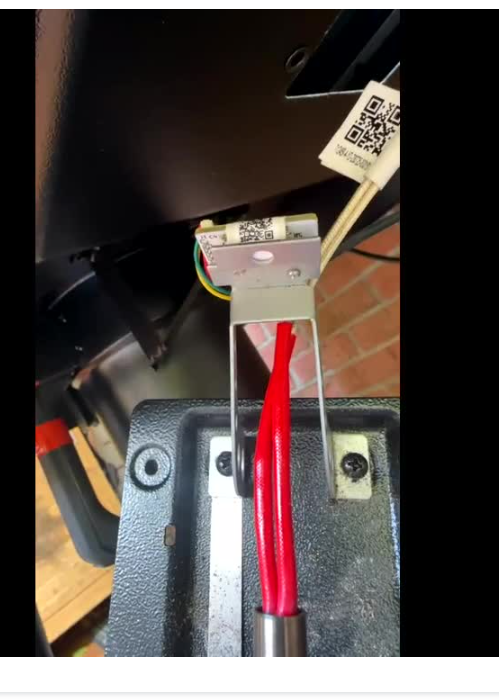

The grill has detected that the flame sensor is not connected. This could be due to a bad connection to the flame sensor or a failed sensor.


WHAT DOES THE GRILL DO WHEN THIS ERROR OCCURS?

The grill continues to cook, but at a reduced performance.


WHAT TO DO

  1. Make sure firmware is up to date.
  2. Turn off the grill and check the wiring connections.

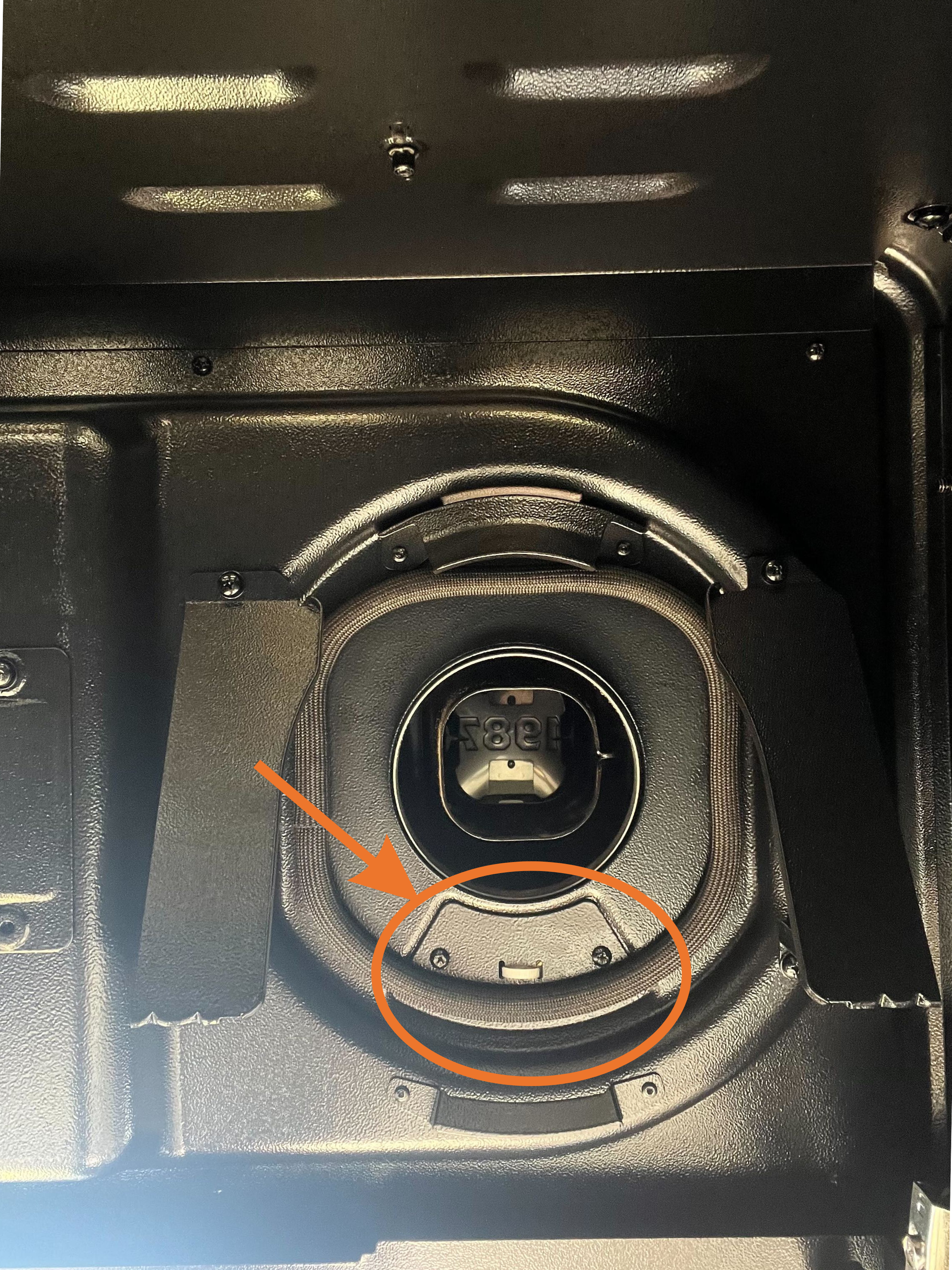

    1. Open the hopper access panel and remove the Smart Combustion cover.

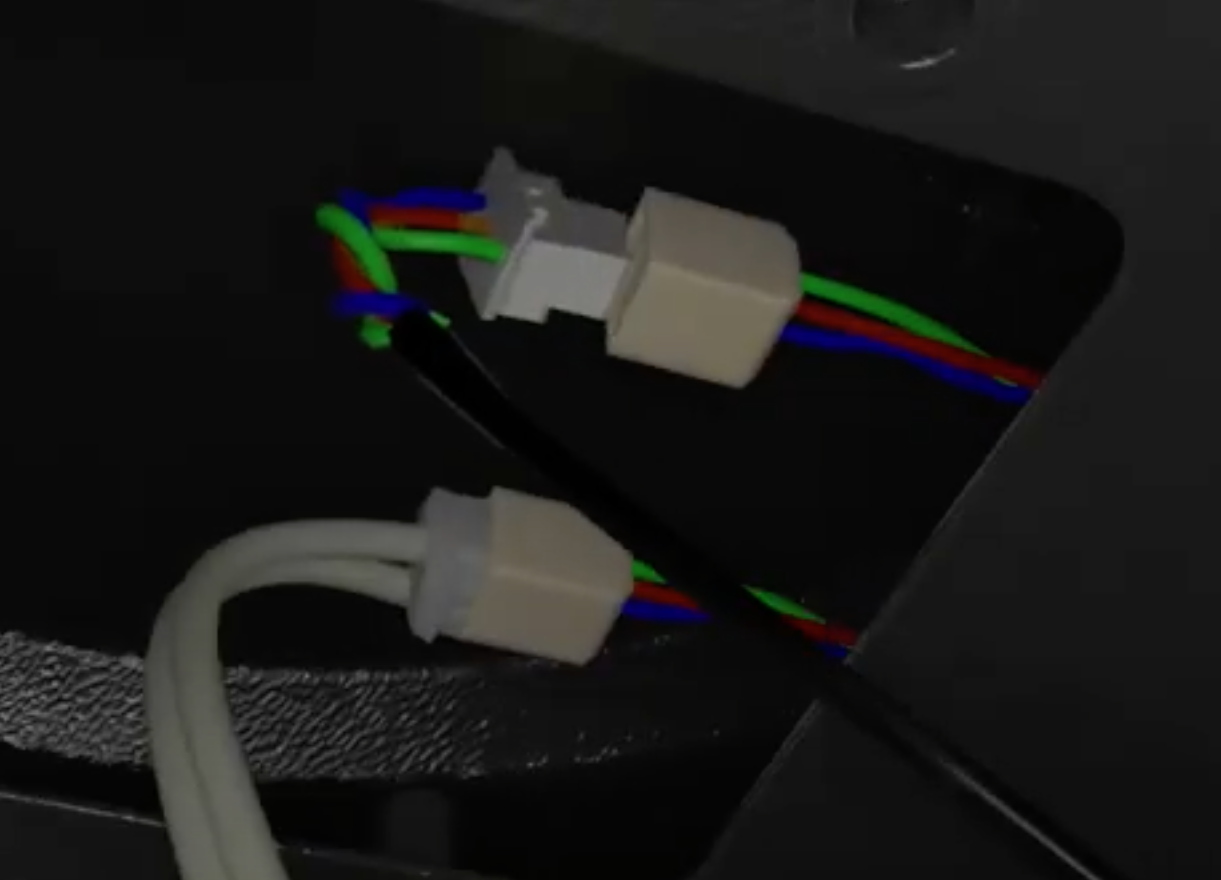

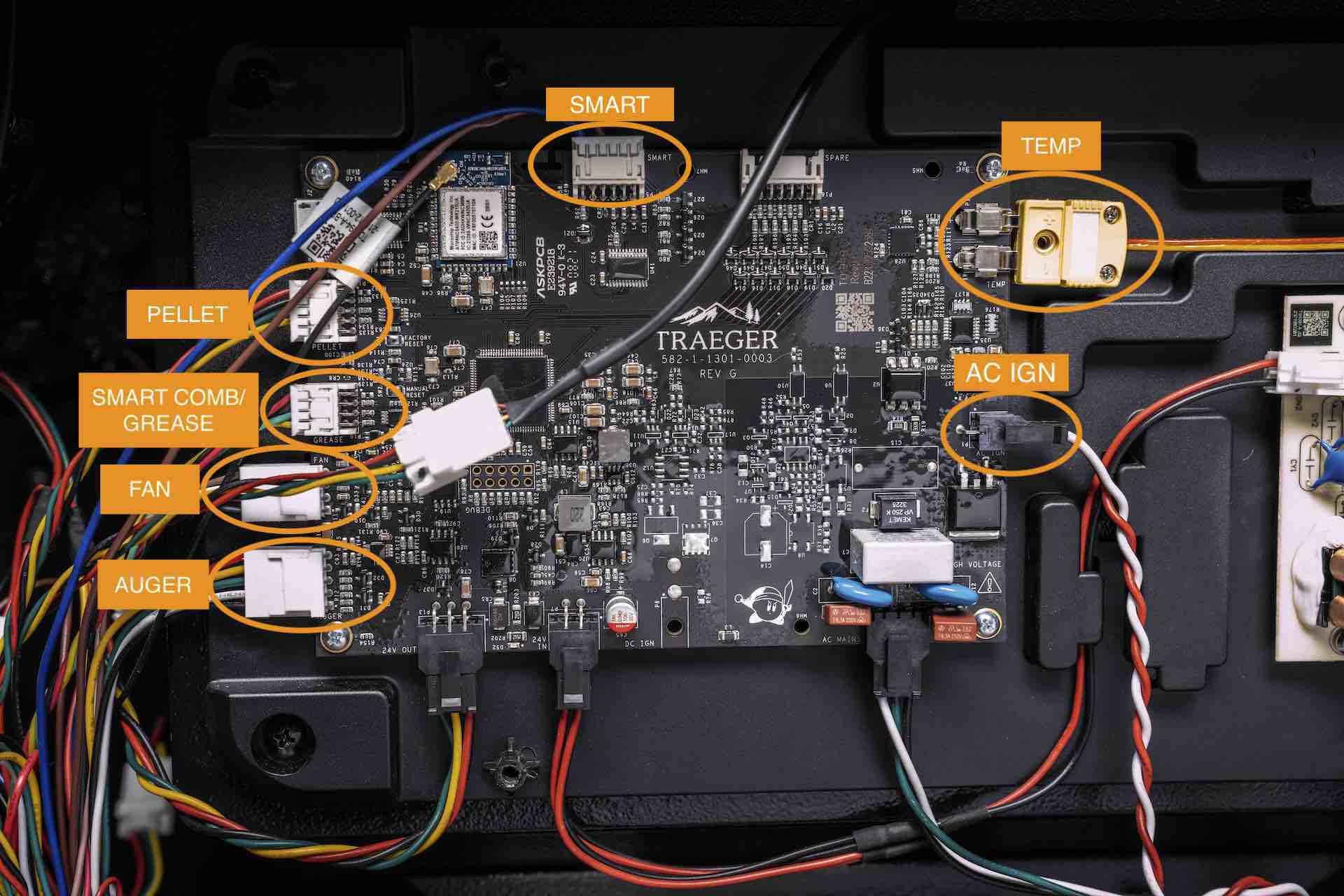

    2. Verify that all cables are connected.
      1. If you are unsure, disconnect and reconnect each connection.
    3. Verify that no cables are pinched or damaged.
  3. Turn on the grill.
  4. If the error appears again, contact Customer Support.
  5. Run Self Test.
    1. If the flame sensor fails, contact Customer Support.
