RTD INSTALLATION: JUNIOR & TAILGATER

What's in This Article?

How to install a new RTD to your Ranger or Tailgater Traeger grill.

SUPPLIES NEEDED

  • Wrench
  • Grill cleaner
  • Paper towels or rags
  • Gloves
  • Phillips screwdriver (#2 size)
  • Slotted screwdriver (1/8” or 3mm)

HOW TO INSTALL AN RTD

  1. Clean the grill thoroughly.

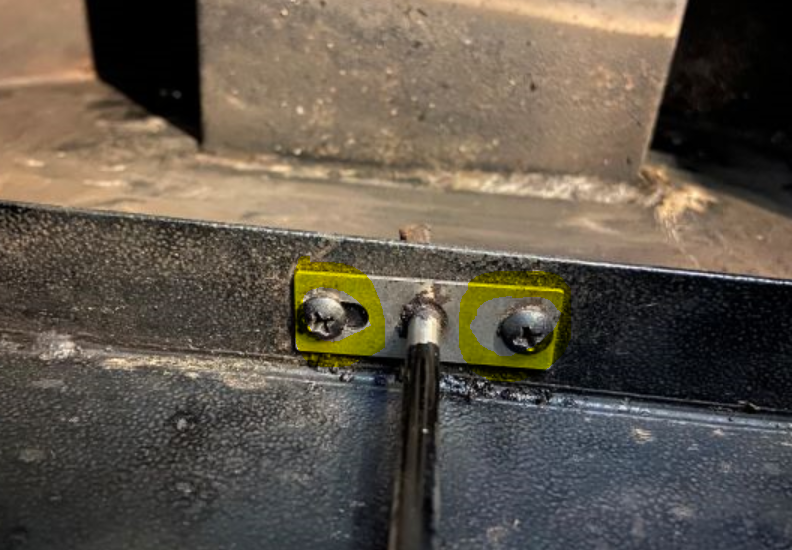

  2. Using your Phillips screwdriver, unscrew the 2 screws securing the RTD to your grill.
    RTD_Replacement__Junior_Tailgater_.jfif

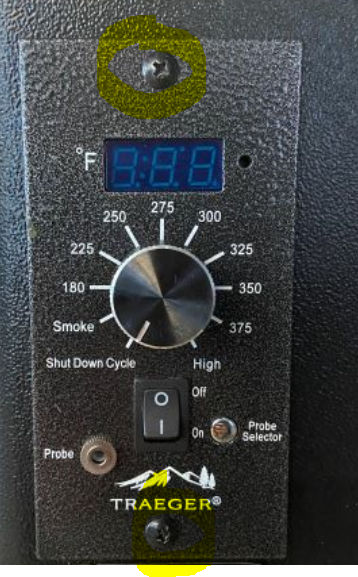

  3. Using your Phillips screwdriver, unscrew the 2 screws securing the controller to your grill.
    Junior_Tailgater_2.jfif

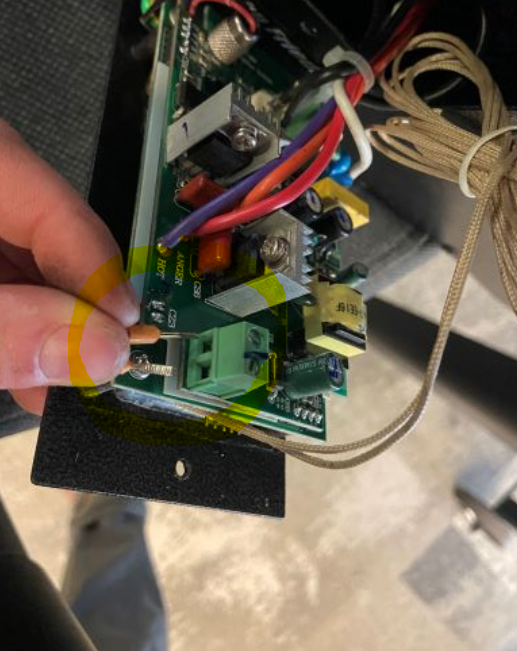

  4. Unplug the RTD sensor from your controller.
    Junior_Tailgater_3.jfif

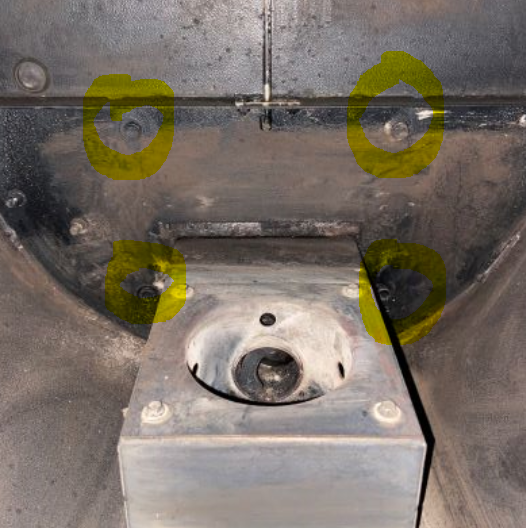

  5. Using your wrench, unscrew the screws connecting the hopper to your grill.
    Junior_Tailgater__4.jfif

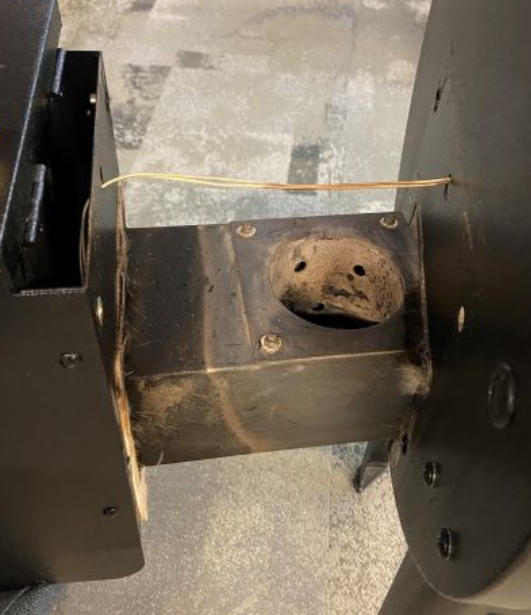

  6. Pull the hopper away from your grill.
    Junior_Tailgater_5.jfif

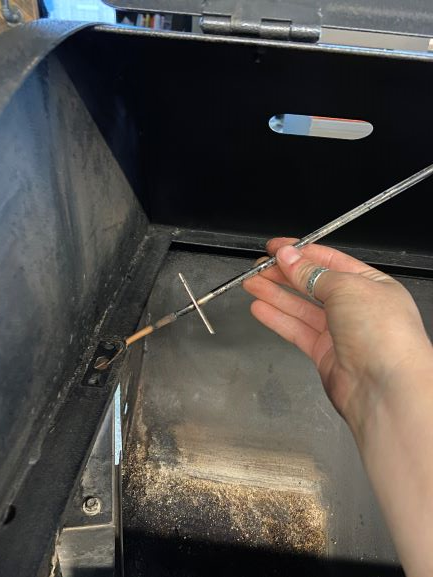

  7. Pull the RTD out of your grill.
    Junior_Tailgater_6.jfif
  8. Feed the new RTD through your grill.

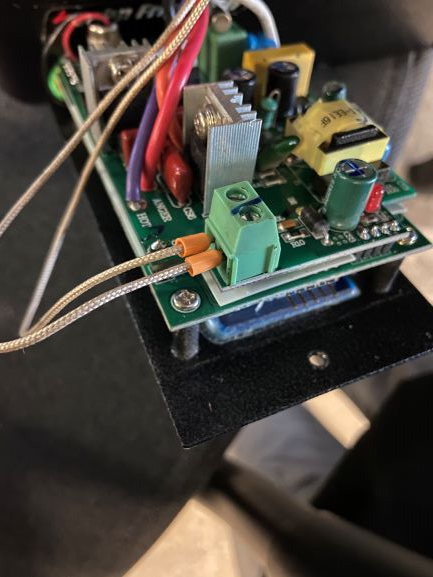

  9. Plug the new RTD into your controller.
    Junior_Tailgater_8.jfif

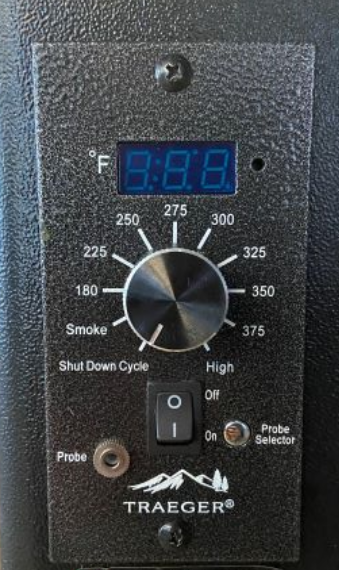

  10. Using your Phillips screwdriver, rescrew the controller to your grill.
    Junior_Tailgater_9.jfif
  11. Reconnect the hopper to your grill.
  12. Using your wrench, rescrew the hopper to your grill.
    Junior_Tailgater_10.jfif
  13. Using your Phillips screwdriver, screw on the new RTD to your grill.
    Junior_Tailgater_11.jfif

If you have any questions, please contact our Customer Service
