P.A.L. Rail & Trim Replacement - Woodridge Grill

Applicable SKUs & Grill Compatibility

The replacement instructions outlined in this article apply to the following P.A.L. Rail replacement part SKUs for Traeger's Woodridge grill.

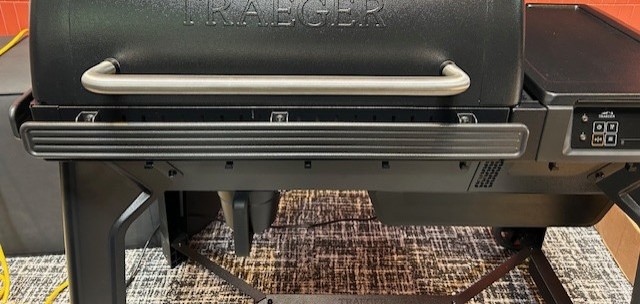

How to Replace a Front P.A.L. Rail on a Woodridge Grill

SKUs

• KIT0955

Replacement Instructions

1. Turn off and unplug grill from power.
2. Open grill lid and remove all grill grates and the drip tray.
3. Remove front trim panel by unscrewing five screws. Remove the 2 screws located at the front of the grill first, then the 3 screws locating in the grill. Do not allow the front trim band to fall.
4. Remove P.A.L. rail from front trim band by unscrewing six screws.
5. Mount new P.A.L. rail to front trim panel.
6. Mount front trim panel to grill body.

7. Place drip tray and all grill grates back in grill.

How to Replace a Front P.A.L Rail Trim Piece on a Woodridge Grill

SKUs

• KIT0955

Replacement Instructions

1. Turn off and unplug grill from power.
2. Open grill lid and remove all grill grates and the drip tray.
3. Remove two screws from the bottom of the trim at the front of the grill.
4. Holding the P.A.L. rail so that it doesn't fall, remove three screws from the trim located inside the grill body. Remove the front trim and place on a work surface.

5. Remove six screws from the P.A.L. rail and remove it from the front trim.
6. Position the P.A.L. rail on the new front trim and fasten.
7. Position the new front trim on the front of the grill. Attach with three screws inside the grill body and two screws at the bottom of the trim on the outside.
8. Place the grates back in the grill.

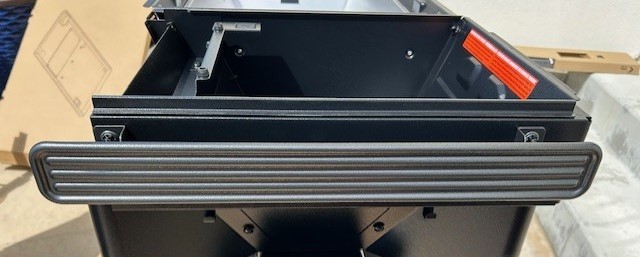

How to Replace a Right Side P.A.L. Rail

SKUs

• KIT0956

Replacement Instructions

1. Turn off and unplug grill from power.
2. Open hopper lid.
3. Remove the trim band that the P.A.L. rail is mounted to by unscrewing four screws (x2 screws are located in the hopper, x2 screws are located on the outside of the hopper below the trim band).
4. Remove P.A.L. rail from trim band by unscrewing four screws.
5. Mount new P.A.L. rail to trim band.

6. Mount trim band to hopper.

How to Replace a Right Side P.A.L Rail Trim Piece

SKUs

• KIT095

Replacement Instructions

1. Turn off and unplug grill from power.

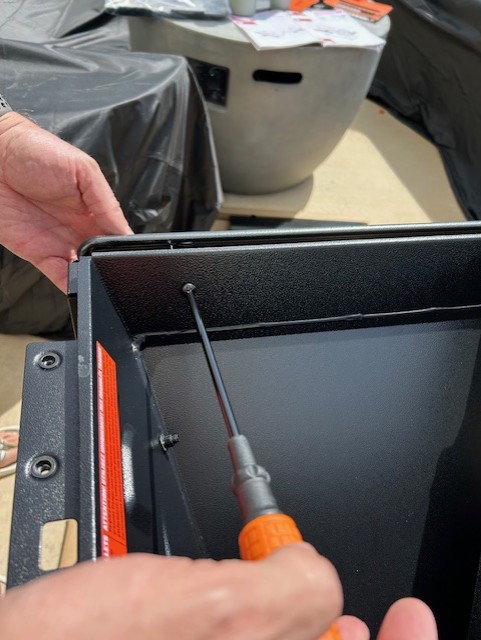

2. Open the hopper lid. Inside the hopper, remove two screws from the side trim.
3. On the outside of the grill below the P.A.L. rail, remove two screws from the side trim. Be sure to hold the P.A.L. rail so that the trim doesn't fall.
4. Remove the side trim from the grill and place on a work surface.
5. Remove four screws from the P.A.L. rail and remove it from the side trim.
6. Position the P.A.L. rail on the new side trim and fasten with four screws.
7. Position the new side trim on the hopper side of the grill. Attach with two screws on the outside of the grill and two screws inside the hopper (4 total).

How to Replace a Left Side P.A.L. Rail

SKUs

• KIT0956

Replacement Instructions

1. Turn off and unplug grill from power.
2. Remove all grill grates.
3. Remove the trim band that the P.A.L. rail is mounted to by unscrewing four screws (x2 screws are located in the grill, x2 screws are located on the outside of the grill below the trim band).
4. Remove P.A.L. rail from trim band by unscrewing four screws.
5. Mount new P.A.L. rail to trim band.
6. Mount trim band to grill.

How to Replace a Left Side P.A.L Rail Trim Piece

SKUs

• KIT0959

Replacement Instructions

1. Turn off and unplug grill from power.
2. Remove all grill grates.
3. Remove the barrel trim band that the P.A.L. rail is mounted to by unscrewing four screws (x2 screws are located in the grill, x2 screws are located on the outside of the grill below the trim band).
4. Remove P.A.L. rail from trim band by unscrewing four screws.
5. Mount P.A.L. rail to new trim band.
6. Mount new trim band to grill.
7. Place all grill grates back in the grill.
