Flame Visibility Window Replacement - Flatrock 2-Zone

Steps to replace the flame visibility window on a 2 Zone Flat Top grill.

What is the Flame Visibility Window?

The flame visibility window allows you to see the flame on the Flatrock 2 Zone to ensure that the grill is ignited.

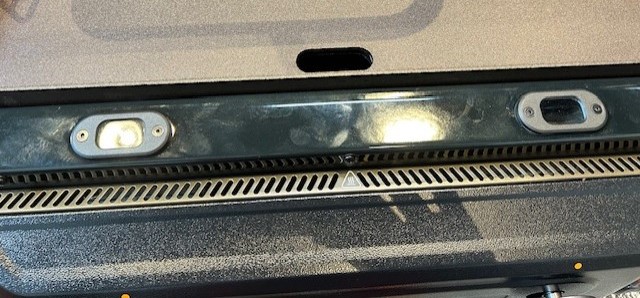

There are 2 flame visibility windows on the griddle.

Applicable SKU

• FTK0118

Tools Needed:

• 3/32" Allen Wrench

Replacement Steps

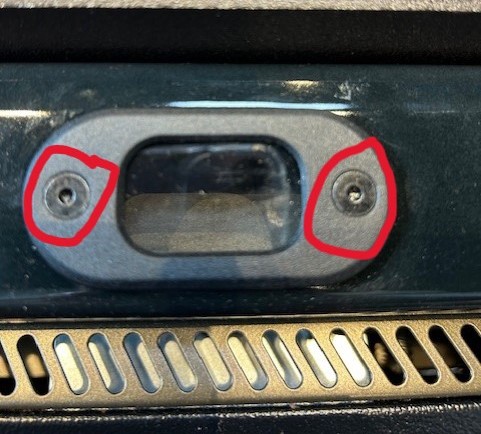

1. Using a 3/32" Allen wrench, remove the 2 screws on each side of the flame visibility window.

2. Remove old flame window.
3. Put new flame visibility window in place and replace x2 screws using the 3/32" Allen wrench.
