Cooktop Support Bracket Replacement - Flatrock 2-Zone

Instructions on how to replace the cooktop support brackets on the 2 Zone Flat Top grill.

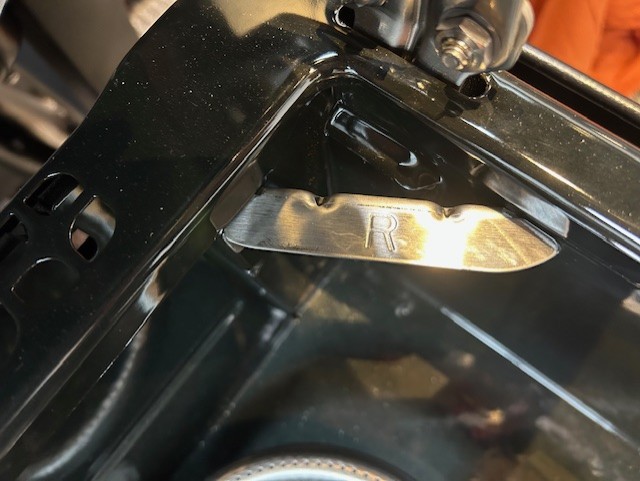

There are 4 cooktop support brackets on the Flatrock 2 Zone, one in each corner.

Applicable SKU

• FTK0123

Tools needed

• Phillips Screwdriver

Replacement Steps

1. Turn burner knobs to OFF position.
2. Close the propane tank valve and disconnect the regulator from the propane tank.
3. Open lid and remove the cooktop.
4. Using a Phillips screwdriver. remove the x2 screws and x2 washers from the bracket being replaced.

5. Remove old support bracket.

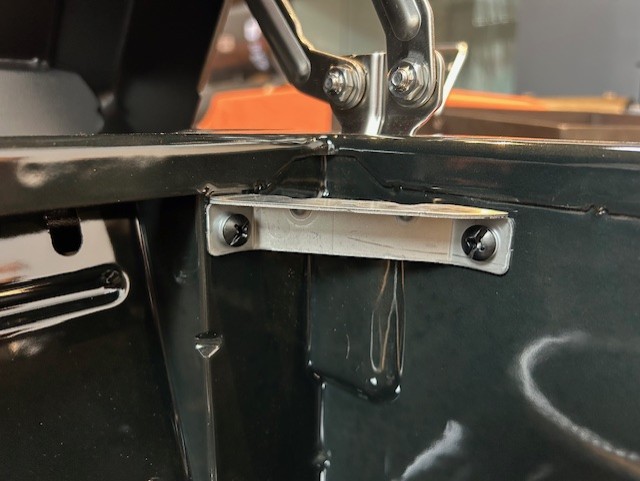

6. Place new bracket in place lining up the screw holes.
7. Replace the x2 washers and x2 screws.
8. Replace the cooktop.
