Heat Shield Replacement - Flatrock 2-Zone

How to replace the heat shield on a Flatrock 2 Zone grill.

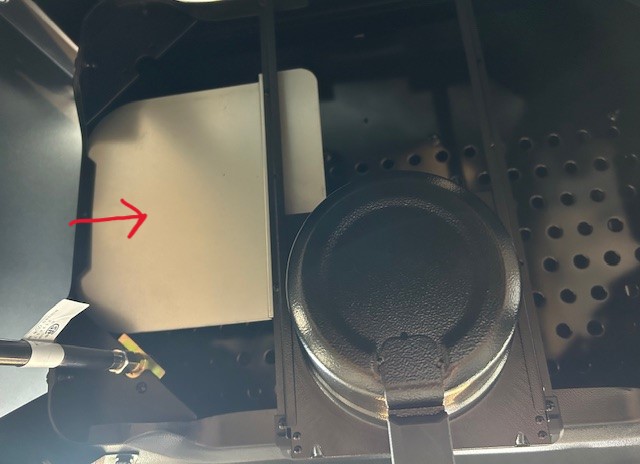

The heat shield is located underneath the griddle next to the grease keg

Applicable SKUs

• FTK0127

Heat Shield Replacement Steps

1. Turn burner knobs to OFF, close the propane tank, and disconnect the regulator.

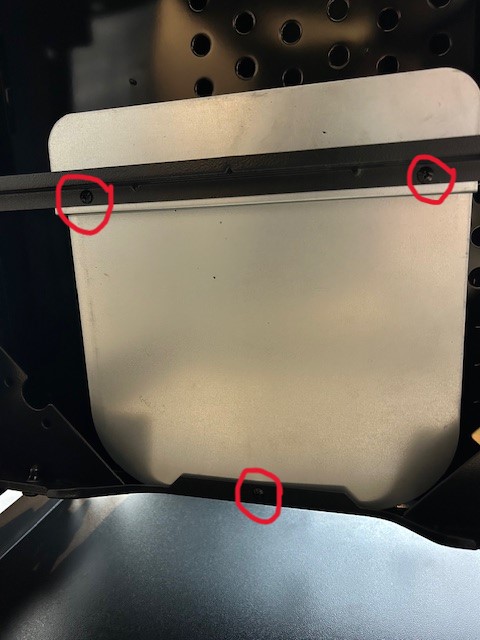

2. Using a Phillips screwdriver, remove the x3 screws holding the heat shield in place (2 screws on the grease keg rail side, 1 screw on the opposite side).

3. Remove the old heat shield and replace with the new heat shield.
4. Replace the x3 screws.
