Propane Tank Retainer Replacement - Flatrock 2-Zone

How to replace the propane tank retainer on a Flatrock 2 Zone Grill.

Applicable SKUs

• FTK0121

Replacement Steps

1. Turn burner knobs to OFF, close the propane tank, and disconnect the regulator.
2. Remove the propane tank and set it aside.

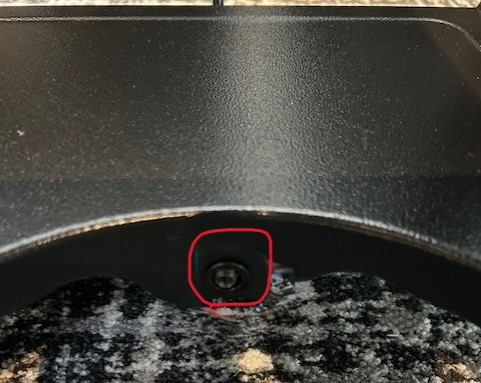

3. Remove the x1 screw and washer on the inside of the cutout in the bottom shelf.

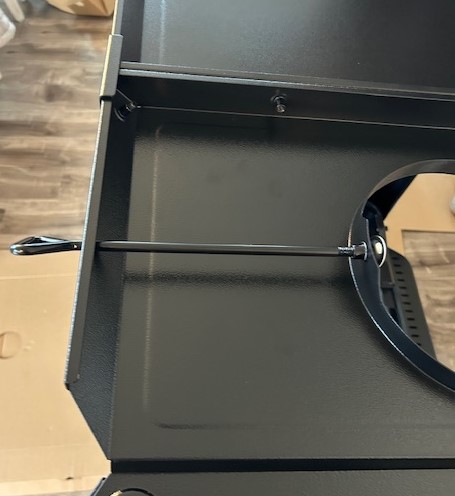

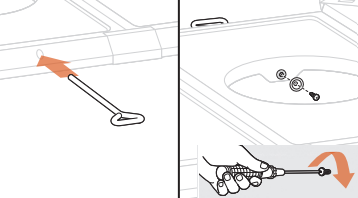

4. Slide the old propane tank retainer out.
5. Slide the new tank retainer in and replace the x1 screw and washer.

6. Replace the propane tank and reconnect the regulator.
