How to replace the bottom shelf on the Flatrock 2 Zone grill.
Applicable SKUs
- Bottom Shelf: FTK0114
- Bottom Shelf Bracket: FTK0122
Replacement Steps
- Turn burner knobs to OFF, close the propane tank, and disconnect the regulator.
- Remove the propane tank and set it aside.
- Open the lid and remove the cooktop.
- Remove grease keg.

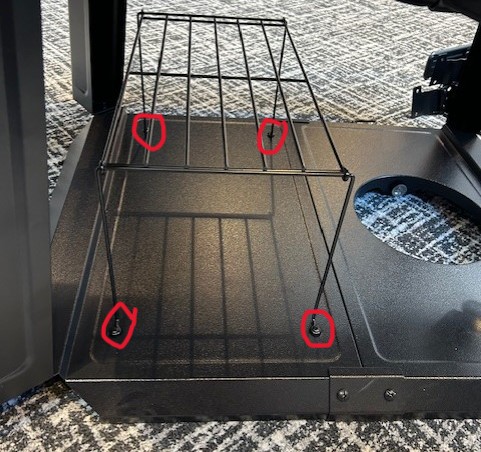

- Remove the wire shelf by removing the x4 screws.
- With the help of another person, rotate the grill upside down.
- To prevent scratches on the lid, put a blanket or cardboard down.

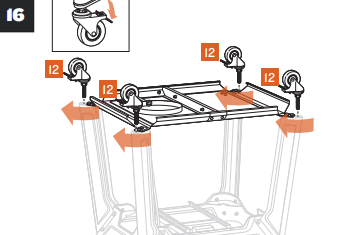

- Remove the x4 caster wheels by turning them counterclockwise until they come out (lock the caster wheel prior to spinning them).

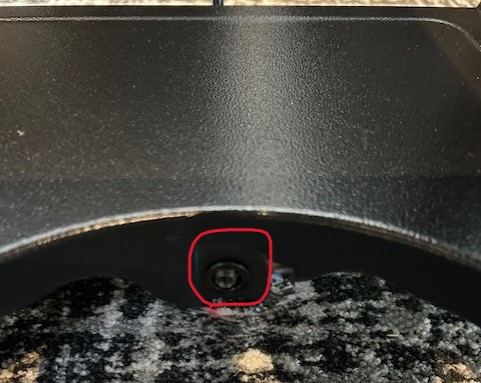

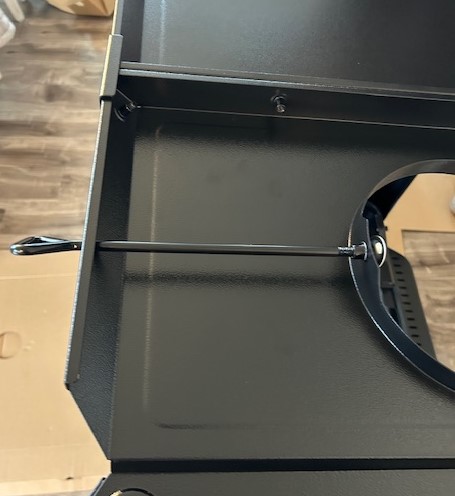

- Remove the propane tank retainer by removing the x1 screw and washer and sliding the retainer out.

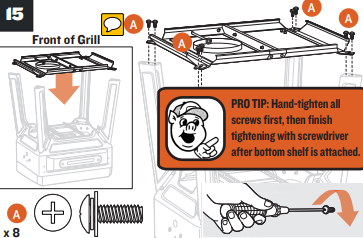

- Remove the x8 screws and washers (2 on each leg) that hold the bottom shelf to the legs.
- Pull the bottom shelf off.
- Place the new shelf on the legs and line up the screw holes.
- Replace the x8 screws and washers (2 on each leg).
- Replace the x4 caster wheels by turning them clockwise until they are fully in (lock the caster wheel before doing this).
- Replace the propane tank retainer by sliding it in and replacing the x1 screw and washer.
- With the help of another person, turn the grill upright.
- Replace the wire shelf by using the x4 screws.
- Replace the cooktop and the grease keg.
- Replace the propane tank.
- Reattach the regulator hose to the propane tank.
