Steps to replace a side shelf, side shelf brackets and the side shelf P.A.L rails on a flat top grill.
Flat Top Grill Side Shelf SKUs
| PART | Grill SKU TF3CN59AU | Grill SKU TF3CN59AN | CONTENTS | |
| Bracket | Front-Right; Back-Left | FTK0030 | FTK0076 | x1 bracket, Hardware |
| Front-Left; Back-Right | FTK0042 | FTK0078 | x1 bracket, Hardware | |
| Shelves | Left | FTK0010 |
FTK0010 FTK0088; OOS |
Shelf only |
| Right | FTK0029 |
FTK0029 FTK0093; OOS |
Shelf only | |
| P.A.L Rails | Front Left | FTK0020 |
FTK0020 FTK0090; OOS |
Rail, Hardware |
| Front Right | FTK0011 |
FTK0011 FTK0089; OOS |
Rail, Hardware | |
| Left Side | FTK0024 |
FTK0024 FTK0092; OOS |
Rail, Hardware | |
| Right Side | FTK0022 |
FTK0022 FTK0091; OOS |
Rail, Hardware | |
Replacing Side Shelves & Brackets on Traeger Flat Top Grills
TOOLS NEEDED:
Phillip's-head Screwdriver
1/2" - 3/8" Wrench (if replacing P.A.L Rail too)
REPLACEMENT STEPS
- Move all control knobs are in the OFF position. Unplug the grill from power, close the propane tank valve, and disconnect the regulator from the propane tank.
- Fold down the shelf.
- Remove the 4 screws attaching the shelf to the bracket, 2 on front and 2 on back
- With those 4 screws removed the shelf should be able to be separated from the grill, leaving the bracket attached.
- Replace the brackets (skip if only replacing the shelf).
- Remove the 2 screws from the front bracket, and the 2 from the back bracket.

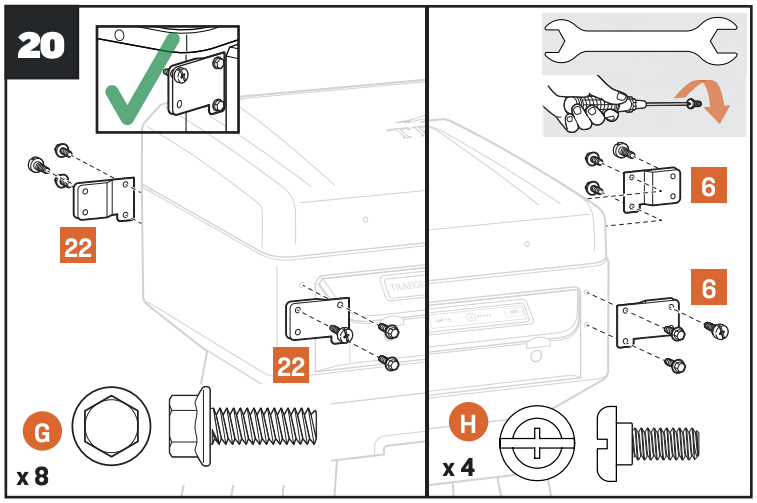

- Install the new brackets.
- With the brackets installed, install the shelf following the steps outlined in the assembly guide.

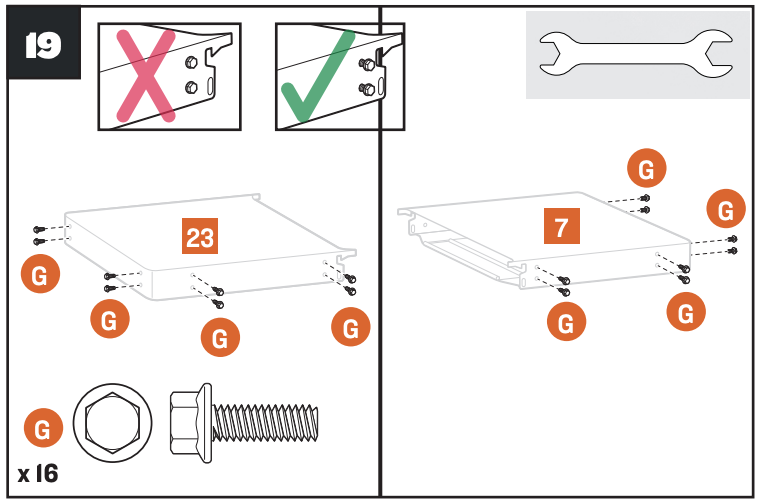

- Partially screw in 8 screws (G) into each of the two side shelves. Do not tighten all the way.

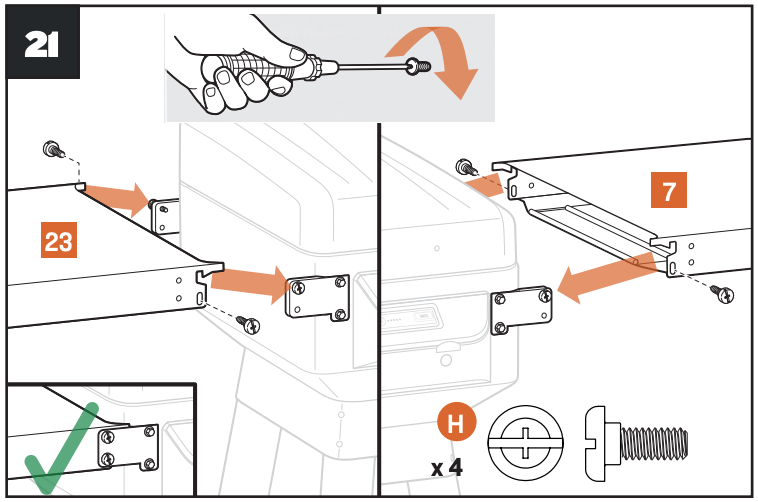

- Insert the two side shelves into the brackets, adding an additional screw once in place.

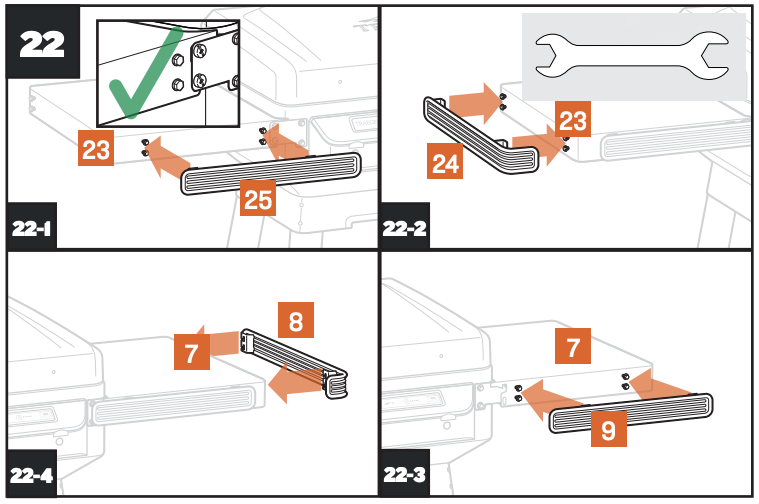

- Install the four P.A.L Rails in the following order: Front-left > Side-left > Side-right > Front-right.
Replacing Side Shelf P.A.L Rails on Traeger Flat Top Grills
TOOLS NEEDED:
1/2" - 3/8" Wrench
REPLACEMENT STEPS
Depending on the placement of the P.A.L rail being replaced, users may need to remove the adjacent rail as well.
- Move all control knobs are in the OFF position. Unplug the grill from power, close the propane tank valve, and disconnect the regulator from the propane tank.
- Loosen the bolts holding the applicable P.A.L rail in place. Once loosened, the P.A.L rail should be able to be lifted off the bolts and away from the shelf.
- If necessary, replace any damaged bolts.
- Place the new PAL rail onto the loosened bolts.
- Tighten bolts, making sure the P.A.L rail remains level.
